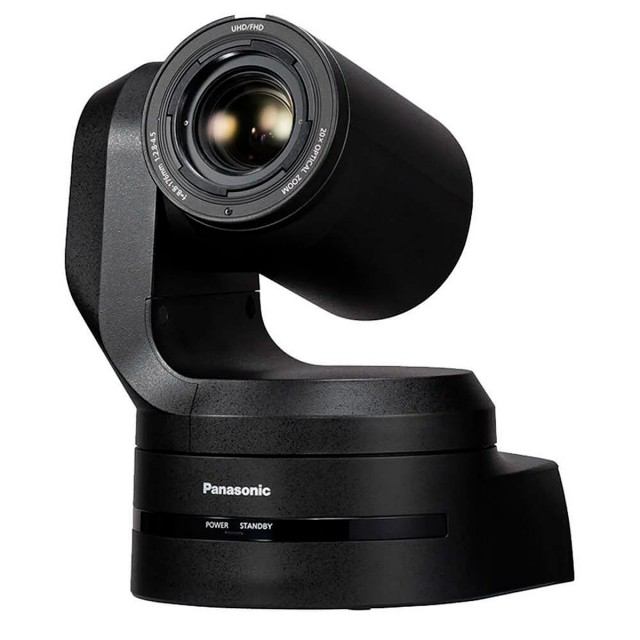

Panasonic AW-HE145 High Sensitivity HD PTZ Camera (Black)

The HD integrated camera AW-HE145 features a 1.0“ MOS sensor with high sensitivity of F9/2000lx, and can shoot at stage events or church services with low light. Furthermore, it is equipped with an optical 20x zoom and horizontal 75.1° wide-angle lens, HDMI and 3G-SDI outputs with 1080p60 support for smooth video even in live sports, RJ-45 LAN connection with RTSP/RTMP streaming and PoE+, mic/line audio input, RS-422 serial control, genlock, built-in 4-stage ND filter (Clear, 1/4, 1/16, and 1/64), an optional NDI|HX license, and an optional Auto-Tracking software upgrade for automatic facial recognition. This IP camera also enables you to control PTZ movements and monitor the output via a Web browser. Available from 10/2021.

More information

10 200 € with VAT 8 500 € without VAT
-+
Availability
14-30 days
Manufacturer
Free transport when purchasing this product
SKU:
AW-HE145KEJ
Add to Compare
Product description

Product description

The HD integrated camera AW-HE145 features a 1.0“ MOS sensor with high sensitivity of F9/2000lx, and can shoot at stage events or church services with low light. Furthermore, it is equipped with an optical 20x zoom and horizontal 75.1° wide-angle lens, HDMI and 3G-SDI outputs with 1080p60 support for smooth video even in live sports, RJ-45 LAN connection with RTSP/RTMP streaming and PoE+, mic/line audio input, RS-422 serial control, genlock, built-in 4-stage ND filter (Clear, 1/4, 1/16, and 1/64), an optional NDI|HX license, and an optional Auto-Tracking software upgrade for automatic facial recognition. This IP camera also enables you to control PTZ movements and monitor the output via a Web browser. Available from 10/2021.

It also features SRT support for stable video transmission over public lines. SRT, a next-generation video transmission protocol with strong security, is suitable for unstable network environments. The Night Mode facilitates shooting even in low-light environments incl. concert halls, conference room, house of worship, or education locations.

High sensitivity 1“ MOS sensor (horizontal resolution 1000 TV lines, gain 0-36 dB, S/N 60 dB)
Optical 20x AF/MF wide-angle zoom lens, 10x digital zoom
Focal length 8.8 - 176 mm (24.5 to 490 mm 35mm eq.), f/2.8 - 4.5, horizontal FOV up to 75.1°
H.265/H.264/M-JPEG video compression, AAC-LC audio compression
High Dynamic Range function (HDR)
Supports SRT, a next-gen video transmission protocol with strong security
175° panning range, -30 to 90° tilt range, smooth and accurate operation
Enables high-quality video production even in dark environments
Stereo analog audio input (3.5 mm mic/line In)
1080p60 3G-SDI, HDMI, and IP video outputs
Power: 1x 4-Pin XLR (12 VDC), PoE+
Remote control via a Web browser or a compatible HW controller incl. Panasonic AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, and AK-HRP250GJ
IP Streaming at H.264, H.265, M-JPEG, RTP, RTSP, TCP, UDP: 1080p, 720p, 480p, 360p at 24p, 25p, 30p, 50p, 60p (0.5 - 24.00 Mb/s)
Dimensions 267 x 219 x 213 mm, weight 4.1 kg

Parameters

Parameters

Manufacturer: Panasonic
Category: PTZ

Main parameters

ResolutionFull HD
Zoom20x
Retrieved fromHDMI
Retrieved from3G SDI
Retrieved fromIP

Other parameters

VersionPTZ
Lens lens aperture2.8f
Min. focal length8.8mm
Max. focal length176mm
Other featuresPTZ
Other featuresStreaming
Other featuresTally
Other featuresPoE
Other featuresHDR
Other featuresND filter
Control protocolRS-422
