Manfrotto Virtual reality adjustable dolly
SKU: MDOLLYVR
The Manfrotto MDOLLYVR is an adjustable aluminium dolly for repositioning compatible light to medium-weight tripods in VR and 360° photography. Its footprint adjusts from 78 to 114 cm, while 76 mm wheels and individual safety locks provide mobile and stationary support modes. The dolly weighs 3.15 kg and supports up to 10 kg on its own; the manufacturer's…
243 € with VAT
200.83 € without VAT
Availability
on request
Top accessories for Manfrotto Virtual reality adjustable dolly
Manfrotto MBOOMCFVR-M – 62.5–200 cm Carbon VR Boom
Promotion: -7%
The Manfrotto MBOOMCFVR-M is a four-section carbon boom for 360° equipment, extending
240.34 €
257.36 €
2 pcs in stock at the supplier
Manfrotto MTCFVR – 3-section carbon tripod for 360° and VR
The Manfrotto MTCFVR is a professional three-section carbon fiber tripod designed
519 €
on request
Manfrotto MTALUVR – 4-section aluminium tripod for 360° and VR
The Manfrotto MTALUVR is a professional four-section aluminum tripod designed for
303 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

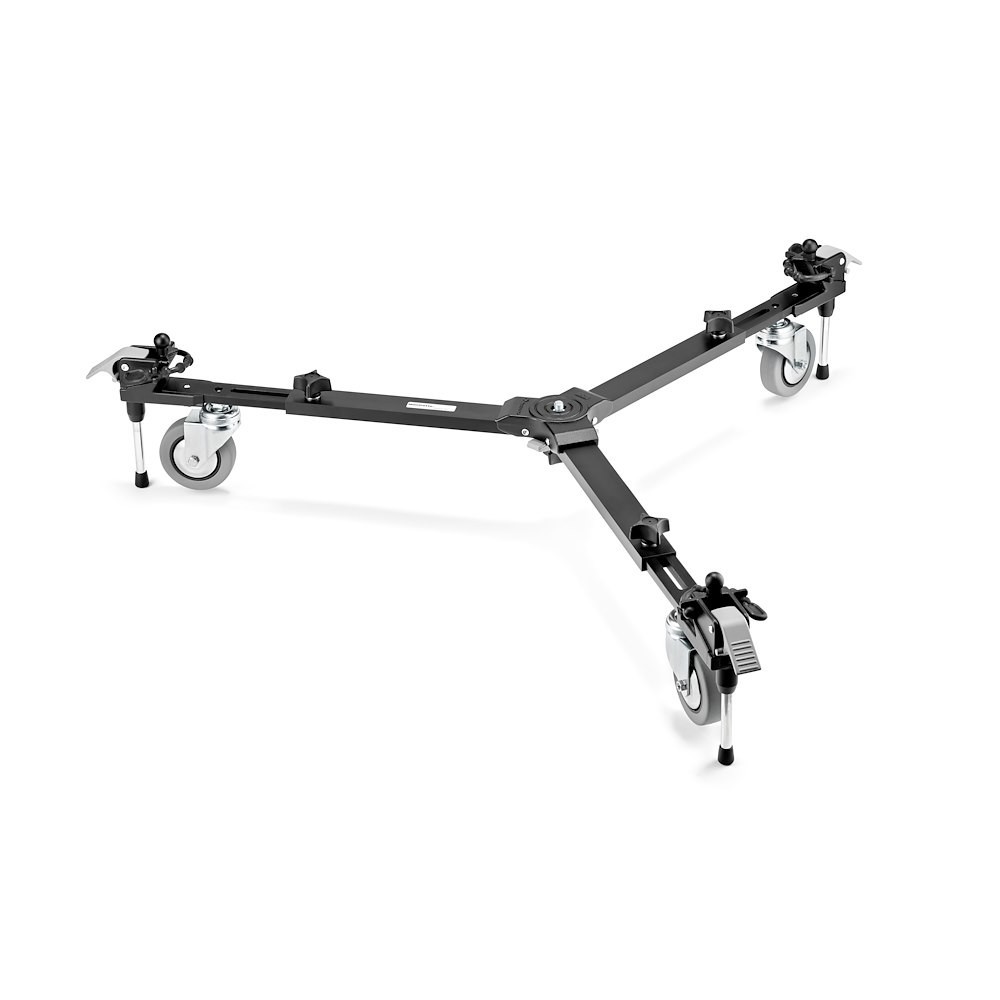

The Manfrotto MDOLLYVR is an adjustable aluminium dolly for repositioning compatible light to medium-weight tripods in VR and 360° photography. Its footprint adjusts from 78 to 114 cm, while 76 mm wheels and individual safety locks provide mobile and stationary support modes. The dolly weighs 3.15 kg and supports up to 10 kg on its own; the manufacturer's tripod-and-pole VR assembly is separately limited to 2 kg and 400 cm overall height.

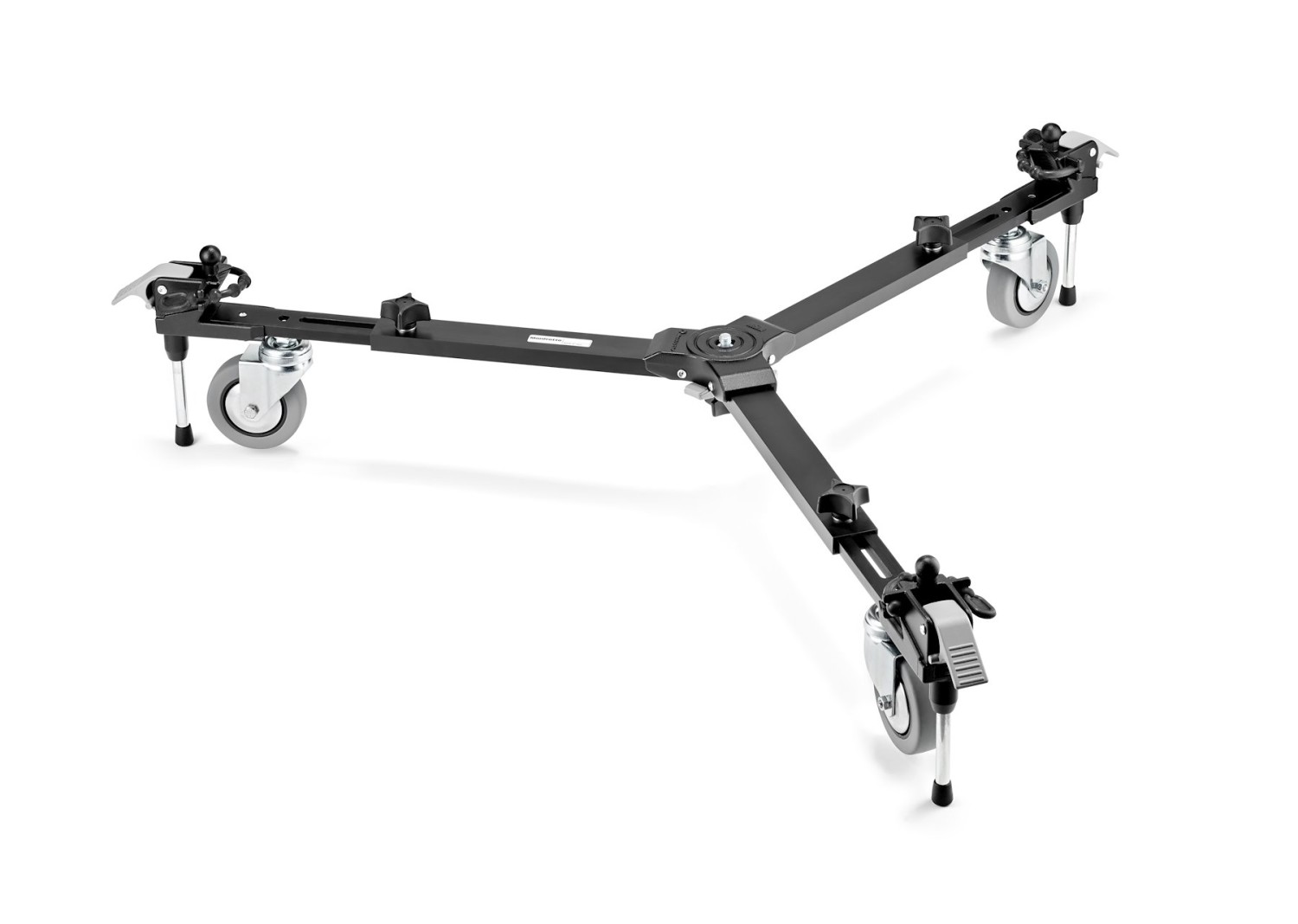

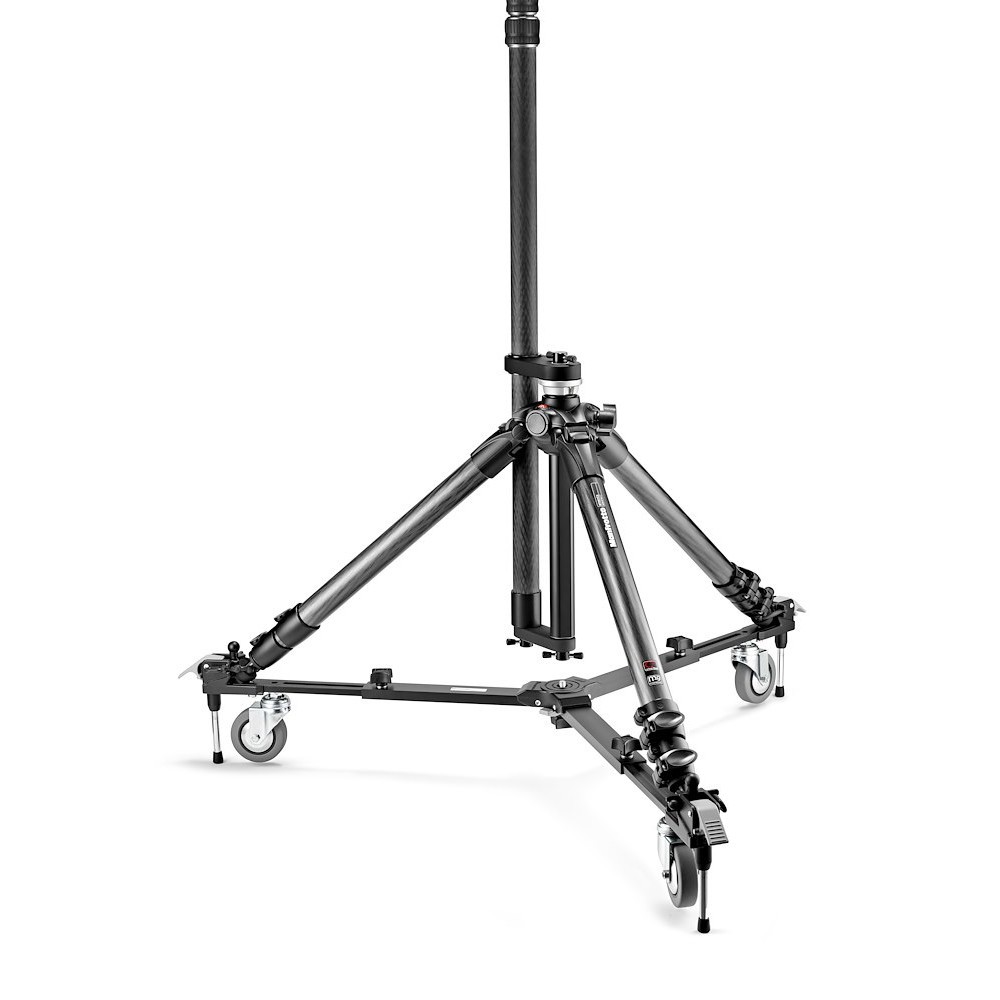

A mobile base for VR setups
Manfrotto MDOLLYVR lets you reposition a compatible tripod for VR and 360° capture. Its adjustable footprint and 76 mm wheels combine mobility with a stationary support mode.
78–114 cm76 mm wheels3.15 kg
Move, then park securely
The 76 mm wheels make it easier to reposition the setup. Each wheel has a safety lock that raises it clear of the ground so the dolly rests on its dedicated feet for stationary capture. Use the base on firm, level ground suitable for the setup.
Tripod, pole and imaging equipment shown in the workflow are not included.

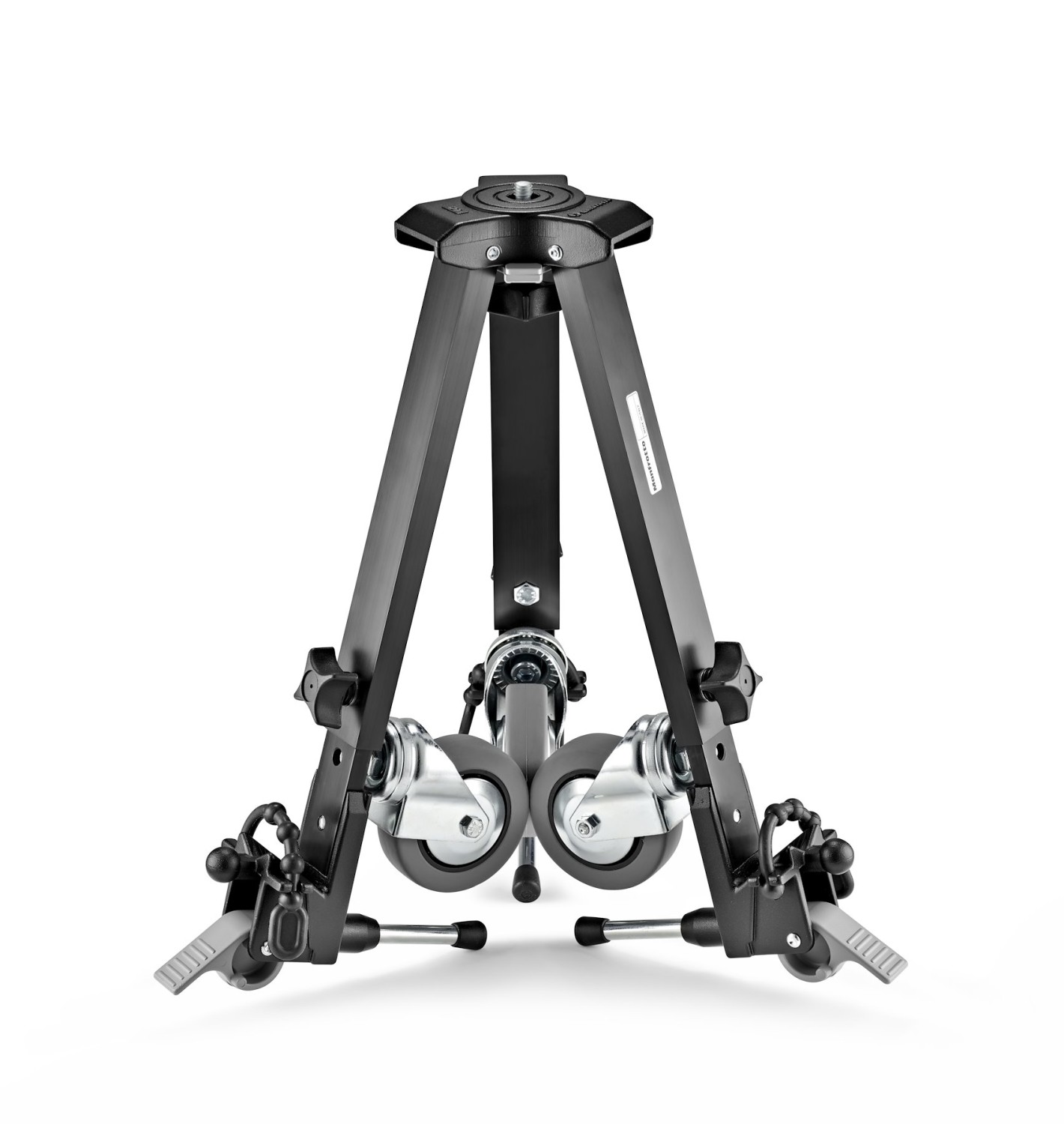

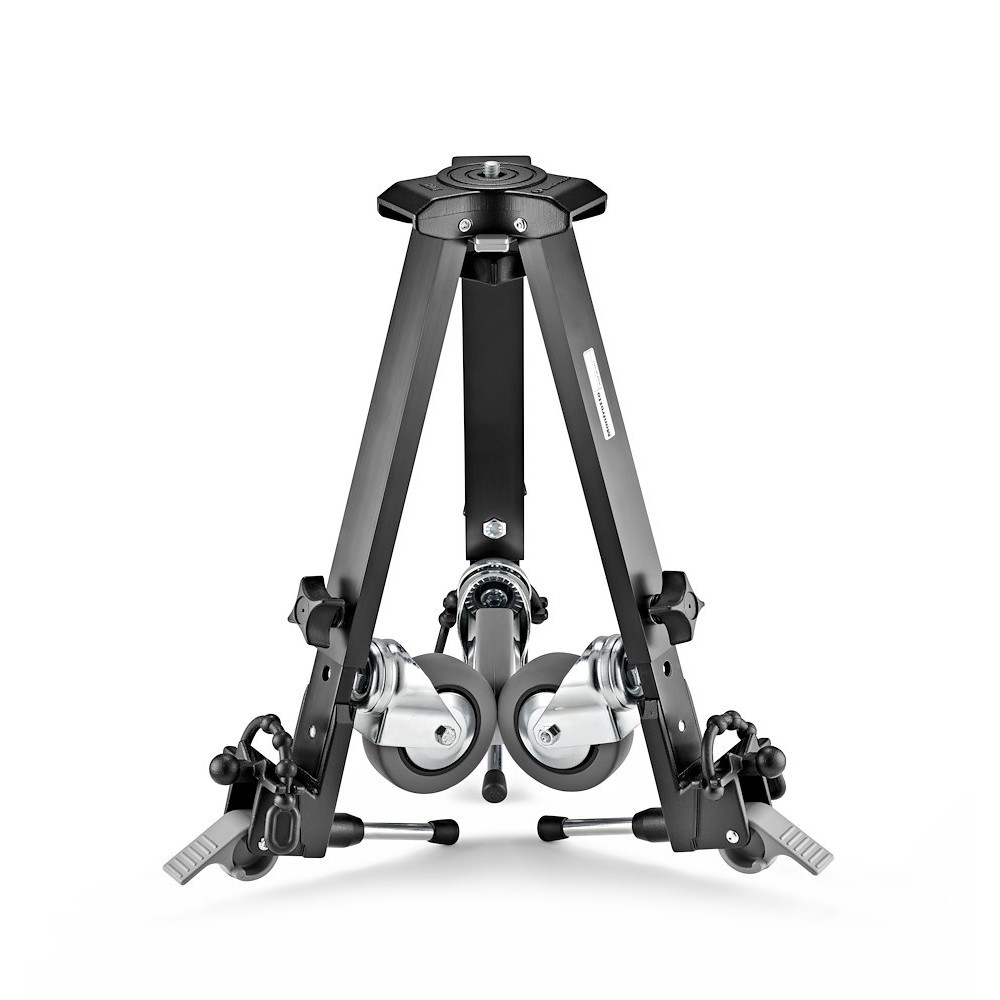

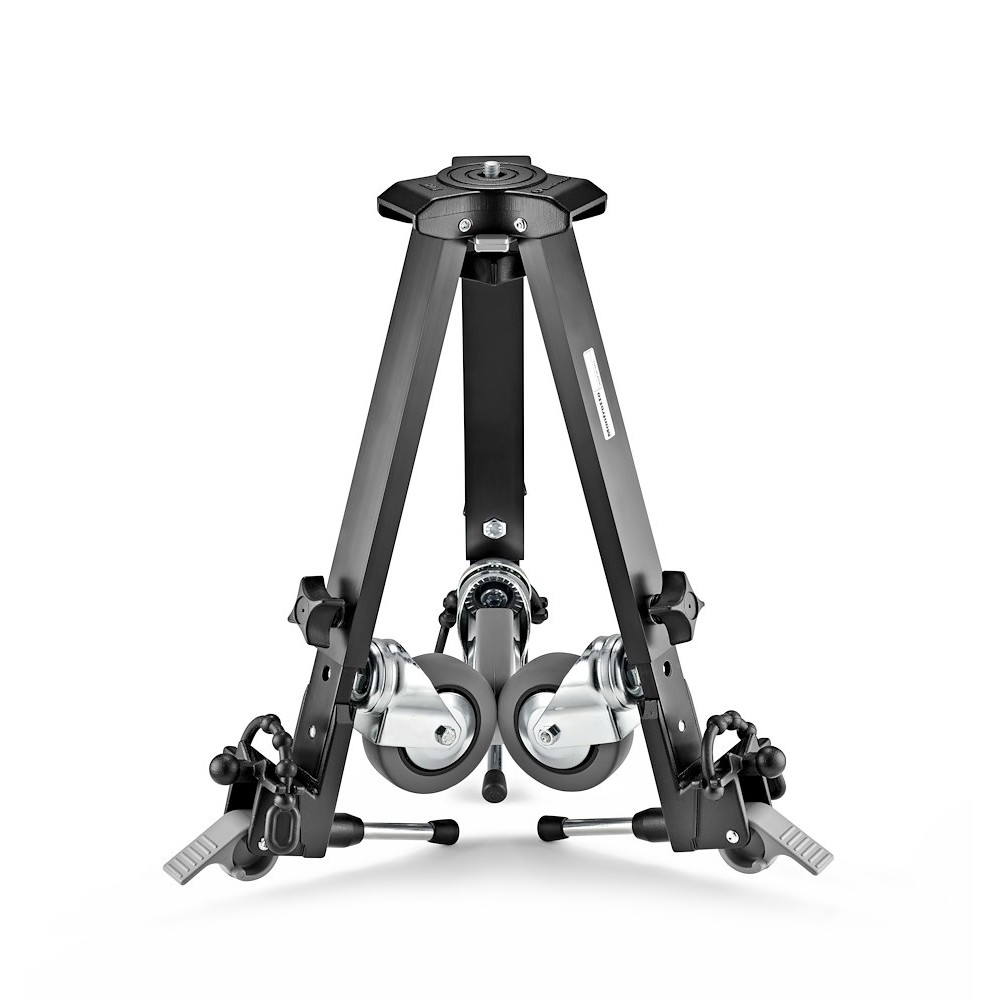

Fold for storage
The folded view shows how the dolly's arms can be brought together between uses. Folding makes the base easier to store and handle without leaving it spread across the working area.

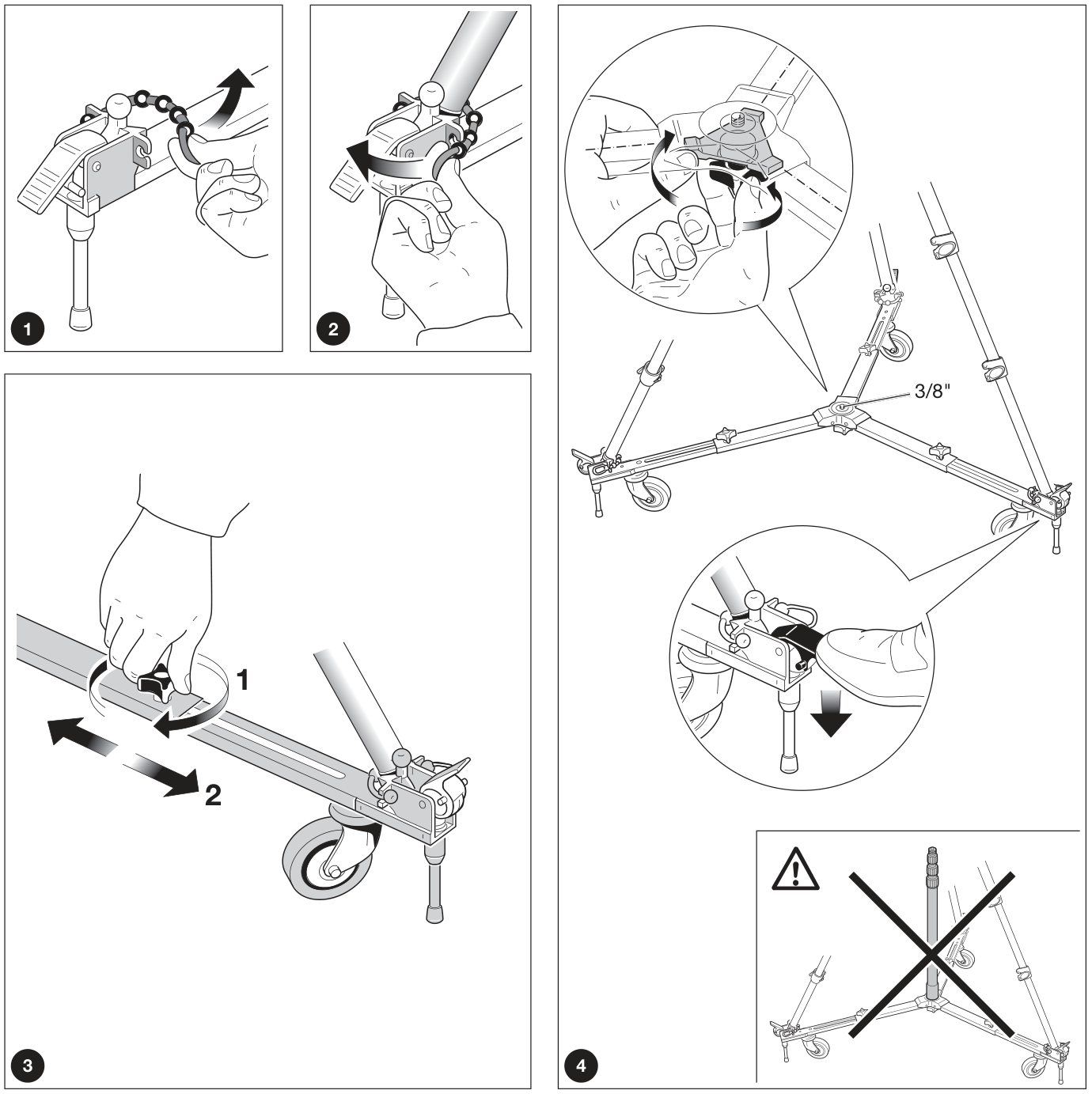

Set up and park correctly

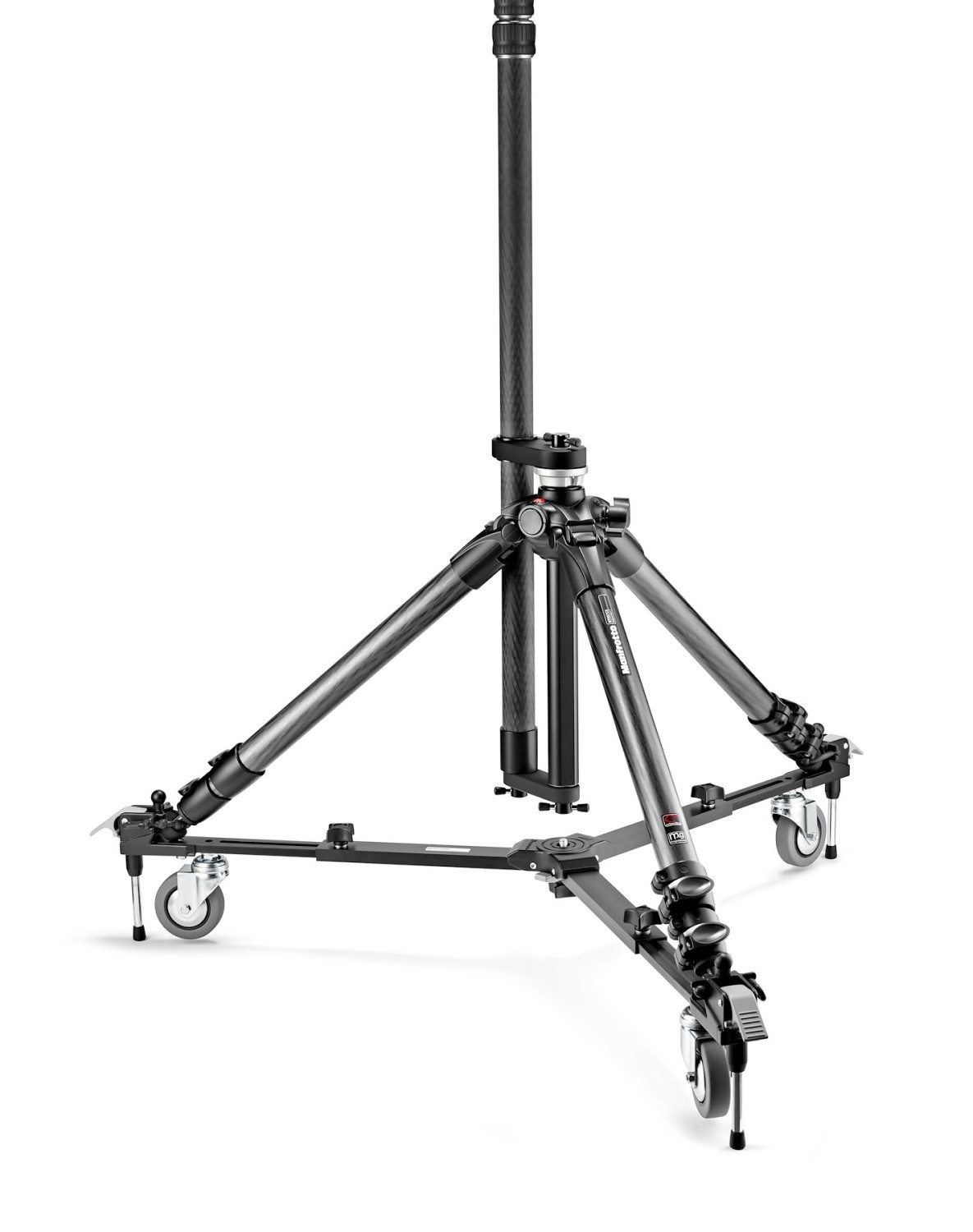

- Figures 1–2: position the tripod feet in their holders and secure them with the retaining chains.
- Figure 3: release the arm adjustment, select the footprint and retighten it.
- Figure 4: use the parking feet to support the stationary setup; the central connection is marked 3/8″.
- The crossed-out arrangement warns against a pole mounted alone: use the pole with the tripod.

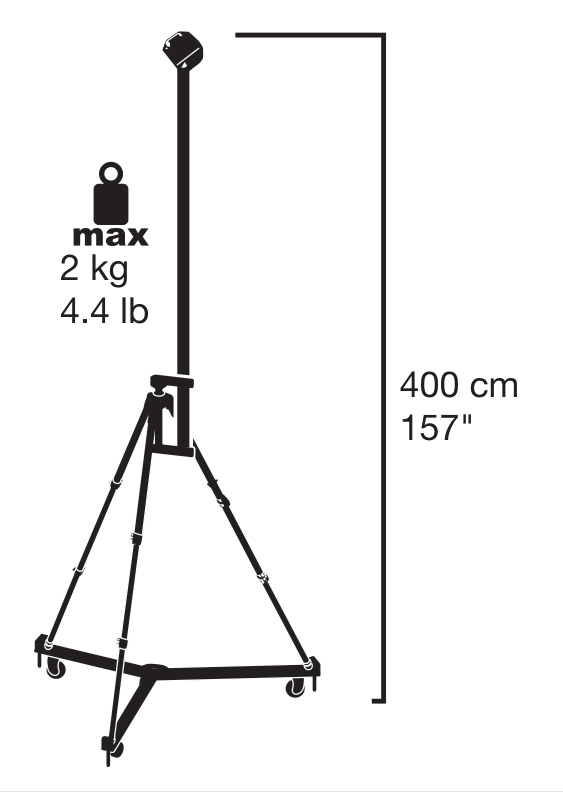

Respect the complete assembly limits

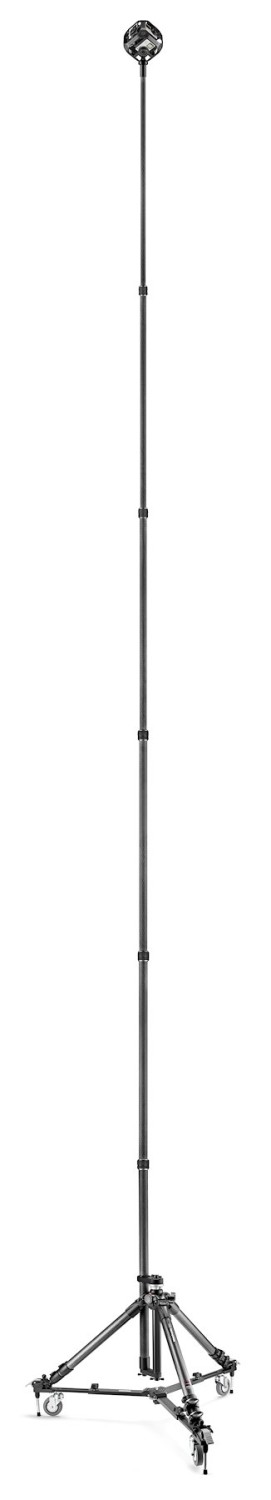

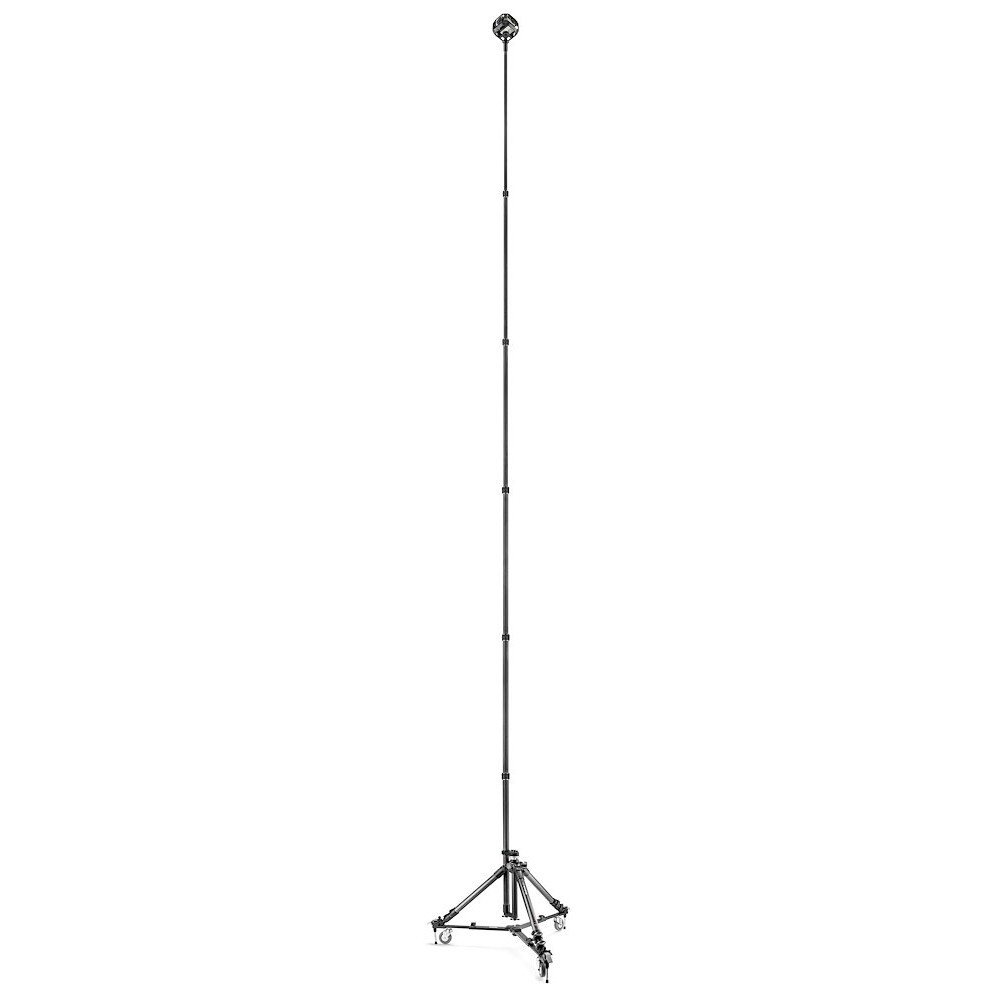

The dolly's own 10 kg load rating is not the load limit of a tall VR assembly. For the tripod-and-boom configuration shown in the MDOLLYVR instructions, the manufacturer specifies a maximum 2 kg load and 400 cm overall height. Secure the tripod before adding the load, balance the setup and lower the load before moving it. Follow the manual and use firm, level ground with an incline below 5°. Do not use ground where the feet can sink. Use the pole only together with a tripod.
PACKAGE CONTENT
- Manfrotto MDOLLYVR adjustable dolly ×1
SPECIFICATIONS
- Model: MDOLLYVR
- Material: Aluminium
- Dolly weight: 3.15 kg
- Dolly-only load rating: 10 kg
- Adjustable footprint: 78–114 cm
- Nominal accessory diameter: 82 cm (manufacturer/distributor table; measurement position unspecified)
- Wheel diameter: 76 mm
- Stationary support: Safety locks raise wheels; dolly rests on dedicated feet
- VR assembly load limit: 2 kg, with tripod and pole as shown in the manual
- VR assembly maximum height: 400 cm, complete tripod-and-pole configuration
- Compatible system: Light to medium-weight tripods; Manfrotto VR Big Carbon Fiber Base
- Package quantity: 1 dolly
Parameters
Parameters
| Manufacturer: | Manfrotto |
| Category: | Tripods - accessories |
Main parameters
| External thread | 3/8″ |
| Color | Black |
| Material | Aluminium |
| Top attachment | 3/8″ male screw |
| Compatibility | Manfrotto MTALUVR · Manfrotto MTCFVR · Manfrotto MBOOMCFVR-M |
| Product weight | 3150g |
| Quantity in package | 1ks |
| Minimum dolly footprint | 780mm |
| Maximum dolly footprint | 1140mm |
| Wheel diameter | 76mm |
| Wheel locking | Yes |
| Foldable construction | Yes |
| Maximum height with tripod and extension pole | 400cm |
| Payload with extension pole | 2kg |
| Number of wheels | 3ks |
| Tripod payload | 10kg |
