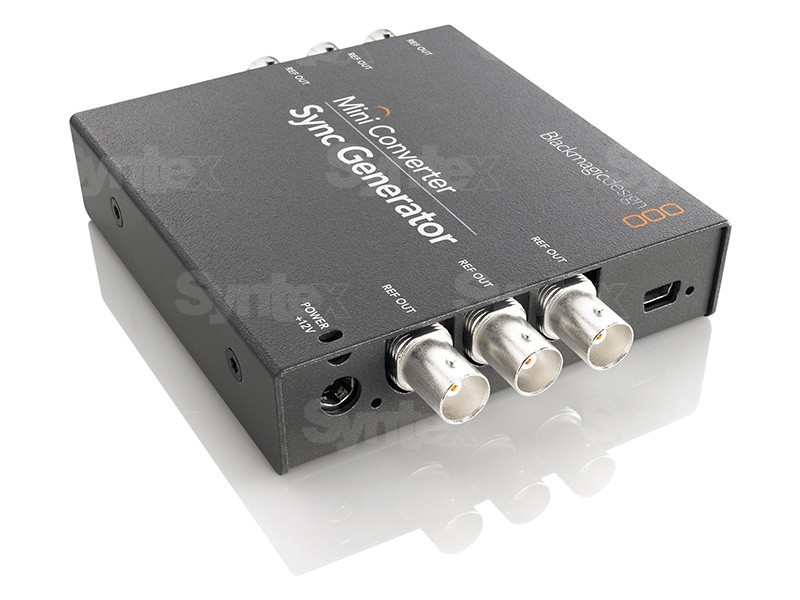

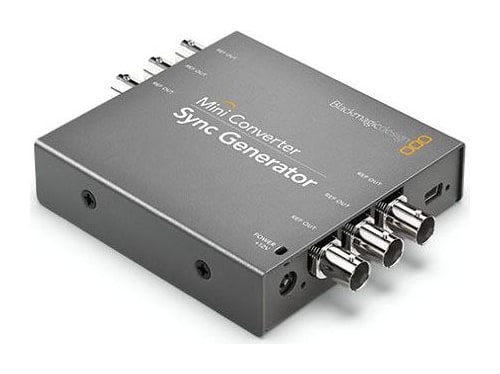

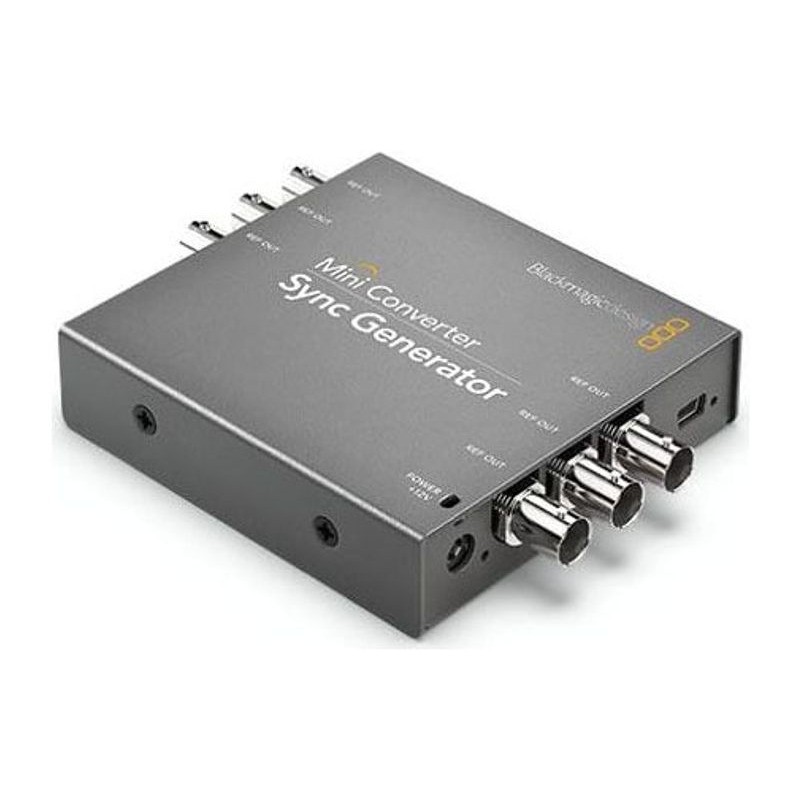

Blackmagic Design Mini Converter Sync Generator
SKU: CONVMSYNC
The Mini Converter Sync Generator is a reference generator with six crystal-stabilized reference outputs. It makes it easy to synchronize the video equipment in your studio using the Tri-Sync (HD) or Blackburst (SD) standards. An ideal device for smaller studios or work in the field, with a universal 12 V power supply included.
258 € with VAT
213.22 € without VAT
Availability
on request
Top accessories for Blackmagic Design Mini Converter Sync Generator
Infinitek L-3C2VS 1m FLEX HD-SDI cable BNC-BNC YEL
Canare L-3C2VS YEL BNC (M-male) / BNC (M-male) 1m
12 €
In stock 3 pcs
Infinitek L-3C2VS 10m FLEX HD-SDI cable BNC-BNC YEL
Canare L-3C2VS YEL BNC (M-male) / BNC (M-male) 10m
28 €
To be sent 3 pcs
Blackmagic Design Power Supply - Mini Converters 12V12W Locking
Power supply 12 V / 12 W for the converters of the Blackmagic Mini Converters range
31 €
In stock 1 pcs
Infinitek L-3C2VS 3m FLEX HD-SDI cable BNC-BNC YEL
Canare L-3C2VS YEL BNC (M-male) / BNC (M-male) 3m
16 €
To be sent 1 pcs
Blackmagic Design Power Supply - Converters 12V10W
Power supply 12 V / 10 W for the converters of the Blackmagic Mini Converters range
69 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Mini Converter Sync Generator is a reference generator with six crystal-stabilized reference outputs. It makes it easy to synchronize the video equipment in your studio using the Tri-Sync (HD) or Blackburst (SD) standards. An ideal device for smaller studios or work in the field, with a universal 12 V power supply included.
A common reference for the whole studio
Six crystal-stabilized outputs synchronize studio equipment in HD Tri-Sync or SD Blackburst.
6× reference outputTri-SyncBlackburstUSB setupPower supply included
Sync without complex infrastructure
The compact generator suits small control rooms and broadcast trucks; set the format with mini switches or over USB.
Small studios
A common reference for cameras, the switcher and recorders.
Broadcast trucks
The compact generator fits even a small rack.
SD and HD
Blackburst for SD and Tri-Sync for HD formats.
Six outputs
Six devices from one generator without an extra distribution amplifier.

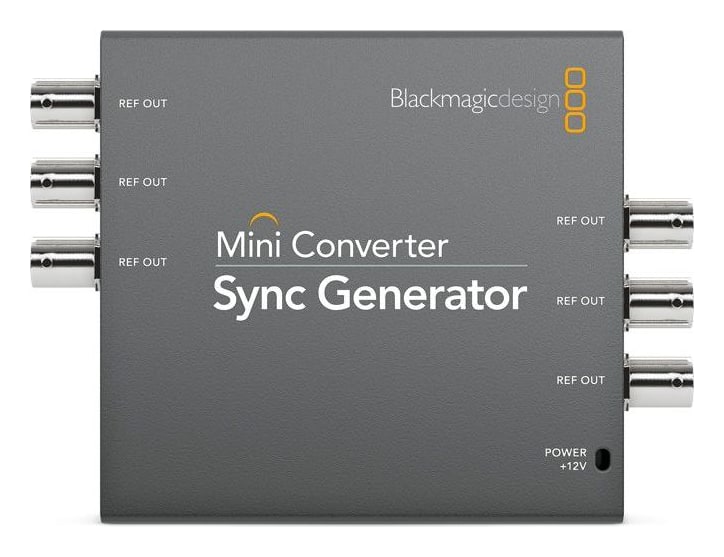

Six reference outputs

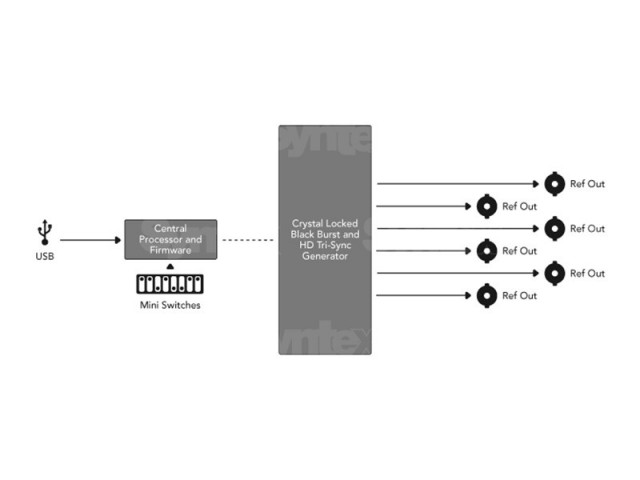

Mini Converter Sync Generator provides six crystal-stabilized reference outputs for synchronizing video equipment. All outputs carry a common Blackburst or Tri-Level signal, so cameras, the switcher and recorders run in exact time.
Blackburst for SD, Tri-Sync for HD
The generator covers NTSC 525i29.97 and PAL 625i50, the formats 720p50 to 720p60, 1080p23.98 to 1080p30, 1080PsF23.98 and 1080PsF24 as well as 1080i50 to 1080i60. That makes it suitable for small control rooms, studios and mobile broadcast workstations.
Setup with mini switches or over USB

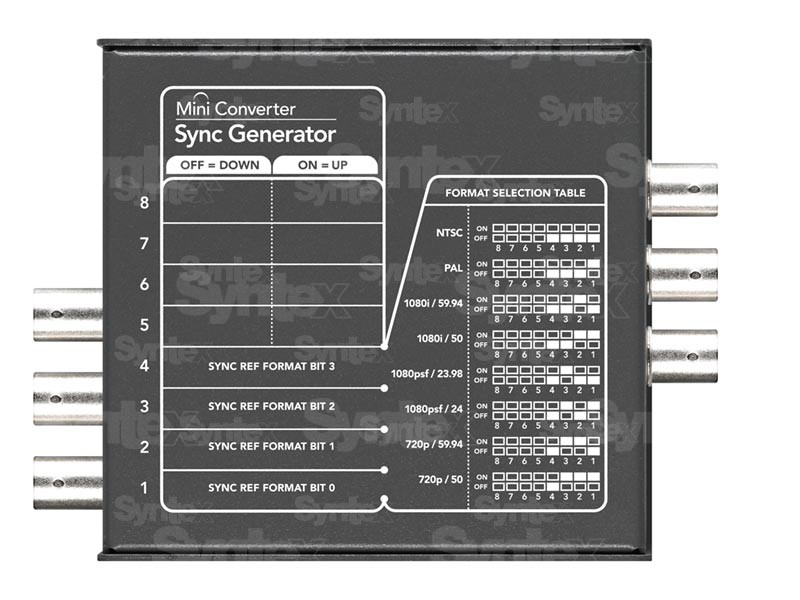

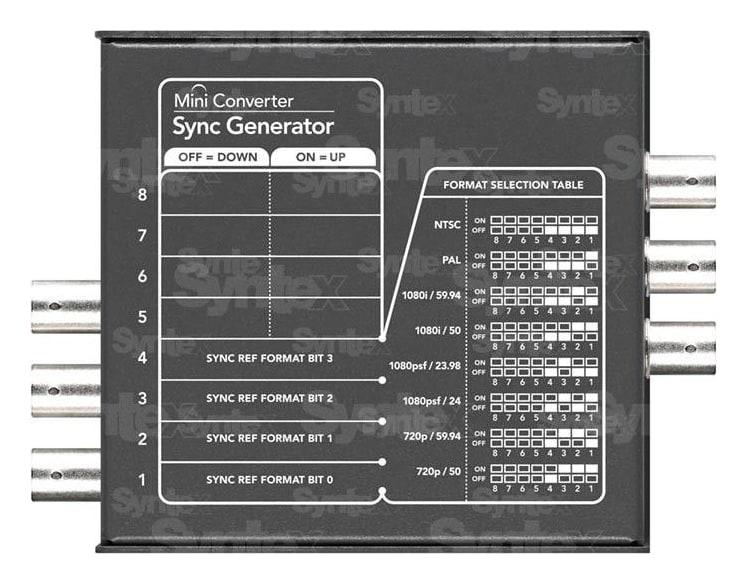

The reference format is selected with mini switches using the diagram printed on the generator. Over USB and the utility for macOS and Windows, settings can be changed from a computer and new software installed.

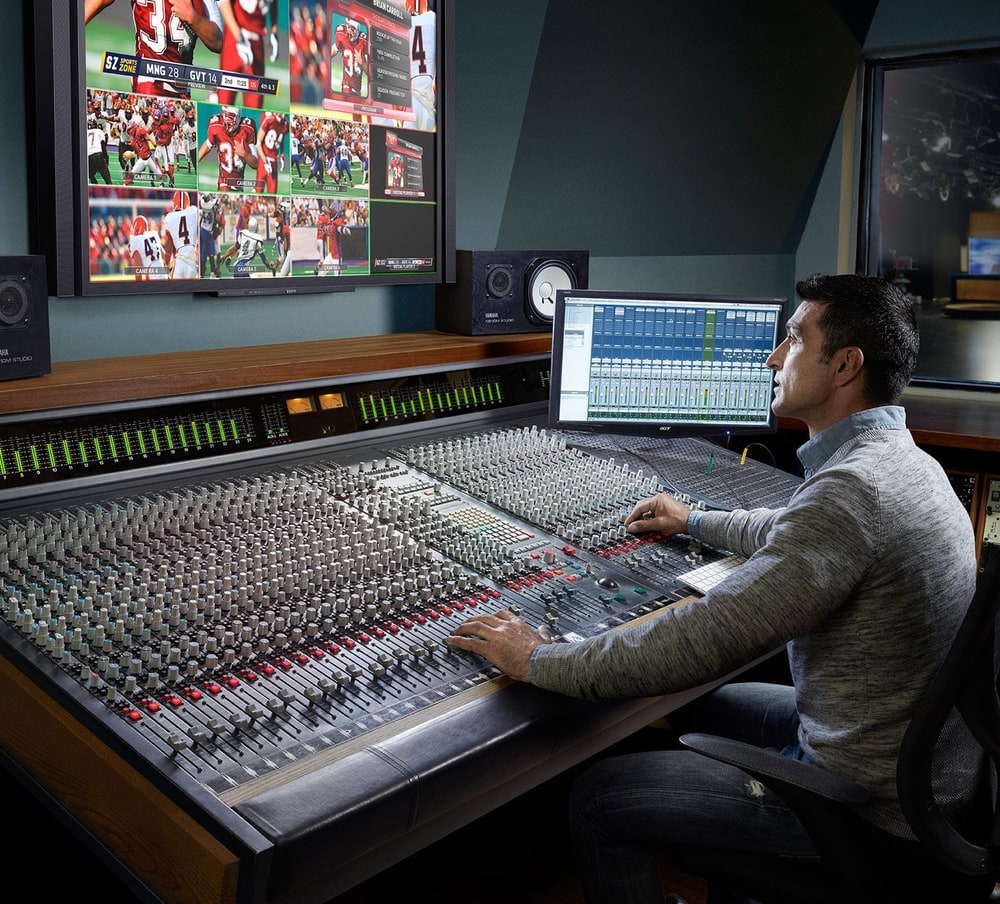

In the rack, in the truck and outdoors
The Mini Converter range of converters is built for 24/7 operation: the compact metal body fits into a studio rack, an outside broadcast truck or a live sports event outdoors. The connections are easy to reach and use standard cables.
Connections

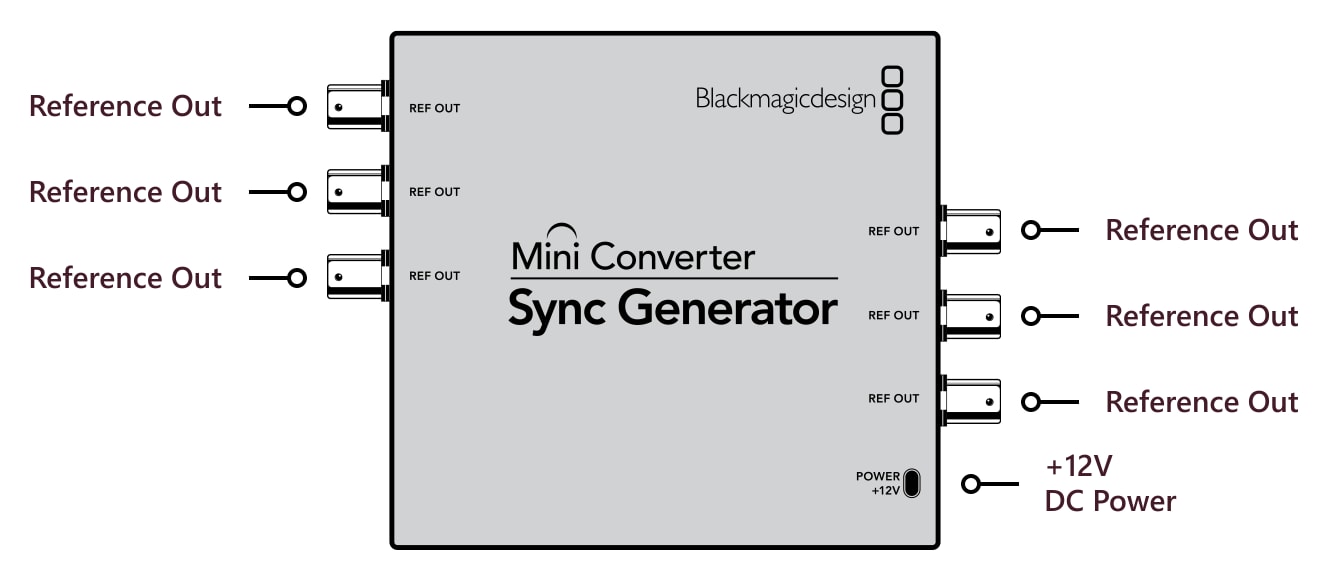

One side has three reference outputs, the other three more reference outputs and the 12 V power input.
More information
About the Mini Converter range
The Mini Converter range is designed for professional broadcast, post-production and AV installations. A compact metal chassis, high-quality connectors and standard cabling make it dependable in studios, control rooms and mobile systems.
Setup is deliberately simple: the format is selected with mini switches and their diagram is printed right on the unit. Configuration and updates are done over USB, so the generator can stay part of the workstation even when the system changes.
The electronics automatically handle supported SD and HD formats and, on SDI models, keep the signal stable along the whole chain. The result is a practical link between older and current equipment without needlessly complex infrastructure.
PACKAGE CONTENT
- Mini Converter Sync Generator
- Universal 12 V power supply with international socket adapters
SPECIFICATIONS
- Reference outputs: 6× Blackburst or Tri-Level (crystal stabilized)
- Supported formats: 525i29.97 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
- SDI rates: 270 Mb/s, 1.5G
- Settings control: mini switches or USB software
- Software updates: via USB from a Mac or Windows computer
- Operating systems: macOS 10.15 Catalina, macOS 11.1 Big Sur or later, Windows 10 (64-bit)
- Power supply: universal 12 V with international socket adapters, cable tie point
- Operating voltage: 12 V DC
- Power consumption: 3.00 W
- Operating temperature: 0 to 40 °C (32 to 104 °F)
- Storage temperature: −20 to 45 °C (−4 to 113 °F)
- Relative humidity: 0–90% non-condensing

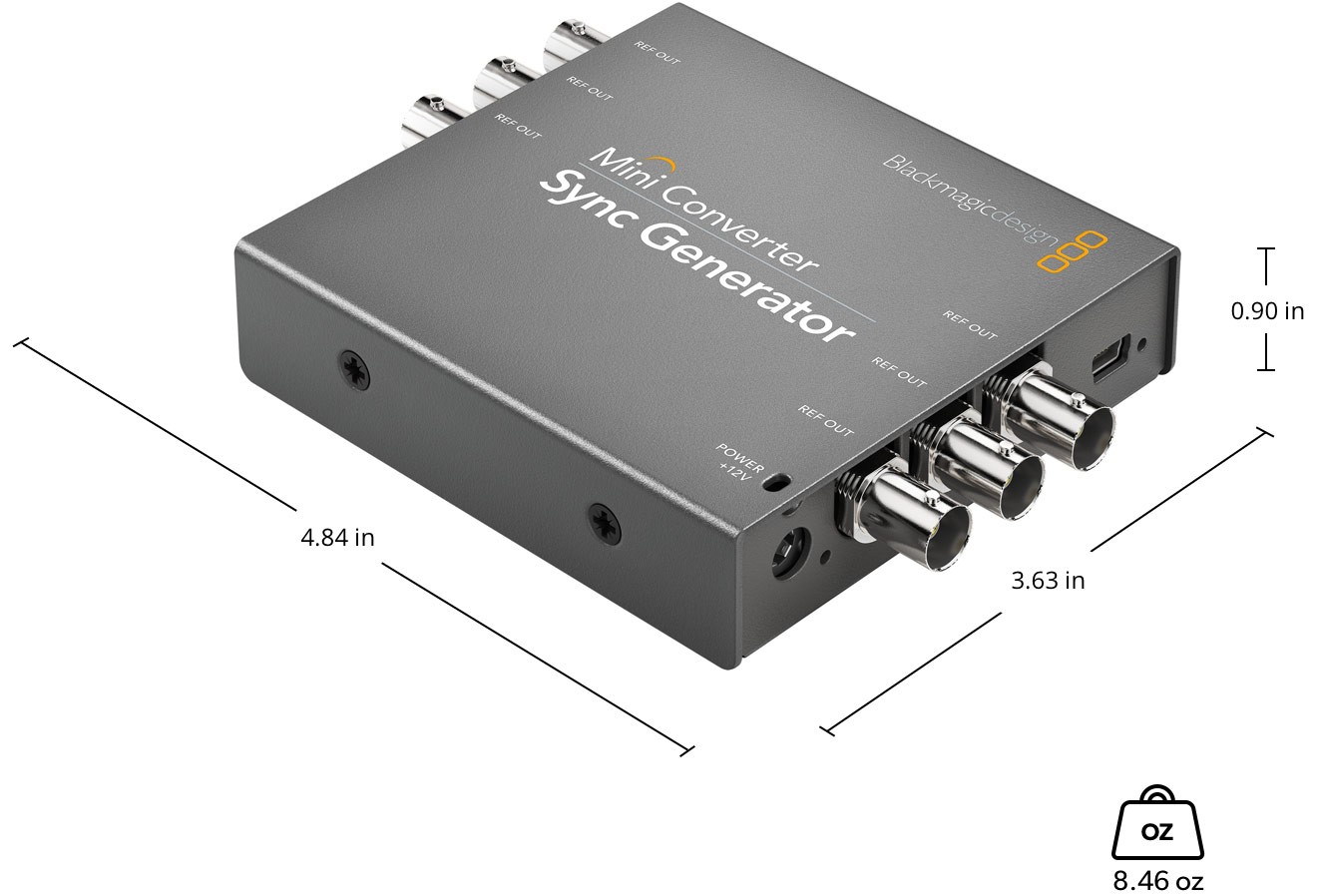

- Dimensions (L × W × H): 4.84 × 3.63 × 0.90 in (123 × 92 × 23 mm)
- Weight: 8.46 oz (240 g)
- Warranty: 3-year limited manufacturer warranty
