Manfrotto Mini Extension Arm

SKU: 203

The Manfrotto 203 Mini Extension Arm is a compact, robust aluminium extension designed to work seamlessly with the Manfrotto Mini Clamp 171. Measuring just 12 cm long and weighing only 150 g, this black-finished arm includes a standard 013 double-ended spigot and provides a secure 5 kg payload capacity, making it ideal for adding extra reach to…

More information

29 € with VAT 23.97 € without VAT
Add to Compare Price history
Availability
on request
SKU:
203
Add to Compare Price history

Top accessories for Manfrotto Mini Extension Arm

Manfrotto 035 Super Clamp 13–55 mm without Stud, with 035WDG Wedge

  • -17 %
Promotion: -17%
The Manfrotto 035 Super Clamp is a professional aluminium-and-steel clamp for tubes,
31.63 €
38.2 €
In stock 4 pcs

Manfrotto 013 – Double-Ended 16 mm Spigot, 1/4″ M and 3/8″ M

  • SHOWROOM PRAHA
Manfrotto 013 is a universal double-ended brass spigot for studio stands, clamps
13 €
In stock 3 pcs

Manfrotto 035C Universal Super Clamp with Ratchet Handle

  • -17 %
Promotion: -17%
The Manfrotto 035C is a professional universal clamp with a repositionable ratchet
33.94 €
41.08 €
In stock 3 pcs

Manfrotto 026 Lite-Tite Swivel Aluminium Umbrella Adapter

The Manfrotto 026 Lite-Tite is a lightweight aluminium swivel adapter that connects
48 €
In stock 2 pcs

Manfrotto 175 – Spring Clamp, 5–40 mm

The Manfrotto 175 is a sturdy spring-loaded studio clamp for quickly attaching backdrops,
26 €
In stock 2 pcs

Manfrotto Mini Clamp

The Manfrotto Mini Clamp 171 is a compact aluminium clamp for studio and location
23 €
5 pcs in stock at the supplier

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Manfrotto 203 Mini Extension Arm is a compact, robust aluminium extension designed to work seamlessly with the Manfrotto Mini Clamp 171. Measuring just 12 cm long and weighing only 150 g, this black-finished arm includes a standard 013 double-ended spigot and provides a secure 5 kg payload capacity, making it ideal for adding extra reach to lights, cameras, monitors or accessories in tight spaces or on small supports.

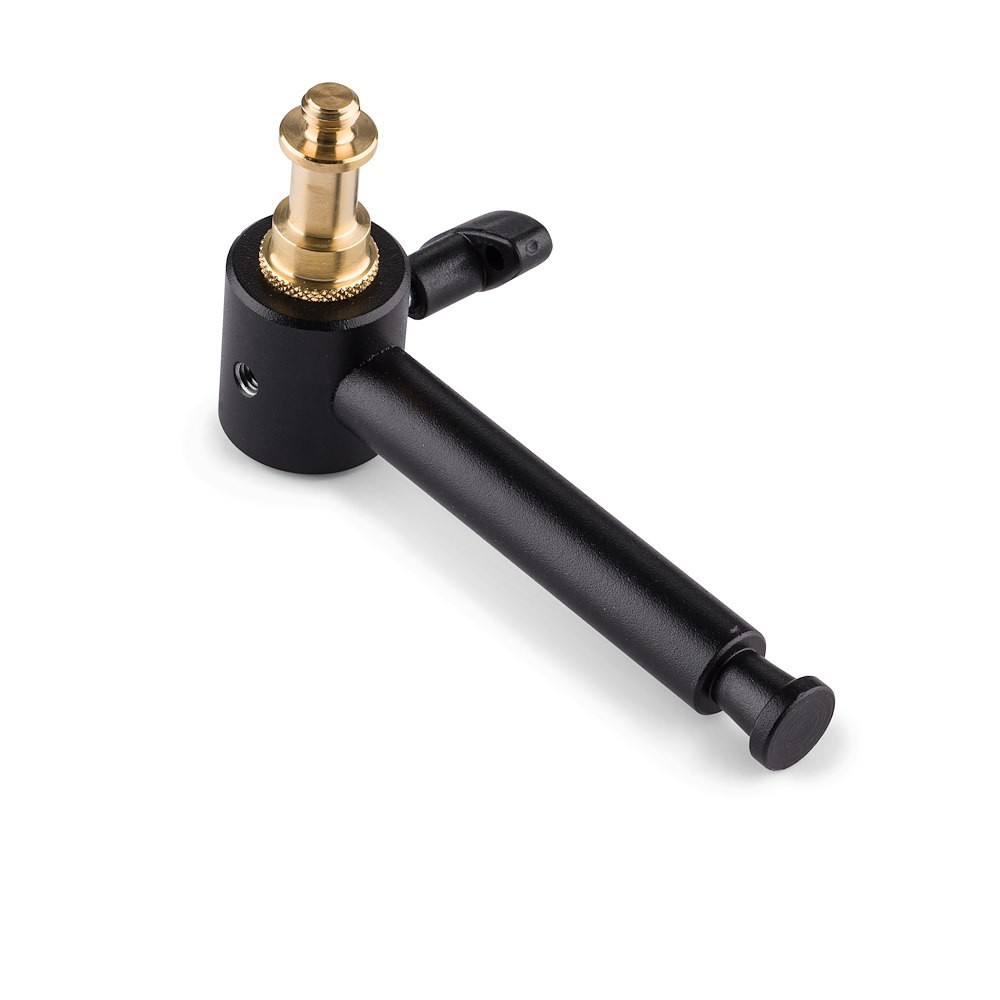

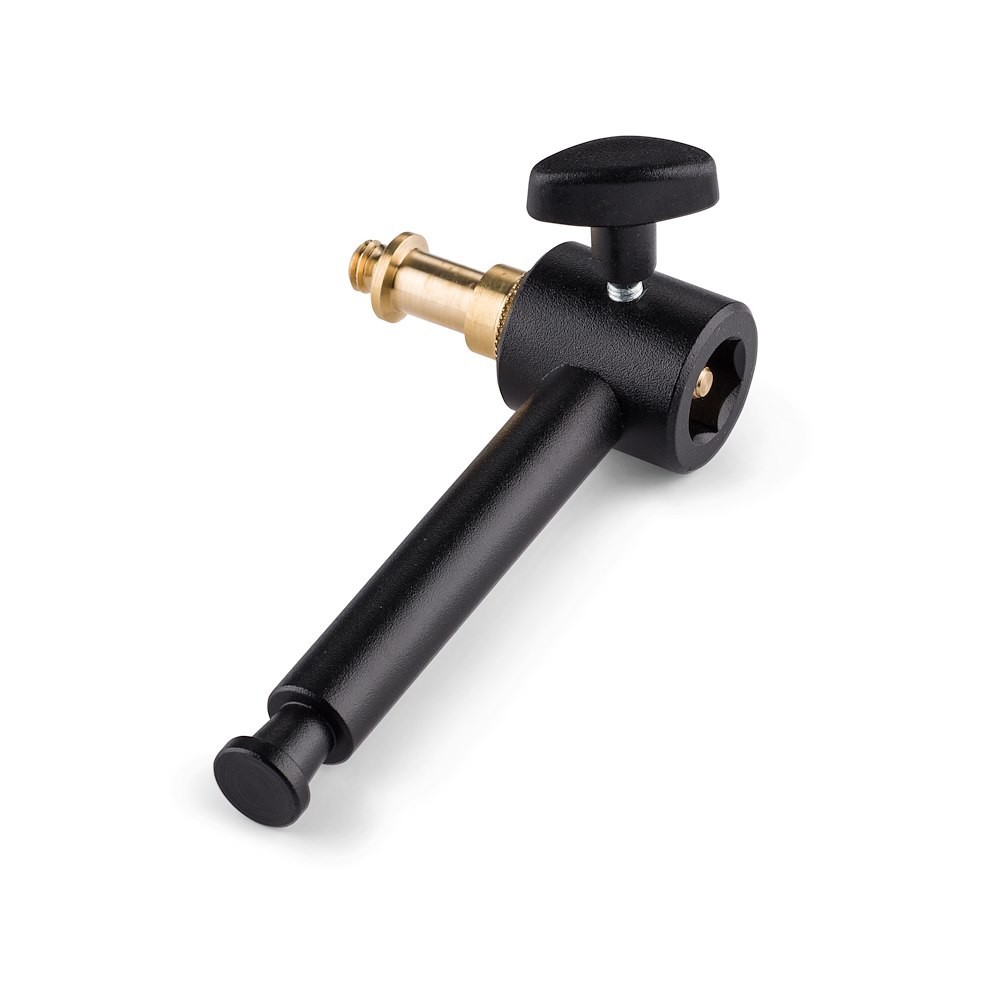

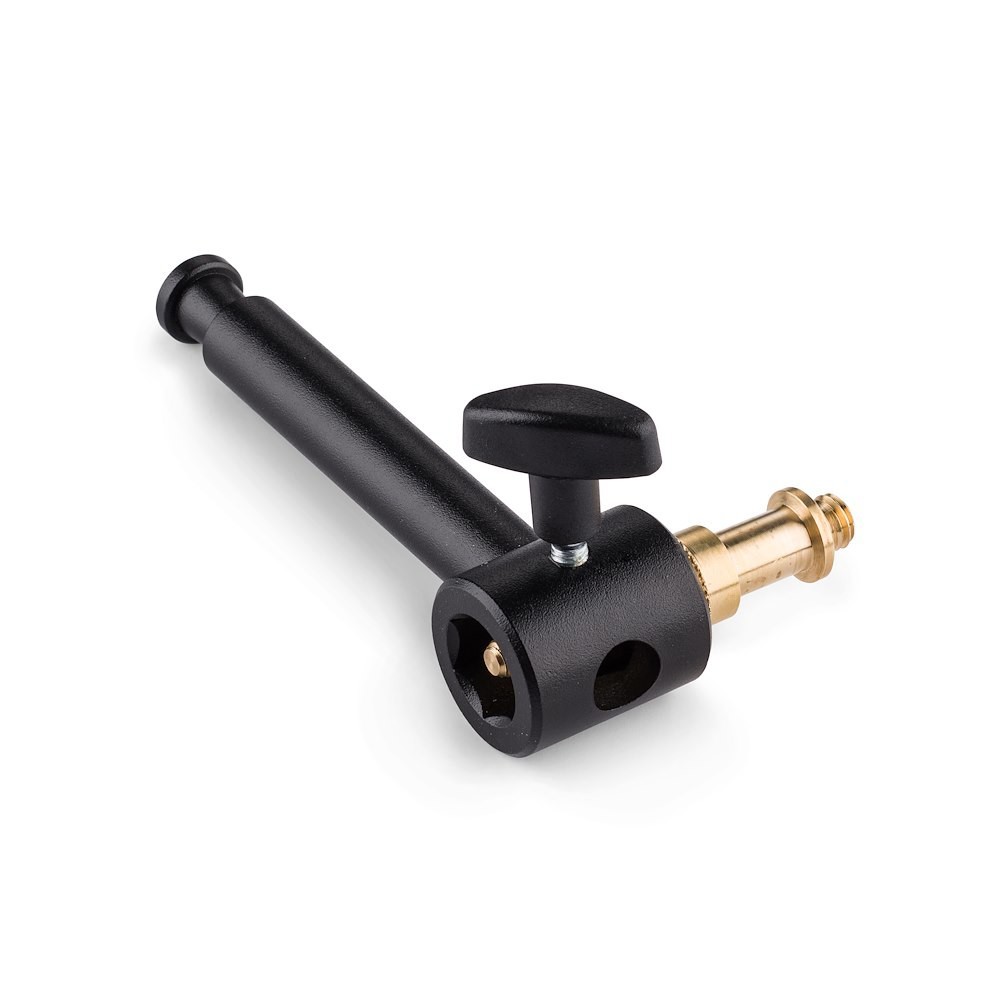

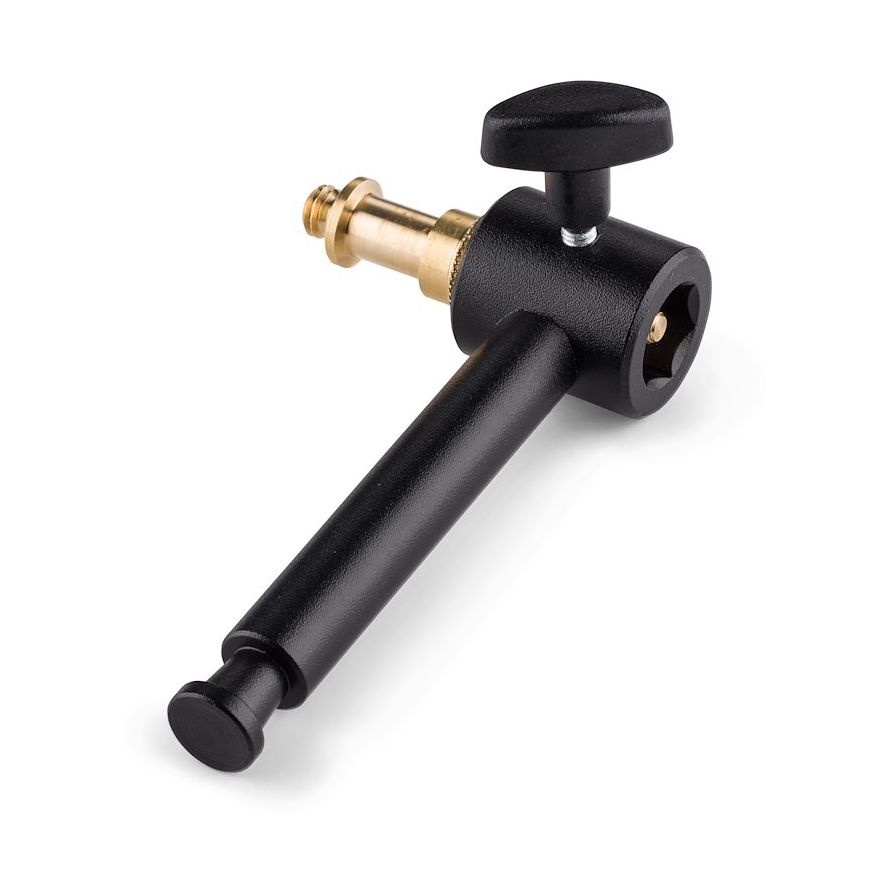

Manfrotto 203 arm with included013 spigot

Compact extra reach

Manfrotto 203 adds a rigid 12 cm extension to a compatible support. The aluminium arm weighs 150 g, supports up to 5 kg and includes a reversible 013 spigot.

12 cm150 gUp to 5 kg

For Mini Clamp 171

The 203 fits the Mini Clamp 171 socket. The mounting view shows this connection; the clamp is sold separately. Check every attachment before loading the assembly.

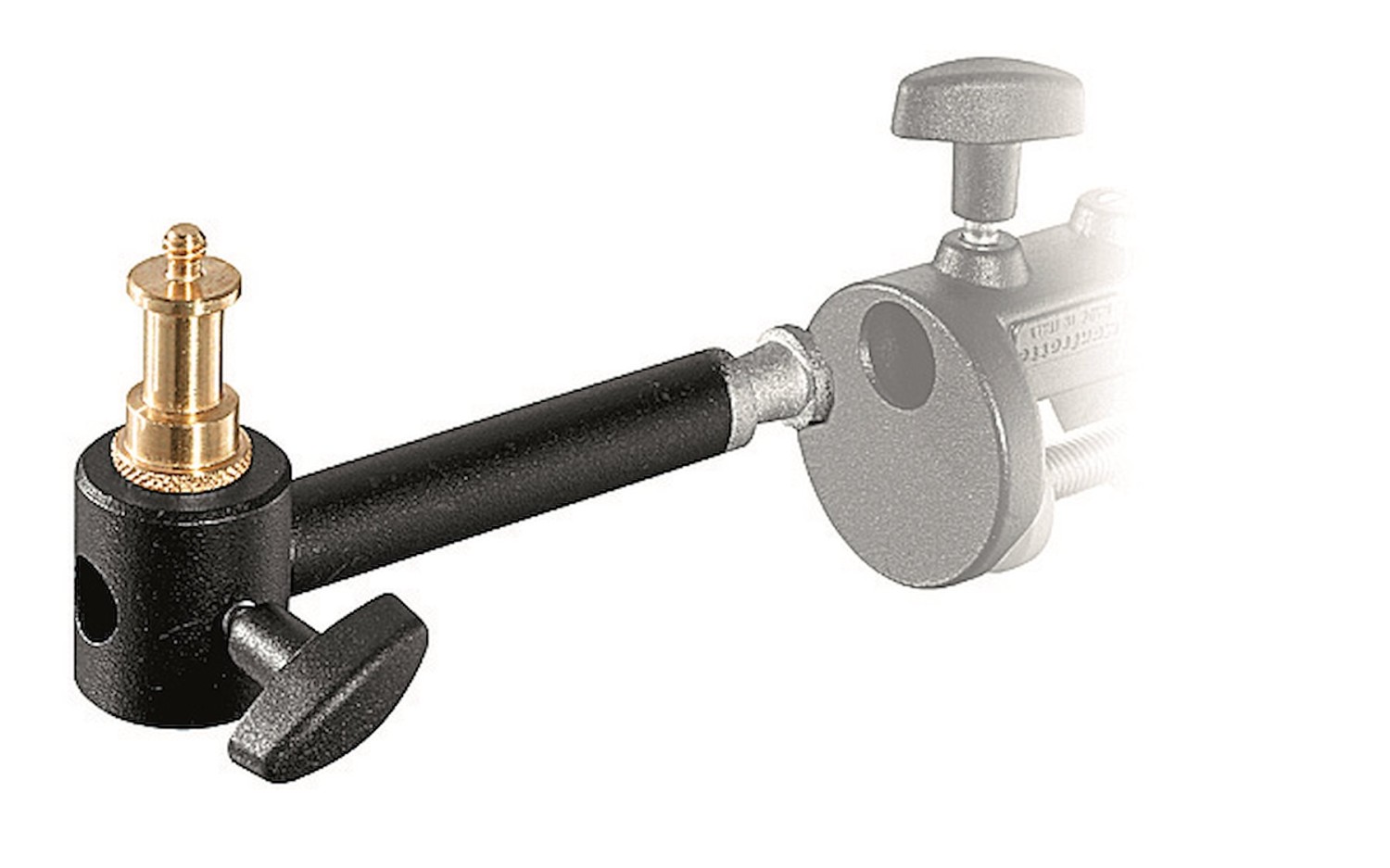

Manfrotto 203 mounted on optional Mini Clamp171
MINI EXTENSION ARM · 203

The 203 fits the Mini Clamp 171 socket. Length: 12 cm.

Weight150 g
Maximum arm payload5 kg

Original manufacturer specification graphics · brochure, page 71

Keep the mounting setup compact

A short, rigid extension helps position a compatible light, camera, monitor, microphone or accessory in confined spaces without adding an articulated joint. The black aluminium arm is easy to mount and remove, and the included 013 spigot provides a 16 mm mounting surface with male 1/4″-20 and 3/8″-16 threads at opposite ends.

Use the threaded end and stud orientation required by the attached equipment. The arm's 5 kg rating does not increase the capacity of its clamp, adapter or support: keep the complete load within the lowest limit. The photographed Mini Clamp 171 is not included.

A different mounting route

Manfrotto 042 offers 19.5 cm reach and an 8 kg arm rating, but uses a Super Clamp base rather than the 203 / Mini Clamp 171 connection. It is a conditional alternative, not a direct replacement or variant.

PACKAGE CONTENT

  • 1 × Manfrotto 203 Mini Extension Arm
  • 1 × Manfrotto 013 reversible double-ended spigot (included)

SPECIFICATIONS

  • Model: Manfrotto 203
  • Length: 12 cm (120 mm)
  • Weight: 150 g (0.15 kg)
  • Maximum arm payload: 5 kg
  • Arm material / colour: Aluminium / black
  • Included spigot: 013, 16 mm
  • Spigot threads: 1/4″-20 male + 3/8″-16 male
  • Compatible clamp: Mini Clamp 171; clamp sold separately
Parameters

Parameters

Manufacturer: Manfrotto
Category: Magic arm - arms

Main parameters

Included spigot attachment1/4″-20 male thread · 3/8″-16 male thread · 16 mm male stud (5/8″)
Weight150g
Arm Length12cm
Load Capacity5kg
Mechanism TypeRigid extension arm
Clamp / End Mount TypeScrew without a mount
Thread Type1/4"-20 · 5/8" pin · 3/8"-16
MaterialAluminium alloy
ColorBlack
Intended UseMonitor · Light · Camera / cage
