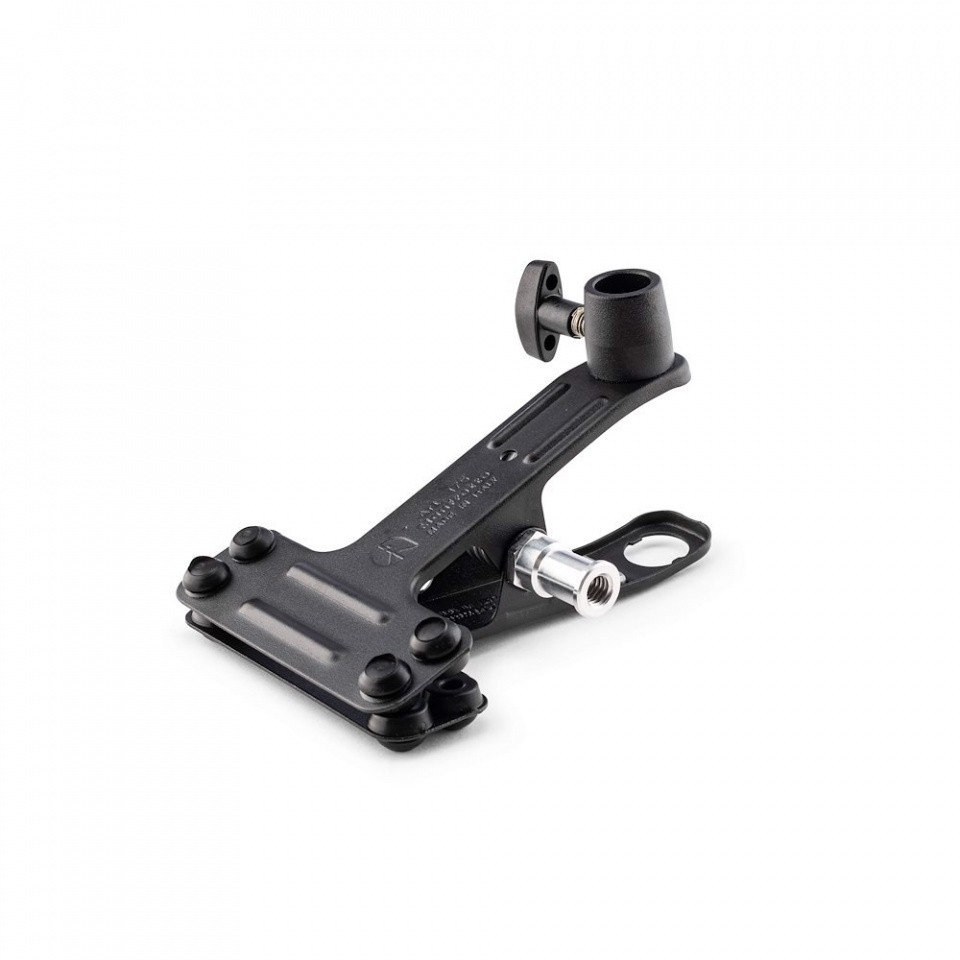

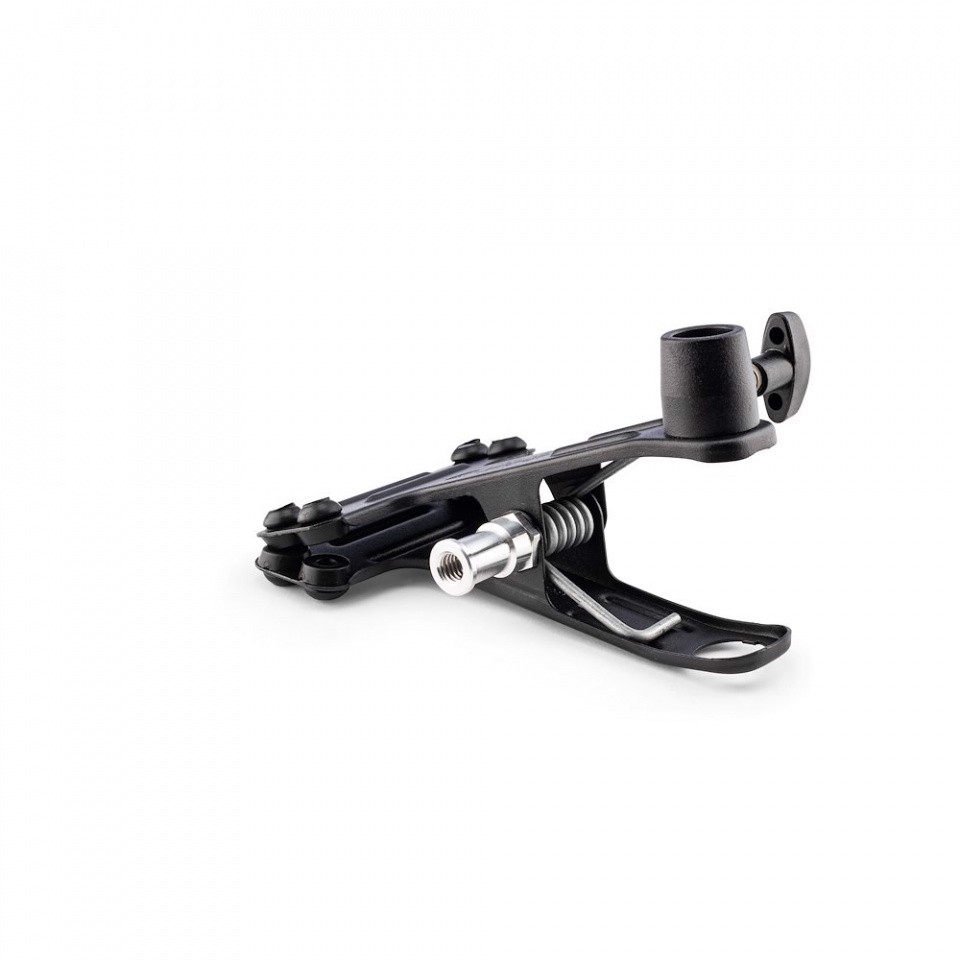

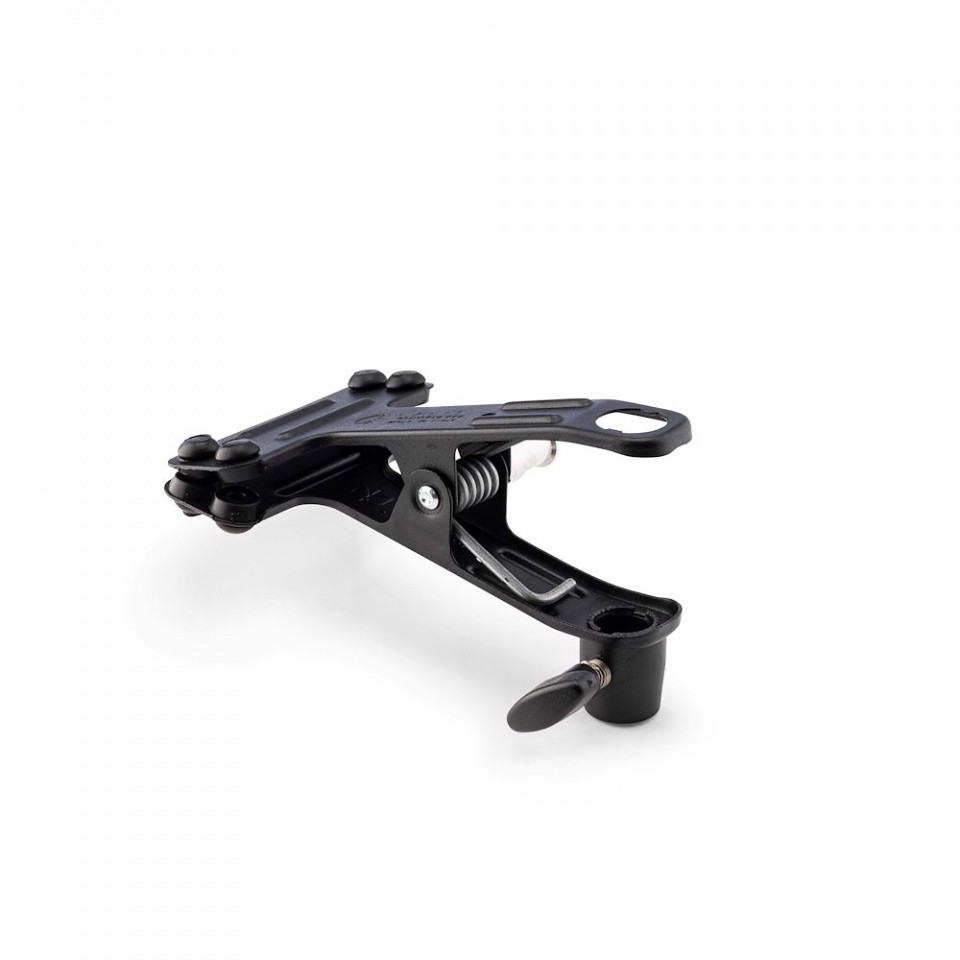

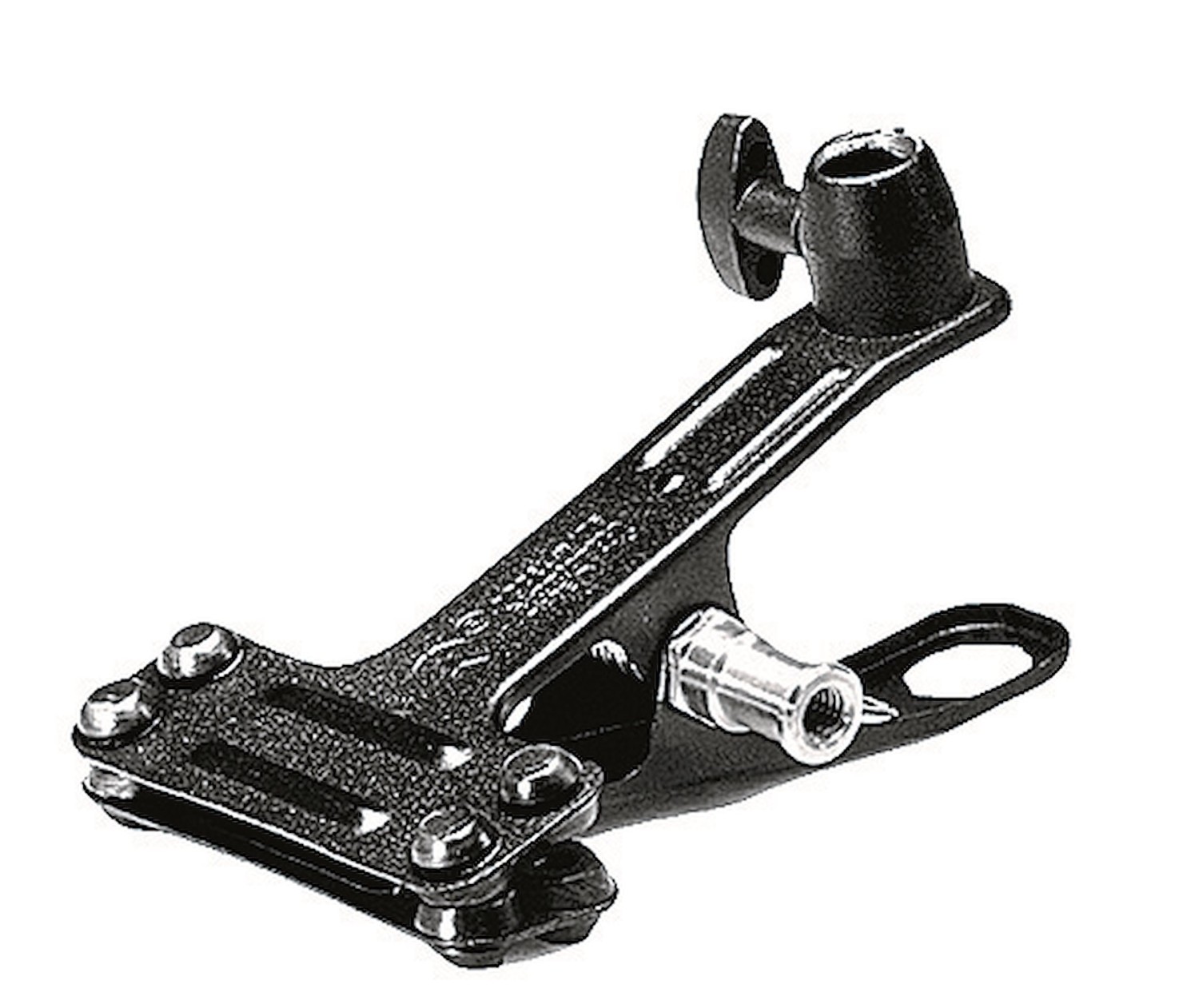

Manfrotto 175 – Spring Clamp, 5–40 mm

The Manfrotto 175 is a sturdy spring-loaded studio clamp for quickly attaching backdrops, reflectors, and compatible accessories to round tubes and various edges ranging from 5 to 40 mm. Rubberized contact surfaces protect the surface being clamped and improve grip, while the 16-mm spigot, 16-mm clamp, and threaded connection allow for flexible integration into photo and video setups both in the studio and on location.

Quick Mounting Where There’s No Stand

A strong spring mechanism grips a tube, shelf, edge, or other suitable surface, creating a practical mounting point for studio accessories.

The Manfrotto 175 is a versatile spring clamp designed and manufactured in Italy. The jaws accommodate round tubes from 5 to 40 mm; rubber contact pads help protect surfaces, and the sturdy metal mechanism is built to withstand frequent use in the studio and on location.

Range: 5–40 mm

The clamp adapts to round tubes as well as a variety of straight or irregular edges, quickly creating an auxiliary mounting point for your setup.

More Connection Options

An integrated 5/8" (16 mm) spigot, 5/8" sleeve, and 3/8" female thread make it easy to connect compatible studio equipment.

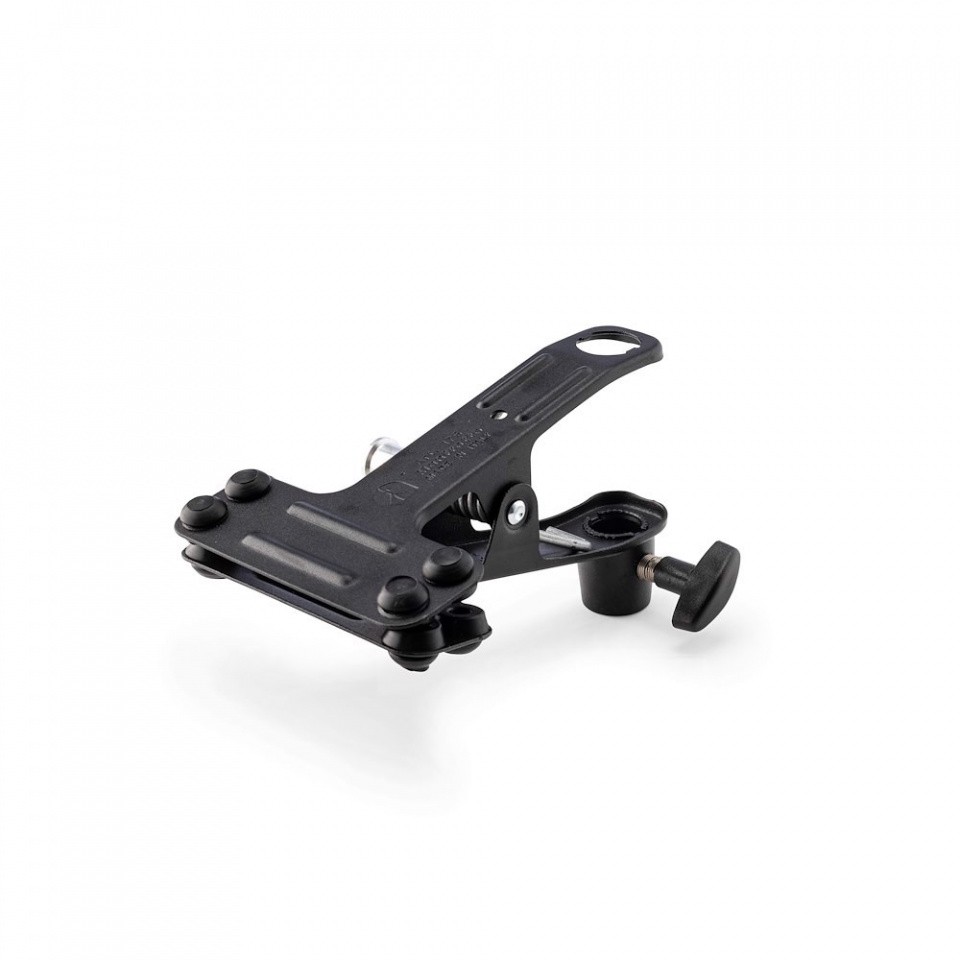

Gentle, Secure Grip

Rubberized contact surfaces increase friction and minimize damage to the surface to which the clamp is attached.

A Practical Helping Hand

The Model 175 is suitable for mounting backdrops, reflectors, lightweight lighting fixtures, or other compatible grip accessories. The spring-loaded clamp requires no tools, so repositioning is quick and the clamp is easy to move between scenes.

Measuring 15.6 cm in length and weighing 0.32 kg, it keeps accessories compact yet durable enough for everyday production use.

Product Line Breakdown: The 175 model is the basic spring-loaded clamp. The 175Z variant comes without a blister pack, while the 175F-2 adds an adjustable ball head with a cold shoe for lightweight accessories.
