Manfrotto 026 Lite-Tite Swivel Aluminium Umbrella Adapter

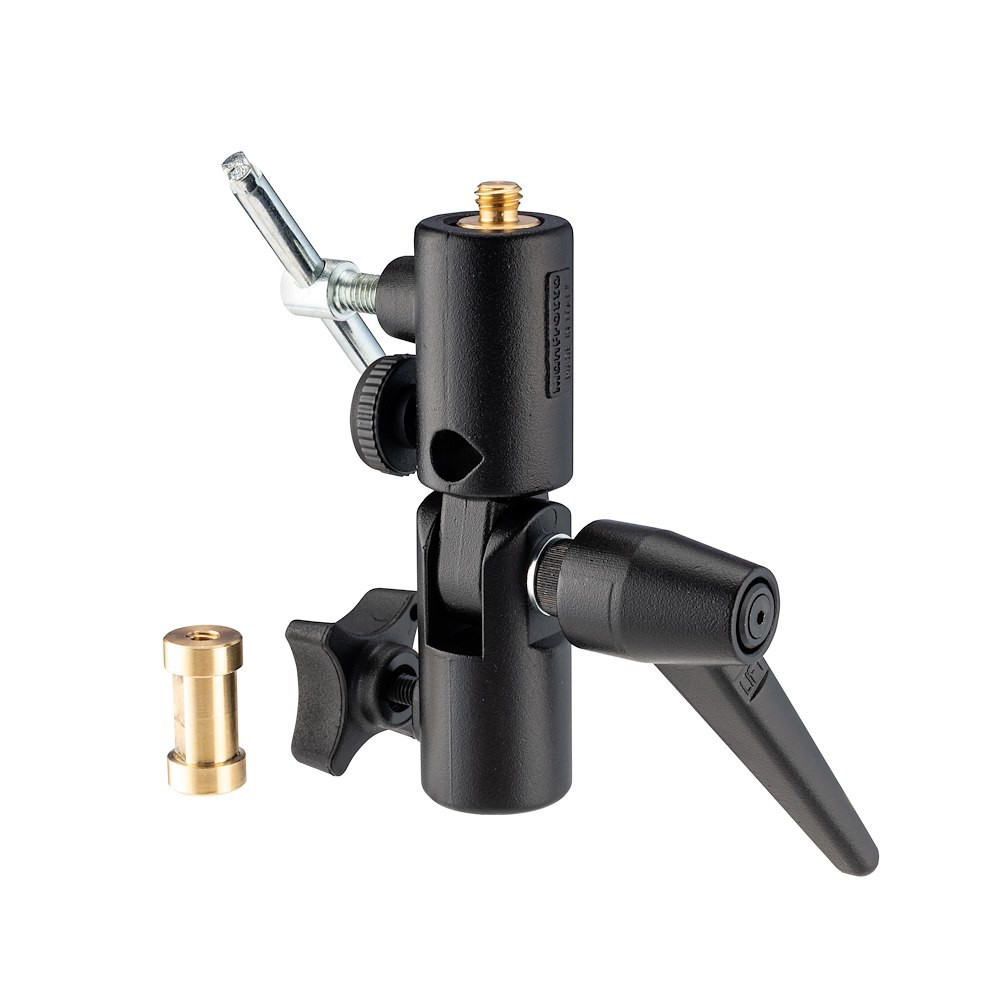

The Manfrotto 026 Lite-Tite is a lightweight aluminium swivel adapter that connects a lighting stand, light or flash and a photographic umbrella in one secure setup. Two 5/8″ (16 mm) sockets, an integrated umbrella-shaft holder and two removable studs with 1/4″ and 3/8″ threads make it easy to integrate common studio equipment, while the large lever provides fast angle adjustment and reliable locking.

Precise studio-light positioning

One secure joint for the light and umbrella

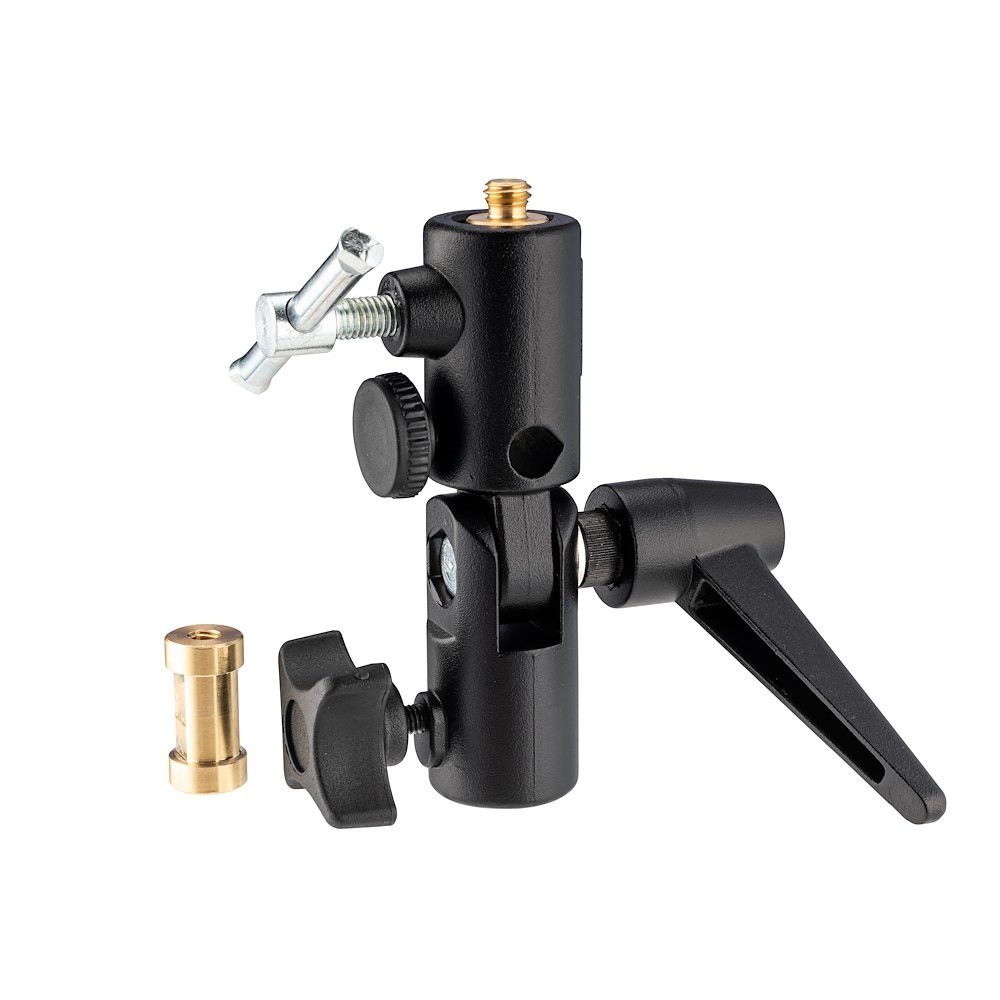

The lightweight aluminium Manfrotto 026 connects a lighting stand, light or flash and a photographic umbrella. Its swivelling head sets the working angle, while the large ergonomic lever locks the position securely without the play associated with a ball joint.

Two 16 mm sockets and two reversible studs

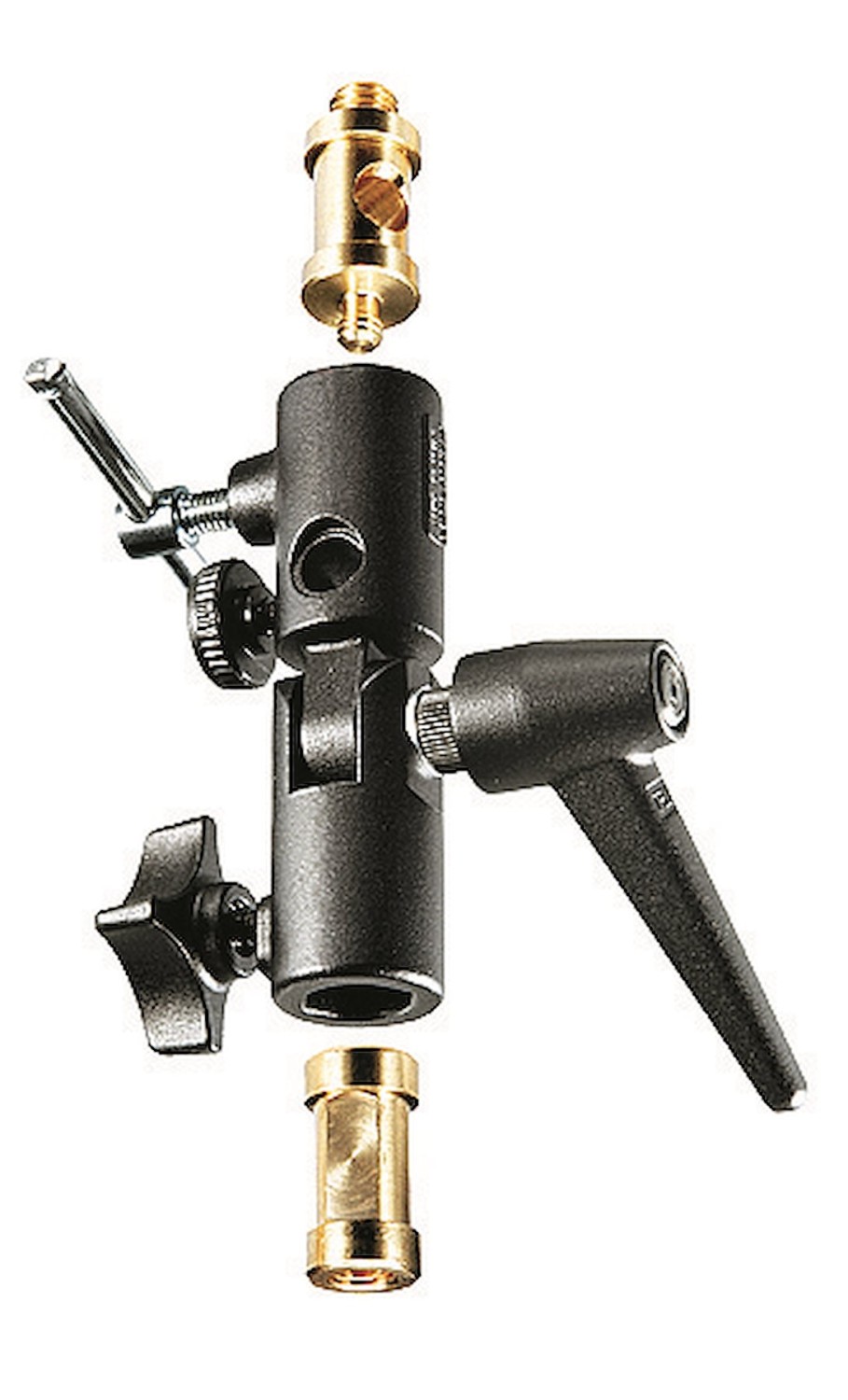

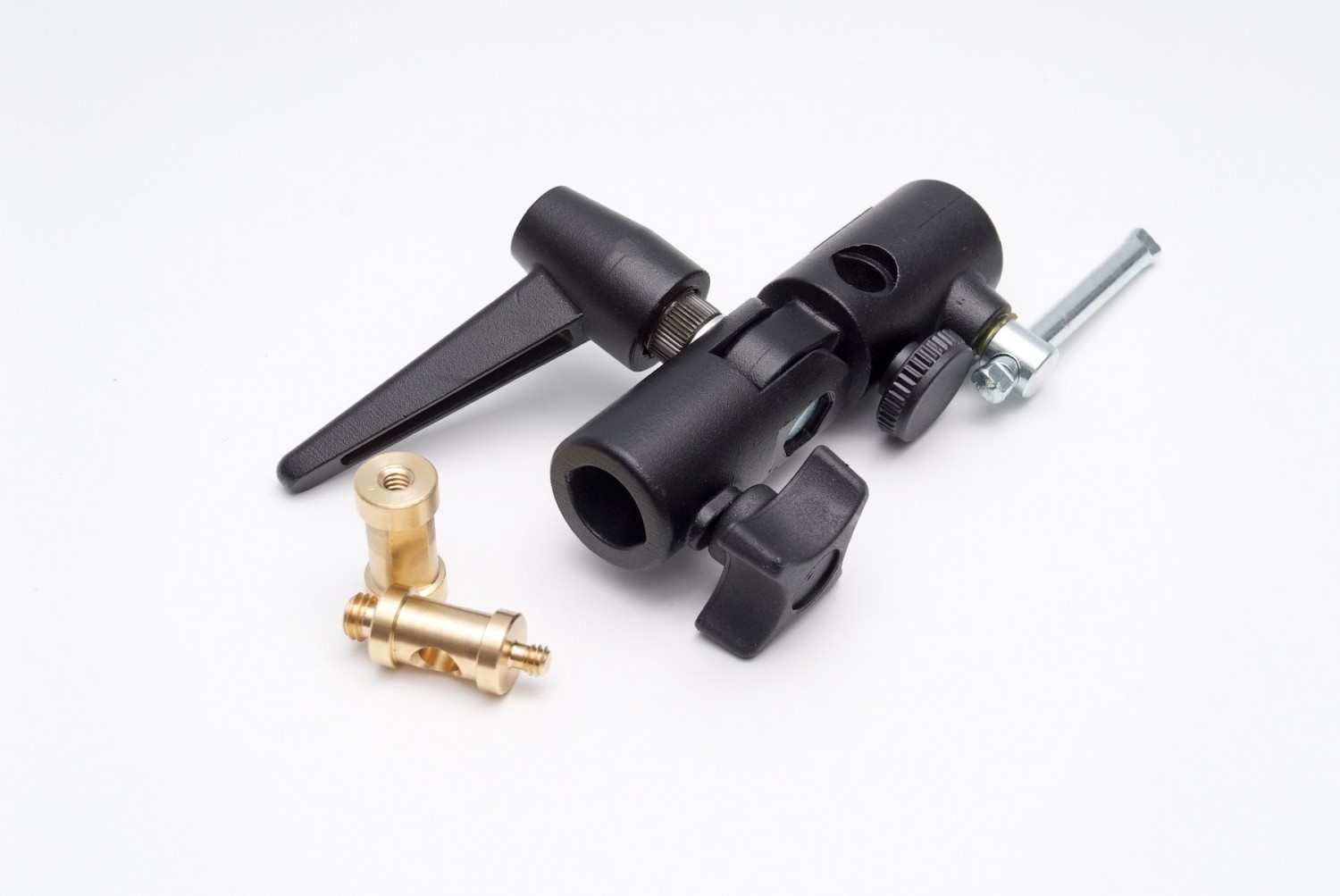

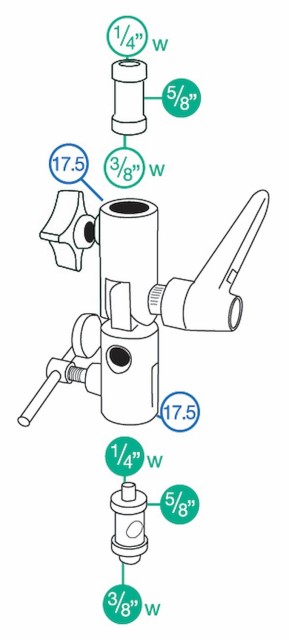

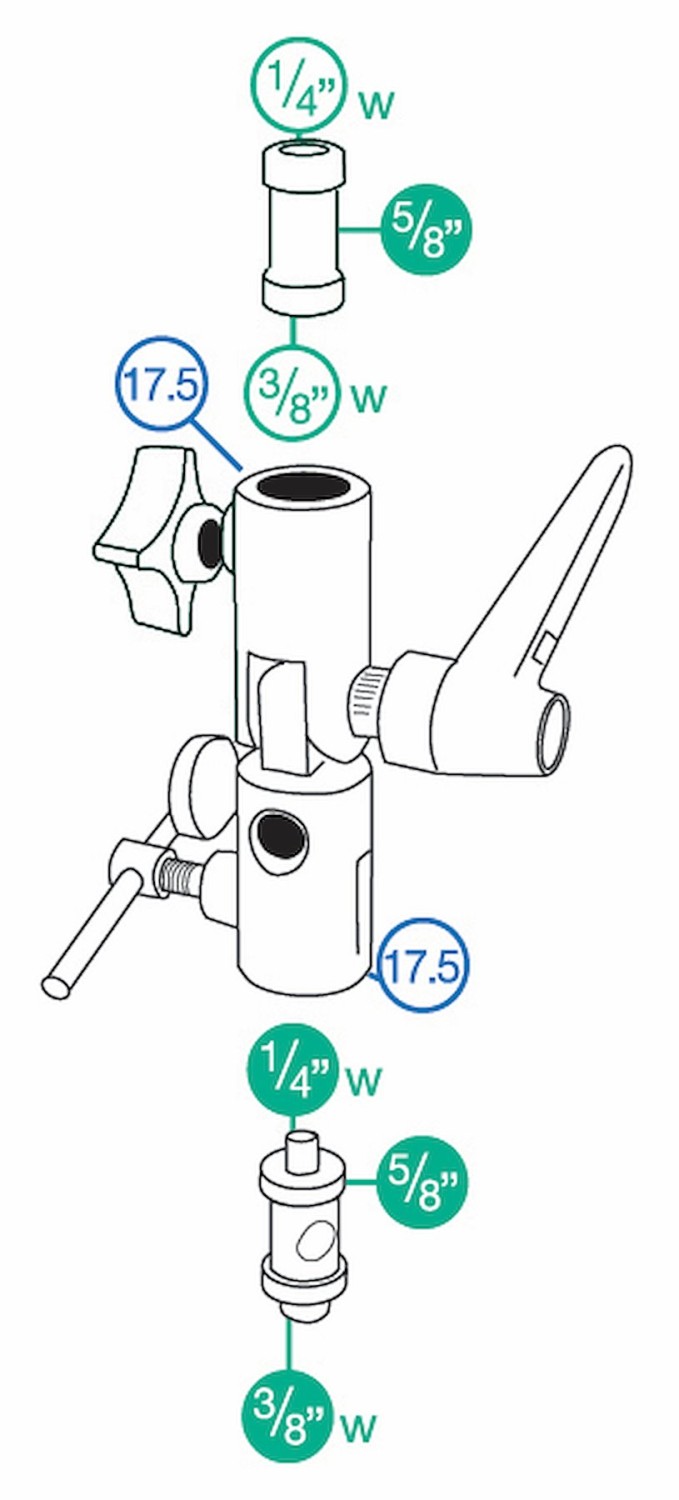

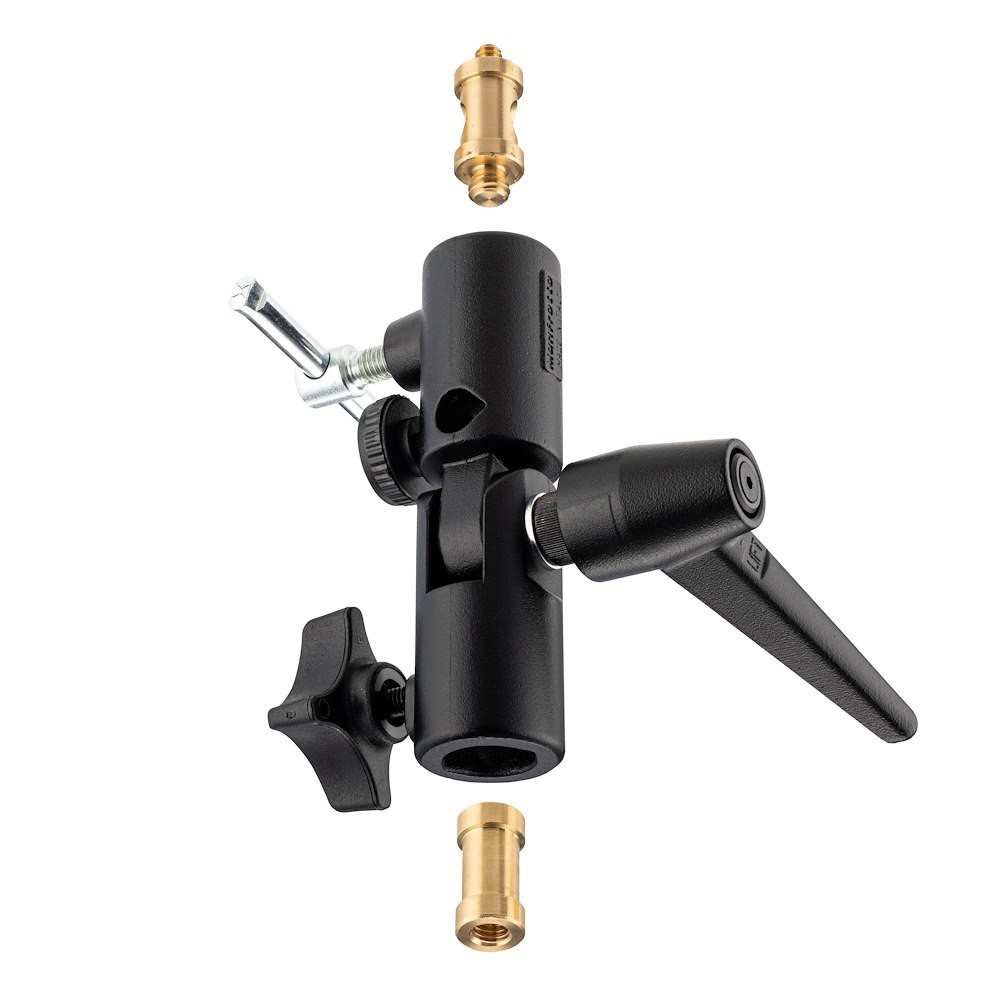

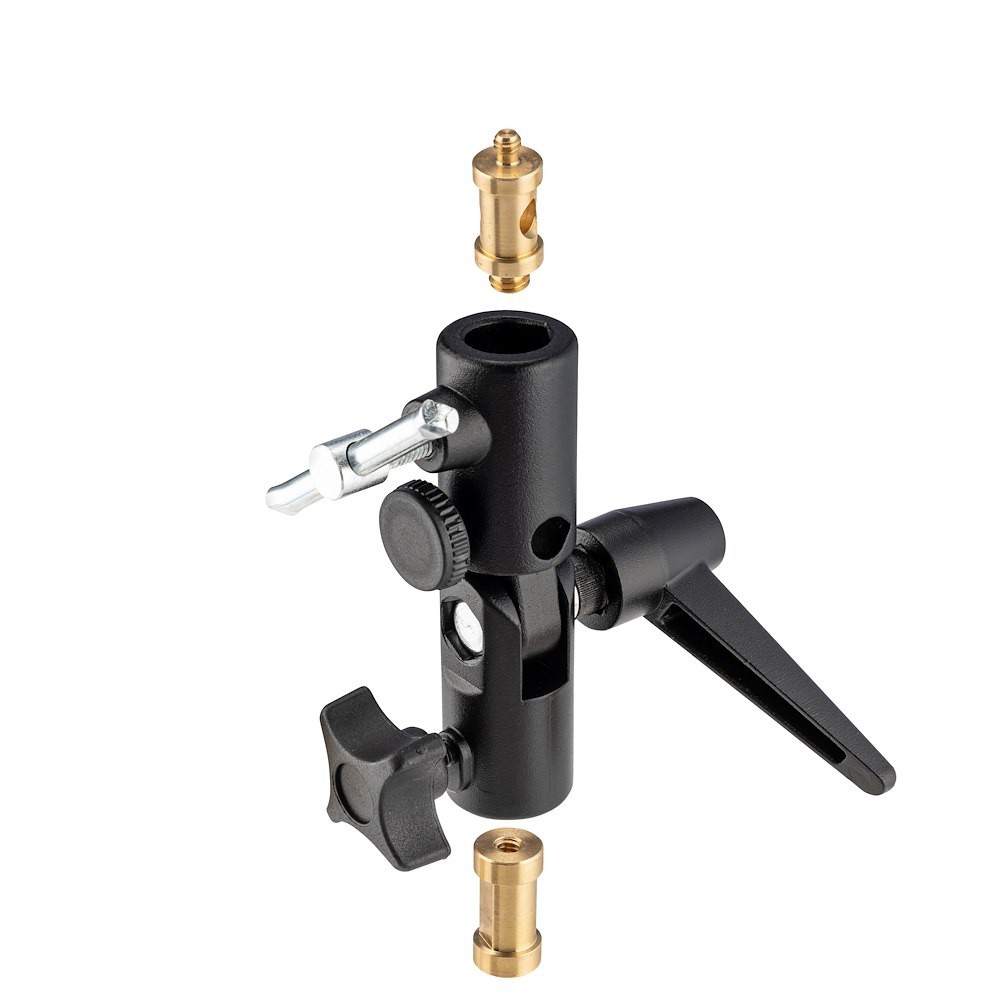

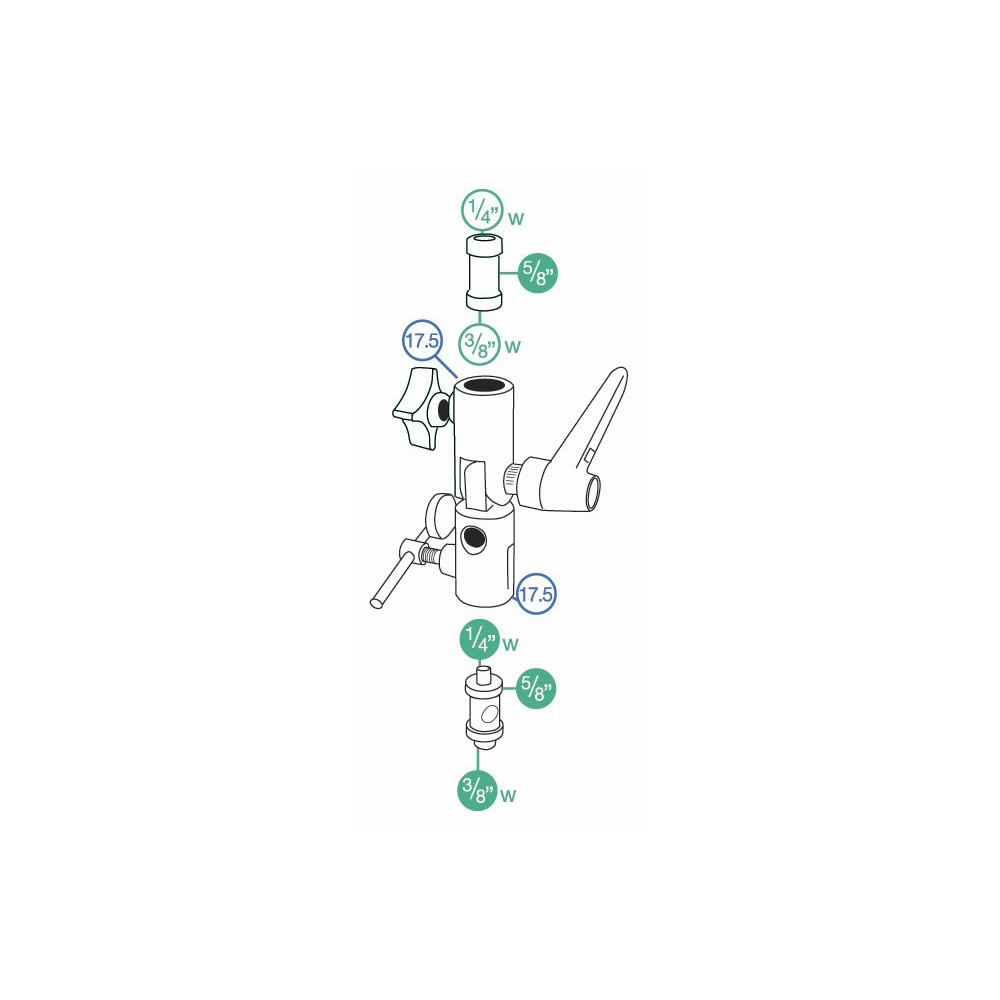

Standard 5/8″ (16 mm) sockets are fitted at the top and bottom. Two removable 5/8″ studs are supplied: one with male 1/4″ and 3/8″ threads and one with female 1/4″ and 3/8″ threads. This makes the adapter easy to integrate between a common lighting stand and a light, LED panel or other compatible accessory.

Umbrella holder built into the body

A separate side socket accepts the shaft of a photographic umbrella and its screw secures it in position. At 380 g the adapter fits a mobile lighting kit; together with the Manfrotto 143BKT flash bracket it forms a compact speedlight-and-umbrella setup.
