Manfrotto 509 fluid video head & 536 CF single leg

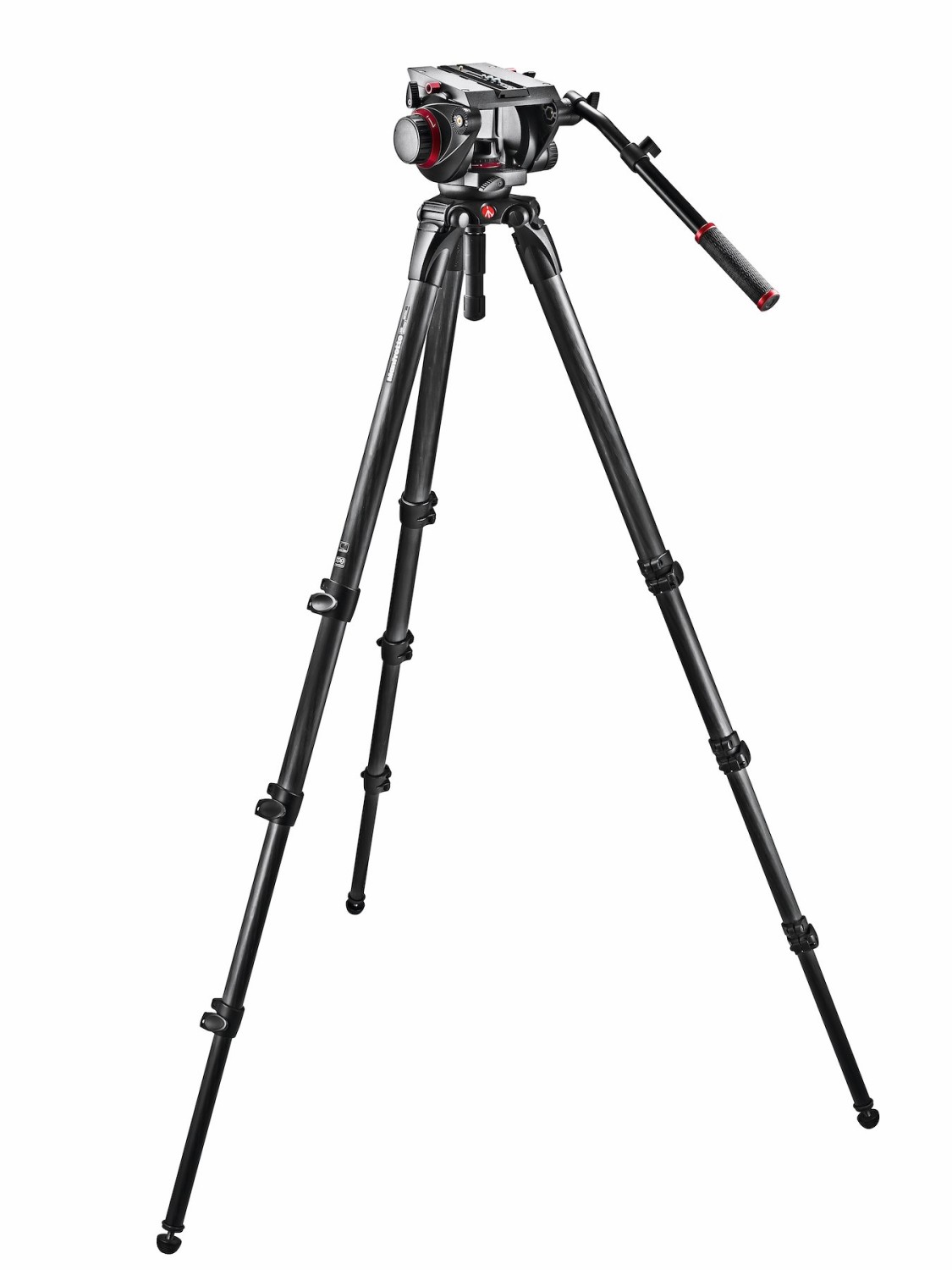

The Manfrotto 509HD,536K is a professional video kit featuring the 509HD fluid head, the 536 four-section carbon fiber tripod, and the MBAG100PNHD padded bag. With a safe load capacity of 13.5 kg, a 100mm ball head, a height range of 40.5–217.5 cm, and a weight of 9.607 kg, it provides a stable foundation for professional camera setups.

More information

2 469 € with VAT 2 040.5 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Manfrotto 509HD,536K is a professional video kit featuring the 509HD fluid head, the 536 four-section carbon fiber tripod, and the MBAG100PNHD padded bag. With a safe load capacity of 13.5 kg, a 100mm ball head, a height range of 40.5–217.5 cm, and a weight of 9.607 kg, it provides a stable foundation for professional camera setups.

Manfrotto 509HD,536K video stativ

FOR THE 509HD AND 536 VIDEO KIT

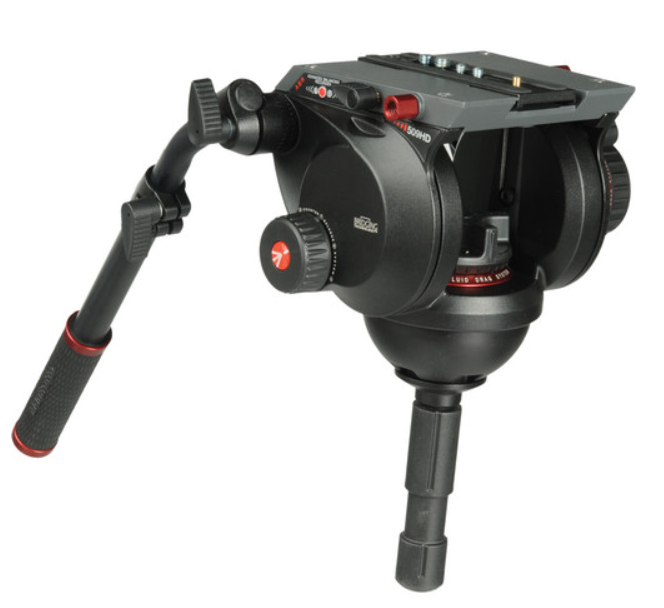

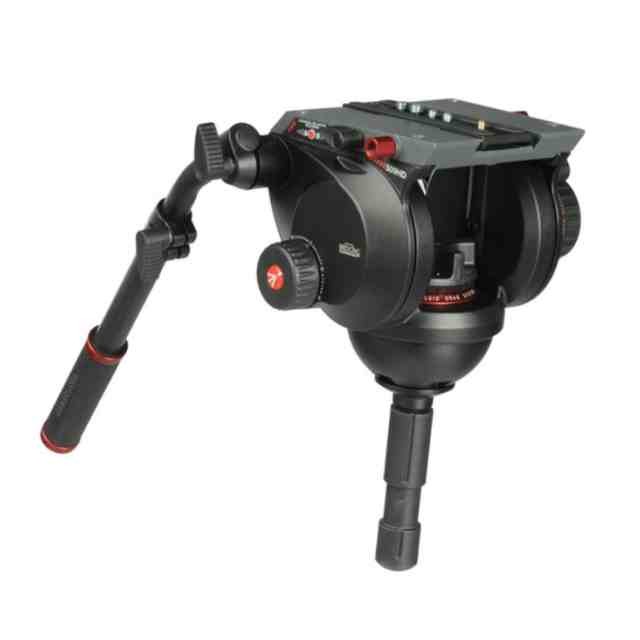

The fluid head with continuously adjustable pan and tilt resistance, a 100mm half-ball, and the 509PLONG sliding plate is paired with a lightweight carbon fiber tripod for quick setup on set.

13.5 KG Safetyload capacity according to UNI/PdR 105:2021.
40.5–217.5 cm Workingrange without the center column.
100 mm: Ball headwith illuminated spirit level for quick alignment.

PACKAGE CONTENT

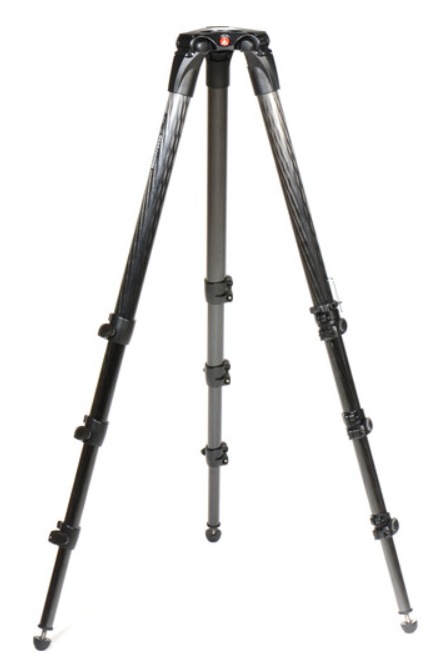

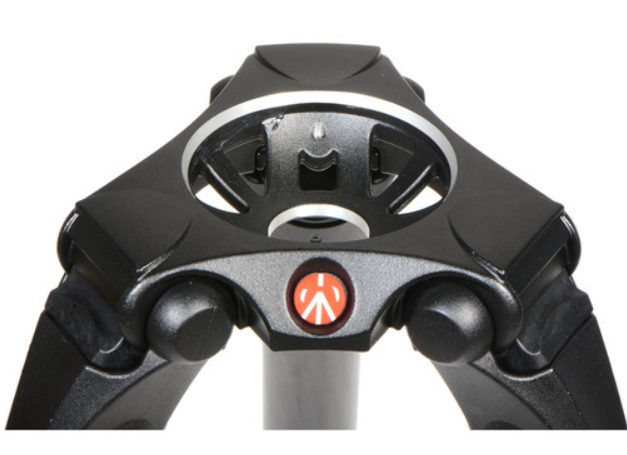

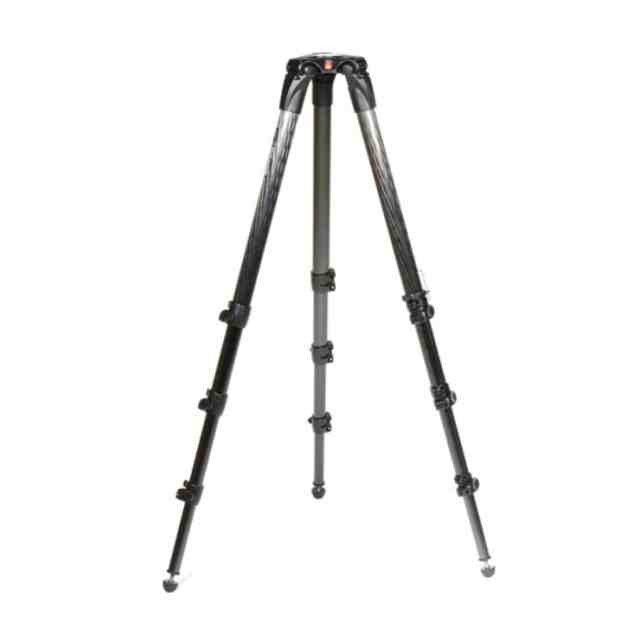

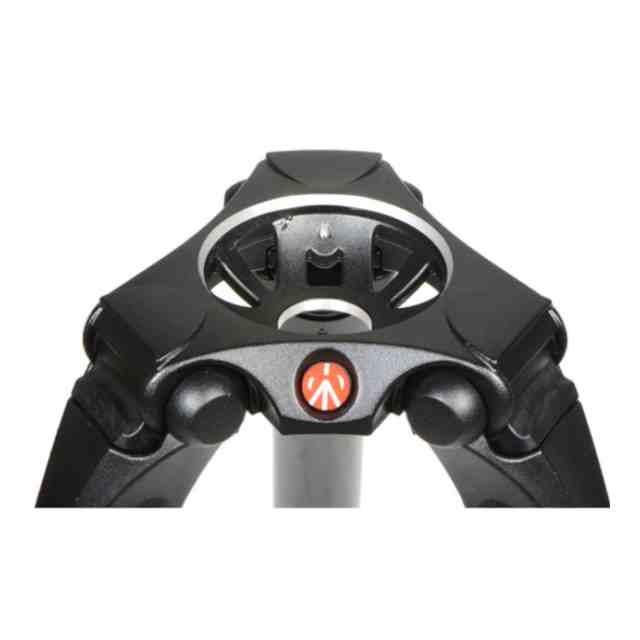

509HD video head, 536 four-section carbon tripod, 509PLONG sliding plate, panoramic handle, and MBAG100PNHD padded bag.

SPECIFICATIONS

Weight 9.607 kg · safe load capacity 13.5 kg · counterweight 8.5 kg · collapsed length 87 cm · 4 sections · tilt −60° to +90° · 360° panoramic rotation.

WE RECOMMEND

The Manfrotto 509HD,536K is a top-of-the-line tripod system designed for professional filmmakers who require sturdy accessories for mounting monitors, recorders, and other equipment. With a high load capacity of 13.5 kg and a modular design, it is ideal for use with professional Magic Arms, Super Clamps, and quick-release systems for an efficient workflow.

Controls and Tripod Accessories - Accessories for expanding head control options and quick equipment handling.

Arms and Mounts - Flexible solutions for attaching viewfinders, lights, or smartphones directly to a tripod.

Clamps and mounts - Sturdy mechanical components for securely attaching accessories to tripod legs or structures.

Adapters and screws - Essential adapters and pins to ensure compatibility between different thread standards.

Parameters

Parameters

Manufacturer: Manfrotto
Category: Tripods

Main parameters

MaterialCarbon
TypeFluid head
Weight9.6kg
Max height217.5cm
Tripod Load capacity13.5kg
