Manfrotto 504X & 536 SINGLE LEG

The Manfrotto 504X and 536 SINGLE LEG is a professional video tripod with a 504X fluid head and a lightweight 536 carbon fiber tripod. Get perfectly smooth and stable shots thanks to precise balancing and a sturdy construction. Ideal for demanding filmmakers and content creators who appreciate the combination of top performance and excellent mobility. A reliable…

More information

1 279 € with VAT 1 057.02 € without VAT
-+
Availability
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Manfrotto 504X and 536 SINGLE LEG is a professional video tripod with a 504X fluid head and a lightweight 536 carbon fiber tripod. Get perfectly smooth and stable shots thanks to precise balancing and a sturdy construction. Ideal for demanding filmmakers and content creators who appreciate the combination of top performance and excellent mobility. A reliable partner for your video production.

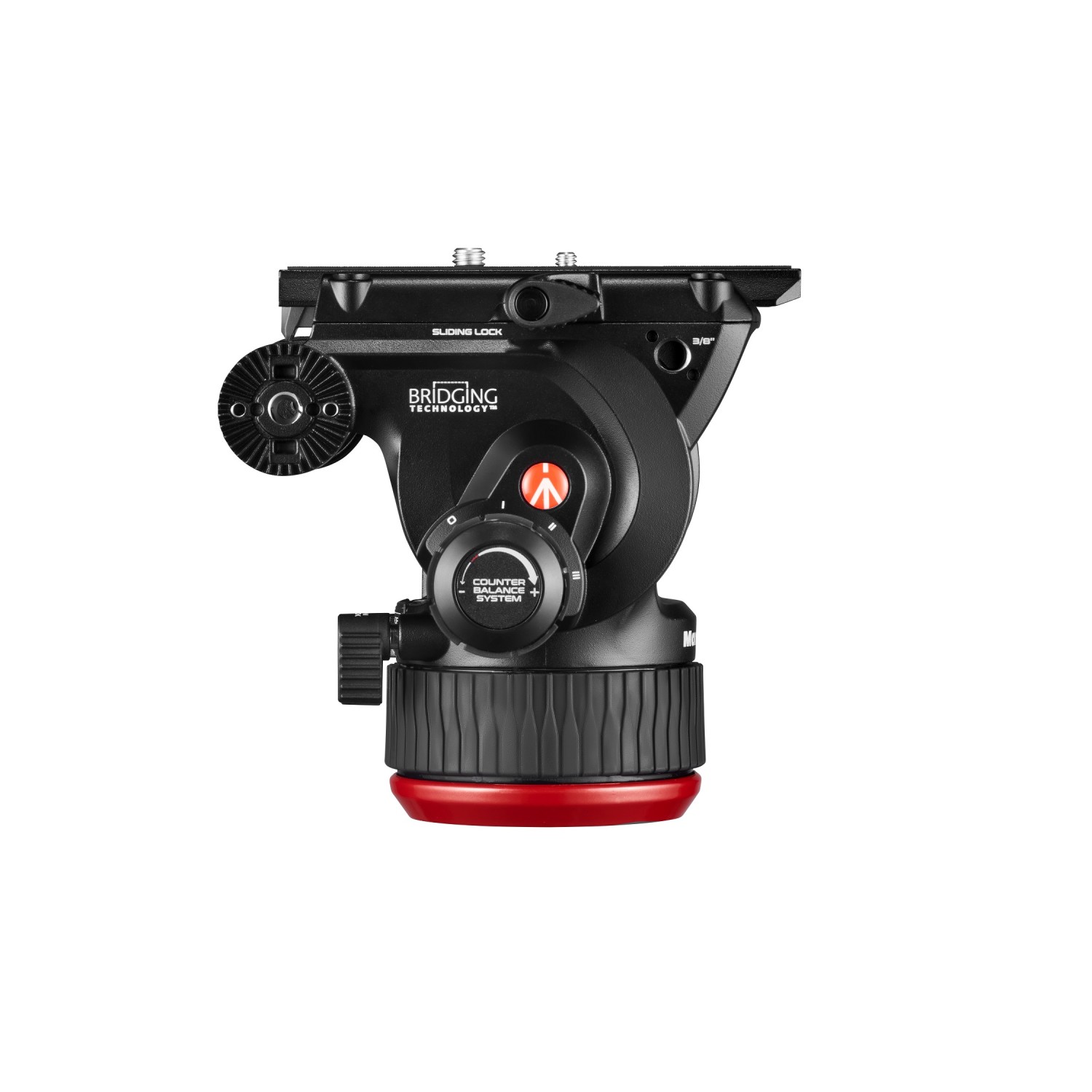

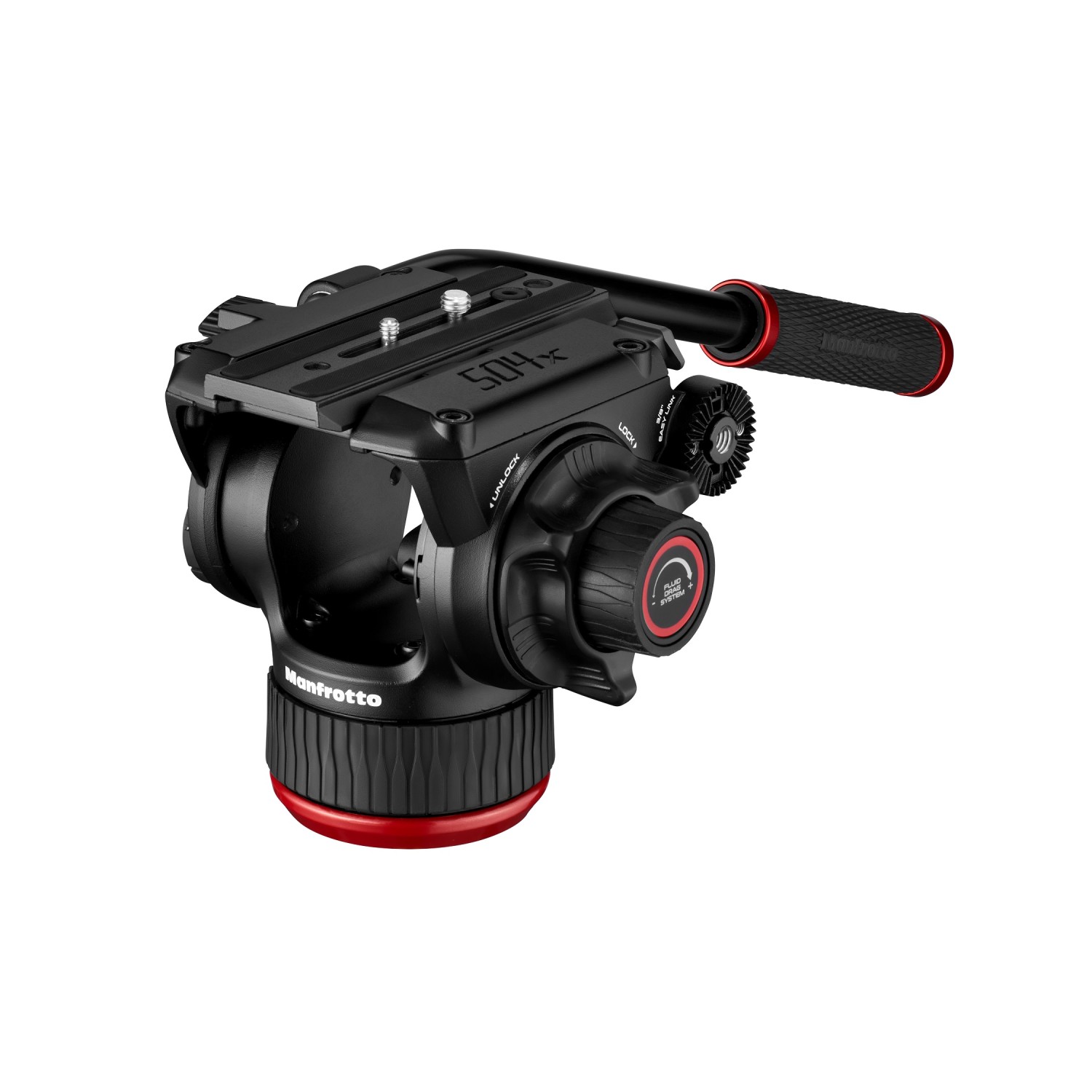

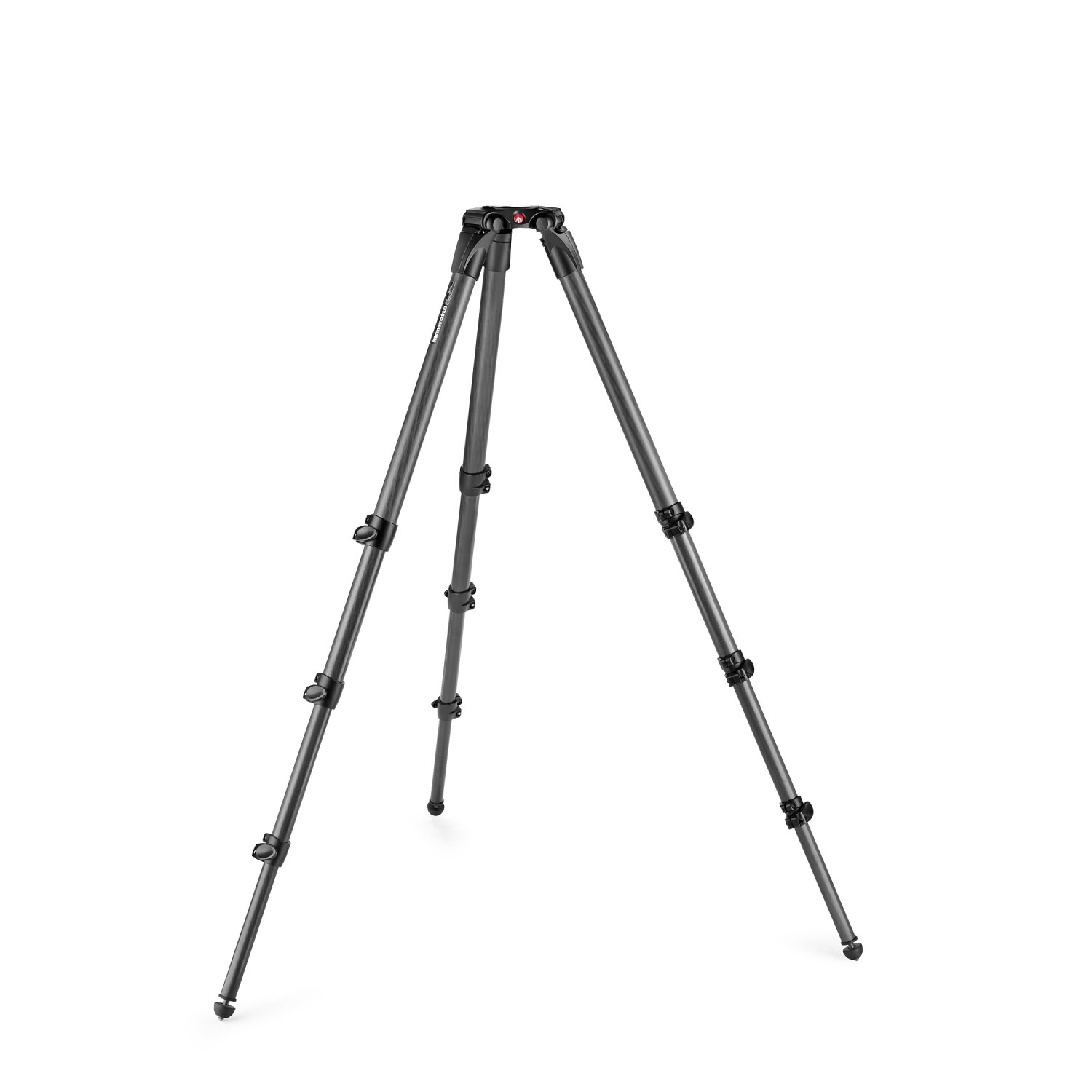

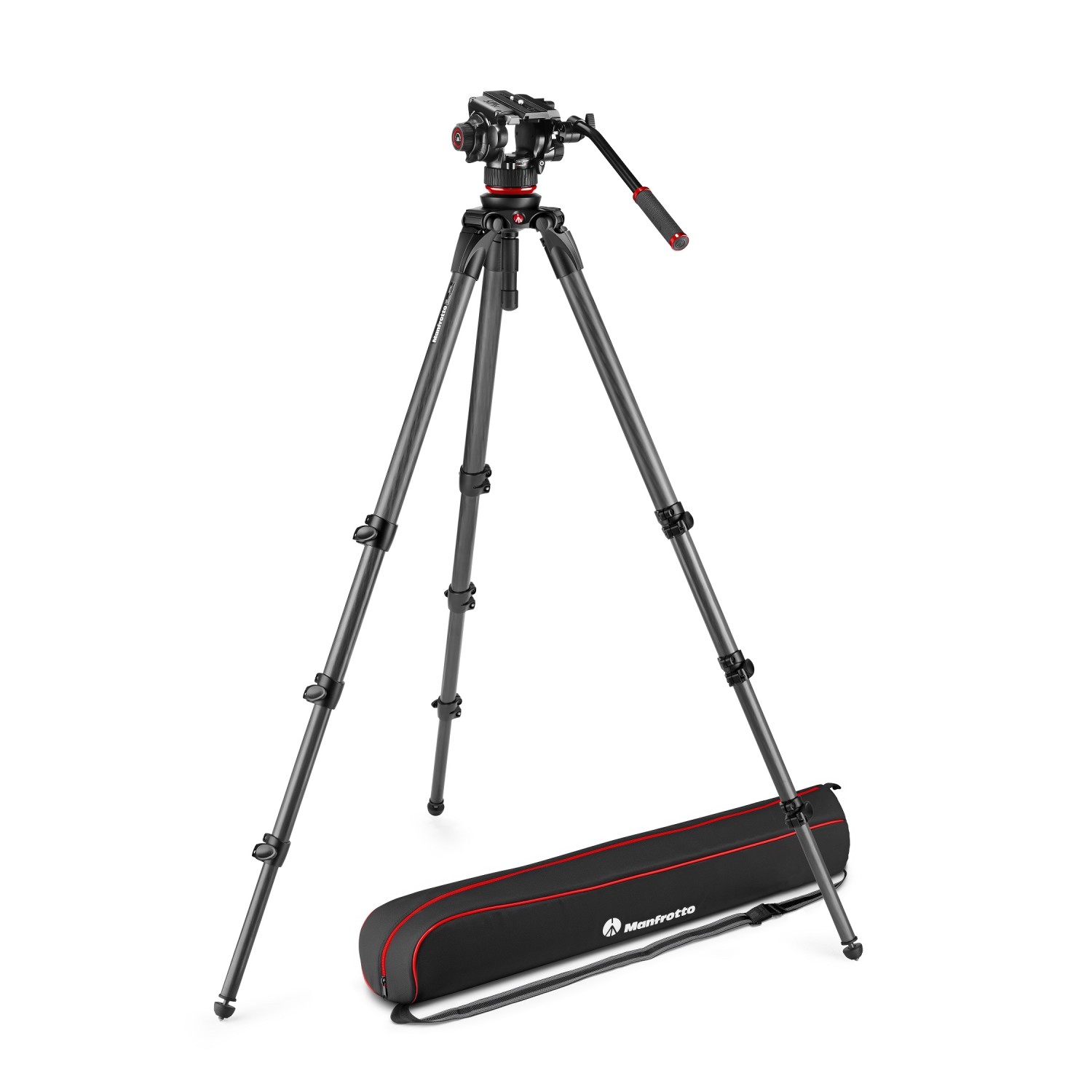

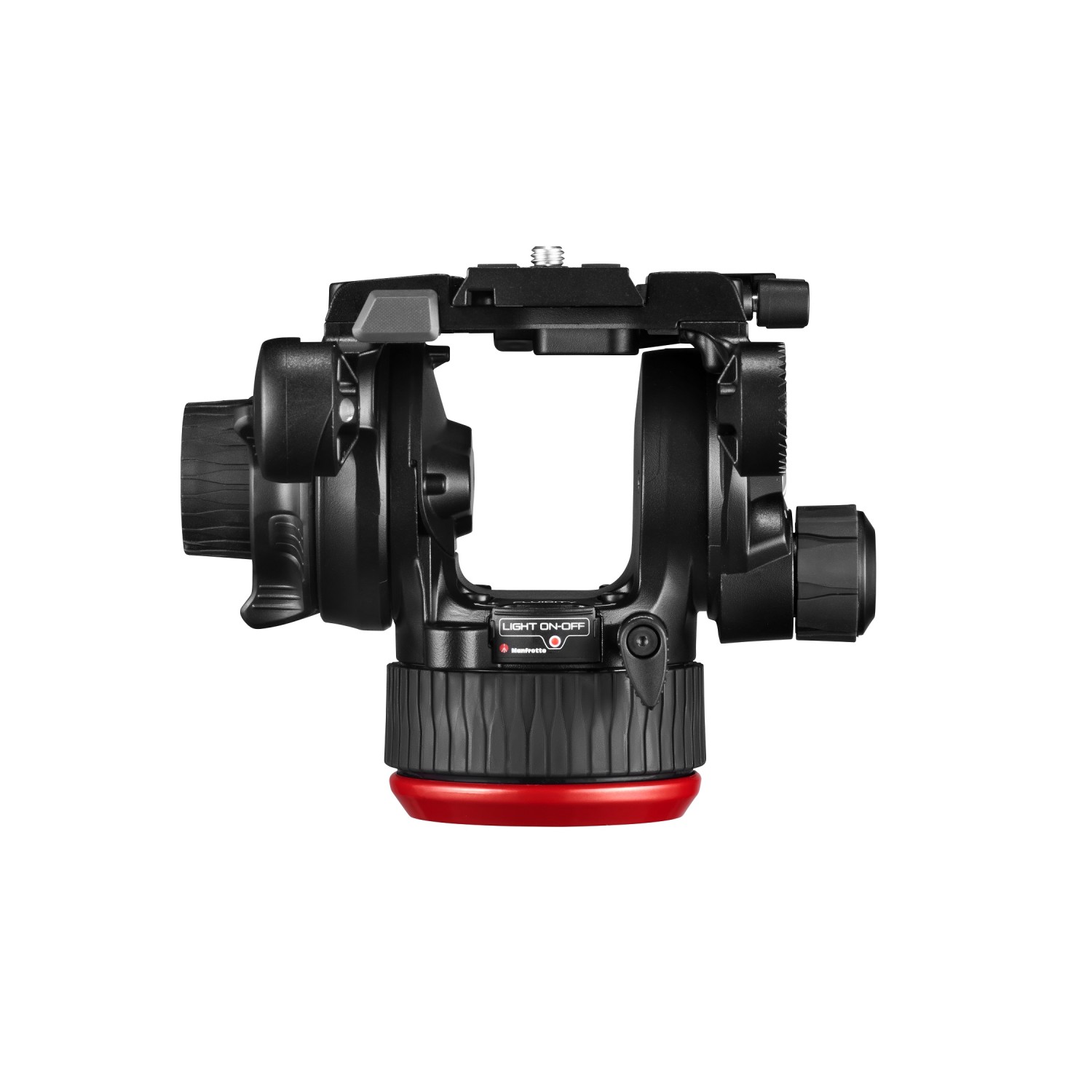

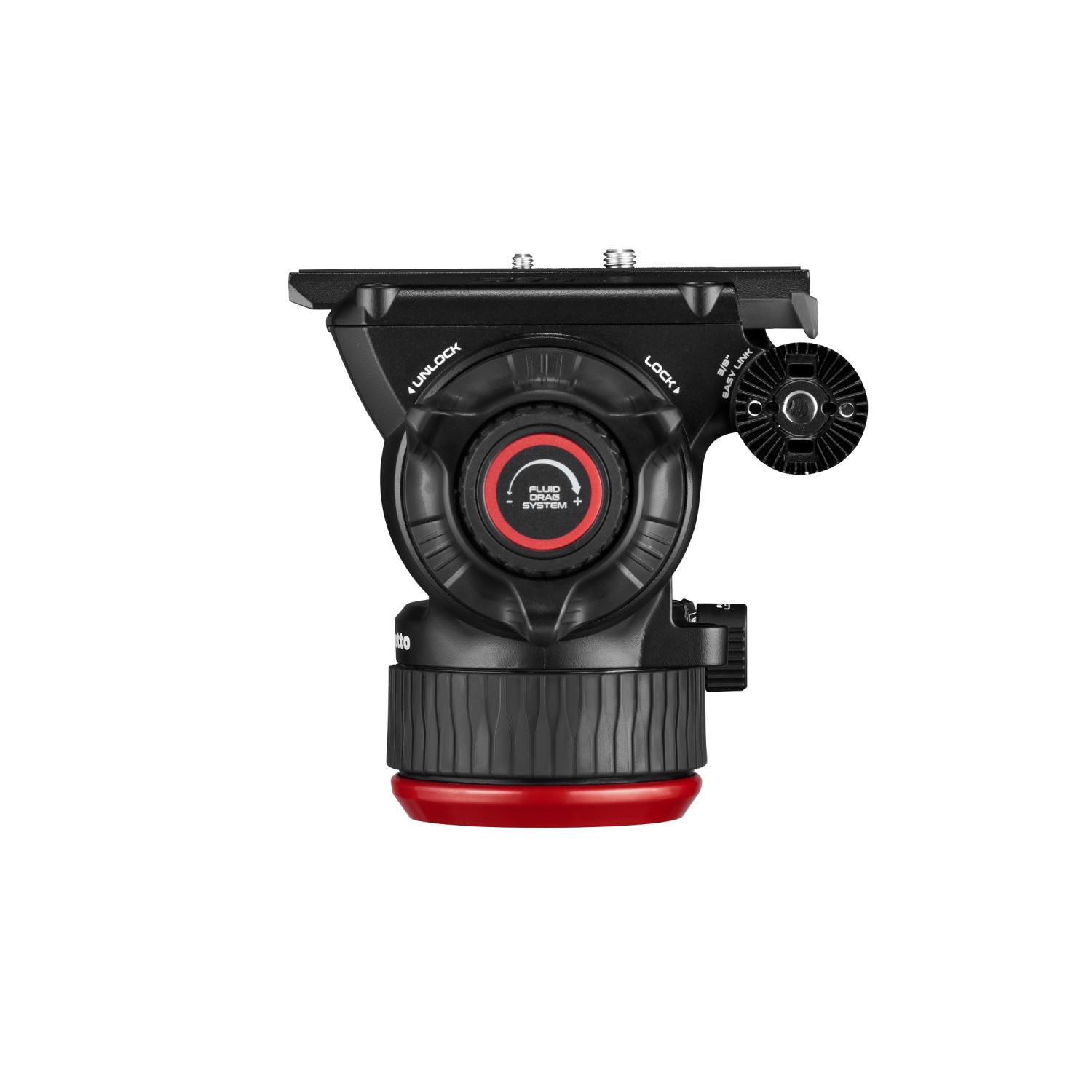

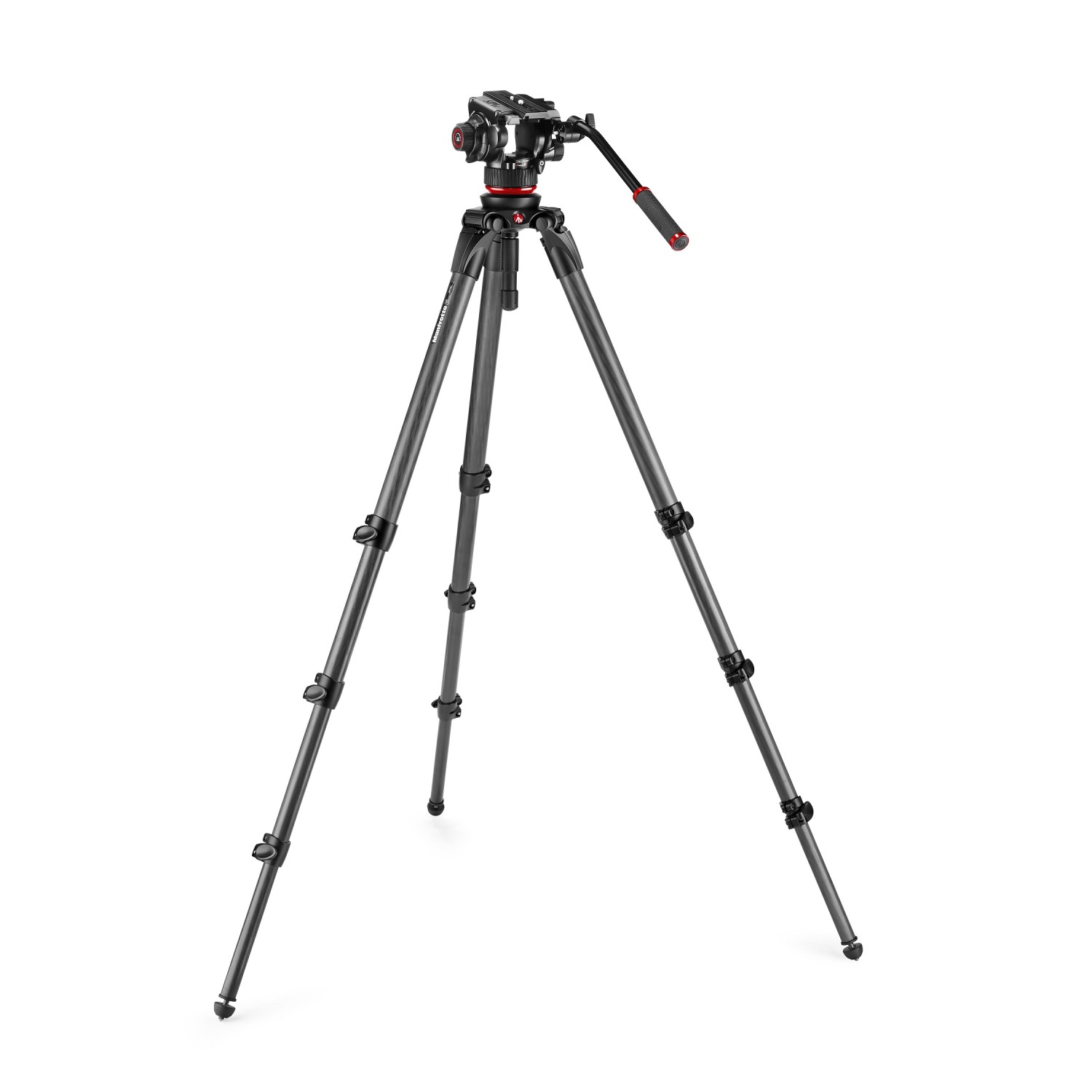

This video system includes the Manfrotto 504X Fluid Video Head and the 536 Single Leg Carbon Tripod made of carbon fiber. The Manfrotto 504X Fluid Video Head with a flat base is equipped with Manfrotto's new fluid technology, which allows for smoother movements and unmatched stability when panning and tilting. It features a four-stage counterbalance system supporting counterbalance settings up to 6.5 kg with a 55 mm C.O.G. load. The head has a completely new aluminum design and can handle loads up to 12 kg. It is a compact and lightweight tripod head with a flat base (base diameter 75 mm) that allows for a variety of work. You will also find two 3/8" Easy Link connectors equipped with an anti-rotation function and allowing the mounting of external accessories. The connectors are equipped with a cap. The sliding plate and side lock mechanism allow for safe, quick, and easy connection of equipment. The 536 tripod is equipped with a 100 mm cast aluminum bowl, which can be reduced to 75 mm using the included aluminum adapter, perfect in combination with the 504X head for quick leveling and accuracy. Thanks to its perfect four-section design, it is easy and quick to set up and dismantle. You'll never waste precious time setting up again. Thanks to the leg angle selector, the tripod allows you to choose the exact angle that suits you. Together with the head, you can move smoothly from 40.5 cm to 217.5 cm. Comes with its own padded bag.

PACKAGE CONTENT

  • 1 × 504X Fluid Video Head with 536 CF Single leg tripod (MVK504XCTALL)

SPECIFICATIONS

  • Model: MVK504XCTALL
  • Official product name: 504X Fluid Video Head with 536 CF Single leg tripod
  • Weight: 5.84 kg
  • Safety Payload UNI/PdR 105:2021: 12 kg
  • Counterbalance System: Variable Steps
  • Counterbalance Weight: 2.2, 4.4, 6.5 kg
  • Maximum Height: 218 cm
  • Min Height: 42 cm
  • Base Diameter: 75 mm
  • Bubble Spirit Level (No.): 1
  • Center of gravity: 55 mm
  • Carrying Bag Included: yes
  • Center Column: no center column
  • Closed Length: 87 cm
  • Color: Black
  • Top Attachment: 1/4″ screw, 3/8″ screw attachmenttype
  • Ball Flat: 0
  • Powered by (batteries): Lithium
  • Easy Link: Yes (with antirotation)
  • Front Tilt: -70° / +90° tiltrange
  • Head Type: Video/Fluid Head
  • Leg Type: Single
  • Leg Angles: 23°, 50°, 70°
  • Leg Lock Type: Flip Lock
  • Leg Sections: 4
  • Material: Aluminum, Carbon Fiber
  • Maximum Working Temperature: 60 °C
  • Minimum Working Temperature: -30 °C
  • Pan Bar Included: Yes
  • Pan Drag: continuously adjustable from 0 to max level
  • Panoramic Rotation: 360 °
  • Plate Type: 504PLONGR-1
  • Quick Release: Yes
  • Tilt Drag: continuously adjustable from 0 to max level
  • Accessory Compatibility: 114; 127V; 127VS; MVAPANBARM; MVAPANBARL

WE RECOMMEND

The Manfrotto 504X & 536 is a professional carbon fiber tripod system featuring a 75mm half-ball head and a fluid head equipped with Easy Link connectors for mounting external accessories. Ideal accessories for this system include monitor mounts, replacement quick-release plates, and extension clamps for mounting on the carbon fiber legs.

Head and Control Accessories - Accessories to expand control options and enable quick handling of equipment.

Arms and accessory mounts - Components utilizing the 504X head’s Easy Link threads for mounting monitors and lights.

Tripod Clamps and Mounts - Sturdy clamps that allow you to securely attach additional equipment directly to the tripod legs.

Adapters and screws - Essential adapters for connecting different mounting standards.

Parameters

Parameters

Manufacturer: Manfrotto
Category: Tripods

Main parameters

MaterialCarbon
TypeFluid head · Video Tripod
Weight5.8kg
Ball Type75
Spacer typeWithout strut
Max height218cm
Tripod Load capacity12kg
Tirpod Payload12kg
