Manfrotto MVH502A,546GB-1 Professional Fluid Video Kit
SKU: MVH502A,546GB-1

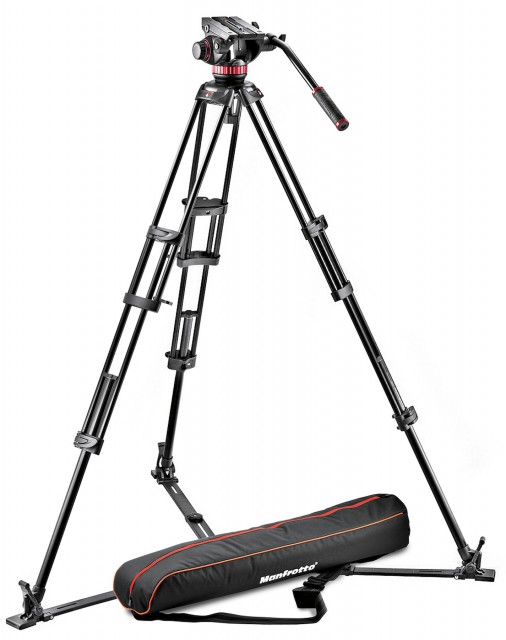

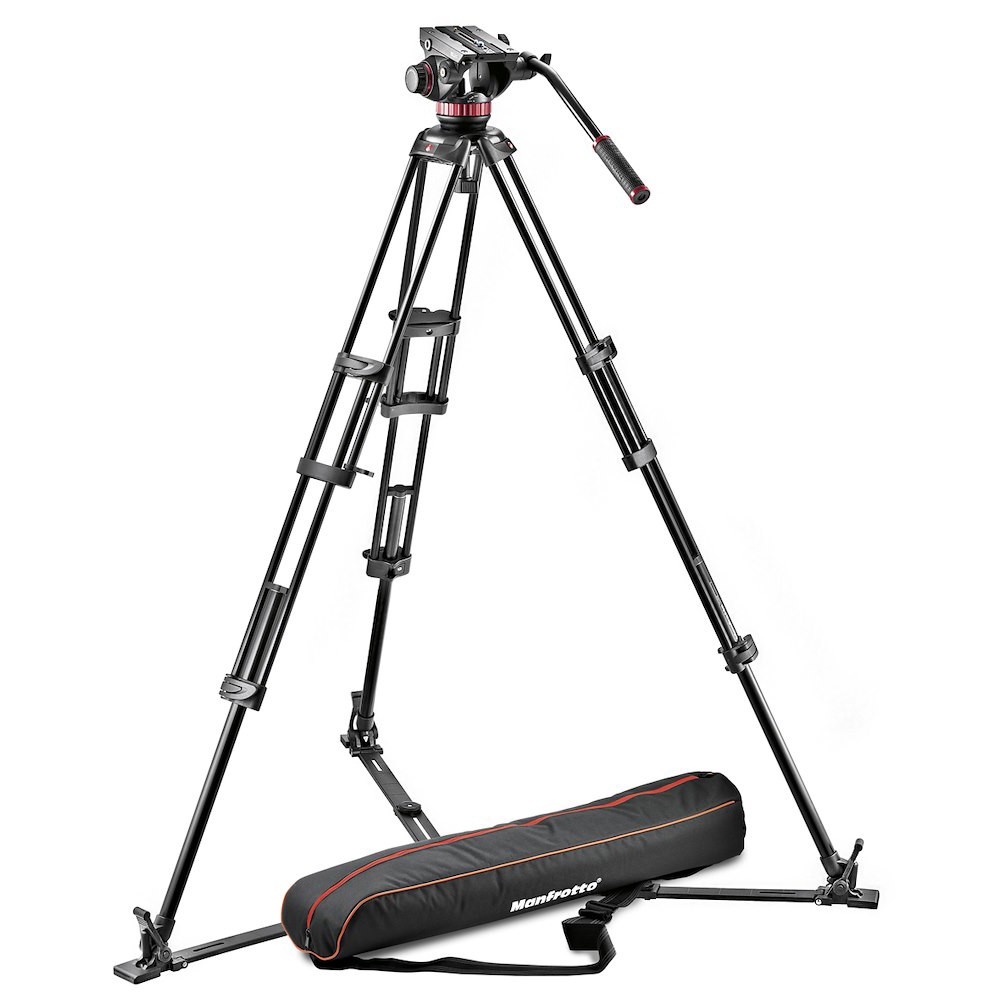

A professional fluid video system for precise and smooth shots. The Manfrotto MVH502A,546GB-1 combines the MVH502A fluid head with a built-in 75mm hemispherical ball, the 546GB aluminum tripod with double legs and a telescoping lower spreader, and a padded carrying case. It offers continuously adjustable pan and tilt resistance, a fixed 4…
A professional fluid video system for precise and smooth shots. The Manfrotto MVH502A,546GB-1 combines the MVH502A fluid head with a built-in 75mm hemispherical ball, the 546GB aluminum tripod with double legs and a telescoping lower spreader, and a padded carrying case. It offers continuously adjustable pan and tilt resistance, a fixed 4 kg counterbalance, a safe system load capacity of 10 kg, and a 504PLONG quick-release plate for professional camcorders, DSLRs, and mirrorless camera systems.
Professional 75 mm Video System
Smooth Movement and Stable Support
This all-aluminum kit combines the MVH502A fluid head, the 546GB tripod with a base spreader, and a padded carrying case.
Fluid resistance
Smoothly adjustable resistance on both the PAN and TILT axes helps ensure smooth panning and tilting.
4 kg counterweight
The fixed counterbalance system supports standard professional camera setups with a 55 mm center of gravity.
Safe load capacity of 10 kg
The system complies with the UNI/PdR 105:2021 safety standard and provides a safety margin for the camera and accessories.

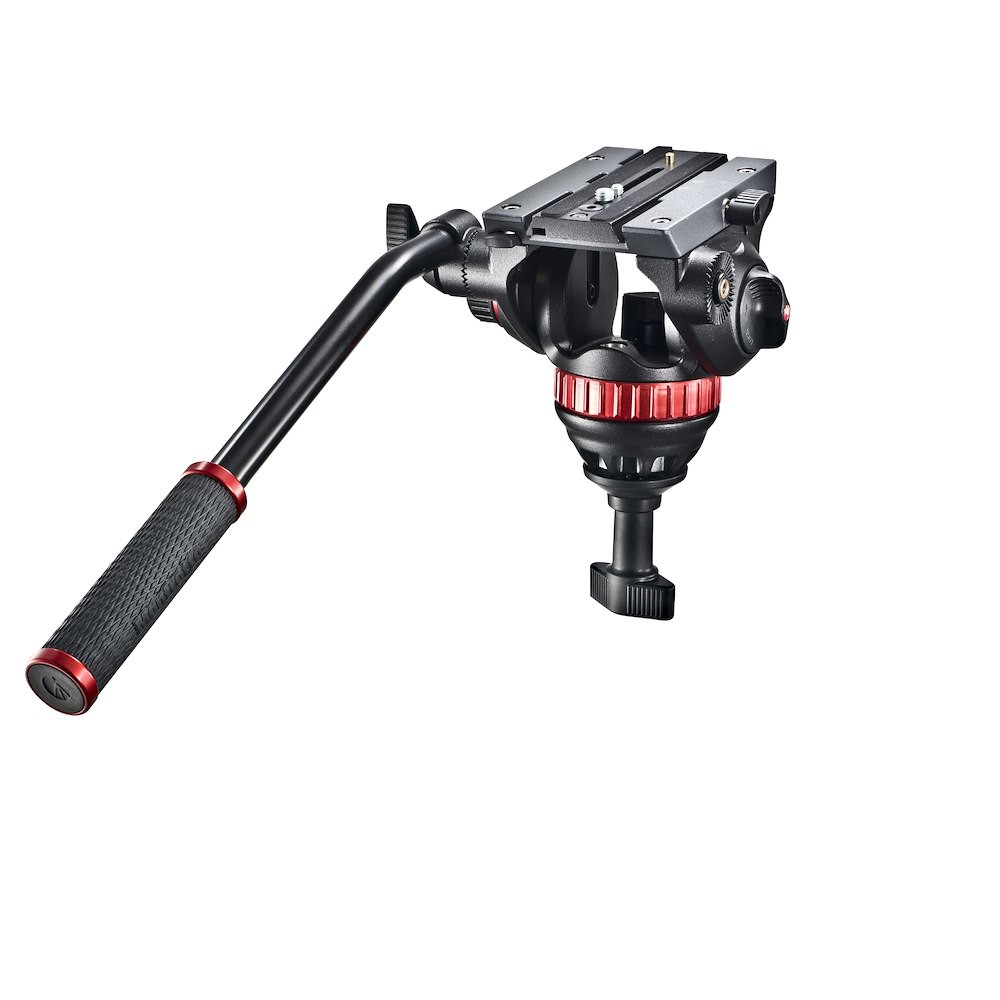

MVH502A: Precise Camera Control
The built-in 75 mm hemispherical ball facilitates quick leveling. The long 504PLONG plate helps properly balance the camera, while two 3/8″ Easy Link threads free up the camera mount for additional equipment.

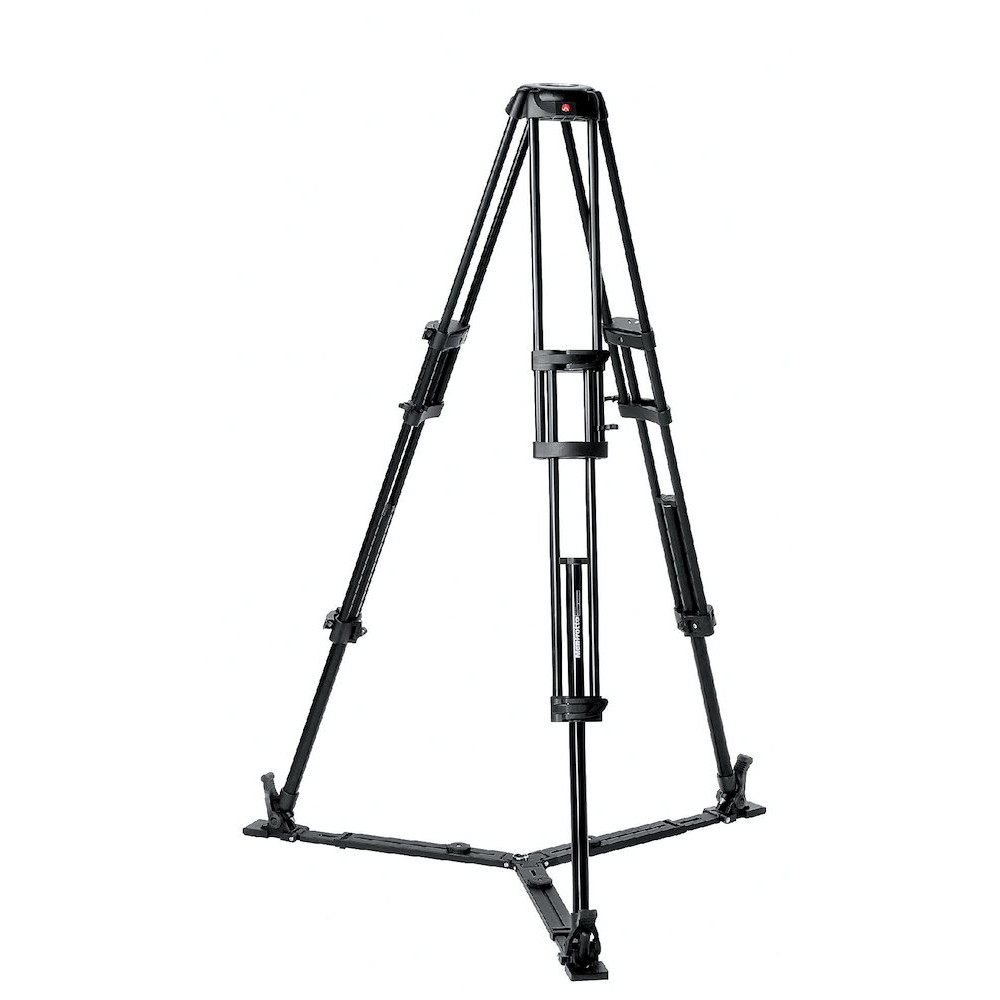

546GB: Stability on Various Surfaces
Dual three-section aluminum legs, quick-release lever locks, and an adjustable bottom spreader create a rigid base. Spikes with snap-on rubber feet can be used both outdoors and on smooth floors.
From low-angle shots to full height
The entire kit’s working range of 44–168 cm covers interviews, studio production, and event filming. When folded, it measures 83 cm, and the included padded carrying case makes it easy to transport between locations.
PACKAGE CONTENT
MVH502A Fluid Video Head with 75mm Hemisphere ×1
546GB aluminum tripod with spreader bar ×1
504PLONG quick-release plate ×1
Panoramic handle ×1
Padded carrying bag 110125 ×1
SPECIFICATIONS
Model: MVH502A, 546GB-1
Weight: 7.1 kg
Safe load capacity: 10 kg
Counterweight: fixed, 4 kg at a center of gravity of 55 mm
Maximum height: 168 cm
Minimum height: 44 cm
Length when folded: 83 cm
Hemispherical base / bowl: 75 mm
Tilt: −80° to +90°
Panorama: 360°
PAN/TILT resistance: continuously adjustable from 0 to maximum
Plate: 504PLONG, quick-release
Legs: double, 3 sections, tube diameter 16 / 25 mm
Locks: lever-type
Spacer: bottom, telescopic
Material: aluminum
Operating temperature: −20 to +60 °C
Easy Link: yes, 2× 3/8″
WE RECOMMEND
The Manfrotto MVH502A,546GB-1 tripod set combines sturdy aluminum legs with a 75mm half-ball head and a fluid video head from the 502 series, ensuring smooth movements and high stability for professional cameras. Ideal accessories for this system include extension arms for monitors, replacement quick-release plates, and various clamps for attaching accessories directly to the tripod frame.
Video Head Accessories - Accessories to expand the functionality and ergonomicsof the fluid head and quick-release system.
