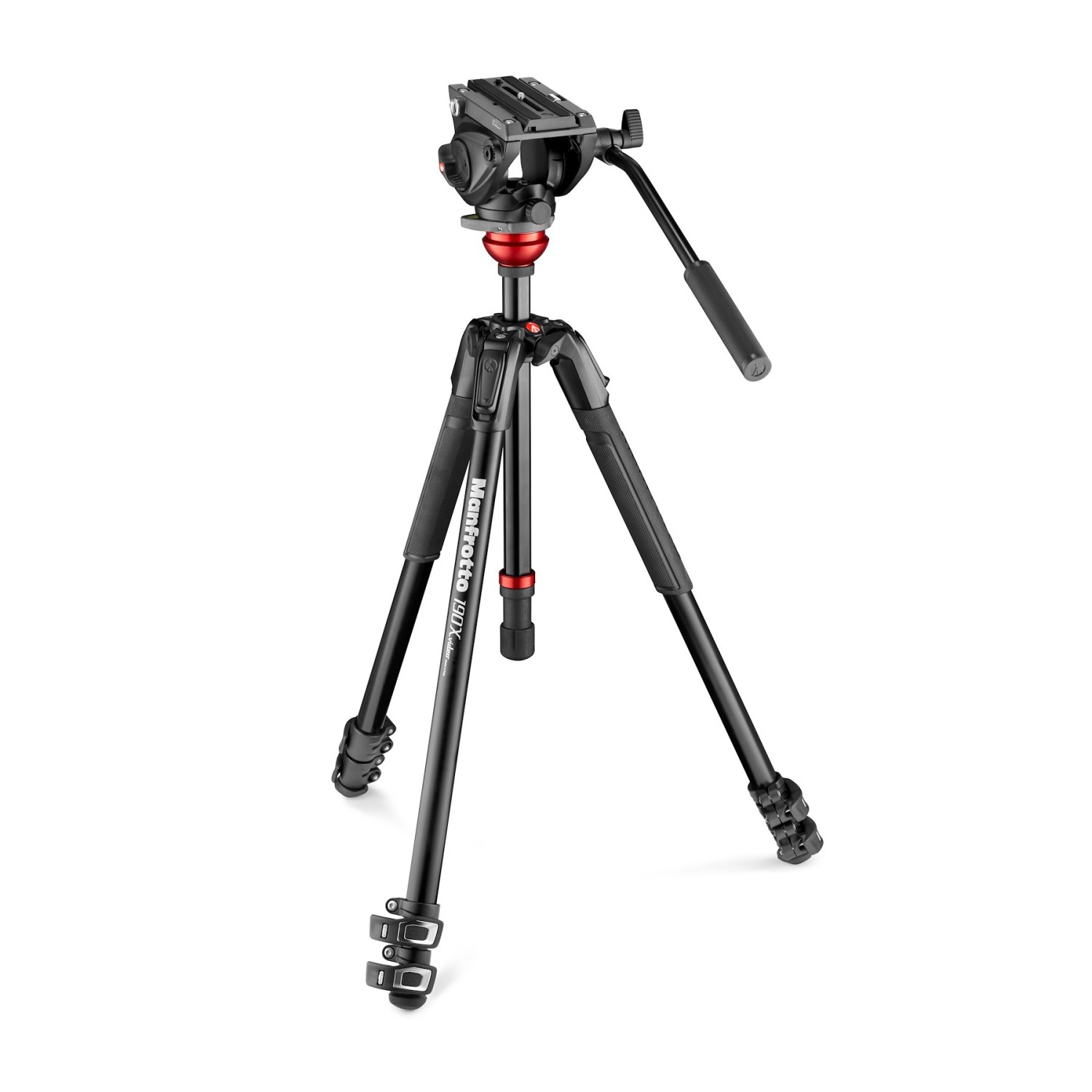

Manfrotto MVK500190XV – 190X aluminium video tripod with 500 fluid head

The Manfrotto MVK500190XV is a complete aluminum video system for creators who want smooth, cinematic shots, quick tripod setup in the field, and the flexibility to use the head on a slider or crane. It combines the MVH500AH fluid head with a flat base, a long 500PLONG quick-release plate, and a three-section 190X Video tripod with a leveling center column; weighing 3.2 kg, it reaches a height of 173.3 cm and, according to the manufacturer’s current specifications, can safely support a setup weighing up to 8 kg.

Manfrotto MVK500190XV

Smooth movement. Quick setup.

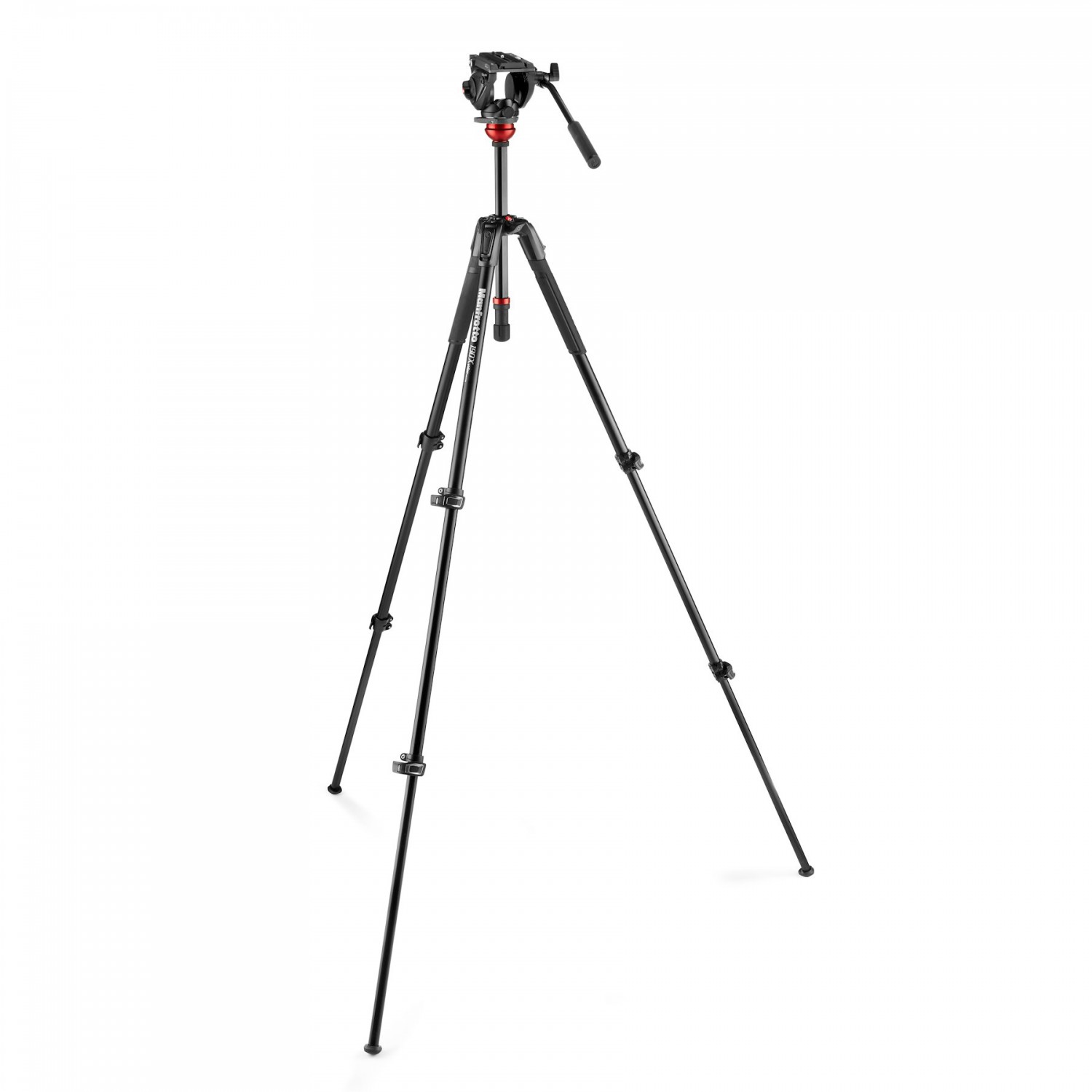

The MVH500AH fluid head and 190X Video aluminum tripod provide an easily portable support for shooting both indoors and outdoors. The head’s flat base expands its use to sliders and cranes, while the leveling column speeds up horizon alignment.

8 kgsafety payload

173,3 cmmaximum height

3,2 kgsystem weight

3aluminium leg sections

Confidence for Every Shot

Smooth pan and tilt

Fixed fluid cartridges on both axes help ensure smooth panning and tilting without jerky movements.

Top-Loading Side Lock

A camera with a 500PLONG plate is mounted onto the head from the top. The transition from handheld to tripod is quick, and there’s no need to slide the plate in from the back.

Preset Balance

A 2.4 kg counterweight with a 55 mm center of gravity ensures more stable operation with standard camera and mirrorless camera setups.

A Head That’s Not Just for Tripods

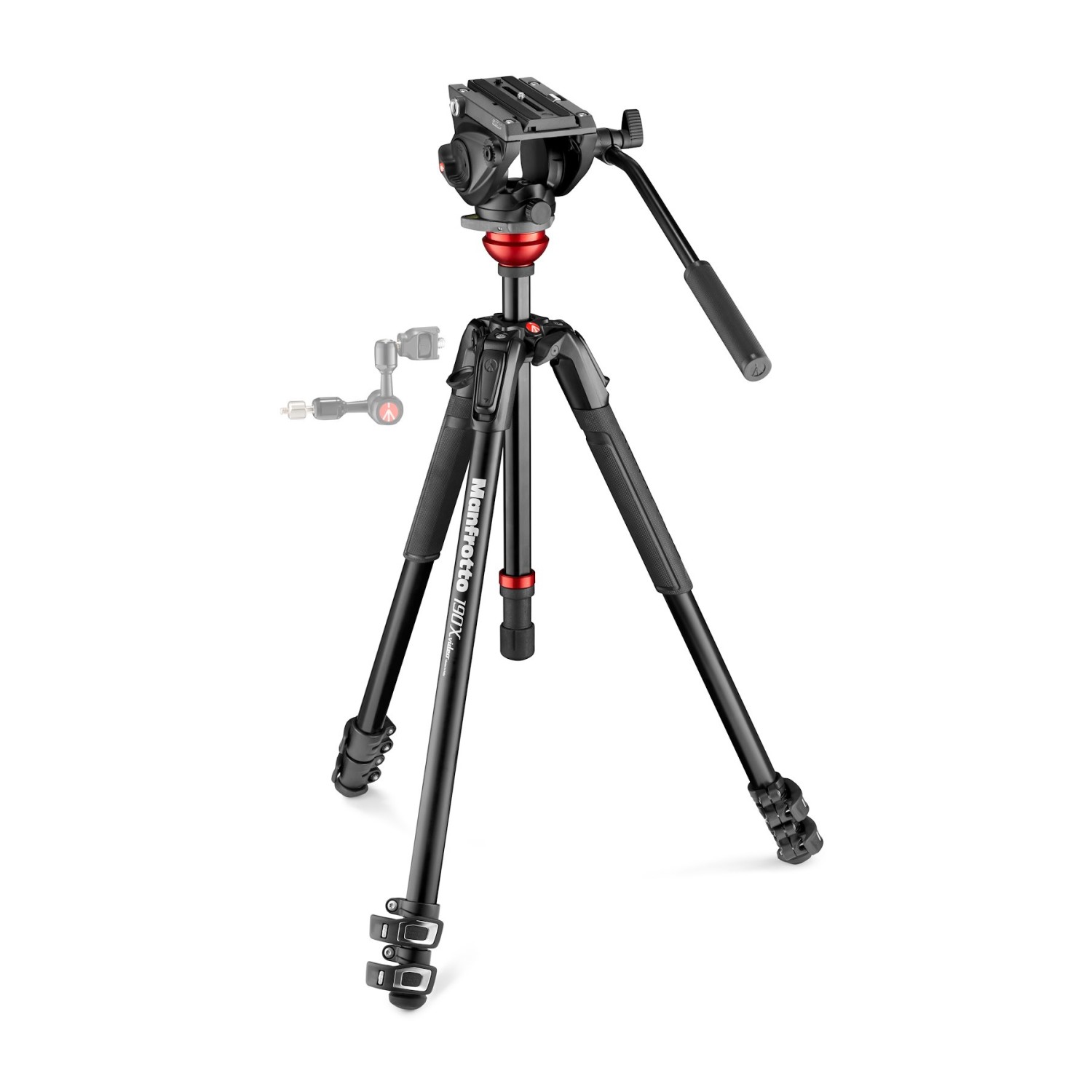

The flat base and standard mounting allow the MVH500AH to be used on a compatible slider, jib, or other support system. The 3/8″ Easy Link connector on the head is ready for a monitor or other accessories; an Easy Link with anti-rotation protection is also located on the tripod casting.

A tilt range of −70° to +90° and 360° panoramic rotation provide freedom during interviews, news coverage, and product shoots.

Quick Leveling in the Field

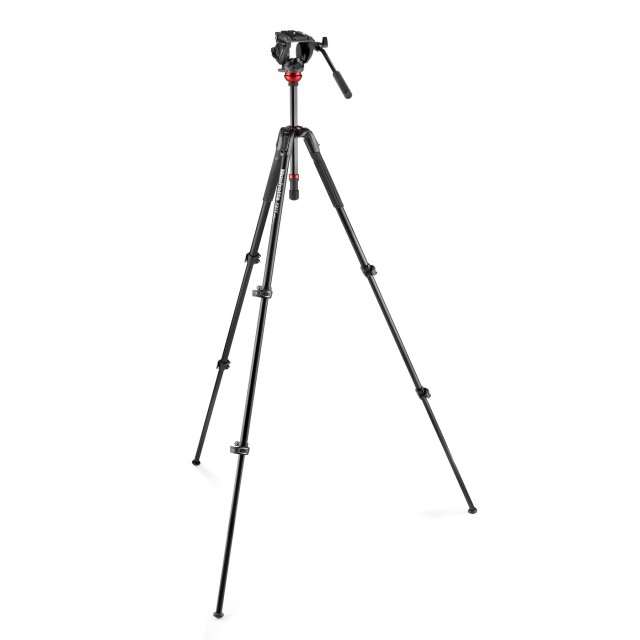

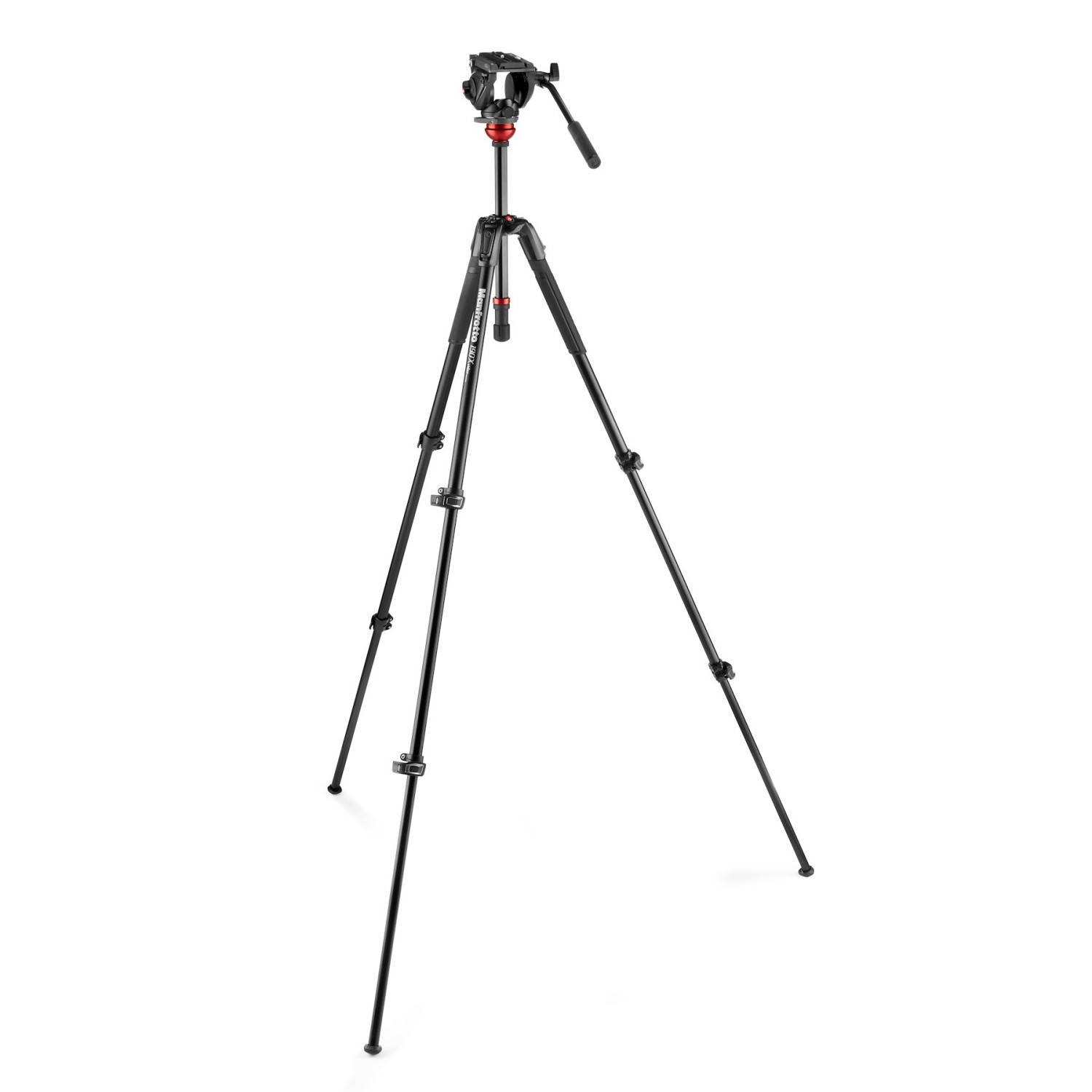

The three-section, one-piece aluminum legs feature Quick Power Lock levers. The leveling center column makes it easy to level the head without time-consuming fine-tuning of each leg.

• Four leg angles: 25°, 46°, 66°, and 88°
• Working height: 50.3–173.3 cm
• Height with column retracted: 149.3 cm
• Folded length: 72.2 cm
