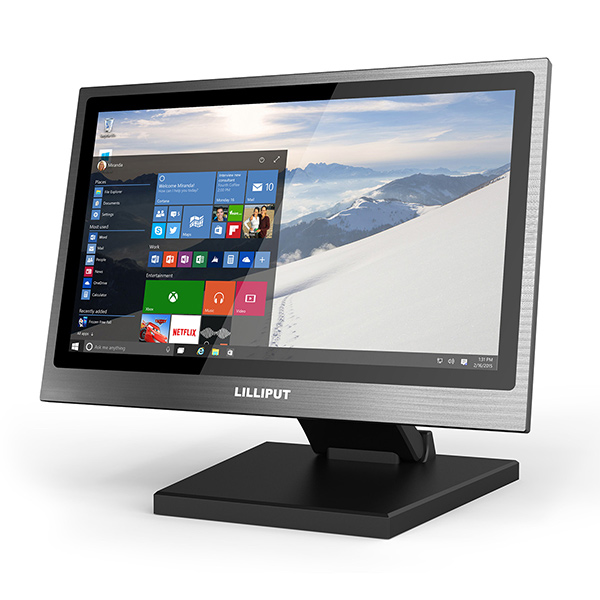

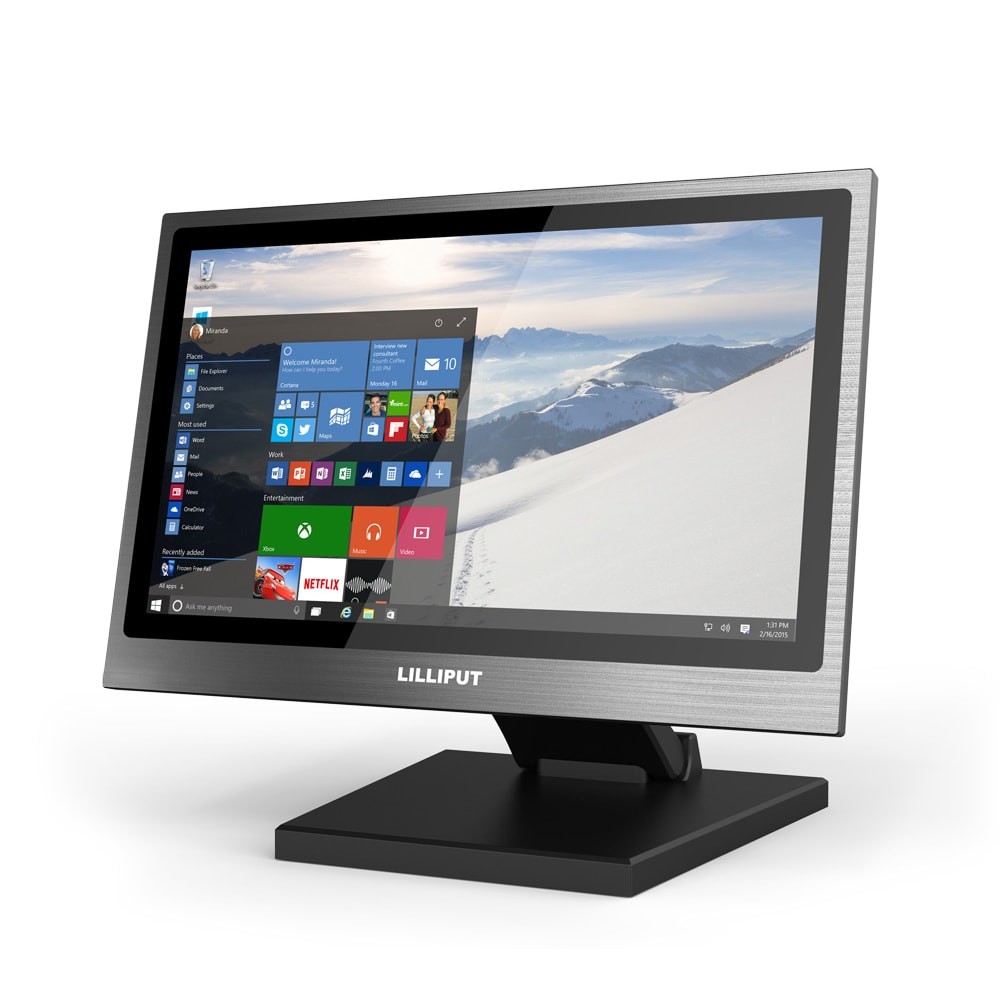

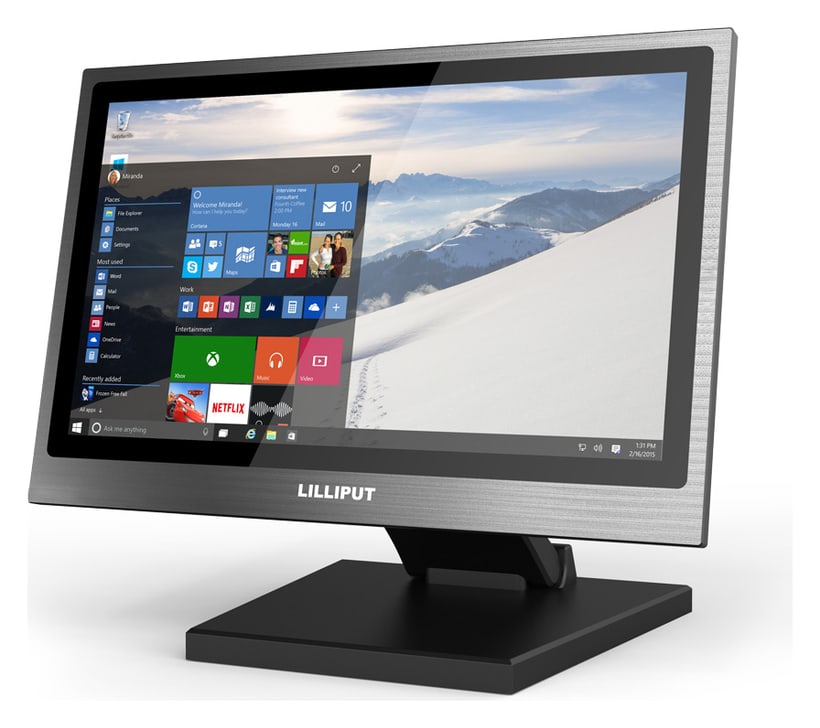

Lilliput TK1330-NP/C 13.3" industrial monitor
SKU: TK1330-NP/C
The Lilliput TK1330-NP/C is a 13.3" industrial monitor with a Full HD 1920 × 1080 IPS panel, 300 cd/m² brightness and 170° viewing angles. Its metal housing with an aluminium front offers HDMI, DVI, VGA and composite inputs, 7–24 V power and VESA 75/100 mm or integrated bracket mounting.
265 € with VAT
219.01 € without VAT
Availability
14-30 days
Top accessories for Lilliput TK1330-NP/C 13.3" industrial monitor
SmallRig Mount Plate for Monitor VESA for Camera Cart 6257
The SmallRig 6257 VESA kit attaches a production monitor to a camera cart or stand
330 €
In stock > 5 pcs
PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum
This cable enables high-quality video and audio conversion from USB-C to HDMI connector
13 €
In stock 4 pcs
Canare HDMI Cable 5 m
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs
Manfrotto TetherGear VESA Monitor Mount
The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers
197 €
2 pcs in stock at the supplier
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput TK1330-NP/C is a 13.3" industrial monitor with a Full HD 1920 × 1080 IPS panel, 300 cd/m² brightness and 170° viewing angles. Its metal housing with an aluminium front offers HDMI, DVI, VGA and composite inputs, 7–24 V power and VESA 75/100 mm or integrated bracket mounting.

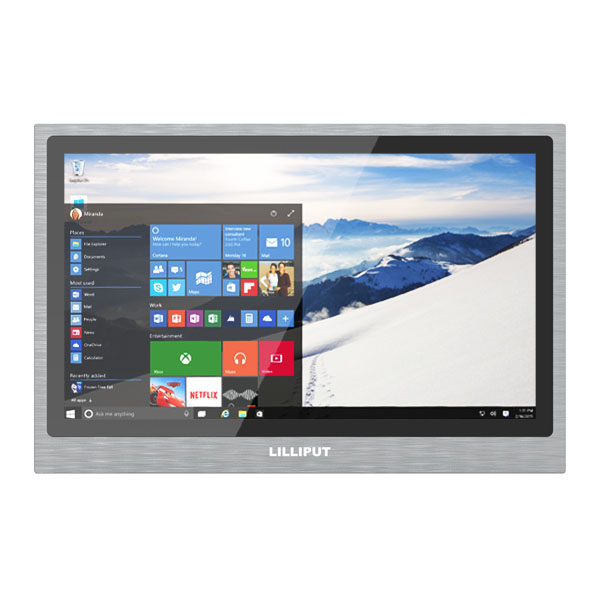

Full HD monitor in a metal body

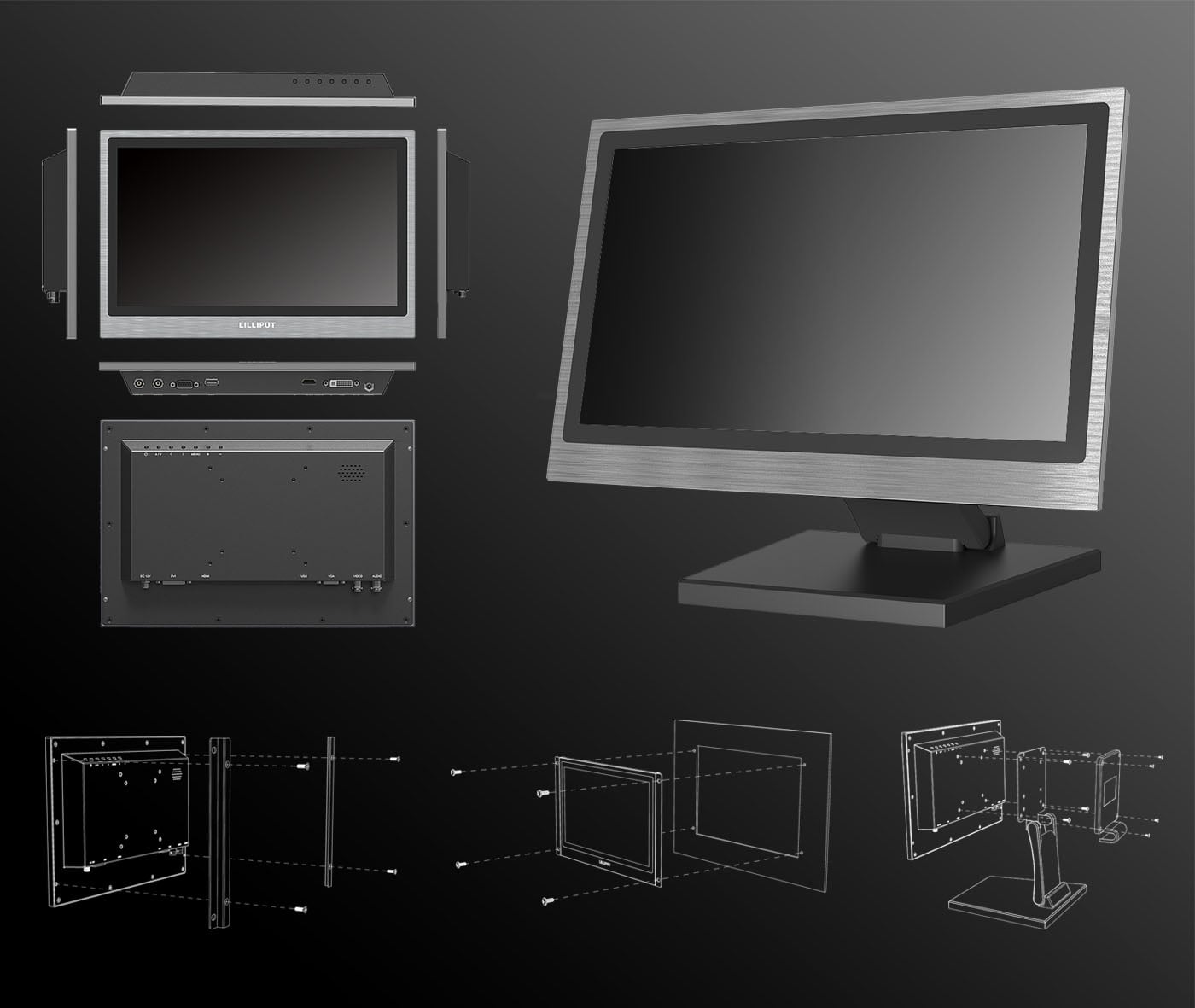

A 13.3" IPS panel with faithful colours and wide angles, a brushed aluminium front and a steel back. The integrated bracket and VESA 75/100 mm put it on a wall, into a panel, on a desk or under a ceiling.
13.3" IPS 1920 × 1080HDMI · DVI · VGA · AV300 cd/m²DC 7–24 VVESA 75/100
A metal body that lasts
The brushed aluminium front and steel back protect the monitor from damage, look good and extend its service life. A 7 to 24 V supply range allows use in many installations.
Full HD IPS
1920 × 1080, 800:1 contrast, 170° / 170° angles.
4 inputs
HDMI, DVI, VGA and composite video (BNC).
−20 to 60 °C
Operating range for workshops and outdoor cabinets.
8 W
Low power draw, built-in speaker.

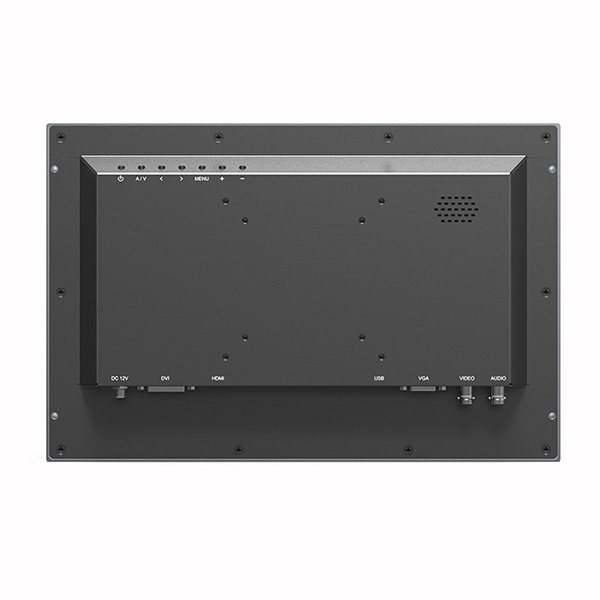

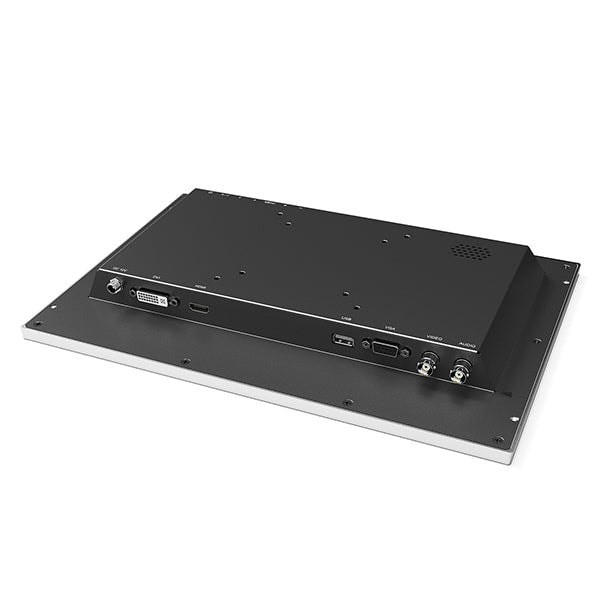

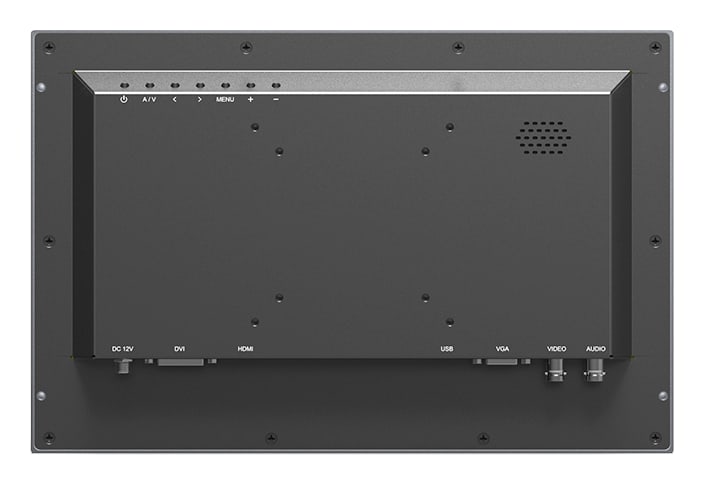

Rear panel
The connectors sit on the lower edge of the back, with the control buttons and four VESA holes above them.

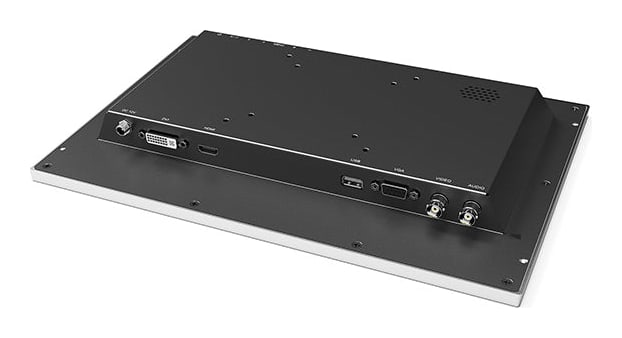

Slim steel body
Only 34.5 mm deep for easy integration into a panel or wall.
More information
About the TK1330-NP/C
Add a 13.3" commercial IPS display with LED backlight and native Full HD 1920 × 1080 resolution for detailed images to your system. With 300 cd/m² brightness, 800:1 contrast and 170° viewing angles, colours stay vivid in most installations.
The monitor offers HDMI, DVI, VGA and composite (BNC) inputs and ships with cables for instant connection. Typical uses include human–machine interfaces, entertainment, retail and supermarkets, advertising displays, CCTV monitoring, CNC machines and industrial control.
PACKAGE CONTENT
- Lilliput TK1330-NP/C monitor
- 12 V DC power adapter
- HDMI A–A cable
- VGA cable
- BNC video cable
- BNC audio cable
- VESA mounting screws
- User manual
SPECIFICATIONS
- Model: TK1330-NP/C
- Display: 13.3" IPS, LED backlight
- Resolution: 1920 × 1080
- Aspect ratio: 16:9
- Brightness: 300 cd/m²
- Contrast: 800:1
- Viewing angle: 170° / 170° (H/V)
- Touch panel: none (non-touch)
- Inputs: 1× HDMI, 1× DVI, 1× VGA, 1× composite video (BNC), audio (BNC)
- HDMI formats: 720p 50/60, 1080i 50/60, 1080p 50/60
- Audio: 1× speaker, 3.5 mm headphone output (2ch, 48 kHz, 24 bit)
- Power input: DC 7–24 V
- Power consumption: ≤ 8 W
- Operating temperature: −20 to 60 °C
- Storage temperature: −20 to 70 °C
- Dimensions (W × H × D): 333.5 × 220 × 34.5 mm
- Weight: 1.9 kg
- Mounting: VESA 75/100 mm, integrated bracket (wall, panel, ceiling)
- Housing: brushed aluminium front, steel back
WE RECOMMEND
Recommended for the Lilliput TK1330-NP/C 13.3" industrial monitor:
Cables – to connect the video source
Mounting – on a stand, an arm or a desk
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p |
| Size | 13.3" |
| Monitor inputs | HDMI · Composite Video · DVI · VGA |
| Luminosity | 300cd/m2 |
| Panel resolution | 1920x1080 |
| Monitor power supply | DC 7-24V |
Other parameters
| Tally | No |
| Other features | IPS panel |
| High Brightness | No |
