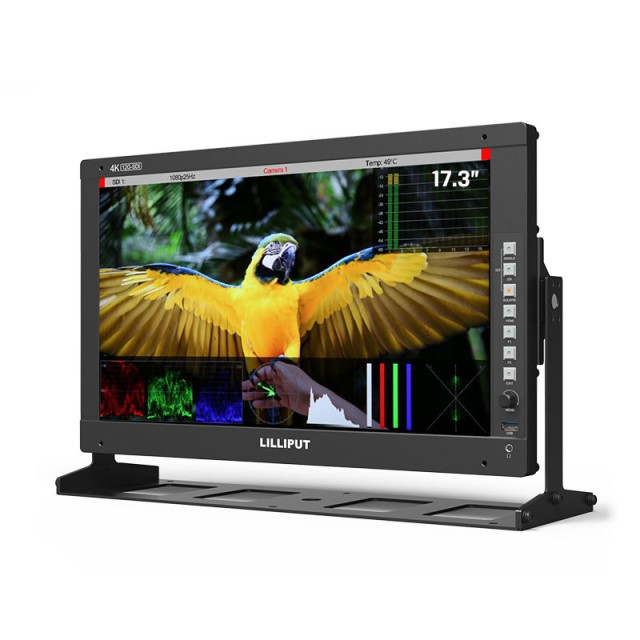

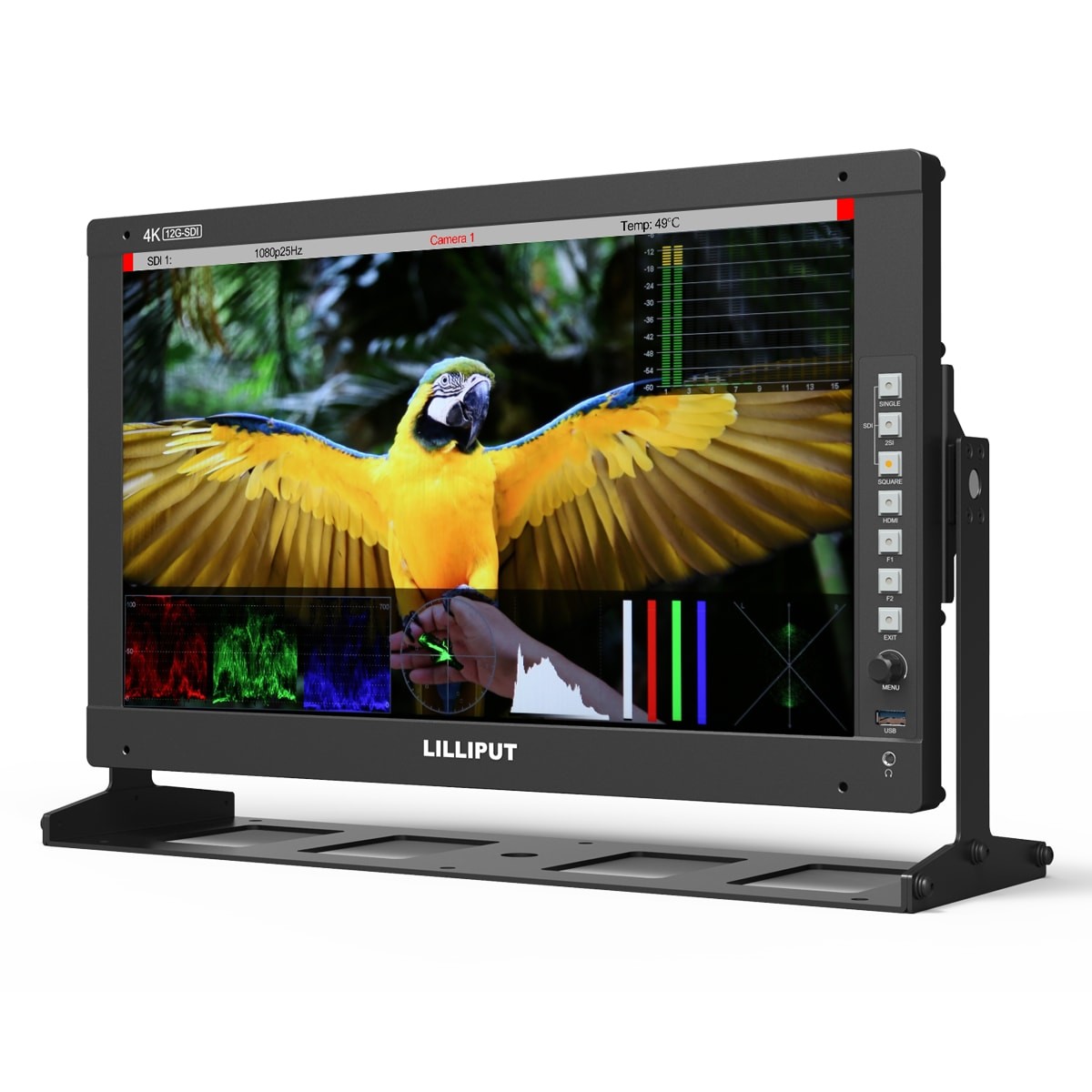

Lilliput Q17 17.3" 12G-SDI/HDMI HDR Monitor (V-Mount)
SKU: Q17
Lilliput Q17 (Q17 Pro) is a 17.3″ production monitor with a 1920 × 1080 panel and 300 cd/m² brightness that accepts signals up to 4K: two 12G-SDI inputs, two 3G-SDI, HDMI 2.0 and an optional SFP optical module. It offers HDR, 3D LUTs, scopes, tally and remote control via LAN, RS422 and GPI in a metal housing.
1 819 € with VAT
1 503.31 € without VAT
Availability
14-30 days
Lilliput Q13 13.3" 12G-SDI Studio / Broadcast Monitor
1 699 €without VAT 1 404.13 €
Lilliput Q31 31.5" 12G-SDI/HDMI Broadcast Studio Monitor
In stock 1 pcs2 909 €without VAT 2 404.13 €
Lilliput Q15 15.6" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)
2 059 €without VAT 1 701.65 €
Lilliput Q18 17.3" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)
In stock 1 pcs2 179 €without VAT 1 800.83 €Top accessories for Lilliput Q17 17.3" 12G-SDI/HDMI HDR Monitor (V-Mount)
Infinitek L-4.5CHWS 1m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
15 €
In stock > 5 pcs
PremiumCord Ultra High Speed HDMI 2.1 cable 8K@60Hz, 4K@120Hz length 1.5m metallic gold plated connectors
High-end ULTRA HDMI 2.1 interconnect cable for the highest resolution 8K@60Hz and
9.3 €
In stock > 5 pcs
Lilliput Anton Bauer Battery Plate
The Lilliput Anton Bauer battery plate lets you power the Lilliput 665GL monitor
51 €
14-30 days
Lilliput Q17 Case + Sunshade
A rigid carrying case with a sunshade for the Lilliput Q17 monitor (17.3″). It keeps
269 €
14-30 days
Lilliput Q17 Rackmount Brackets
A pair of Lilliput rackmount brackets for the Q17 studio monitor (17.3″). The brackets
34 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Lilliput Q17 (Q17 Pro) is a 17.3″ production monitor with a 1920 × 1080 panel and 300 cd/m² brightness that accepts signals up to 4K: two 12G-SDI inputs, two 3G-SDI, HDMI 2.0 and an optional SFP optical module. It offers HDR, 3D LUTs, scopes, tally and remote control via LAN, RS422 and GPI in a metal housing.

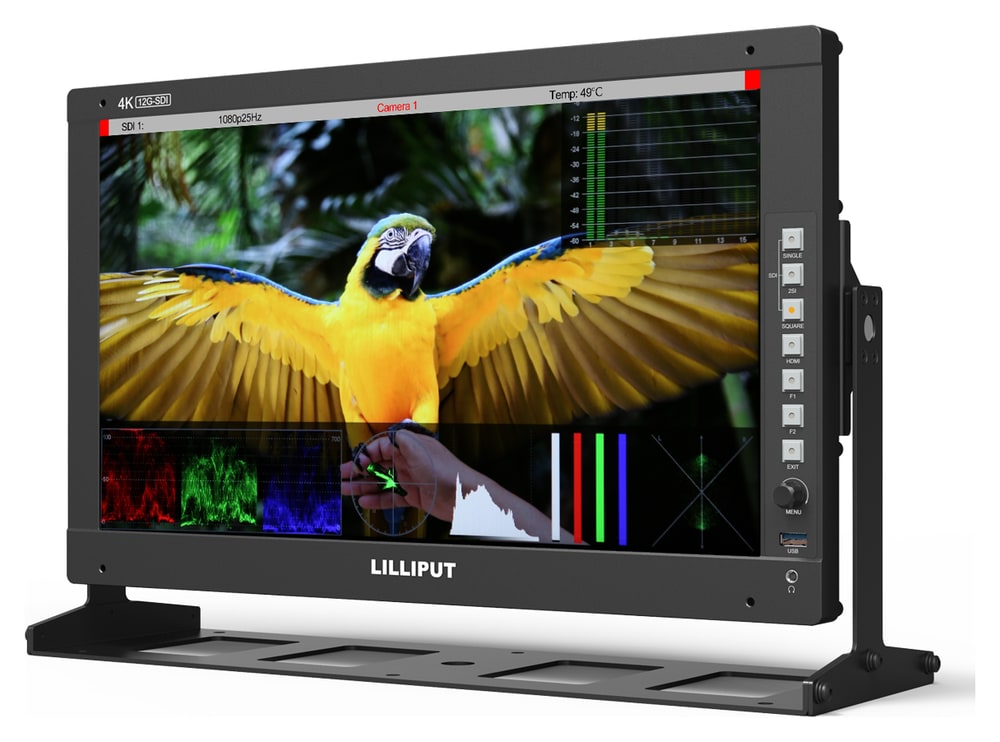

17.3″ broadcast monitor with 12G-SDI inputs
Lilliput Q17 watches the picture in the studio, control room and on set: SDI and HDMI with loop outputs, scopes, HDR, 3D LUTs and control from a computer.
17.3″1920 × 1080300 cd/m²4K inputHDMI 2.012G SFP+
Single, dual and quad link
It accepts a 4K signal over a single 12G-SDI cable or split into two or four links; the SDI and HDMI loop outputs pass it on to the next device.
Colour calibration
Calibration to Rec.709 with an optional probe and support for ColourSpace CMS PRO/LTE by Light Illusion.
3D LUT and log
Custom 3D LUTs in .cube format, log profiles SLog2/3, CLog, NLog, ArriLog and JLog.
Audio vector
A Lissajous figure shows the depth and balance of stereo, 16 audio channels from SDI.
Remote control
Computer application via LAN or RS422, GPI input for tally and commands.
Tools for checking the picture
Waveform, vectorscope, histogram, 4-bar display, audio vector and audio meters, HDR ST 2084 and HLG, gamma 1.8–2.8, colour spaces SMPTE-C, Rec.709, EBU and native, side-by-side comparison with the original, colour temperature 3200–9300 K, false color (Default, Spectrum, ARRI, RED), markers and aspect ratios, LTC/VITC timecode, colour bars, check field, zoom, focus peaking and tally.

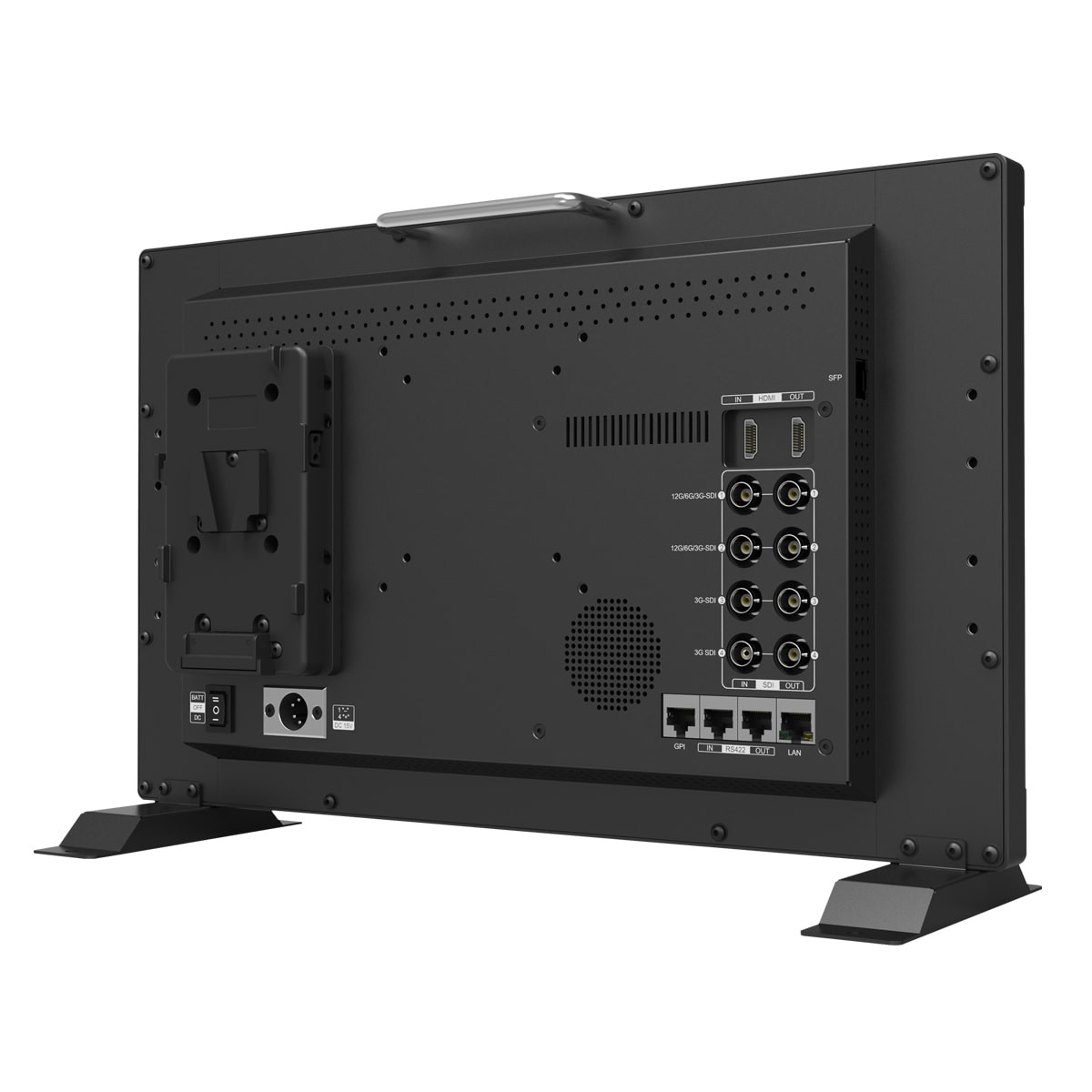

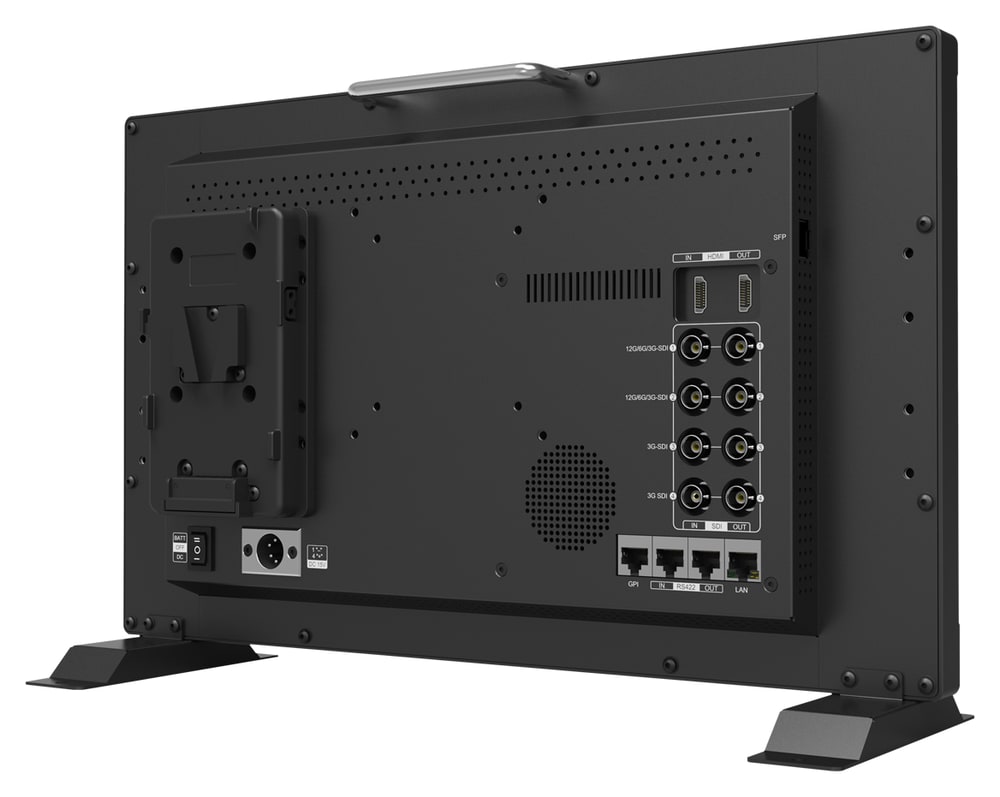

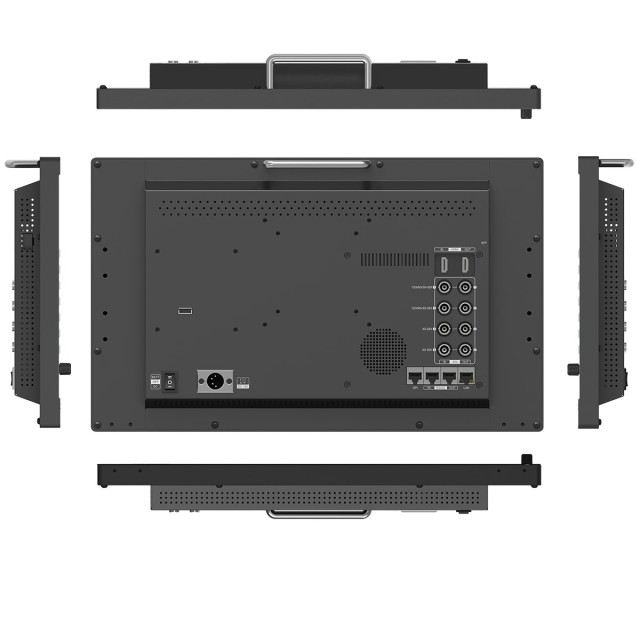

Connectors and remote control
The 12G-SDI inputs handle single, dual and quad link, HDMI 2.0/1.4 has a loop output and the SFP slot takes an optional optical module. The loop outputs carry 3840 × 2160 and 4096 × 2160 up to 60p. The monitor is controlled via LAN, GPI and RS422, and the menu is operated with a customisable dial.

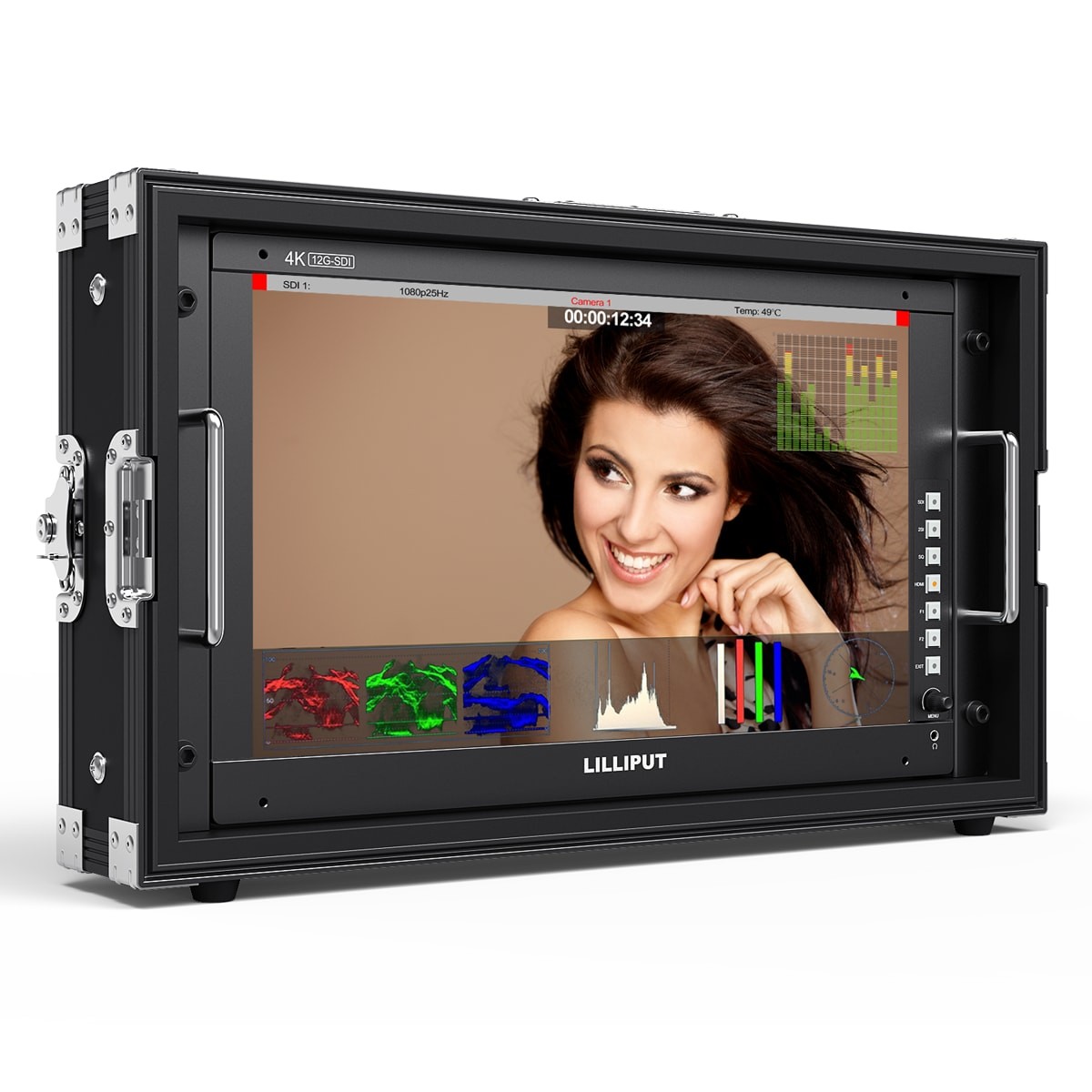

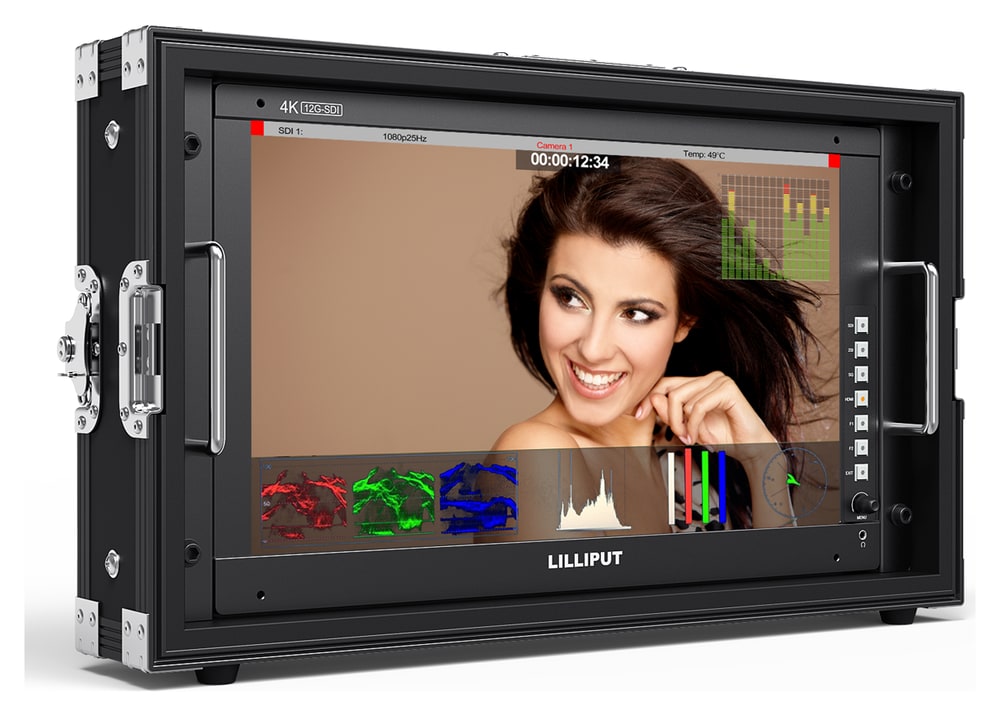

Metal body for studio and field

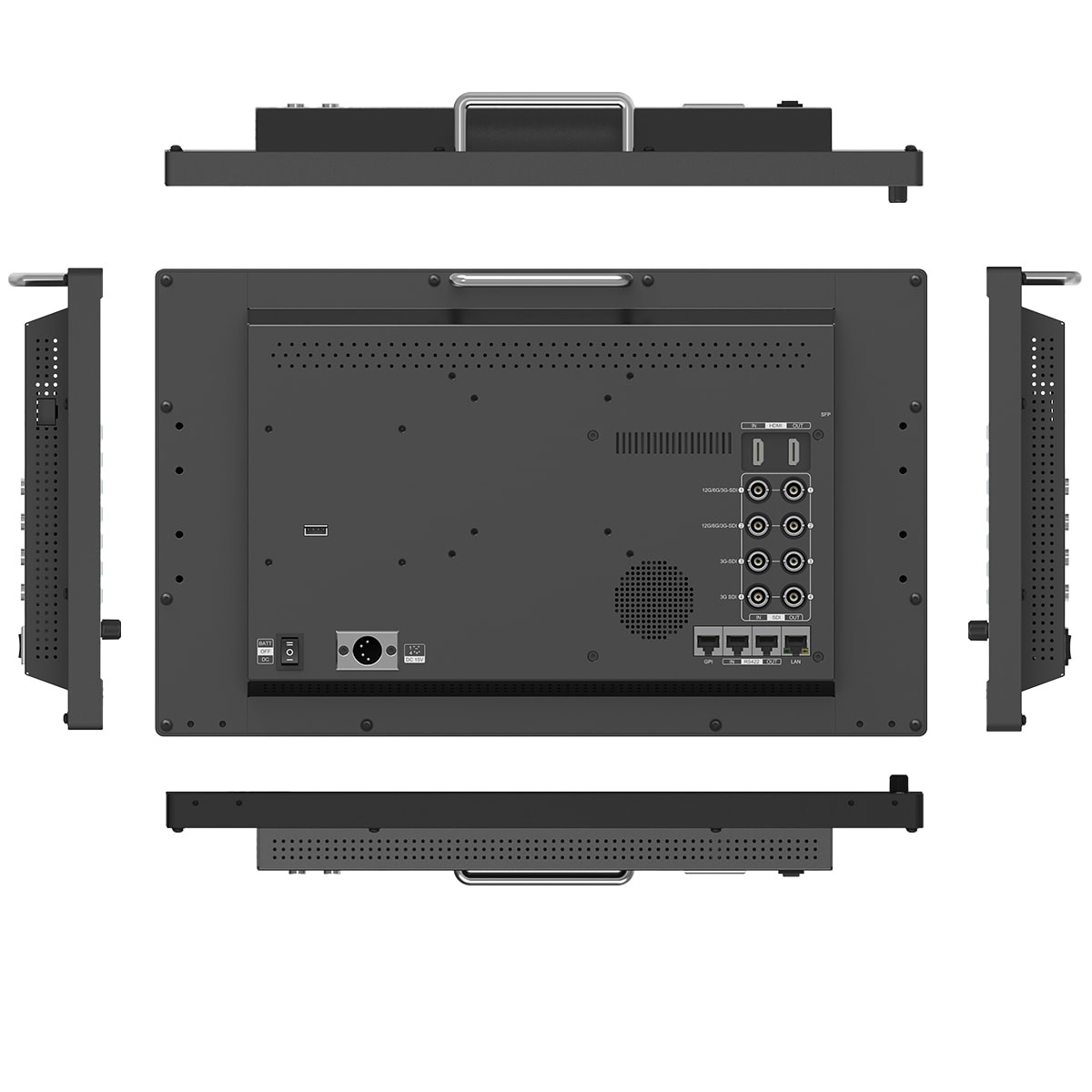

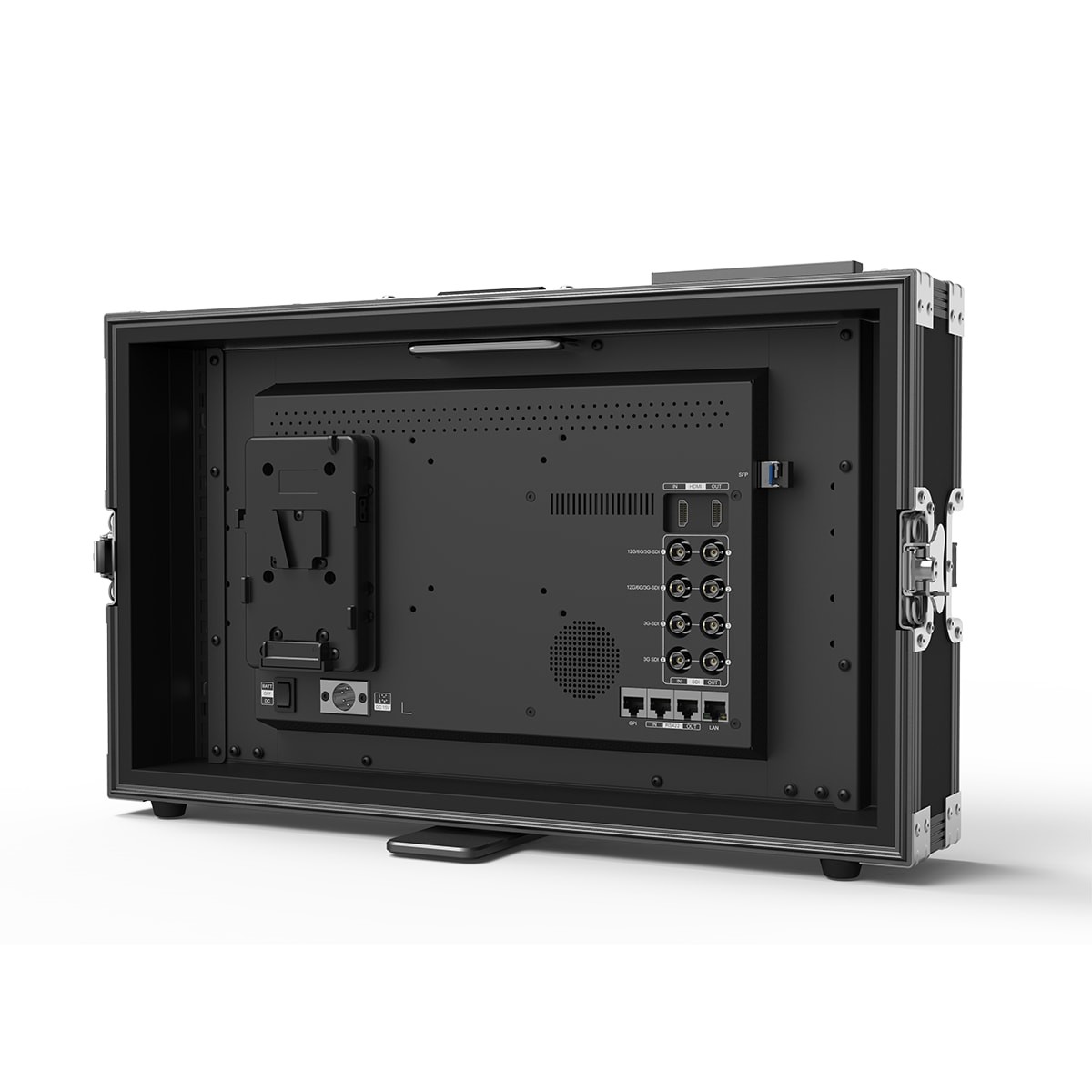

The metal housing measuring 434 × 263 × 54 mm and weighing 3.2 kg is ready for a battery plate on the back; the monitor can stand, hang on VESA or travel in a carrying case.
More information
Lilliput Q17 is a 17.3″ 12G-SDI/HDMI production monitor with HDR and a 1920 × 1080 resolution that accepts and passes on signals up to UHD 4K. The display offers 1200:1 contrast, 300 cd/m² brightness and a 170°/170° viewing angle. The battery plate lets you power the monitor from a long-lasting battery when no mains socket is nearby. Q17 has one HDMI 2.0 input, two 12G-SDI inputs, two 3G-SDI and loop outputs, supports 12G-SDI in single, dual and quad link and has a slot for an optional 12G SFP+ module.
Features
- 17.3″ display
- physical resolution 1920 × 1080
- aspect ratio 16:9
- brightness 300 cd/m²
- contrast 1200:1
- viewing angle 170°/170° (H/V)
- 12G-SDI / HDMI 4K signal
- colour calibration: colour spaces, colour temperature, gamma
- remote control application: LAN / RS422
- audio vector (Lissajous), HDR, 3D LUT
PACKAGE CONTENT
- Lilliput Q17 monitor
- 15 V DC power adapter
- Gimbal bracket
- Base (2 feet)
- Acrylic screen protector
- VESA mounting plate
- Battery plate for V-shaped batteries
- USB flash drive
- Screwdriver
- Carrying case
SPECIFICATIONS
- Screen size: 17.3″
- Resolution: 1920 × 1080
- Aspect ratio: 16:9
- Brightness: 300 cd/m²
- Contrast: 1200:1
- Viewing angle: 170°/170° (H/V)
- HDR: ST 2084, HLG
- Gamma: 1.8–2.8
- Colour space: SMPTE-C, Rec.709, EBU, native
- Colour temperature: 3200, 5500, 6500, 7500, 9300 K, user
- 3D LUT: .cube format, loaded via USB
- SDI inputs: 2× 12G-SDI, 2× 3G-SDI (single/dual/quad link 4K)
- SFP: 1× 12G SFP+ (optical module optional)
- HDMI input: HDMI 2.0/1.4
- Loop outputs: SDI and HDMI up to 3840 × 2160 and 4096 × 2160 at 23.98–60p
- Remote control: LAN, GPI, RS422
- Functions: waveform, vectorscope, histogram, audio vector, audio meters, false color, focus peaking, markers, LTC/VITC timecode, UMD, tally (red/green/yellow)
- Dimensions (L × W × D): 434 × 263 × 54 mm
- Weight: 3.2 kg
- Housing: metal
Parameters
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Size | 17.3" |
| Monitor inputs | HDMI · SDI · 12G SDI · 3G-SDI · SFP · HDMI 2.0 · LAN |
| Luminosity | 300cd/m2 |
| Panel resolution | 1920x1080 |
| Monitor power supply | V-Mount · Gold Mount |
Other parameters
| Tally | Yes |
| Other features | Quad split · HDR · Tally · 3D LUT correction |
| High Brightness | No |
