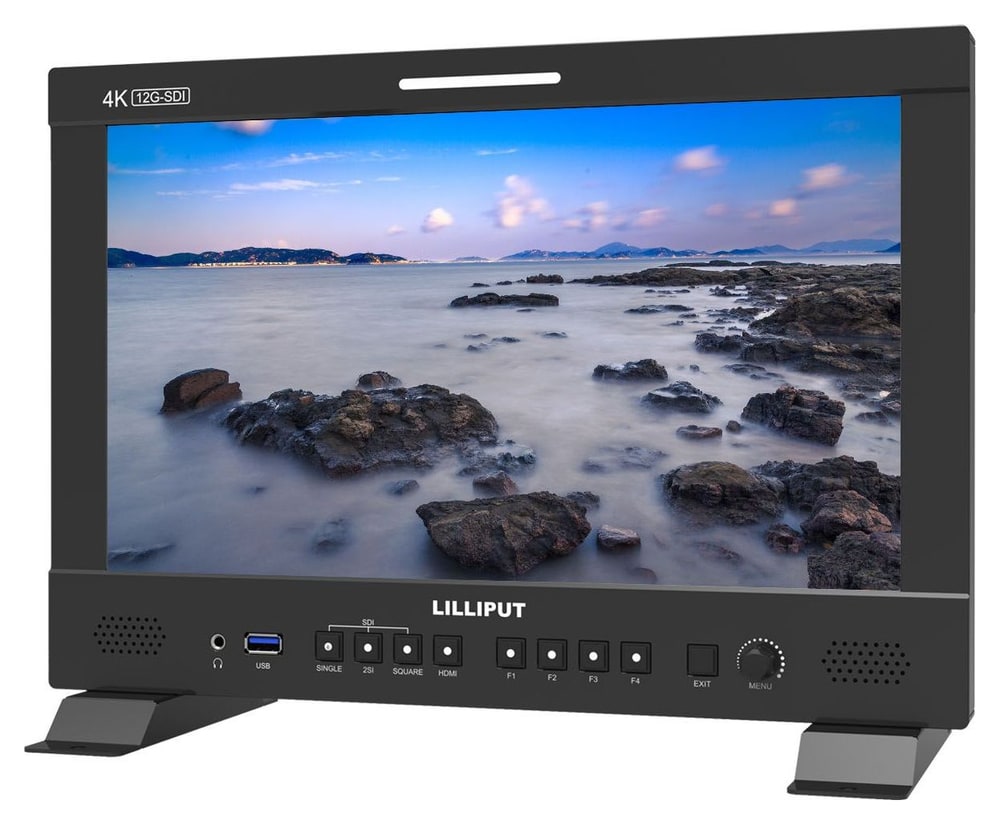

Lilliput Q13 13.3" 12G-SDI Studio / Broadcast Monitor
SKU: Lilli-q13
Lilliput Q13 is a 13.3″ studio and broadcast monitor with a native 3840 × 2160 resolution for camera operators, edit suites and OB workstations. It has two 12G-SDI and two 3G-SDI inputs, HDMI 2.0 and a slot for a 12G SFP+ optical module, loop outputs, audio vector, 3D LUTs, HDR and control via LAN, RS422 and GPI.
1 699 € with VAT
1 404.13 € without VAT
Availability
14-30 days
Lilliput Q31 31.5" 12G-SDI/HDMI Broadcast Studio Monitor
In stock 1 pcs2 909 €without VAT 2 404.13 €
Lilliput Q15 15.6" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)
2 059 €without VAT 1 701.65 €
Lilliput Q17 17.3" 12G-SDI/HDMI HDR Monitor (V-Mount)
1 819 €without VAT 1 503.31 €
Lilliput Q18 17.3" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)
In stock 1 pcs2 179 €without VAT 1 800.83 €Top accessories for Lilliput Q13 13.3" 12G-SDI Studio / Broadcast Monitor
Infinitek L-4.5CHWS 1m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
15 €
In stock > 5 pcs
PremiumCord Ultra High Speed HDMI 2.1 cable 8K@60Hz, 4K@120Hz length 1.5m metallic gold plated connectors
High-end ULTRA HDMI 2.1 interconnect cable for the highest resolution 8K@60Hz and
9.3 €
In stock > 5 pcs
Lilliput Q13 SFP Optical Module
A Lilliput SFP optical module for the 12G SFP+ slot of the Q13 studio monitor. It
252 €
14-30 days
Lilliput Q13 Gimbal Bracket
A Lilliput gimbal (yoke) desk bracket for the Q13 studio monitor (13.3″). The U-shaped
68 €
14-30 days
Lilliput Anton Bauer Battery Plate
The Lilliput Anton Bauer battery plate lets you power the Lilliput 665GL monitor
51 €
14-30 days
Lilliput Q13 Rackmount Brackets
A pair of Lilliput rackmount brackets for the Q13 studio monitor (13.3″). The brackets
34 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

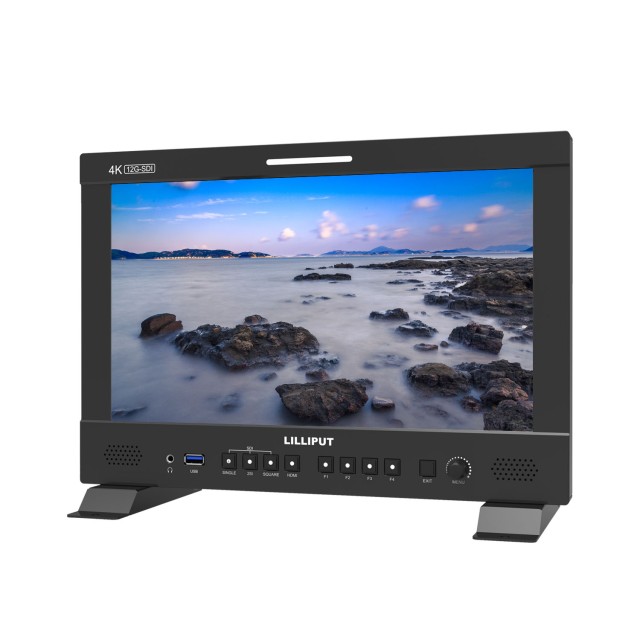

Lilliput Q13 is a 13.3″ studio and broadcast monitor with a native 3840 × 2160 resolution for camera operators, edit suites and OB workstations. It has two 12G-SDI and two 3G-SDI inputs, HDMI 2.0 and a slot for a 12G SFP+ optical module, loop outputs, audio vector, 3D LUTs, HDR and control via LAN, RS422 and GPI.

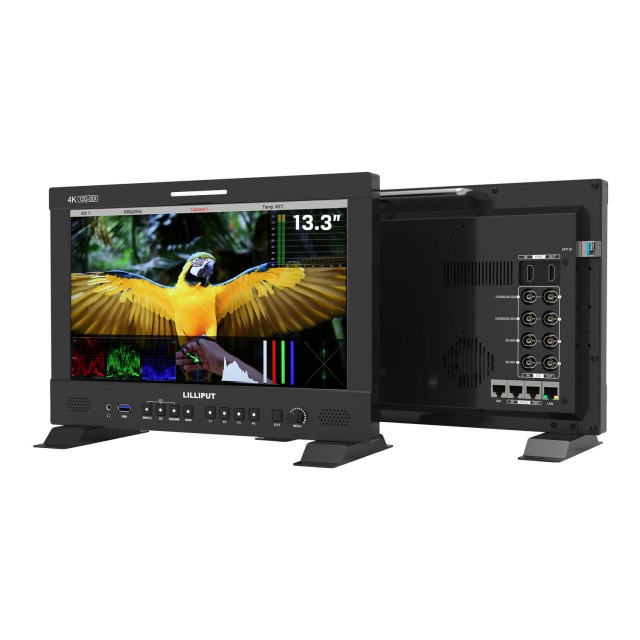

13.3″ broadcast monitor with 12G-SDI inputs
Lilliput Q13 watches the picture in the studio, control room and on set: SDI and HDMI with loop outputs, scopes, HDR, 3D LUTs and control from a computer.
13.3″3840 × 2160300 cd/m²2× 12G-SDIHDMI 2.012G SFP+
Single, dual and quad link
It accepts a 4K signal over a single 12G-SDI cable or split into two or four links; the SDI and HDMI loop outputs pass it on to the next device.
Colour calibration
Calibration to Rec.709 with an optional probe and support for ColourSpace CMS PRO/LTE by Light Illusion.
3D LUT and log
Custom 3D LUTs in .cube format, log profiles SLog2/3, CLog, NLog, ArriLog and JLog.
Audio vector
A Lissajous figure shows the depth and balance of stereo, 16 audio channels from SDI.
Remote control
Computer application via LAN or RS422, GPI input for tally and commands.

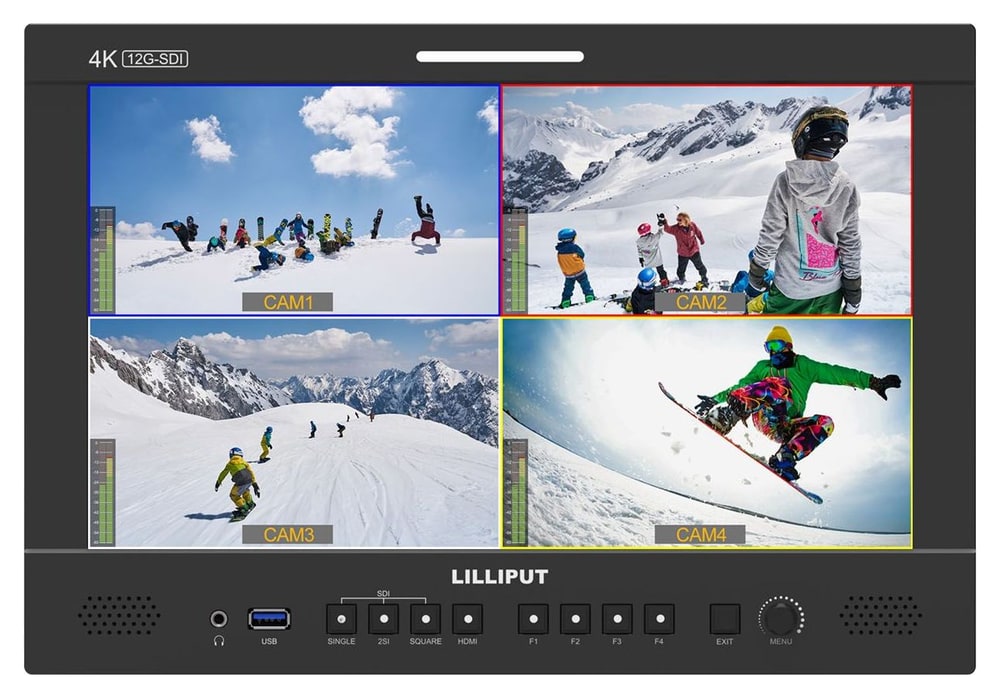

Scopes for camera and edit suite

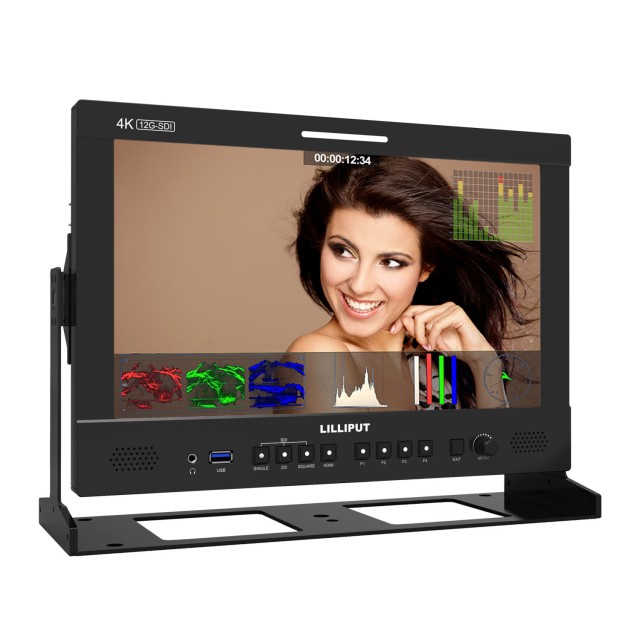

The screen offers waveform, vectorscope, histogram, false color, exposure and focus peaking, plus user markers, check field, aspect ratios and zoom. Buttons F1–F4 can be assigned to the most used functions, and the dial adjusts sharpness, saturation, tint or volume.

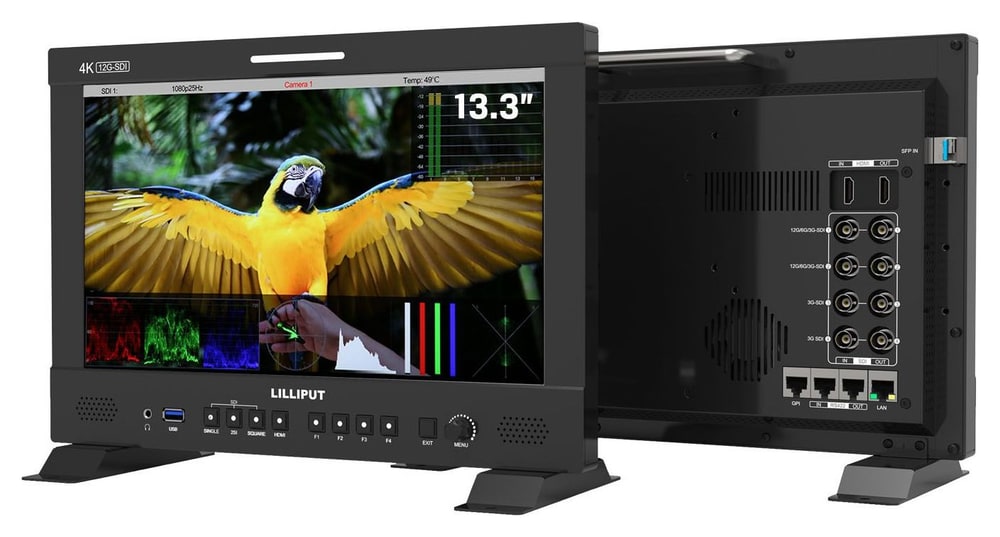

Computer control and tally
The monitor connects to a computer via LAN or RS422 and is controlled by an application: picture, markers, functions, source, audio as well as UMD and tally. RS422 in and out allow several monitors to be controlled in sync, and the GPI input receives commands and tally from the control room.

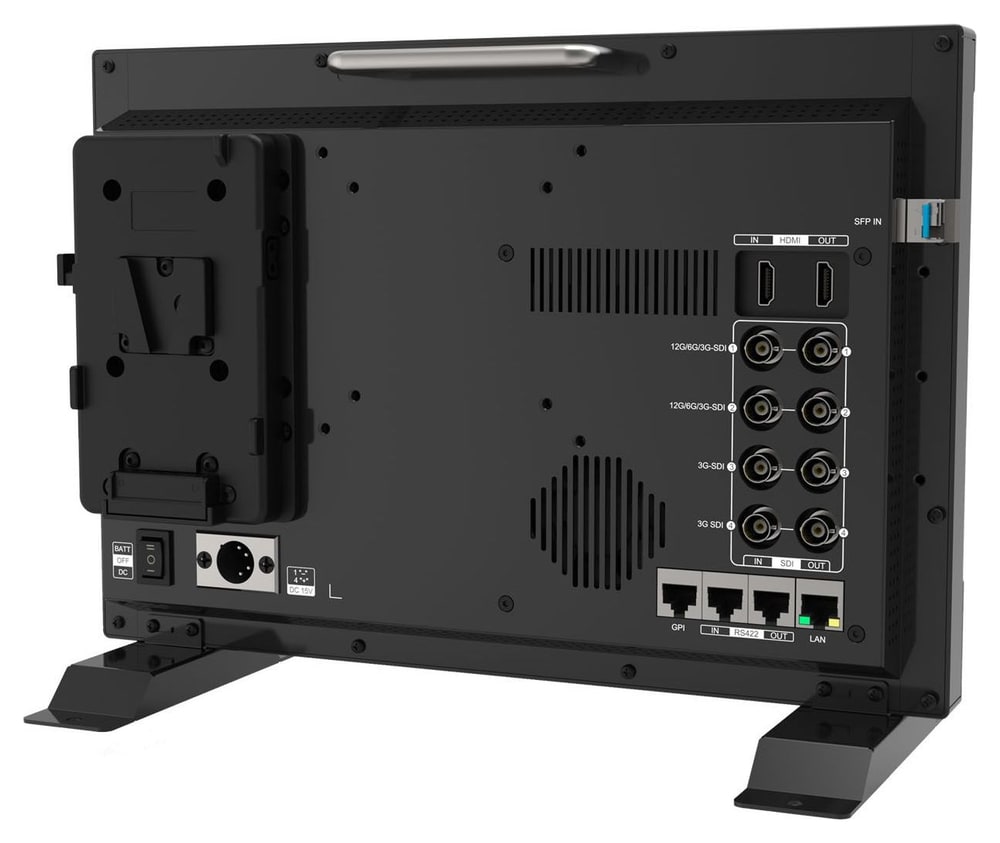

Mains or battery power
The monitor runs from an adapter (DC 12–24 V) or from a battery via the battery plate on the back (14.8 V, V-Lock or Anton Bauer). The metal body mounts on an arm via the VESA mounting plate and stands on a base; optionally it fits a gimbal bracket or a rack.

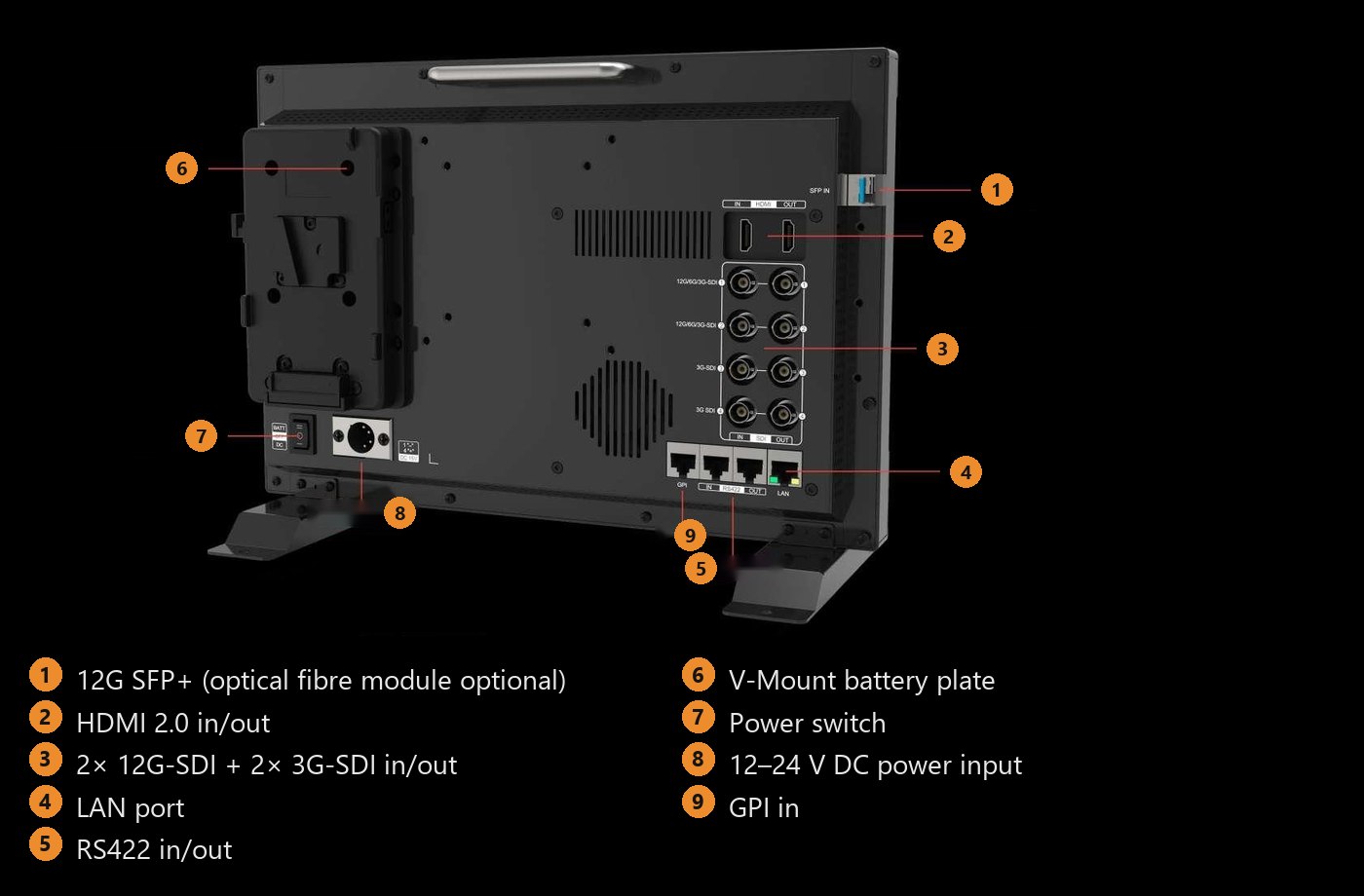

Connectors on the back
The numbers in the picture match the legend below it.
More information
Lilliput Q13 is a professional studio monitor with features for photographers, camera operators and filmmakers. It accepts a wide range of inputs and offers 12G-SDI and a 12G SFP+ optical input for broadcast-quality monitoring. The audio vector function draws a Lissajous figure that shows the depth and balance of a stereo recording. The monitor can be connected to a computer and controlled by an application.
Features
- 13.3″ panel with 3840 × 2160 resolution
- brightness 300 cd/m², contrast 1000:1, viewing angle 178°/178°
- inputs: 2× 12G-SDI, 2× 3G-SDI, 12G SFP+, 1× HDMI 2.0
- loop outputs: 2× 12G-SDI, 2× 3G-SDI, 1× HDMI 2.0
- control ports: LAN, RS422 in and out, GPI
- audio: SDI and HDMI, built-in speakers, headphone output
- 12G-SDI with single, dual and quad link and backward compatibility
- HDMI 2.0 up to 4K 60 Hz

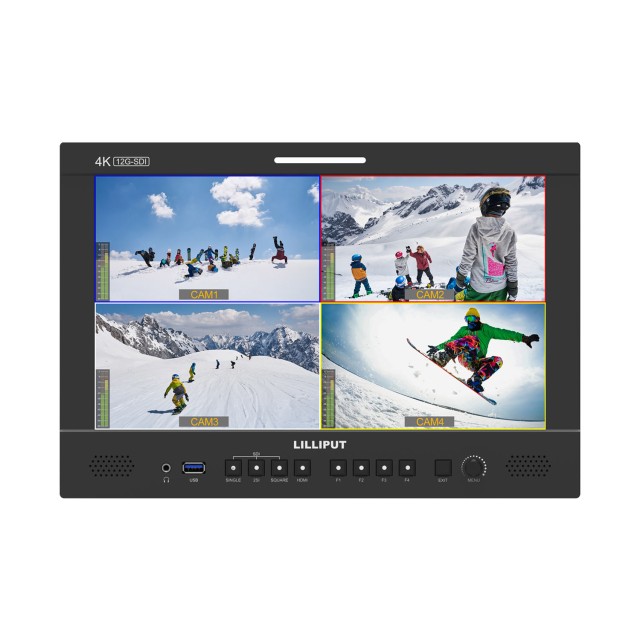

- remote control, quad view, audio vector, 3D LUT, HDR and more
PACKAGE CONTENT
- Lilliput Q13 monitor
- 15 V DC power adapter
- VESA mounting plate
- V-Mount battery plate (Gold Mount optional)
- Base (2 feet)
- USB flash drive
SPECIFICATIONS
- Screen size: 13.3″
- Resolution: 3840 × 2160
- Aspect ratio: 16:9
- Brightness: 300 cd/m²
- Contrast: 1000:1
- Viewing angle: 178°/178° (H/V)
- HDR: ST 2084 (300/1000/10000), HLG
- Log profiles: SLog2, SLog3, CLog, NLog, ArriLog, JLog, user
- 3D LUT: .cube format, loaded via USB
- Calibration: to Rec.709 with optional calibration probe
- SDI inputs: 2× 12G-SDI, 2× 3G-SDI (single/dual/quad link 4K)
- SFP: 1× 12G SFP+ (optical module optional)
- HDMI input: 1× HDMI 2.0
- SDI loop outputs: 2× 12G-SDI, 2× 3G-SDI
- HDMI loop output: 1× HDMI 2.0
- SDI formats: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080psF 24/25/30, 1080i 50/60, 720p 50/60
- SFP formats: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080psF 24/25/30, 1080i 50/60, 720p 50/60
- HDMI formats: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- Audio: SDI 16 channels 48 kHz 24-bit, HDMI 8 channels 24-bit, 3.5 mm headphones, 2 speakers
- Remote control: LAN, RS422 in/out, GPI
- Power: DC 12–24 V
- Power consumption: ≤ 31.5 W (15 V)
- Battery: 14.8 V, V-Lock or Anton Bauer
- Operating temperature: 0 to 50 °C
- Storage temperature: −20 to 60 °C
- Dimensions (L × W × D): 340 × 232.8 × 46 mm
- Weight: 2.4 kg
Parameters
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Size | 13.3" |
| Monitor inputs | HDMI · SDI · 12G SDI · 3G-SDI · SFP · HDMI 2.0 · LAN |
| Luminosity | 300cd/m2 |
| Panel resolution | 3840x2160 |
| Monitor power supply | V-Mount · Gold Mount · 12V XLR · DC 12–24 V |
Other parameters
| Tally | Yes |
| Other features | Quad split · HDR · Rack-mountable · Tally · 3D LUT correction |
| High Brightness | No |
