Lilliput Q15 15.6" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)
SKU: Q15

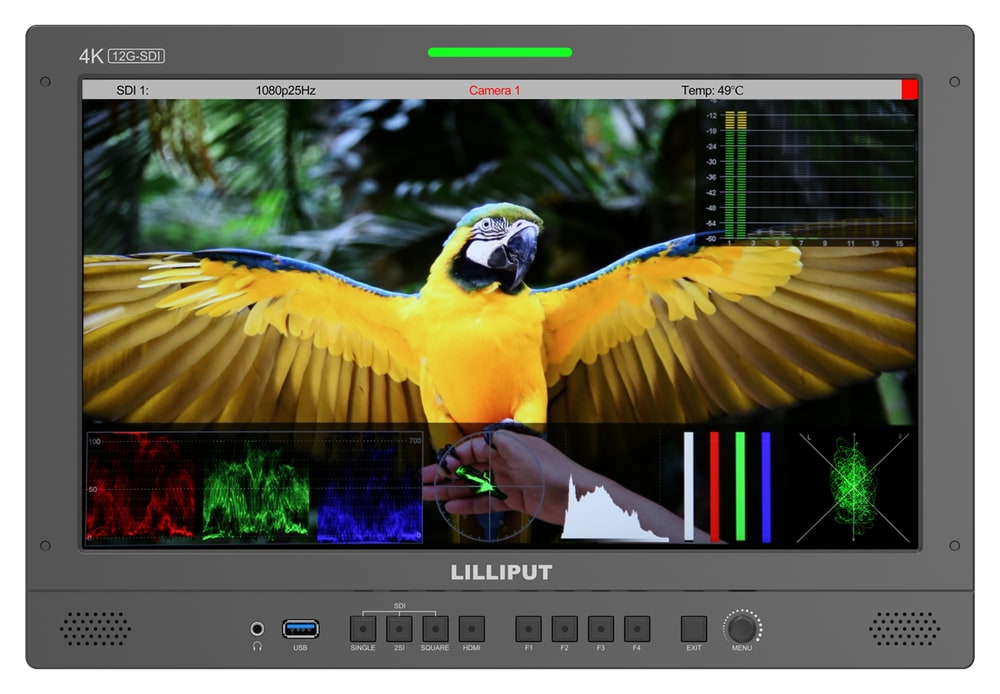

Lilliput Q15 is a 15.6″ broadcast and production monitor with a 3840 × 2160 resolution and 330 cd/m² brightness. It accepts 4K over 12G-SDI in single, dual and quad link, has HDMI 2.0, a 12G SFP+ slot and loop outputs. It runs from a 12–24 V adapter or a V-Lock or Anton Bauer battery, so it works in the studio and in the field.
2 059 € with VAT
1 701.65 € without VAT
Availability
14-30 days
Lilliput Q13 13.3" 12G-SDI Studio / Broadcast Monitor
1 699 €without VAT 1 404.13 €
Lilliput Q31 31.5" 12G-SDI/HDMI Broadcast Studio Monitor
In stock 1 pcs2 909 €without VAT 2 404.13 €
Lilliput Q17 17.3" 12G-SDI/HDMI HDR Monitor (V-Mount)
1 819 €without VAT 1 503.31 €
Lilliput Q18 17.3" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)
In stock 1 pcs2 179 €without VAT 1 800.83 €Top accessories for Lilliput Q15 15.6" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)
Infinitek L-4.5CHWS 1m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
15 €
In stock > 5 pcs
PremiumCord Ultra High Speed HDMI 2.1 cable 8K@60Hz, 4K@120Hz length 1.5m metallic gold plated connectors
High-end ULTRA HDMI 2.1 interconnect cable for the highest resolution 8K@60Hz and
9.3 €
In stock > 5 pcs
Lilliput Q15 Gimbal Bracket
A Lilliput gimbal (yoke) desk bracket for the Q15 studio monitor (15.6″). The U-shaped
68 €
14-30 days
Lilliput Q15 SFP Optical Module
A Lilliput SFP optical module for the 12G SFP+ slot of the Q15 studio monitor. It
252 €
14-30 days
Lilliput Q15 Case + Sunshade
A rigid carrying case with a sunshade for the Lilliput Q15 monitor (15.6″). It keeps
236 €
14-30 days
Lilliput Q15 Rackmount Brackets
A pair of Lilliput rackmount brackets for the Q15 studio monitor (15.6″). The brackets
34 €
14-30 days
Lilliput Q15 Acrylic Screen Protector
A clear Lilliput acrylic screen protector for the the Lilliput Q15 monitor (15.6″).
34 €
14-30 days
Lilliput Q15 Sunshade for Carrying Case
A Lilliput sunshade for the carrying case of the Q15 monitor. The folding sunshade
34 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Lilliput Q15 is a 15.6″ broadcast and production monitor with a 3840 × 2160 resolution and 330 cd/m² brightness. It accepts 4K over 12G-SDI in single, dual and quad link, has HDMI 2.0, a 12G SFP+ slot and loop outputs. It runs from a 12–24 V adapter or a V-Lock or Anton Bauer battery, so it works in the studio and in the field.
15.6″ broadcast monitor with 12G-SDI inputs
Lilliput Q15 watches the picture in the studio, control room and on set: SDI and HDMI with loop outputs, scopes, HDR, 3D LUTs and control from a computer.
15.6″3840 × 2160330 cd/m²2× 12G-SDIHDMI 2.012G SFP+
Single, dual and quad link
It accepts a 4K signal over a single 12G-SDI cable or split into two or four links; the SDI and HDMI loop outputs pass it on to the next device.
Colour calibration
Calibration to Rec.709 with an optional probe and support for ColourSpace CMS PRO/LTE by Light Illusion.
3D LUT and log
Custom 3D LUTs in .cube format, log profiles SLog2/3, CLog, NLog, ArriLog and JLog.
Audio vector
A Lissajous figure shows the depth and balance of stereo, 16 audio channels from SDI.
Remote control
Computer application via LAN or RS422, GPI input for tally and commands.

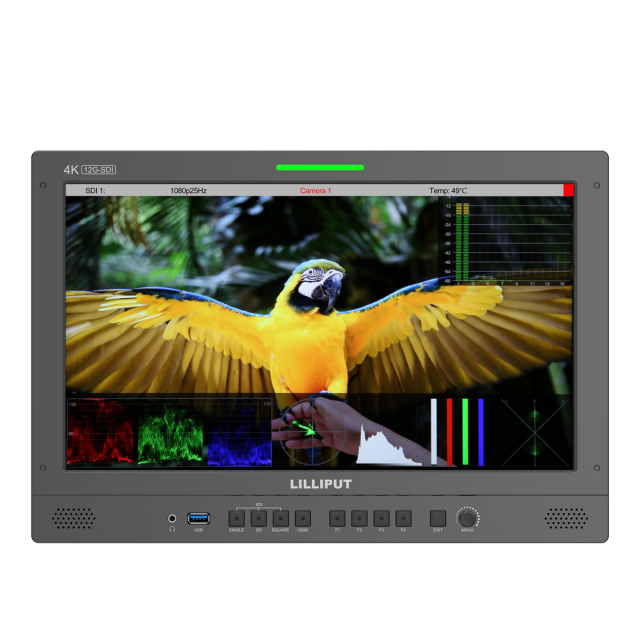

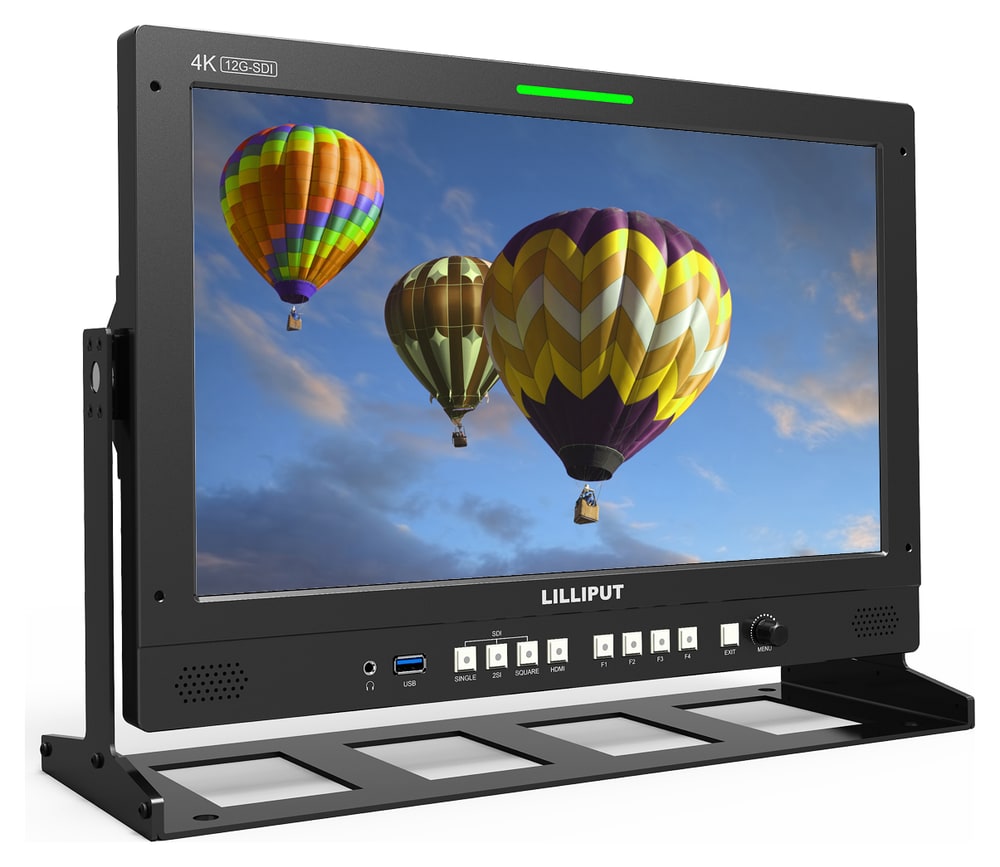

Scopes for camera and edit suite
The screen offers waveform, vectorscope, histogram, false color, exposure and focus peaking, plus user markers, check field, aspect ratios and zoom. Buttons F1–F4 can be assigned to the most used functions, and the dial adjusts sharpness, saturation, tint or volume.

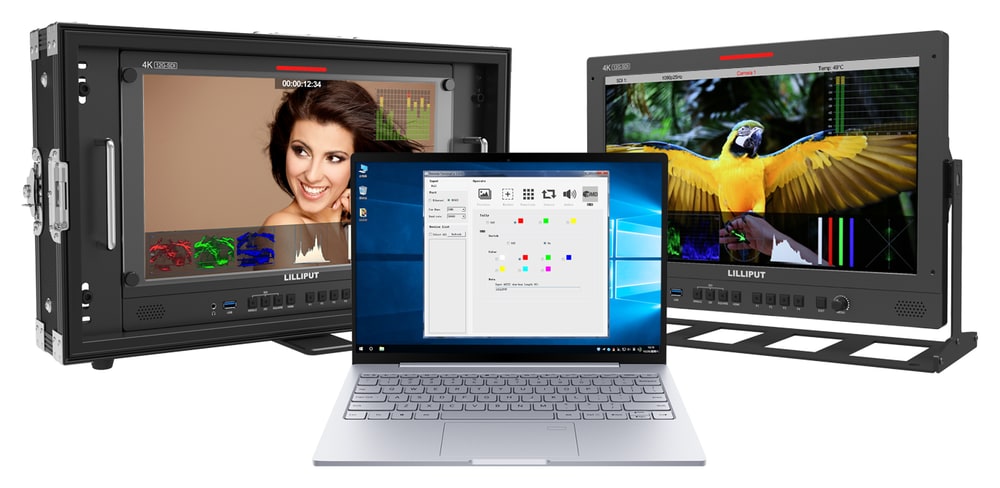

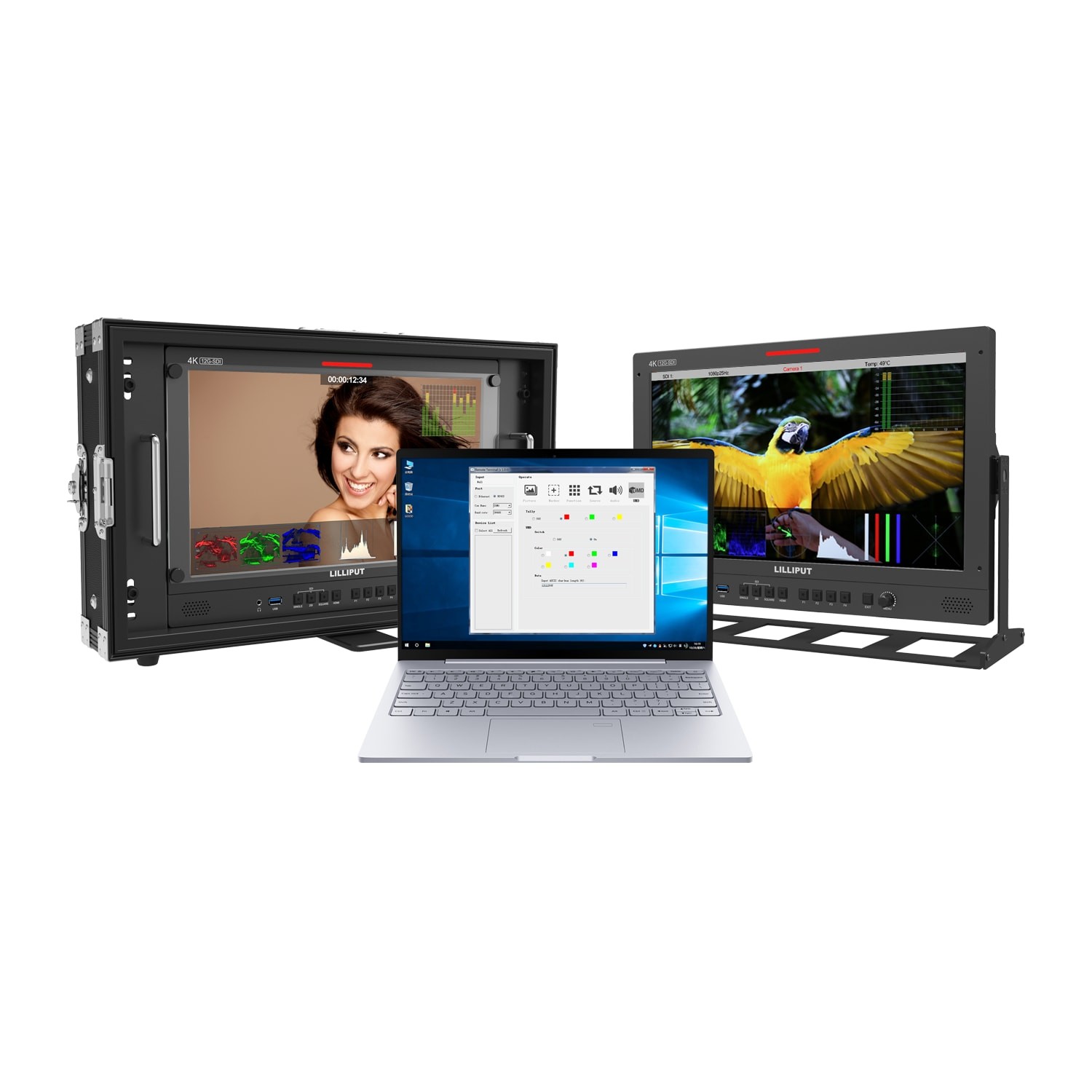

Computer control and tally
The monitor connects to a computer via LAN or RS422 and is controlled by an application: picture, markers, functions, source, audio as well as UMD and tally. RS422 in and out allow several monitors to be controlled in sync, and the GPI input receives commands and tally from the control room.

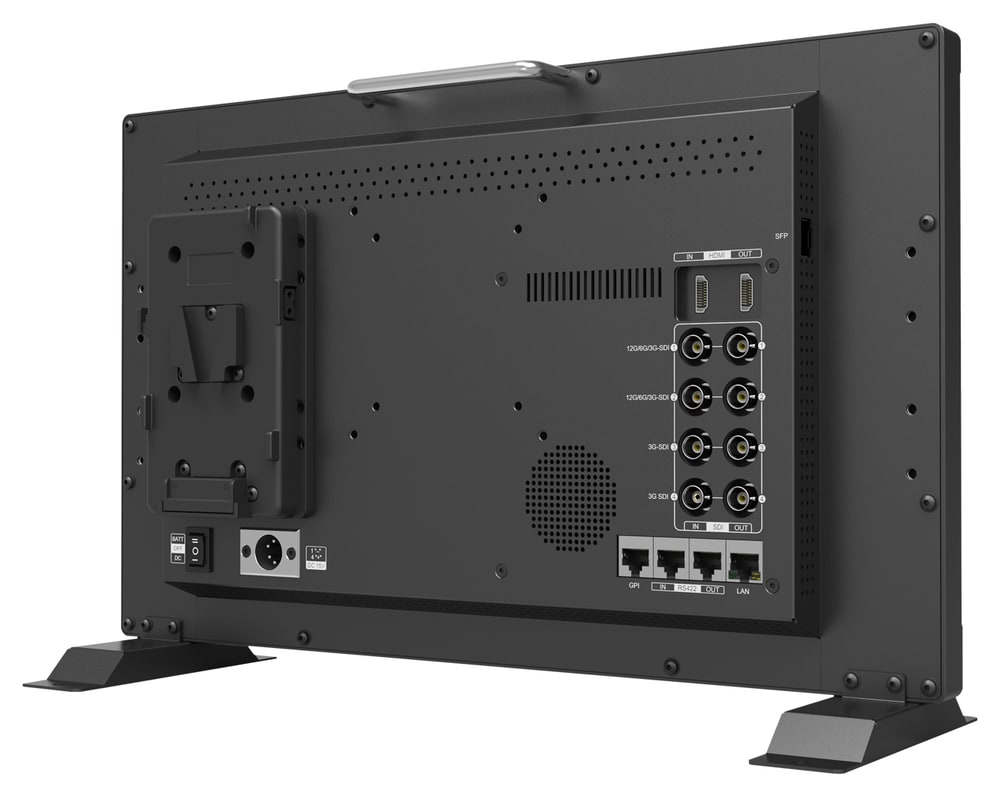

Mains or battery power

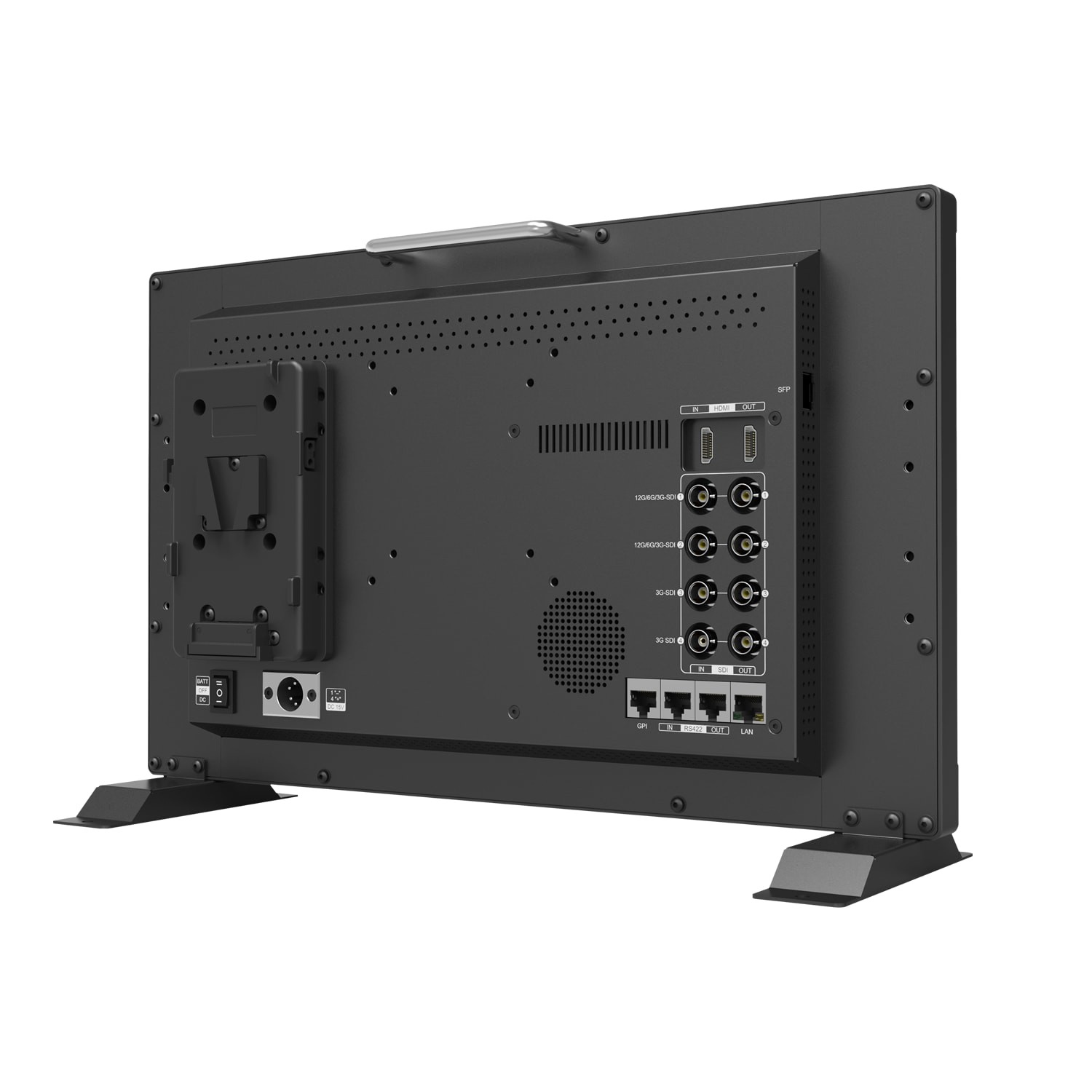

The monitor runs from an adapter (DC 12–24 V) or from a battery via the battery plate on the back (14.8 V, V-Lock or Anton Bauer). The metal body has VESA 75/100 mm holes and stands on a base; optionally it fits a gimbal bracket, a carrying case with sunshade or a rack.

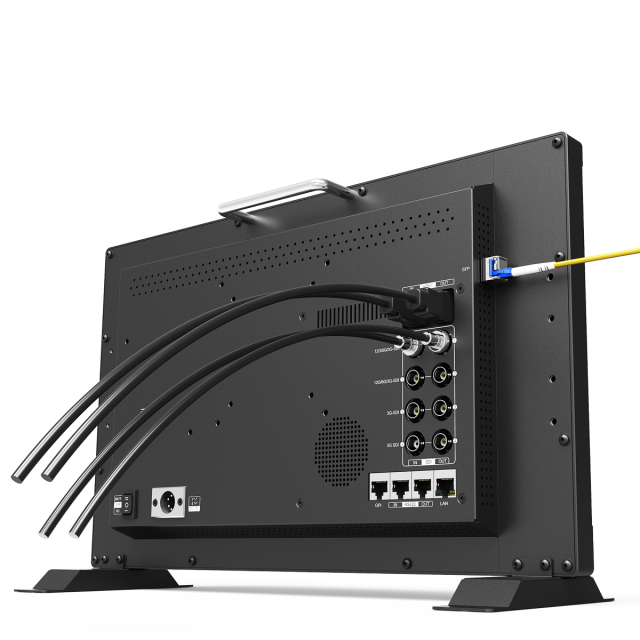

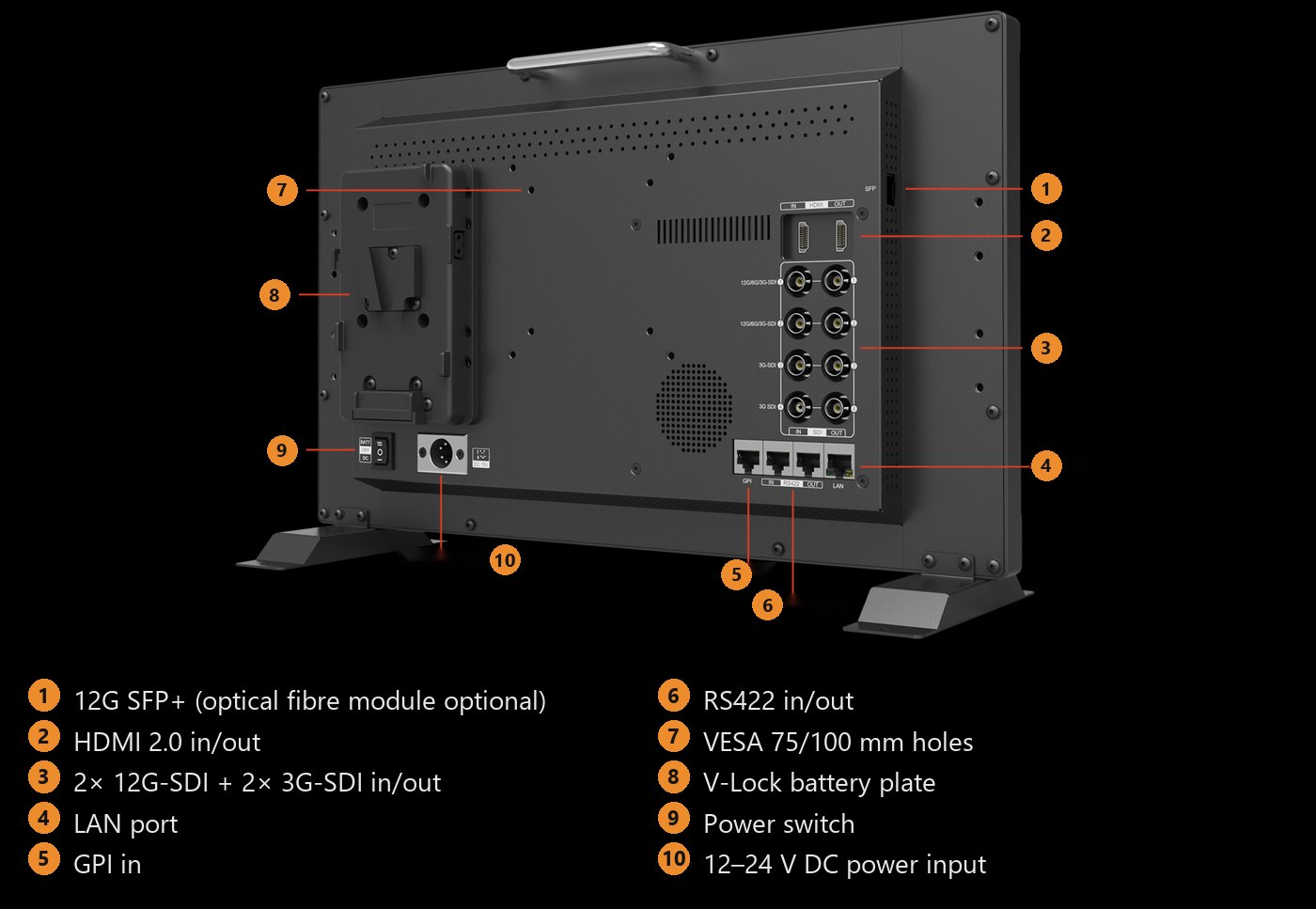

Connectors on the back
The numbers in the picture match the legend below it.
More information
Lilliput Q15 is a 15.6″ broadcast studio monitor with native UHD 4K resolution and a V-Lock battery plate, suitable for both studio and field. It supports resolutions up to DCI 4K (4096 × 2160) and UHD 4K (3840 × 2160), has one HDMI 2.0 input and four SDI inputs (two 12G and two 3G) for single, dual and quad link. HDMI and SDI loop outputs pass the signal on. For colour-critical work it supports the PRO/LTE version of the ColourSpace CMS calibration system by Light Illusion (not included).
Features
- 15.6″ display
- 3840 × 2160, 330 cd/m², 1000:1
- viewing angle 176°/176° (H/V)
- inputs: 2× 12G-SDI, 2× 3G-SDI, 1× HDMI 2.0, 1× 12G SFP+
- outputs: 2× 12G-SDI, 2× 3G-SDI, 1× HDMI 2.0
- software: remote control application via LAN/RS422, colour temperature, colour gamut, 3D LUT, HDR, gamma, UMD, timecode and more
PACKAGE CONTENT
- Lilliput Q15 monitor
- 15 V DC power adapter
- VESA mounting plate
- V-Lock battery plate (Gold Mount optional)
- Base (2 feet)
- USB flash drive
SPECIFICATIONS
- Screen size: 15.6″
- Resolution: 3840 × 2160
- Aspect ratio: 16:9
- Brightness: 330 cd/m²
- Contrast: 1000:1
- Viewing angle: 176°/176° (H/V)
- HDR: ST 2084 (300/1000/10000), HLG
- Log profiles: SLog2, SLog3, CLog, NLog, ArriLog, JLog, user
- 3D LUT: .cube format, loaded via USB
- Calibration: to Rec.709 with optional calibration probe
- SDI inputs: 2× 12G-SDI, 2× 3G-SDI (single/dual/quad link 4K)
- SFP: 1× 12G SFP+ (optical module optional)
- HDMI input: 1× HDMI 2.0
- SDI loop outputs: 2× 12G-SDI, 2× 3G-SDI
- HDMI loop output: 1× HDMI 2.0
- SDI formats: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080psF 24/25/30, 1080i 50/60, 720p 50/60
- SFP formats: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080psF 24/25/30, 1080i 50/60, 720p 50/60
- HDMI formats: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- Audio: SDI 16 channels 48 kHz 24-bit, HDMI 8 channels 24-bit, 3.5 mm headphones, 2 speakers
- Remote control: LAN, RS422 in/out, GPI
- Power: DC 12–24 V
- Power consumption: ≤ 32.5 W (15 V)
- Battery: 14.8 V, V-Lock or Anton Bauer
- Operating temperature: 0 to 40 °C
- Storage temperature: −20 to 60 °C
- Dimensions (L × W × D): 393 × 267 × 51.4 mm
- Weight: 2.9 kg
Parameters
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Size | 15.6" |
| Monitor inputs | HDMI · SDI · 12G SDI · 3G-SDI · SFP · HDMI 2.0 · LAN |
| Luminosity | 330cd/m2 |
| Panel resolution | 3840x2160 |
| Monitor power supply | V-Mount · Gold Mount · DC 12–24 V |
Other parameters
| Tally | Yes |
| Other features | Quad split · HDR · Rack-mountable · Tally · 3D LUT correction |
| High Brightness | No |
