Libec LX-ePed 2 Studio

Libec LX-ePed 2 Studio is a motorized base specifically designed for PTZ cameras. The tripod is equipped with a motorized center column, tripod wheels and remote control for easy height adjustment and offers a load capacity of up to 10 kg. It provides a maximum height of 264 cm. The controller stores three height presets, and the optional MPC-1 adds IP control.

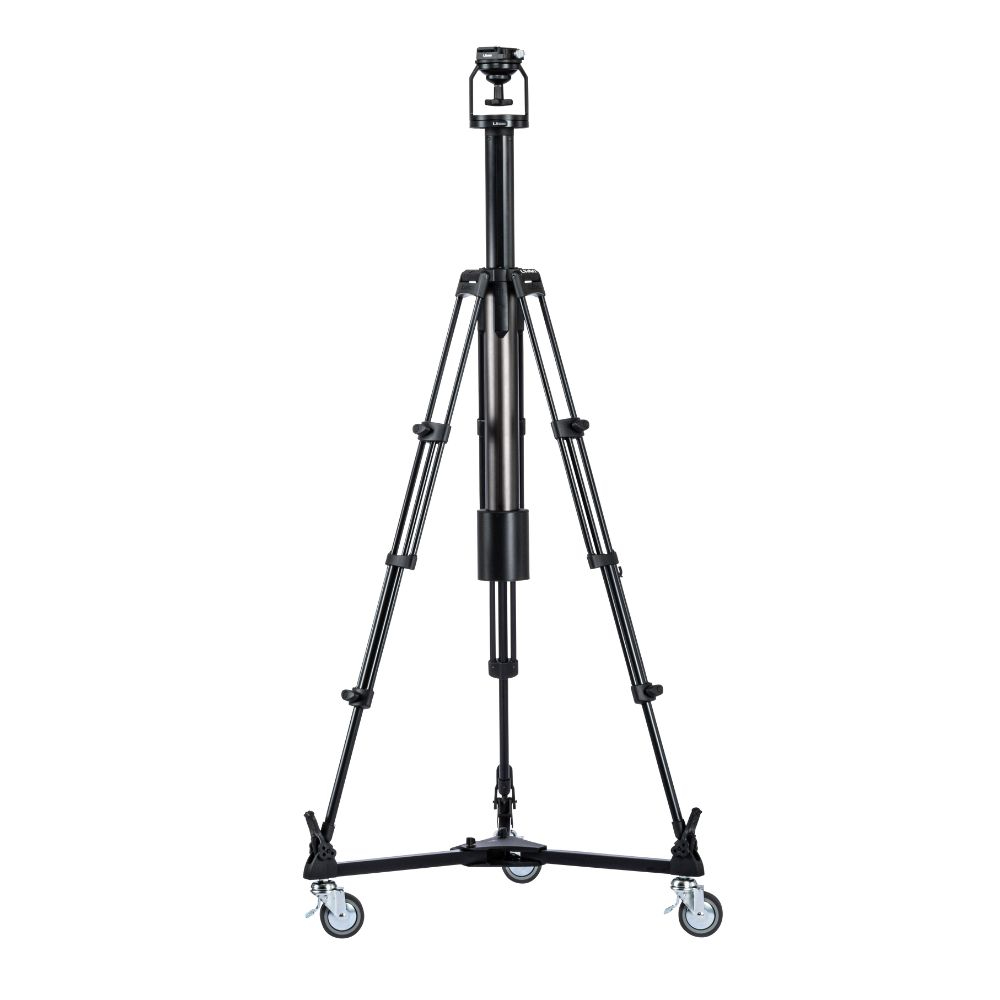

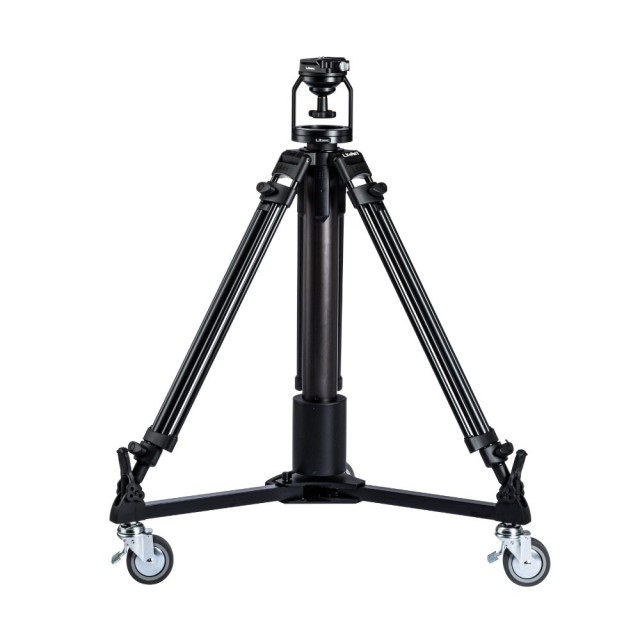

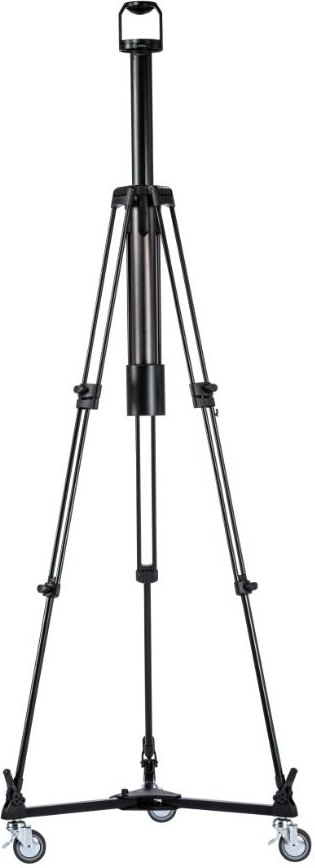

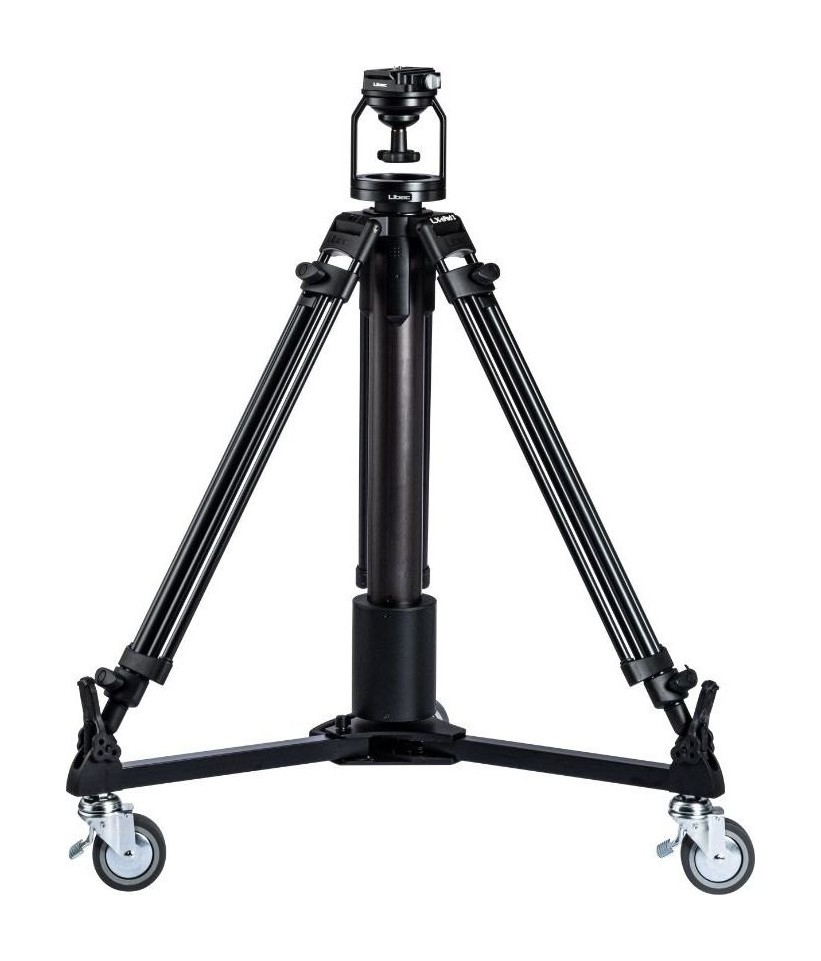

The Libec LX-ePed 2 Studio is an electric pedestal with a dolly for PTZ cameras up to 10 kg. Its motorised centre column raises the camera by 400 mm, the whole system adjusts from 109.5 to 264 cm, and the height is set from a wired controller with three position presets.

An electric pedestal for PTZ cameras

Motorised column with 400 mm elevation, 10 kg payload, a controller with three presets and a dolly.

10 kg payload400 mm elevationHeight 109.5–264 cm3 height presets30 m cableAP-X adapter

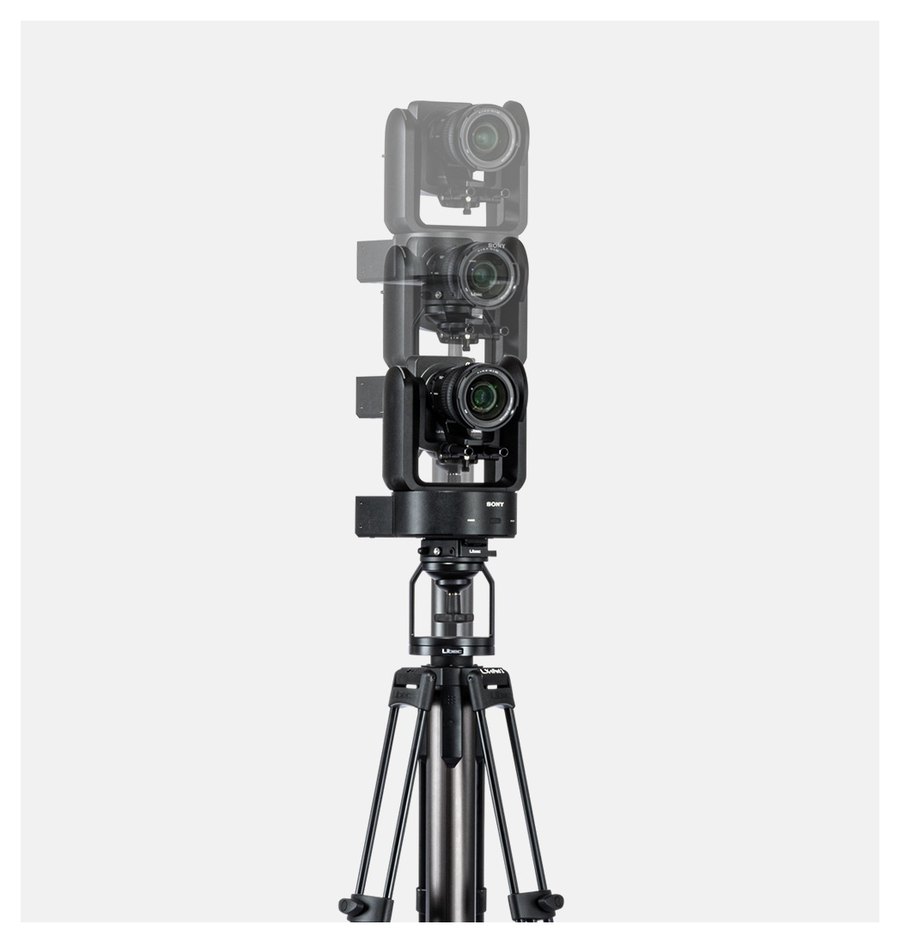

Height as a fourth axis

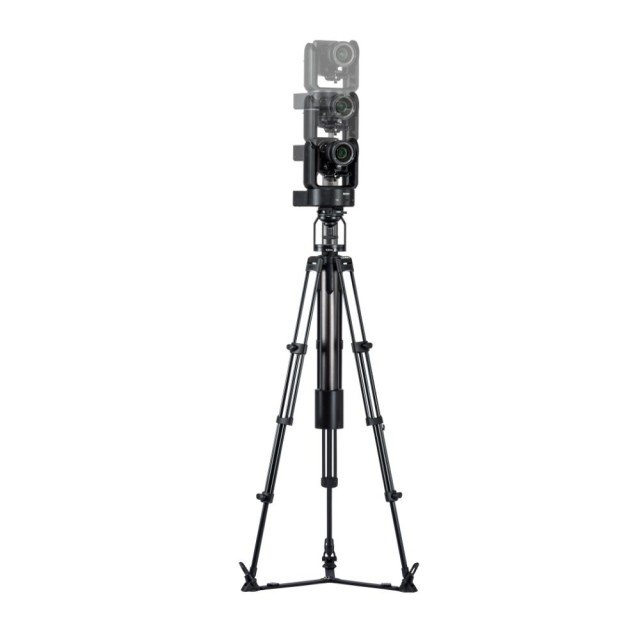

The controller adds elevation to the pan, tilt and zoom of a PTZ camera. The column starts and stops smoothly, so height changes can be used on shot.

Three presets at a touch

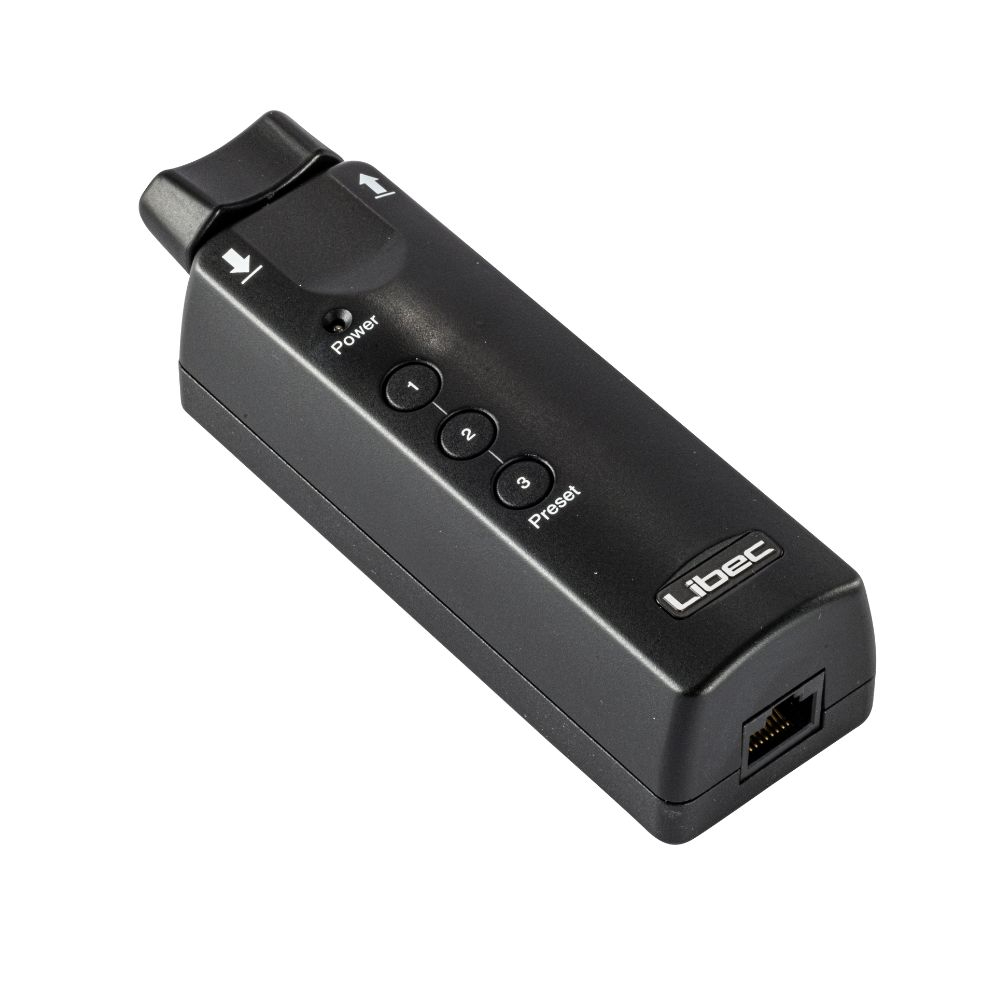

The wired controller stores up to three heights, and the column speed is set continuously by tilting the lever. It is powered from the pedestal, so no batteries or charger are needed.

Packs into a case

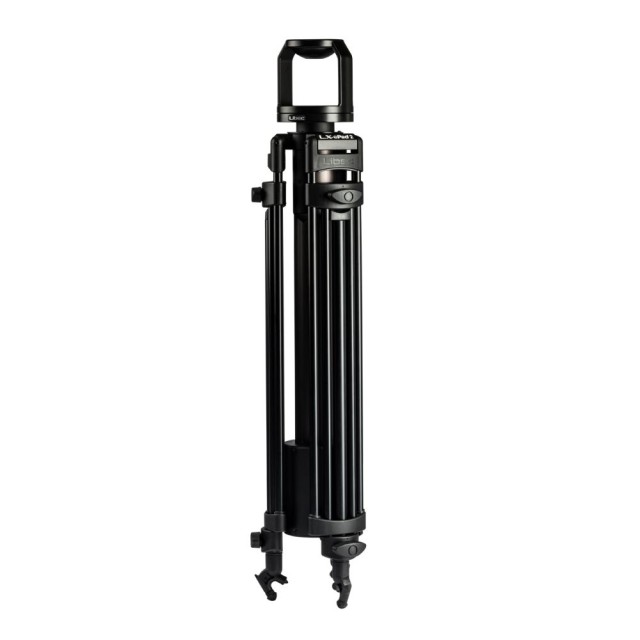

The main unit separates from the dolly and every part folds. The unit alone weighs 10 kg and fits in the optional RC-80 case.

Ready for IP and serial control

With the optional MPC-1 converter, the LX-ePed 2 Studio is controlled from a PTZ controller or the LX-ePed PC APP. The pedestal fits into studios where cameras are run from a single desk.

AP-X adapter included

The quick release adapter with a safety wire hole holds the PTZ camera securely.

Ready for video heads

Remove the BL-F adapter to mount a 100 mm ball head, or a 75 mm one with AD-75.

V-mount power

With the optional VM-12V adapter the pedestal works where there is no outlet.

Foot control

The optional FPR-2 foot pedal keeps your hands free for the PTZ camera.

This patented product line is the world's first electric line of PTZ camera bases and is used in all types of PTZ filming in broadcast and production. This new successor model to the Libec LX-ePed Studio now includes preset positions, supports IP connectivity and serial communication when combined with the new optional multi-protocol converter"MPC-1". With it, the LX-ePed 2 Studio can be controlled by PTZ controllers and the original PC application, the LX-ePed PC APP, which offers various optional settings.

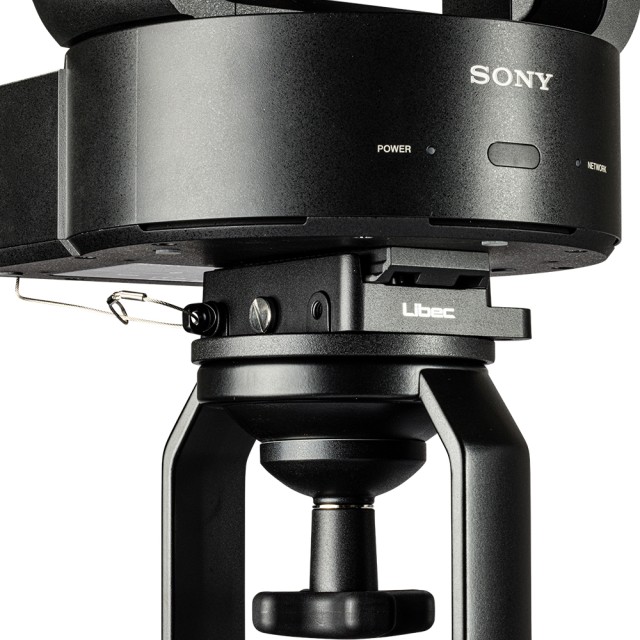

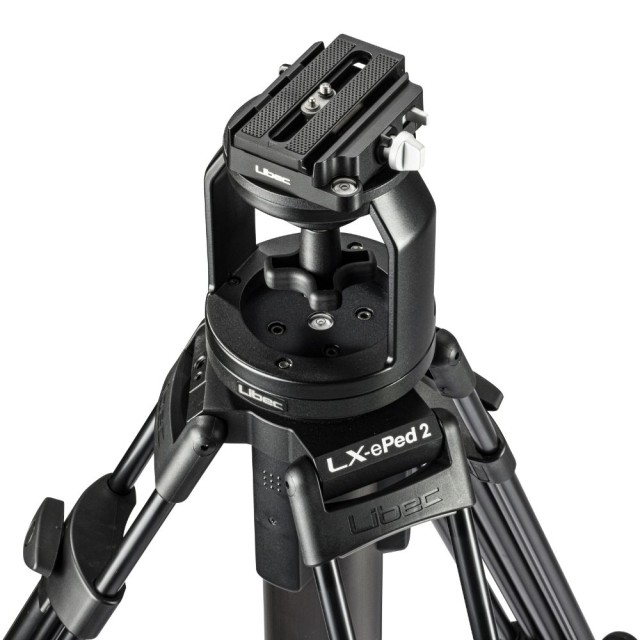

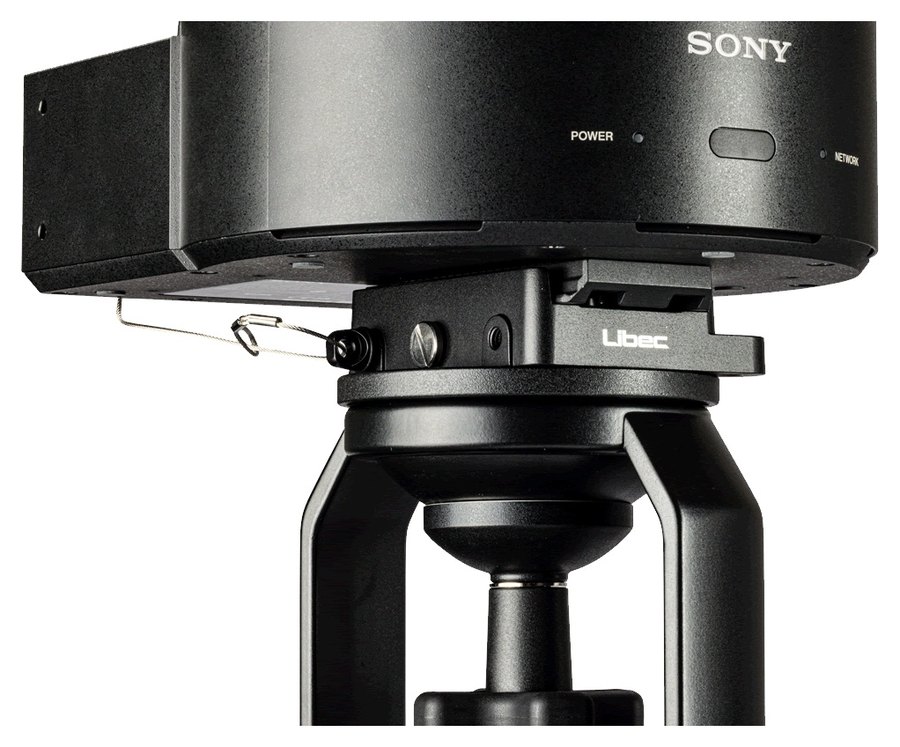

Smart quick release adapter. Included in the package is a smart quick release adapter "AP-X" that allows you to attach/detach your camera more securely, easily and quickly. To prevent the attached PTZ camera from falling, the adapter is equipped with a hole for attaching a safety rope.

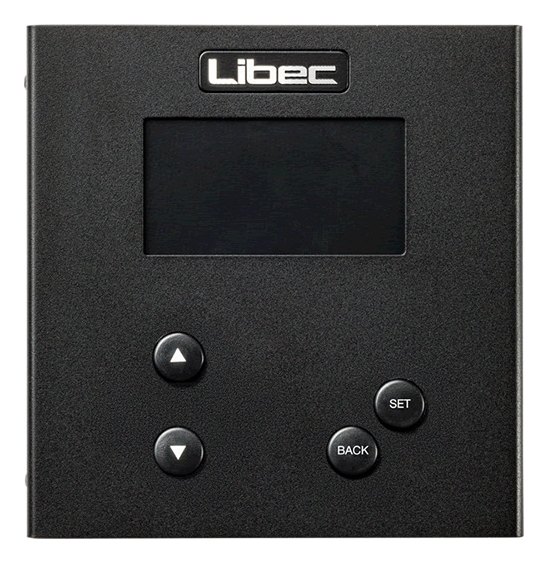

IP connection and serial communication. Using the optional multi-protocol converter "MPC-1", the new LX-ePed 2 and LX-ePed 2 Studio models can work with PTZ controllers and the original LX-ePed PC APP, allowing for precise setup. This unique feature enhances the accessibility of the electric pedestal.

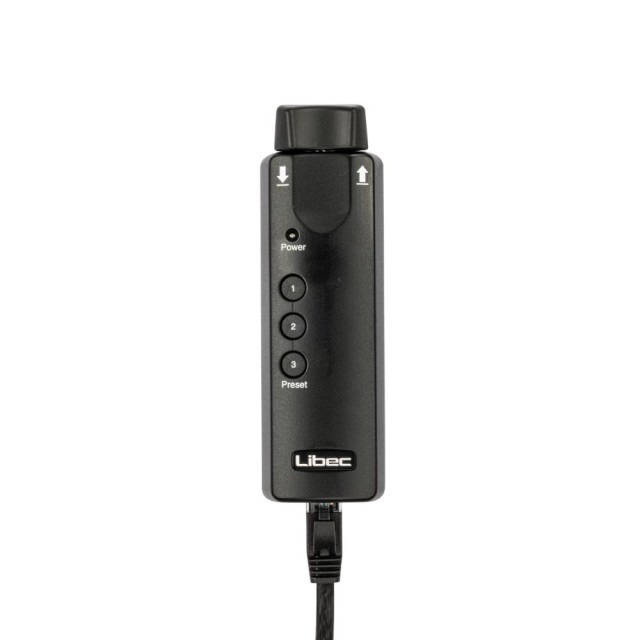

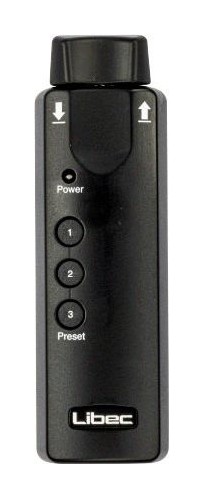

Remote control. The new remote control can store up to three preset positions, making it easy to adjust the height. The remote control adds a lifting element to the pan, tilt and zoom functions. This will provide multiple "viewing angles" and make setup easier.

Smooth and precise movements. The original column mechanism minimizes wobble and spin when the base moves up/down. In addition, the column is mechanically controlled with precision, allowing for smooth starting and stopping movements, making these electric bases ideal for "on shot" scenes.

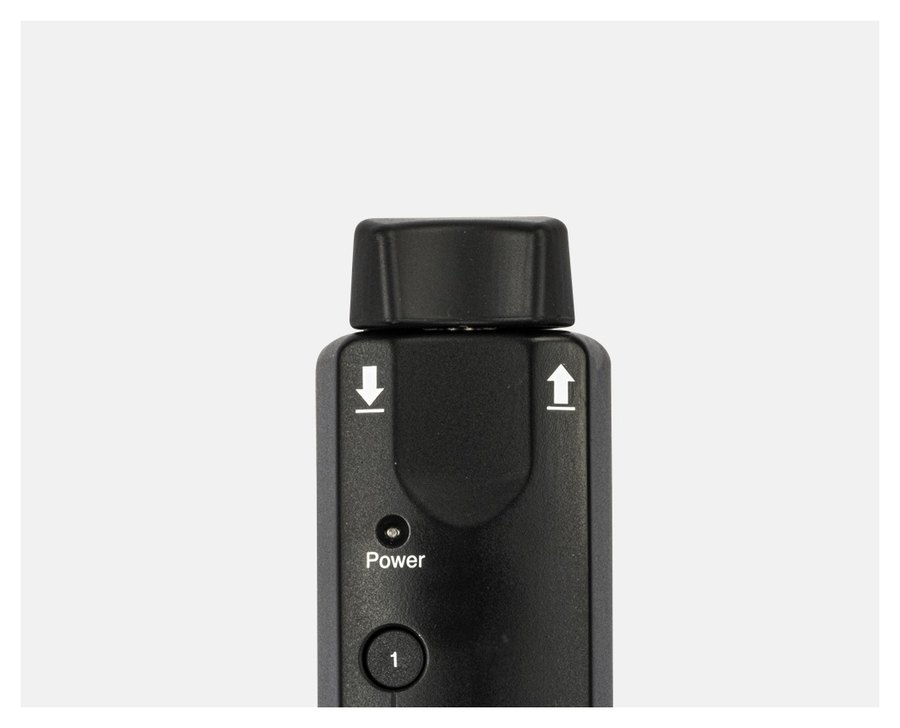

Continuous speed adjustment. The speed of the top column can be adjusted by tilting the control lever. Slow motion mode allows fine tuning of the settings.

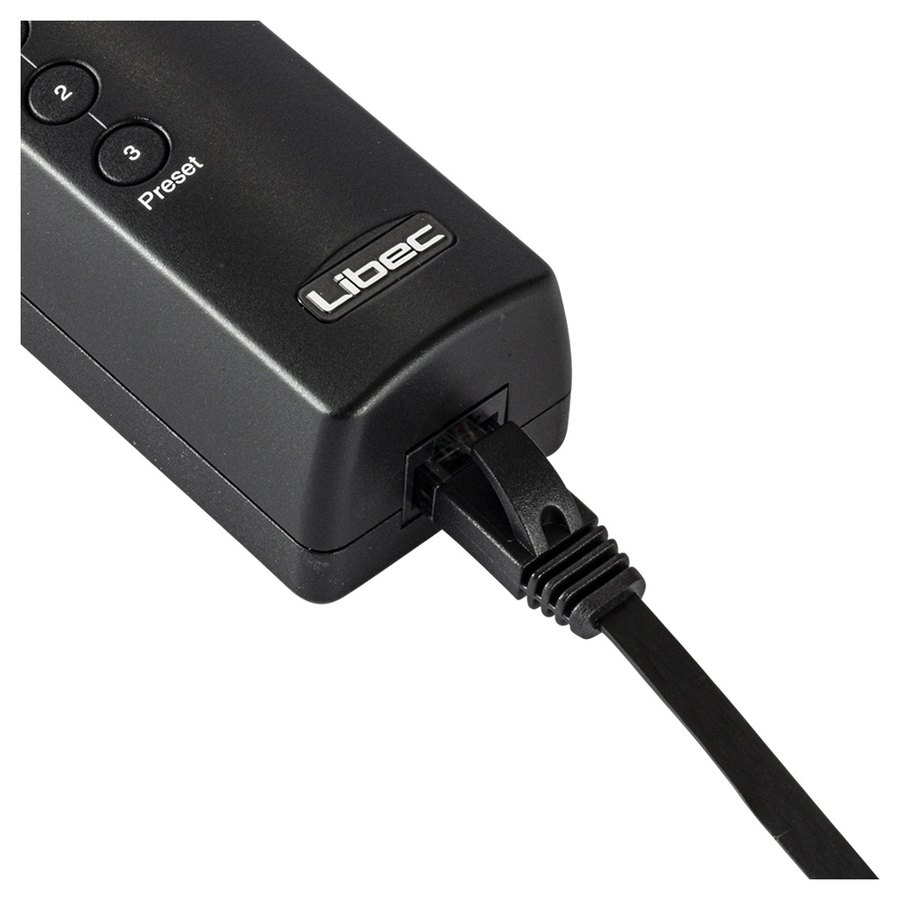

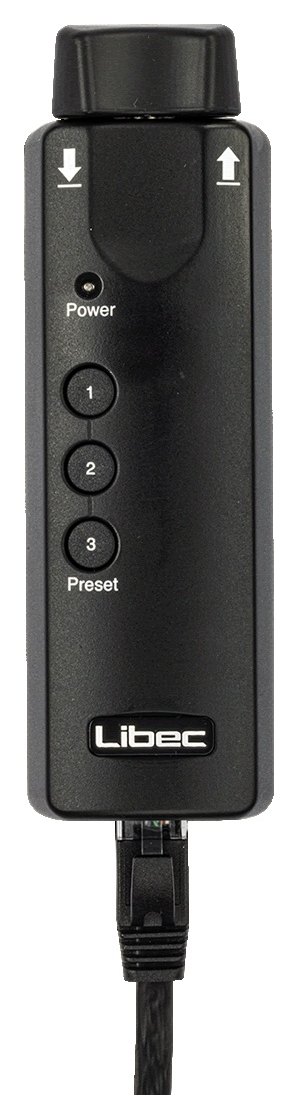

Highly reliable cable connection system. The LX-ePed 2 Studio controller does not use Wi-Fi or Bluetooth, allowing users to focus on shooting without worrying about interference from radio waves. In addition, the controller is powered through the main part of the electrical base, so no additional power source or charger is needed.

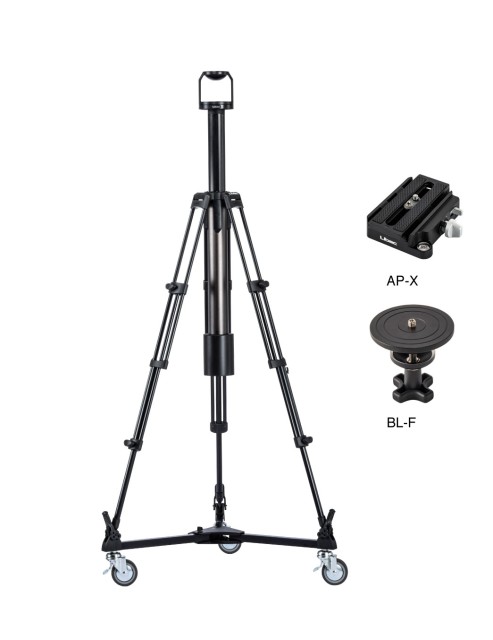

Compatible with flat base with 1/4" and 3/8" screw holes. Includes "AP-X" adapter with 1/4" screw and "BL-F" adapter with 3/8" screw. These adapters support not only PTZ cameras, but also a wide range of devices equipped with 1/4" or 3/8" threads, which can now be mounted on the LX-ePed 2 and LX-ePed 2 Studio.

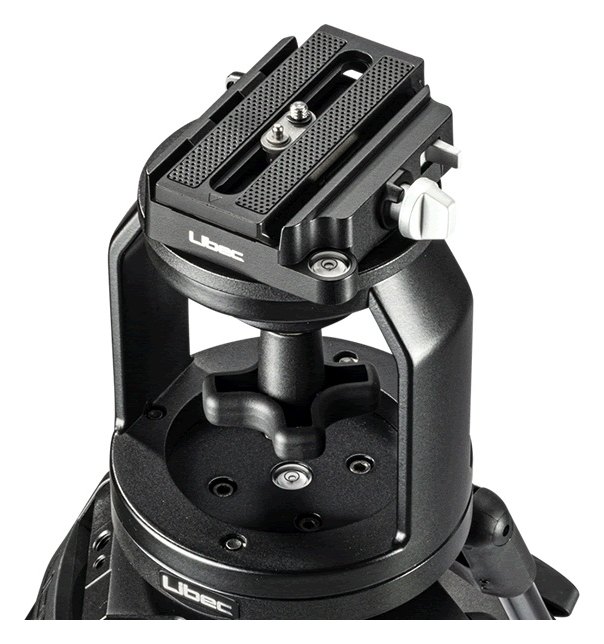

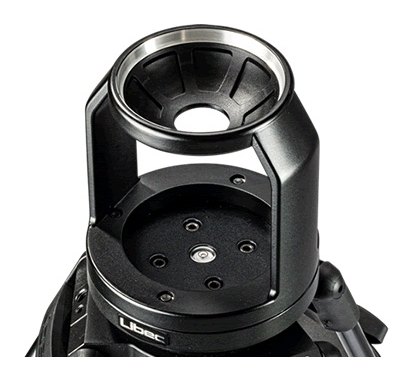

Compatibility with video heads. By removing the "BL-F" adapter component, a video head with a 100mm ball base can be mounted on the LX-ePed 2 and LX-ePed 2 Studio. In addition, by using the optional "AD-75" adapter, a video head with a 75mm ball base can also be mounted.

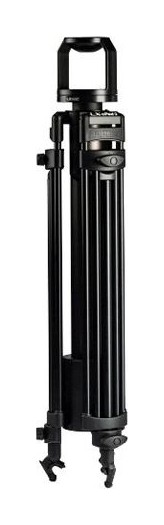

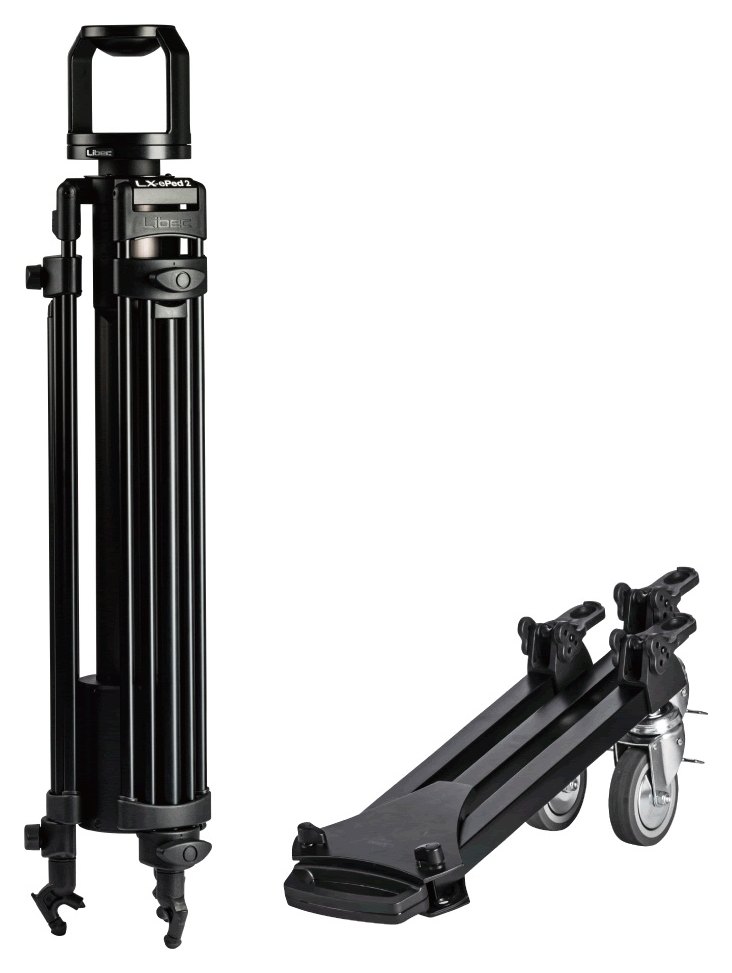

Compact design. The main unit can be detached from the tripod wheels (dolly) for easy transportation, and all components are collapsible. This compact unit can be stored in the optional RC-80 tripod case.

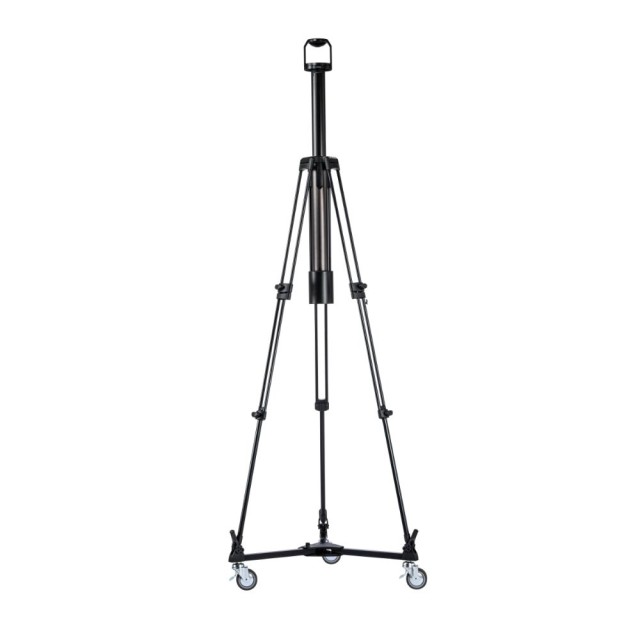

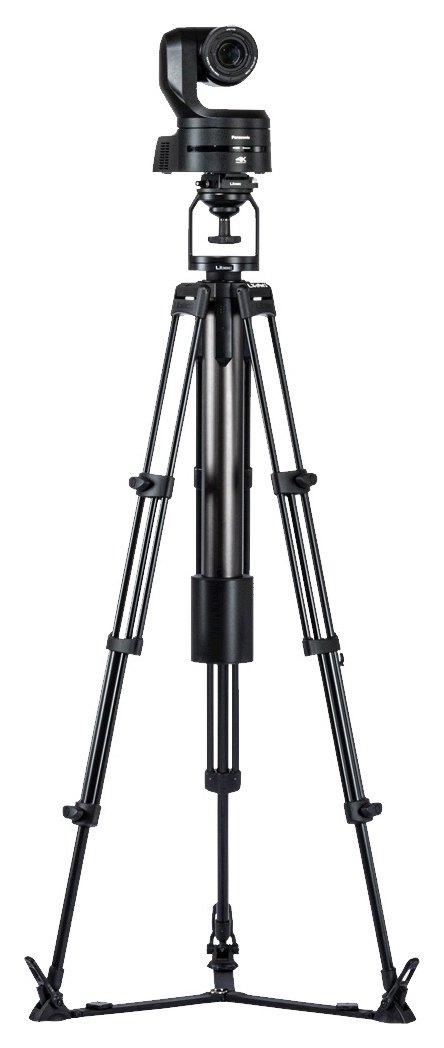

High angle shots. Dynamic high-angle shots can be achieved with a maximum height of 264 cm.

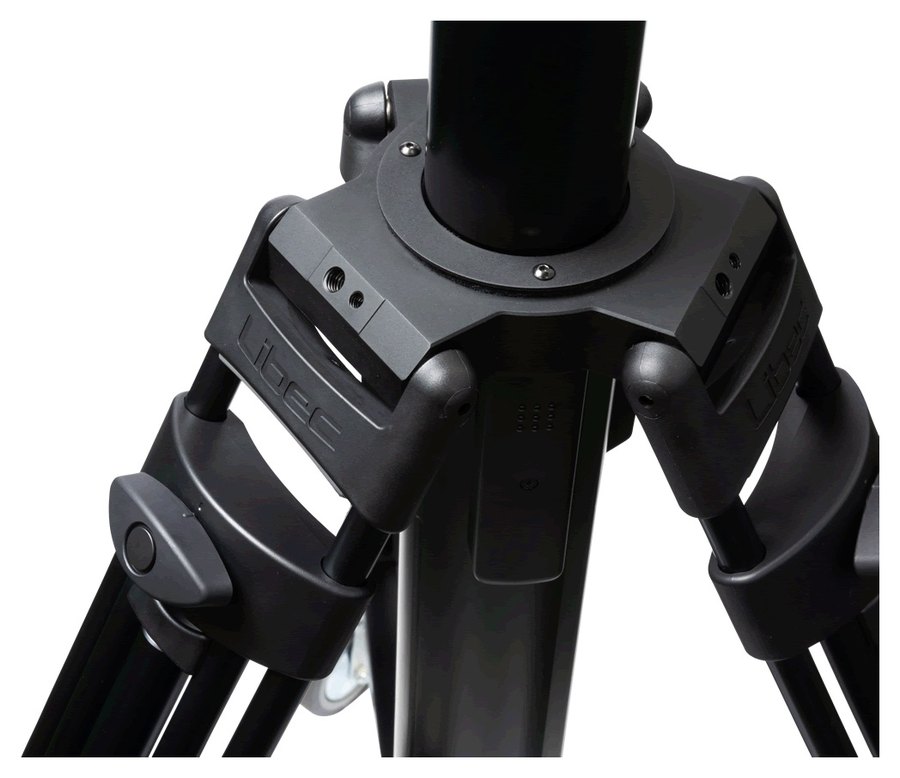

User friendly port for accessories. The accessory port, which has a 1/4" and 3/8" screw hole, is located on two of the three sides of the tripod base.

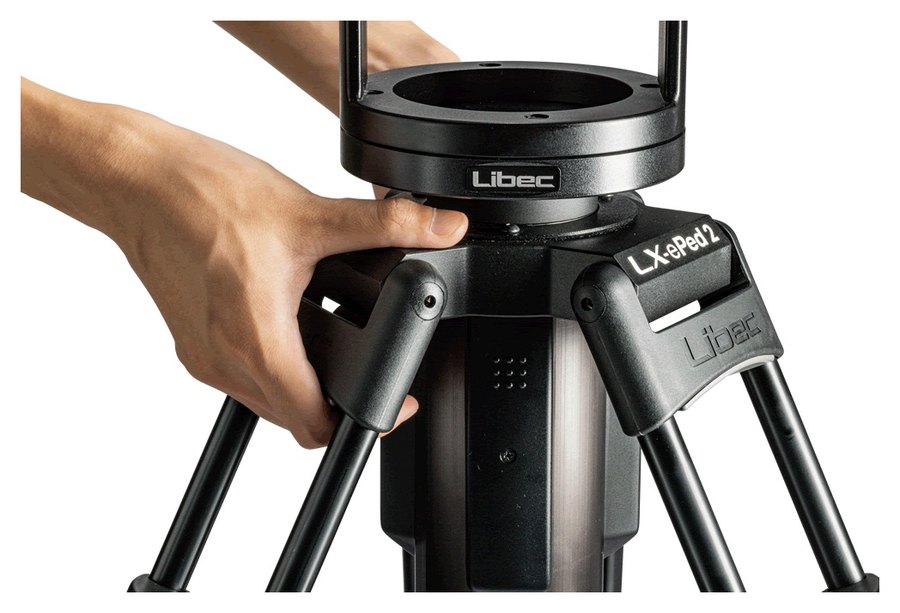

Safety design. With safety in mind, the power pole is carefully designed to prevent users from injuring their fingers.

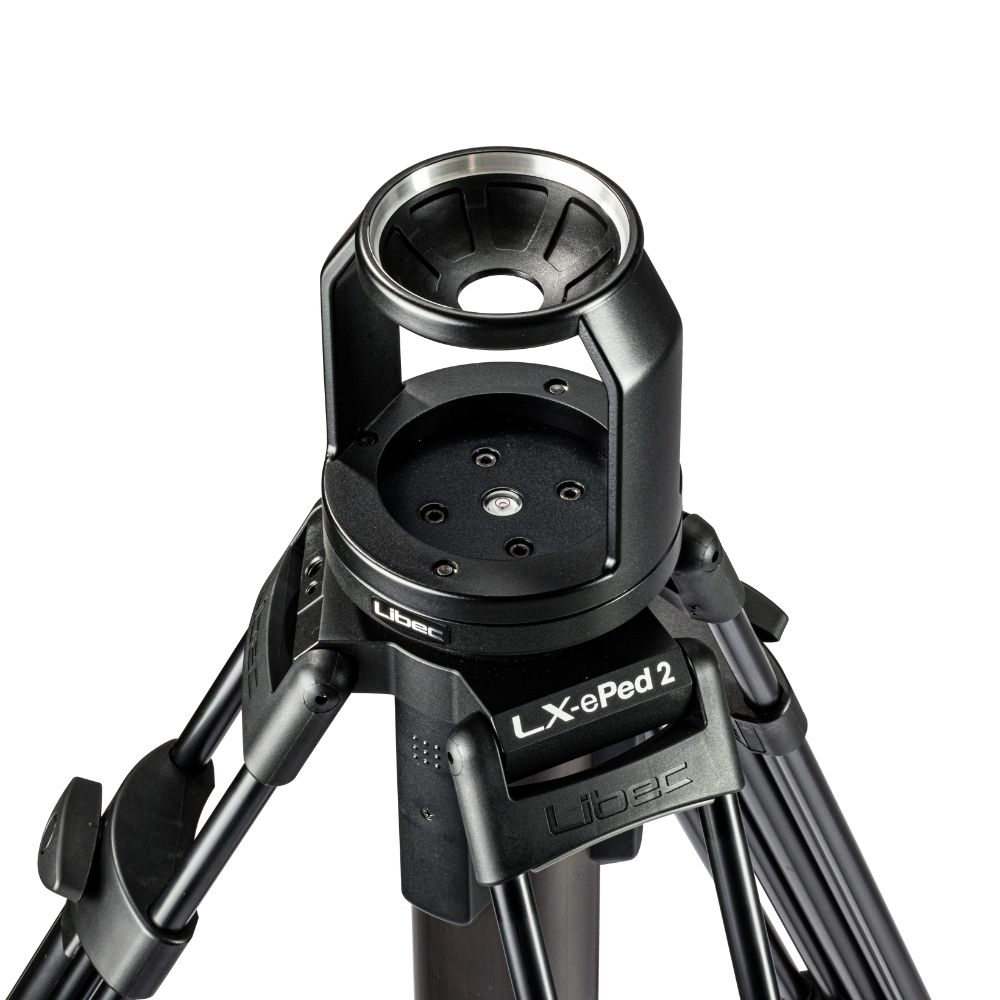

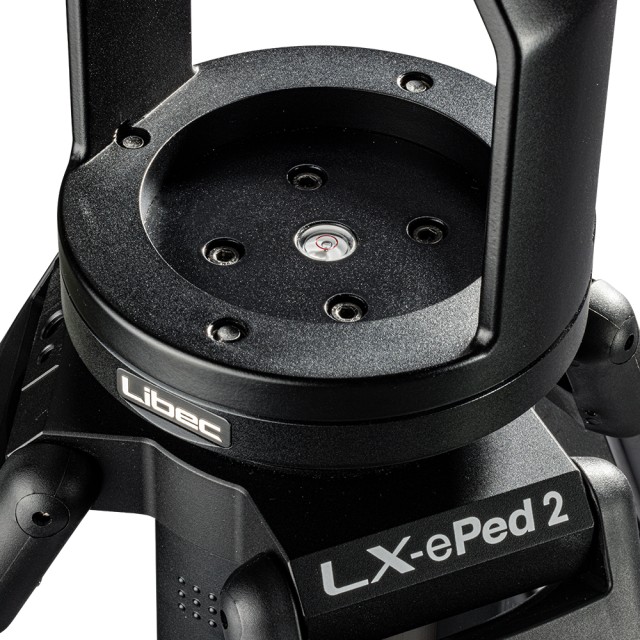

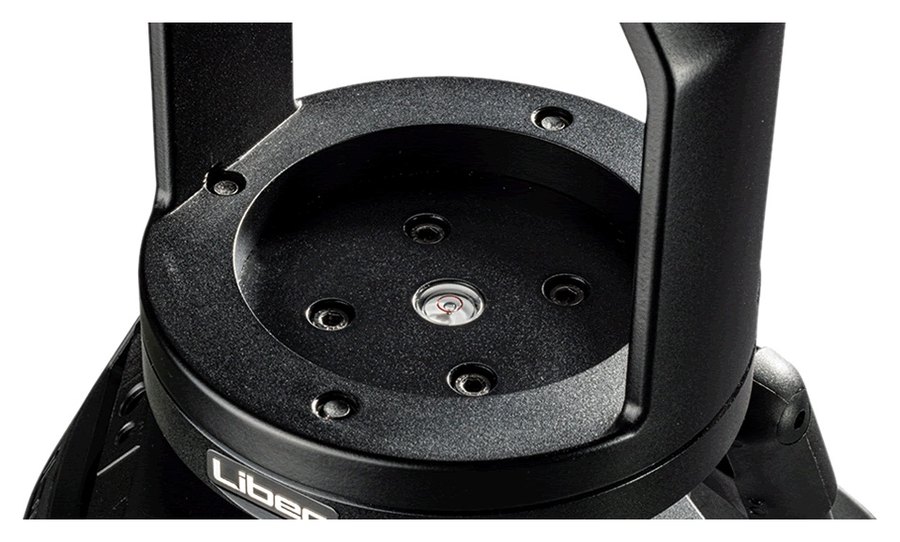

Built-in spirit level. For easy adjustment, a spirit level is built into the base of the head mounting platform.
