Joyusing V500-4K Document Camera

+8
SKU: V500-4K

The Joyusing V500-4K is a PC-free document camera for presenting pages and objects up to A3 on a connected display. Its 13 MP 1/3-inch CMOS sensor captures up to 4160 × 3120 stills and outputs 4K video at 30 fps or 1080p at 60 fps. HDMI and VGA support direct display connection, while USB connects to a computer. Autofocus, manual focus, built-in LED lighting…

More information

241 € with VAT 199.17 € without VAT
Add to Compare Price history
Availability
Backordered > 5 pcs - 06.10.2026
SKU:
V500-4K
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Joyusing V500-4K is a PC-free document camera for presenting pages and objects up to A3 on a connected display. Its 13 MP 1/3-inch CMOS sensor captures up to 4160 × 3120 stills and outputs 4K video at 30 fps or 1080p at 60 fps. HDMI and VGA support direct display connection, while USB connects to a computer. Autofocus, manual focus, built-in LED lighting and microphone support classroom demonstrations and remote presentations. The camera also supports PC-free presentation functions through its built-in system.

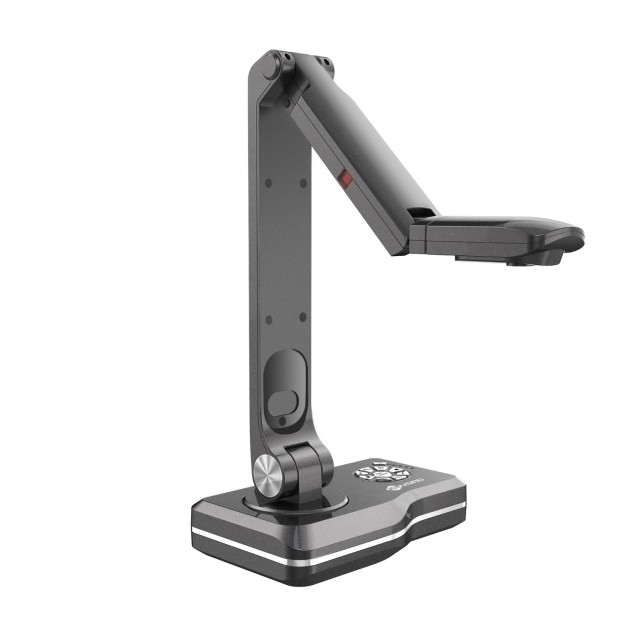

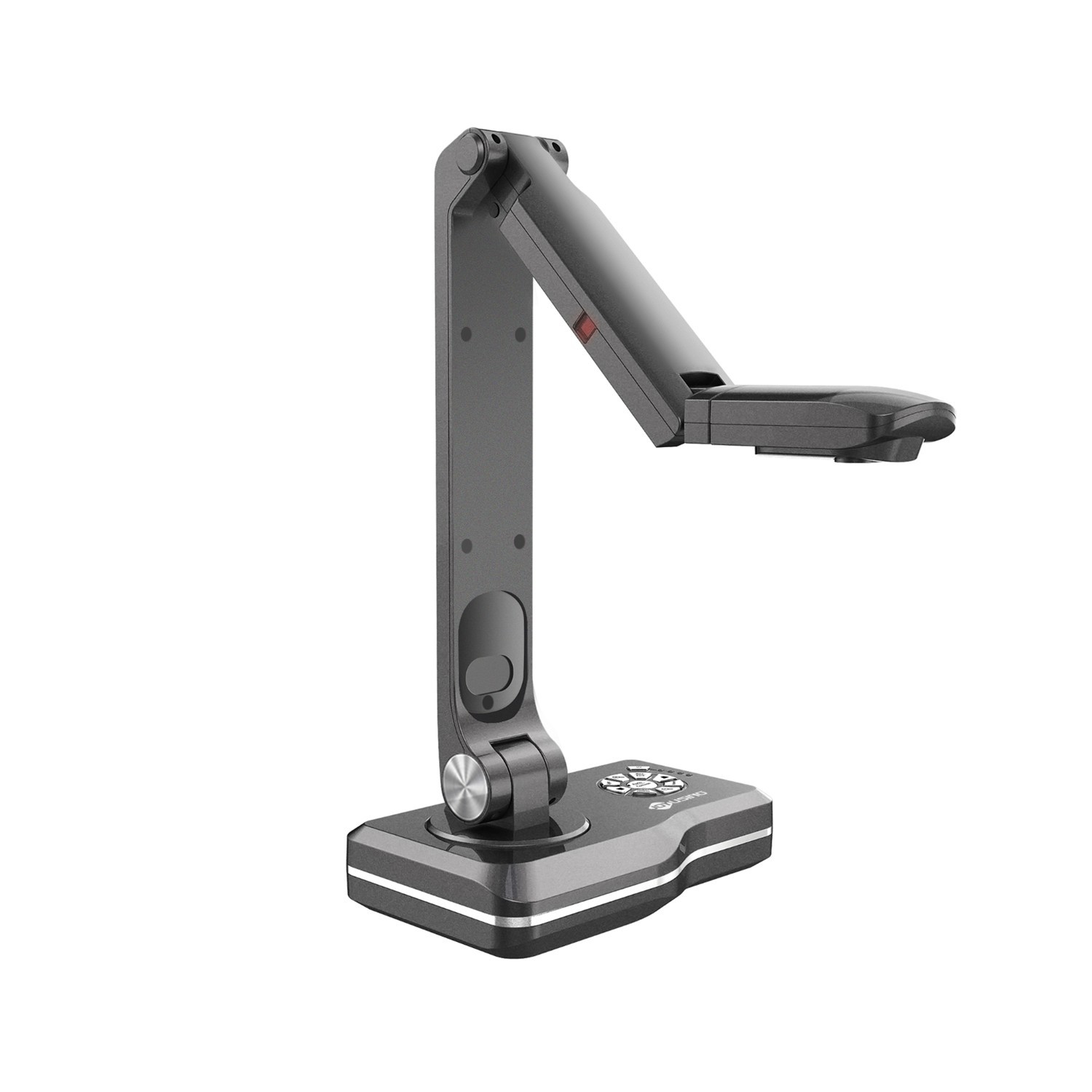

Joyusing V500-4K document camera on a white background

4K Document Camera with PC-Free Mode

4K image directly on a large display

The Joyusing V500-4K captures documents and three-dimensional objects for direct display on a monitor or projector. Its 13-megapixel sensor captures photos at resolutions up to 4160 × 3120 pixels; video reaches 4K at 30 fps or 1080p at 60 fps. The camera operates independently via its display or when connected to a computer via USB.

13 MP4K/30 fpsA3

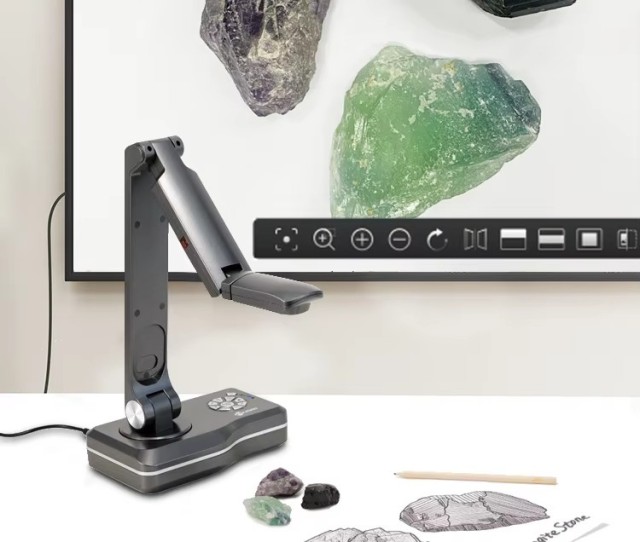

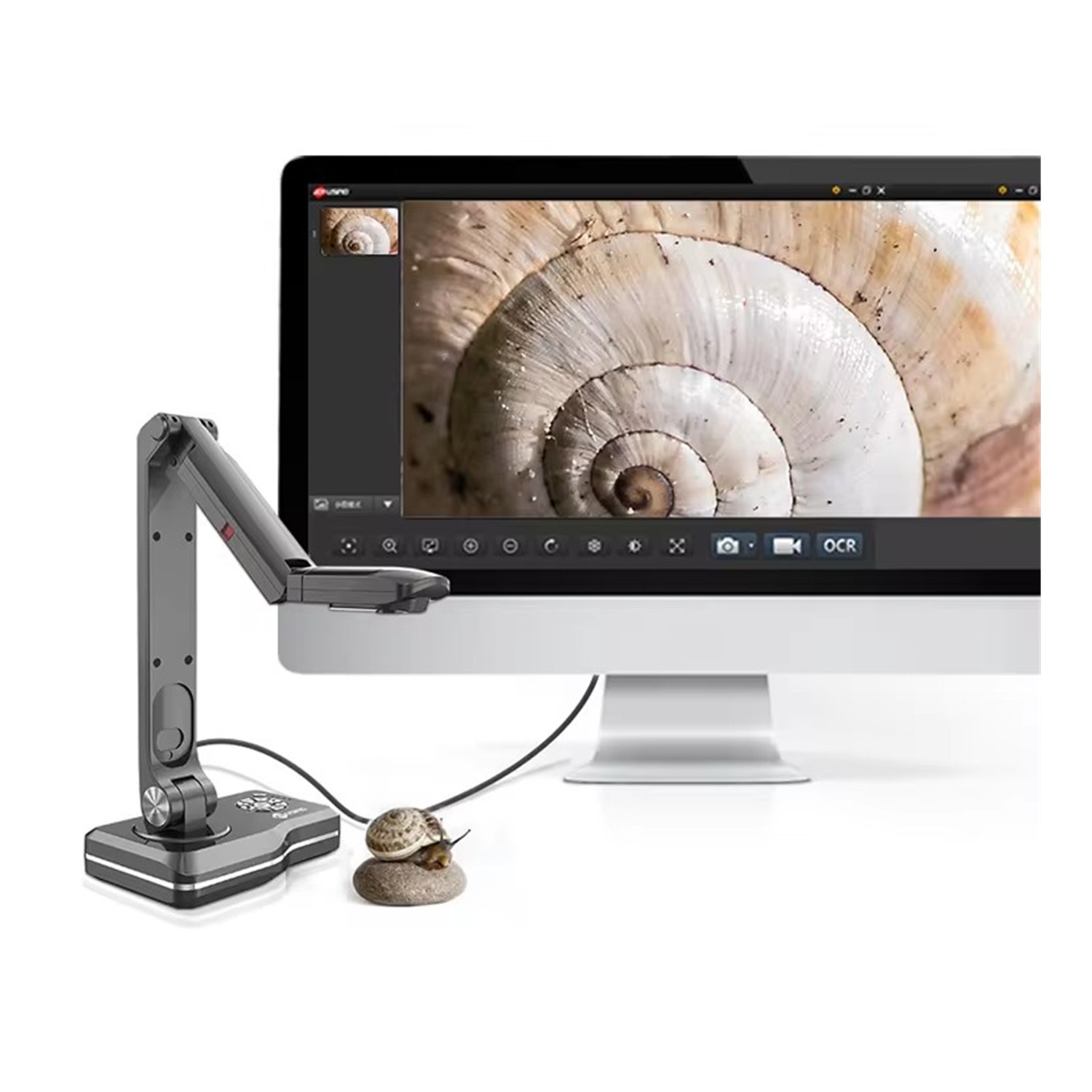

Joyusing V500-4K connected to a monitor for direct detail viewing

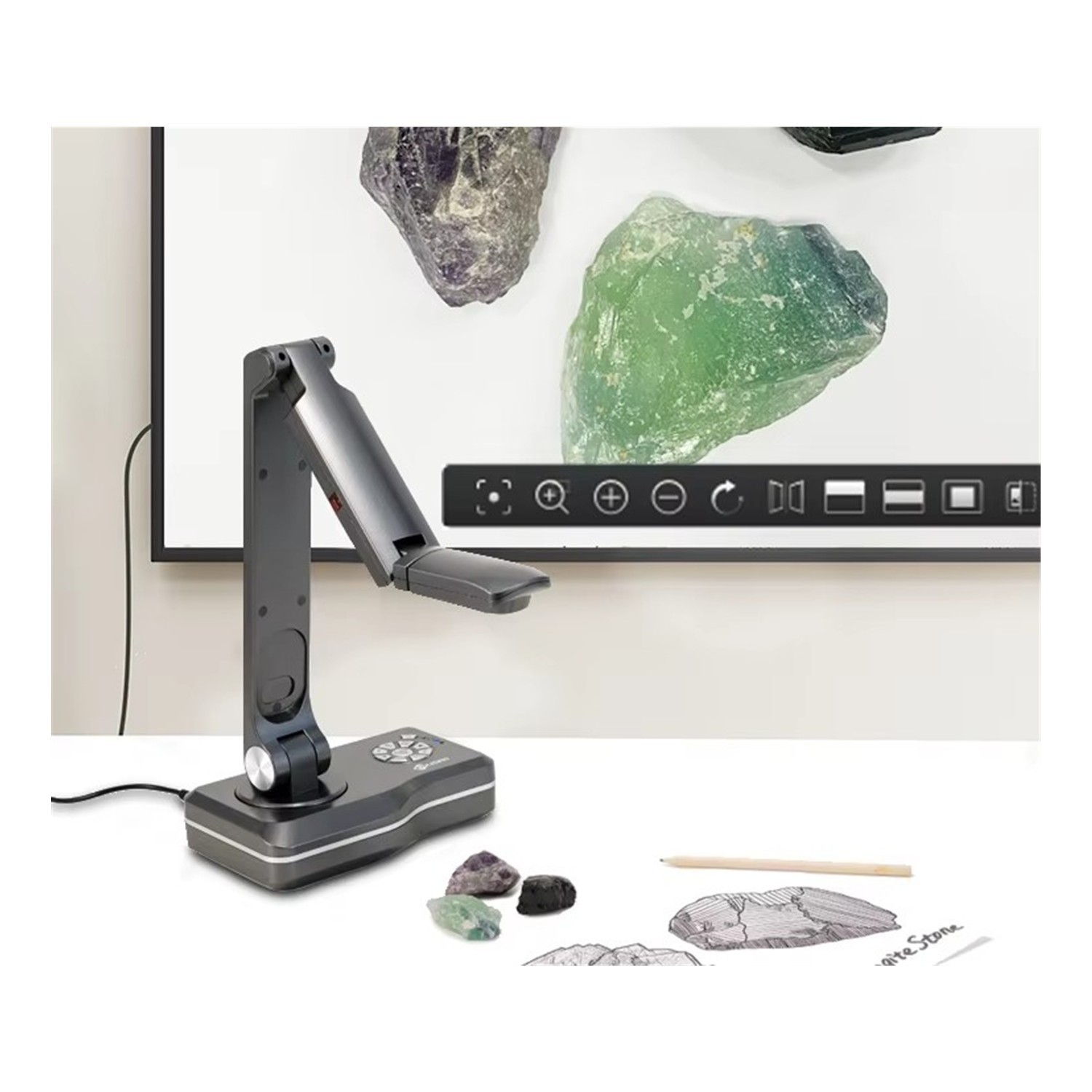

Direct display without a computer

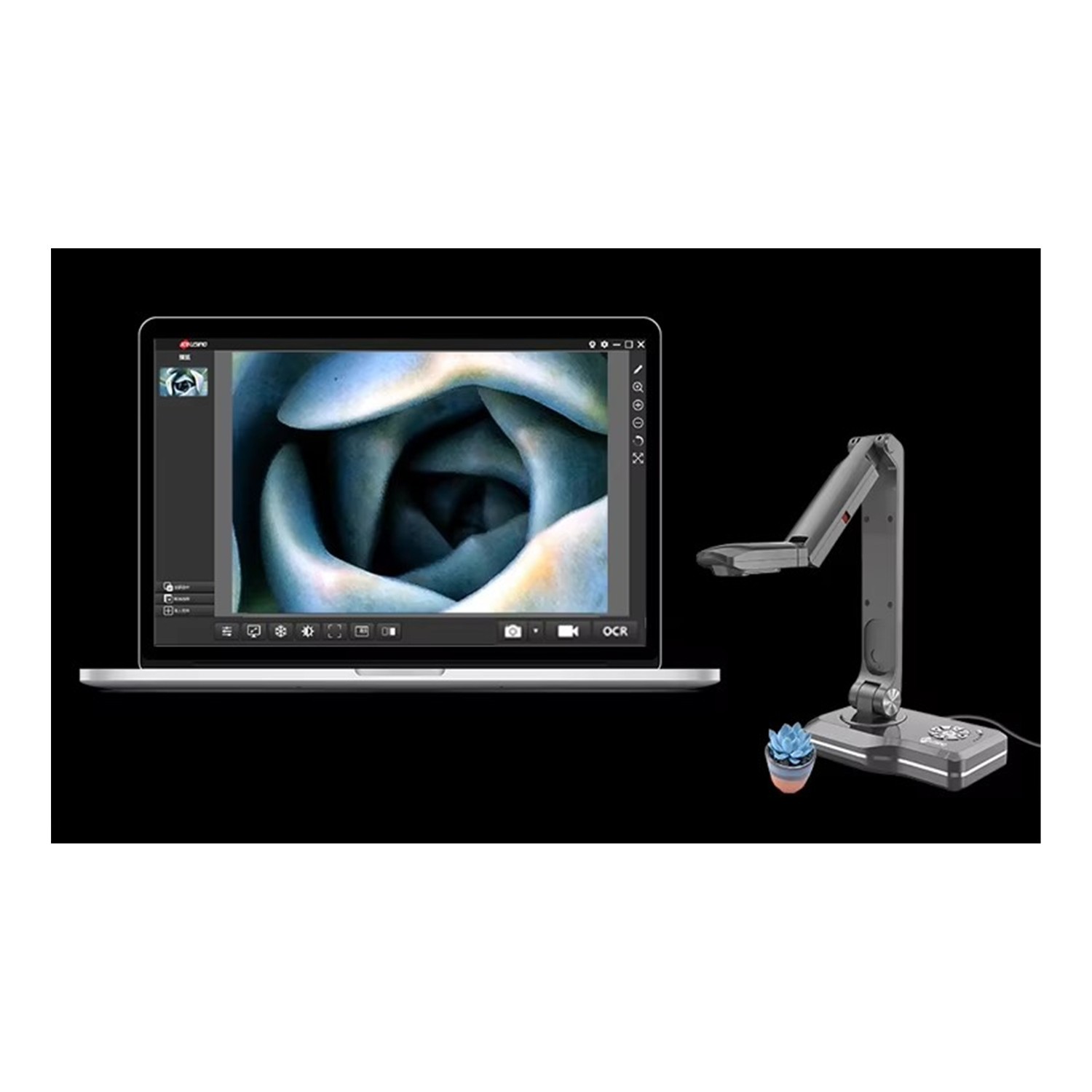

HDMI or VGA connects the camera to a monitor, TV, or projector. The built-in system allows you to display live video without a computer and offers features such as rotation, split-screen, picture-in-picture, annotations, and zoom. Connect the camera to a computer via USB and use the Joyusing Visualizer software.

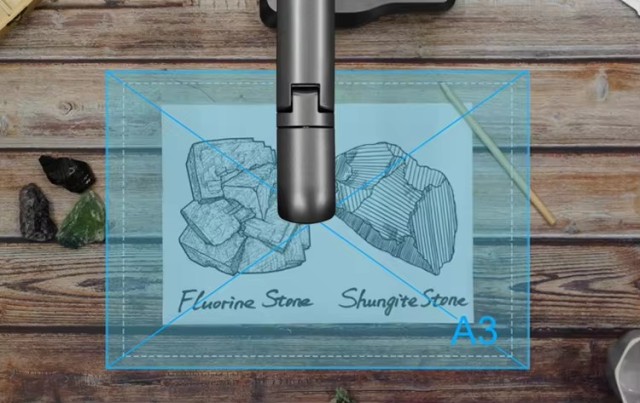

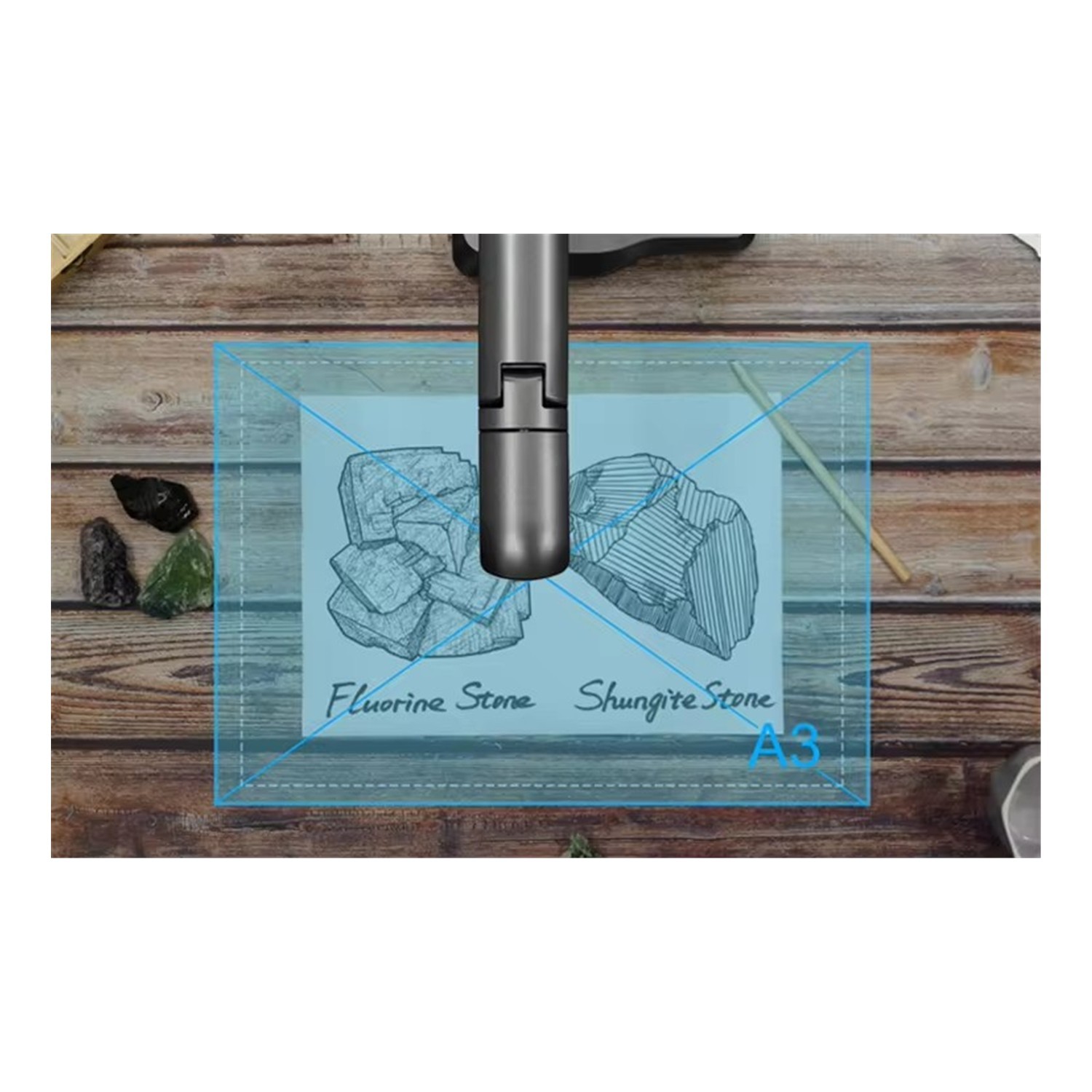

Document details and the entire A3 page

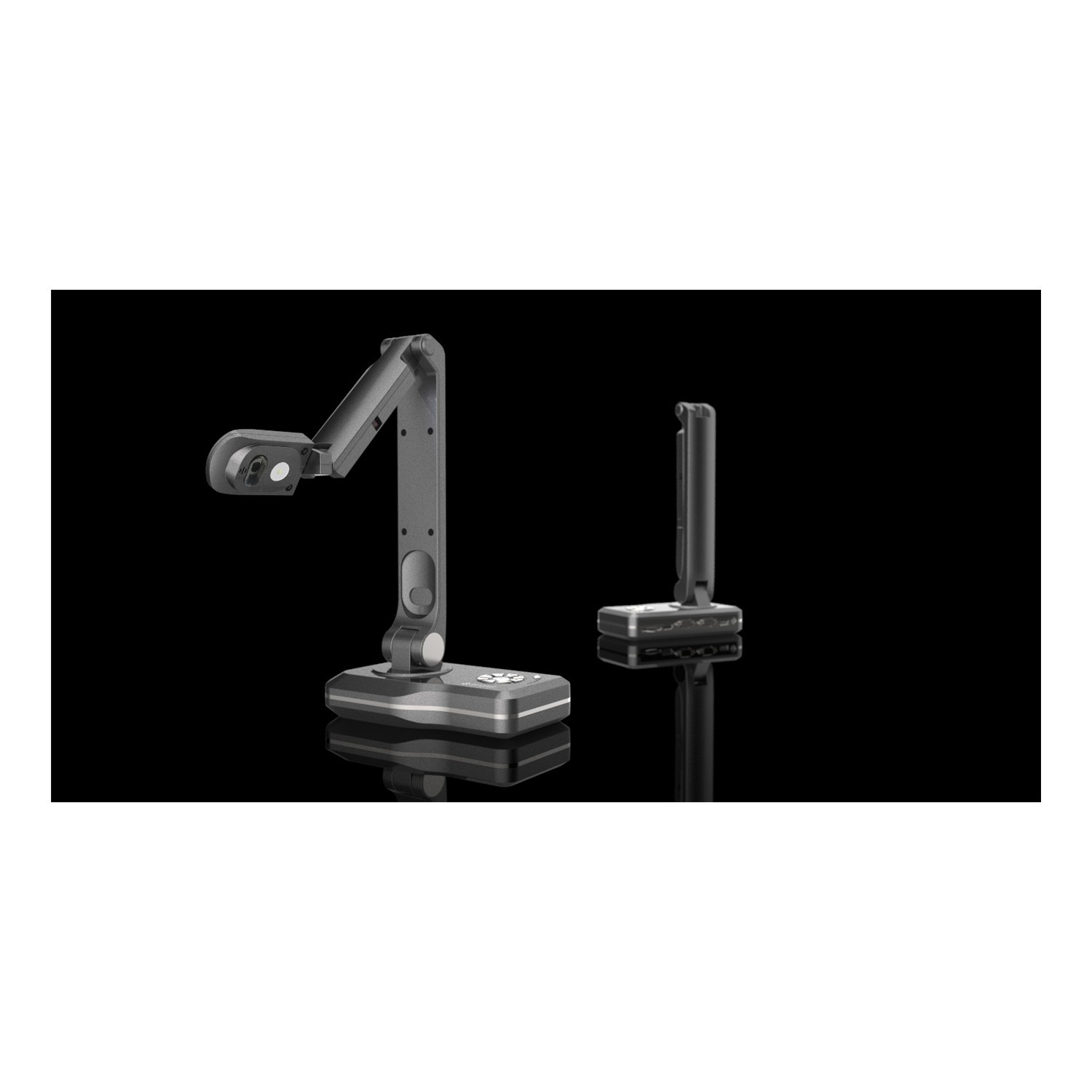

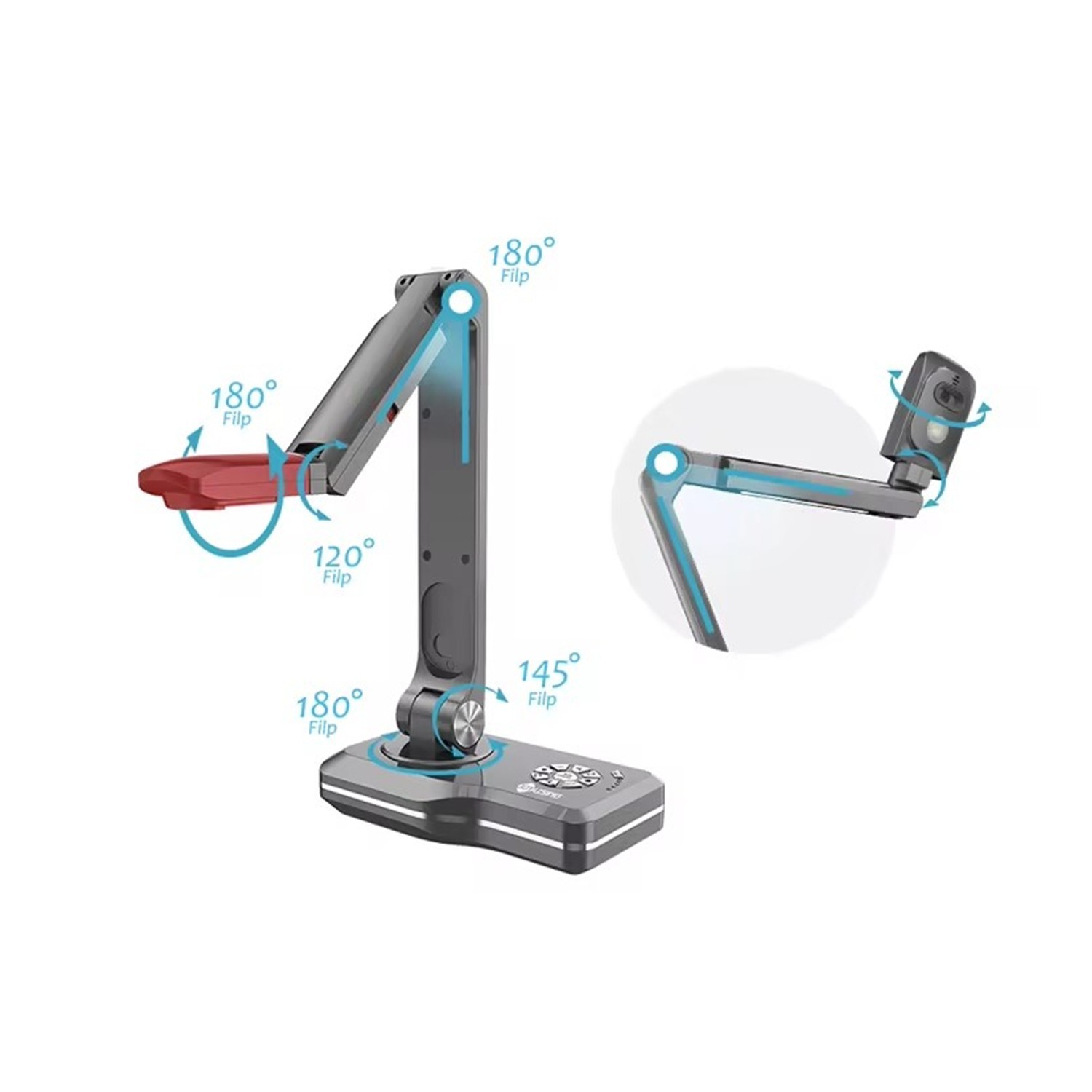

A flexible, multi-jointed arm allows you to adjust the field of view from an entire document down to smaller objects. The scanning area covers the A3 format. Automatic or manual focusing helps fine-tune the image when working with text, sample materials, and three-dimensional objects.

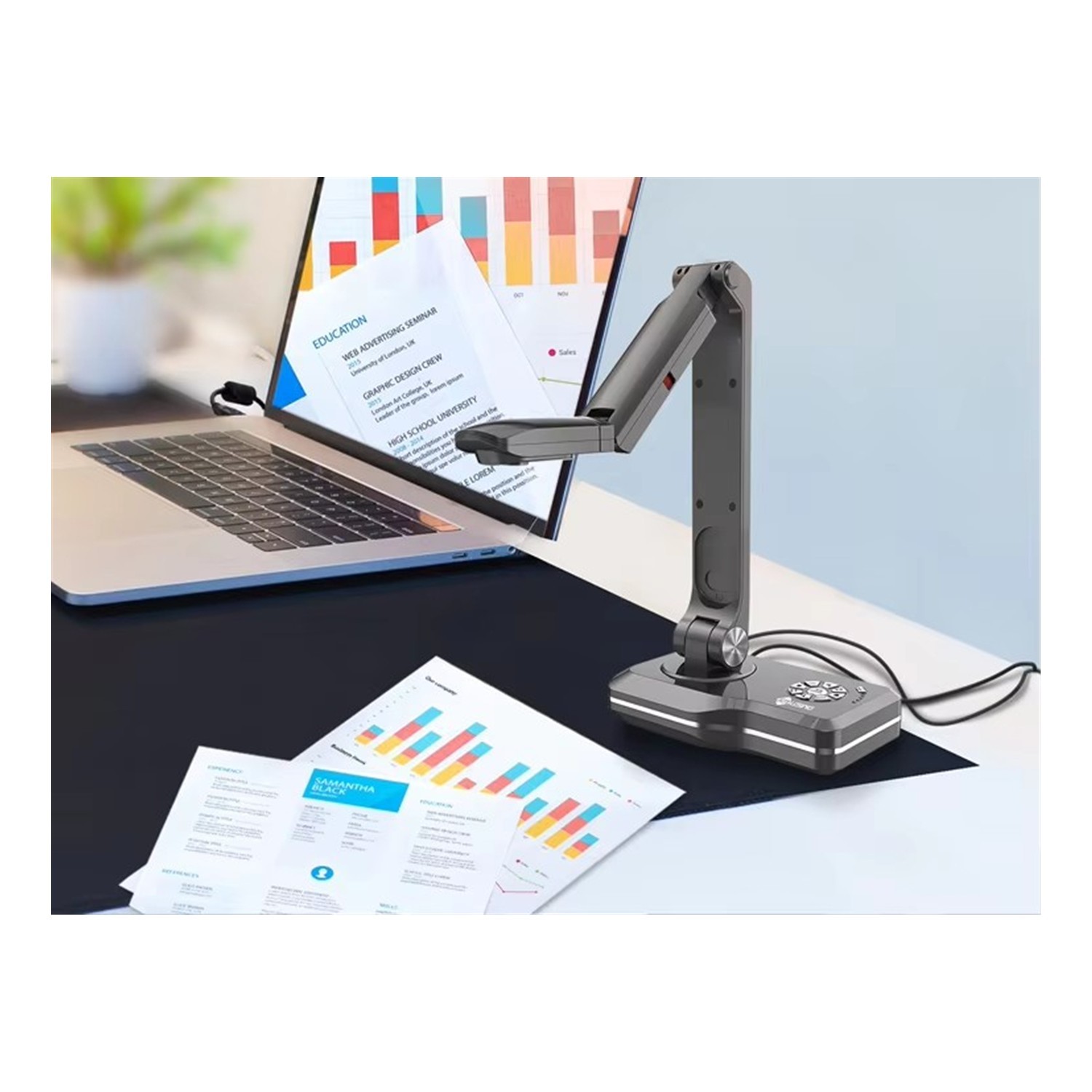

Joyusing V500-4K capturing teaching materials on a desk

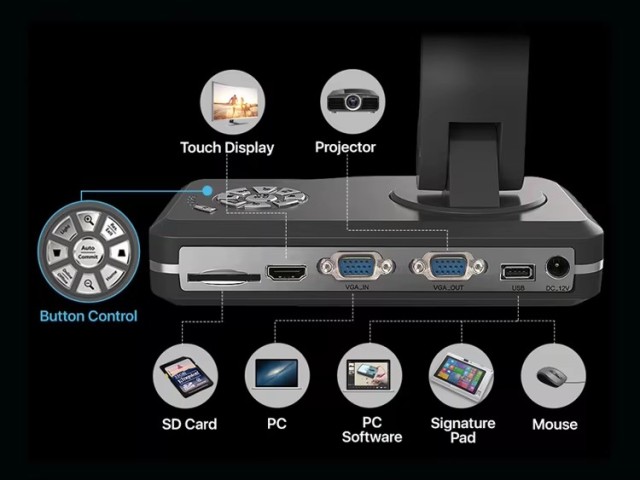

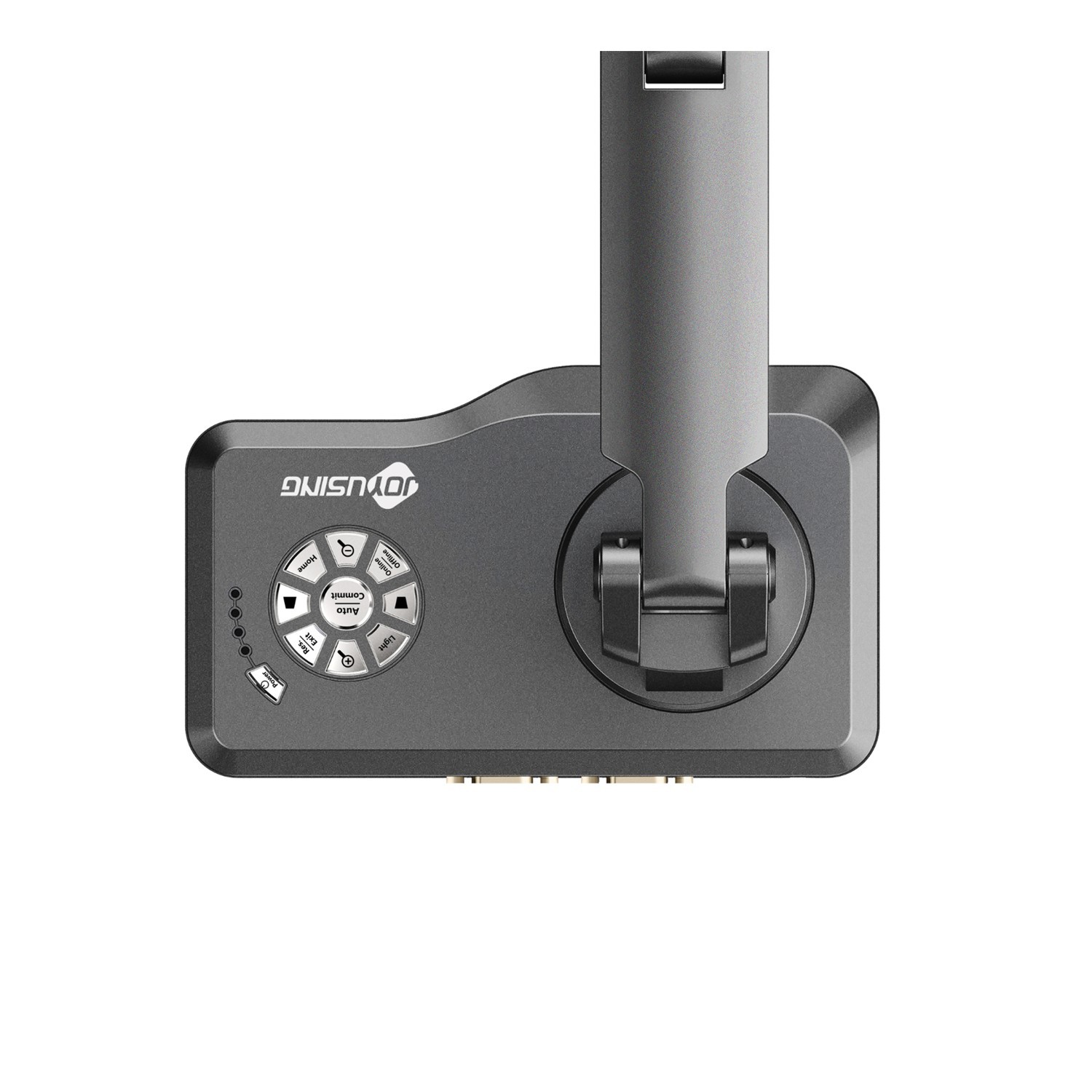

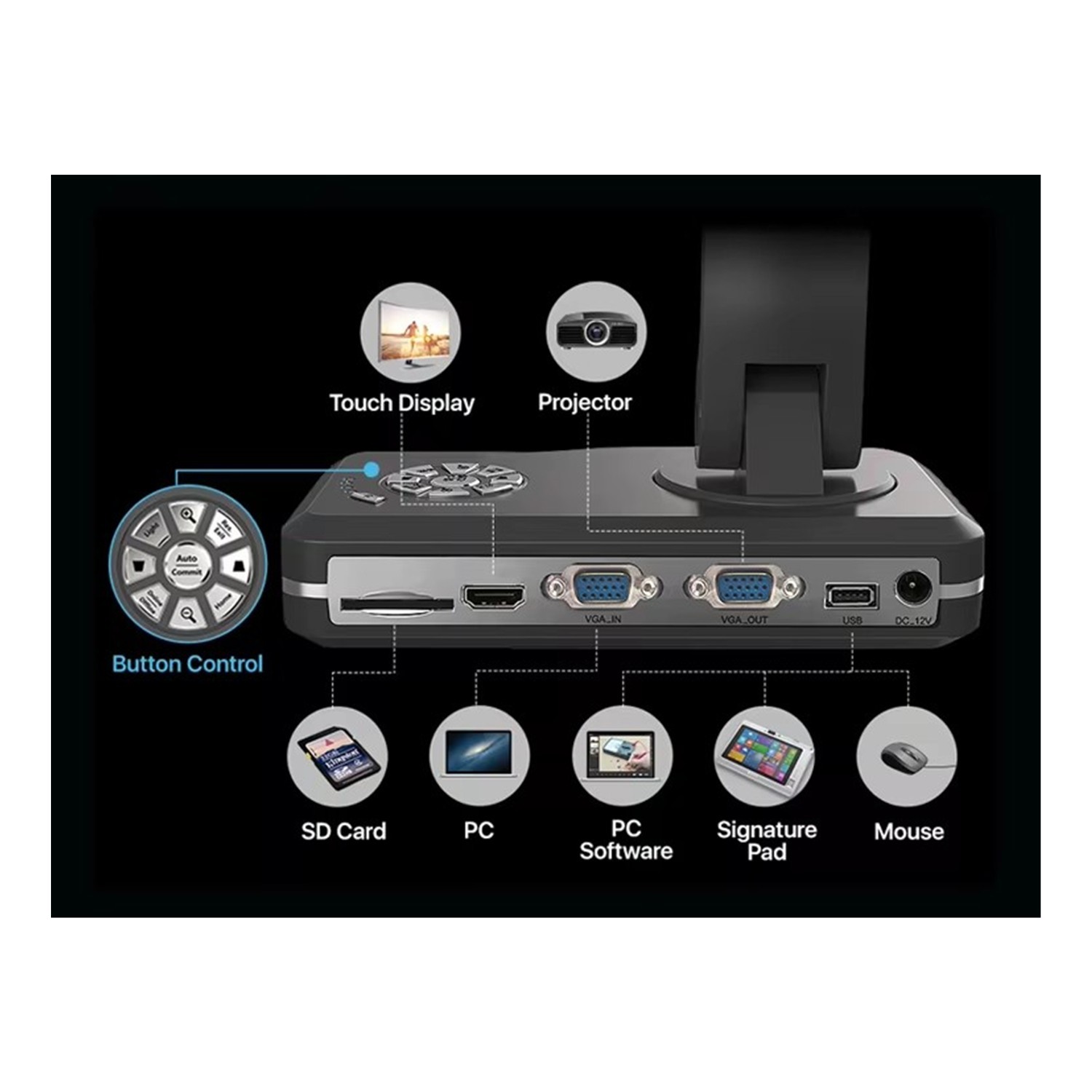

Interfaces and controls of the Joyusing V500-4K document camera

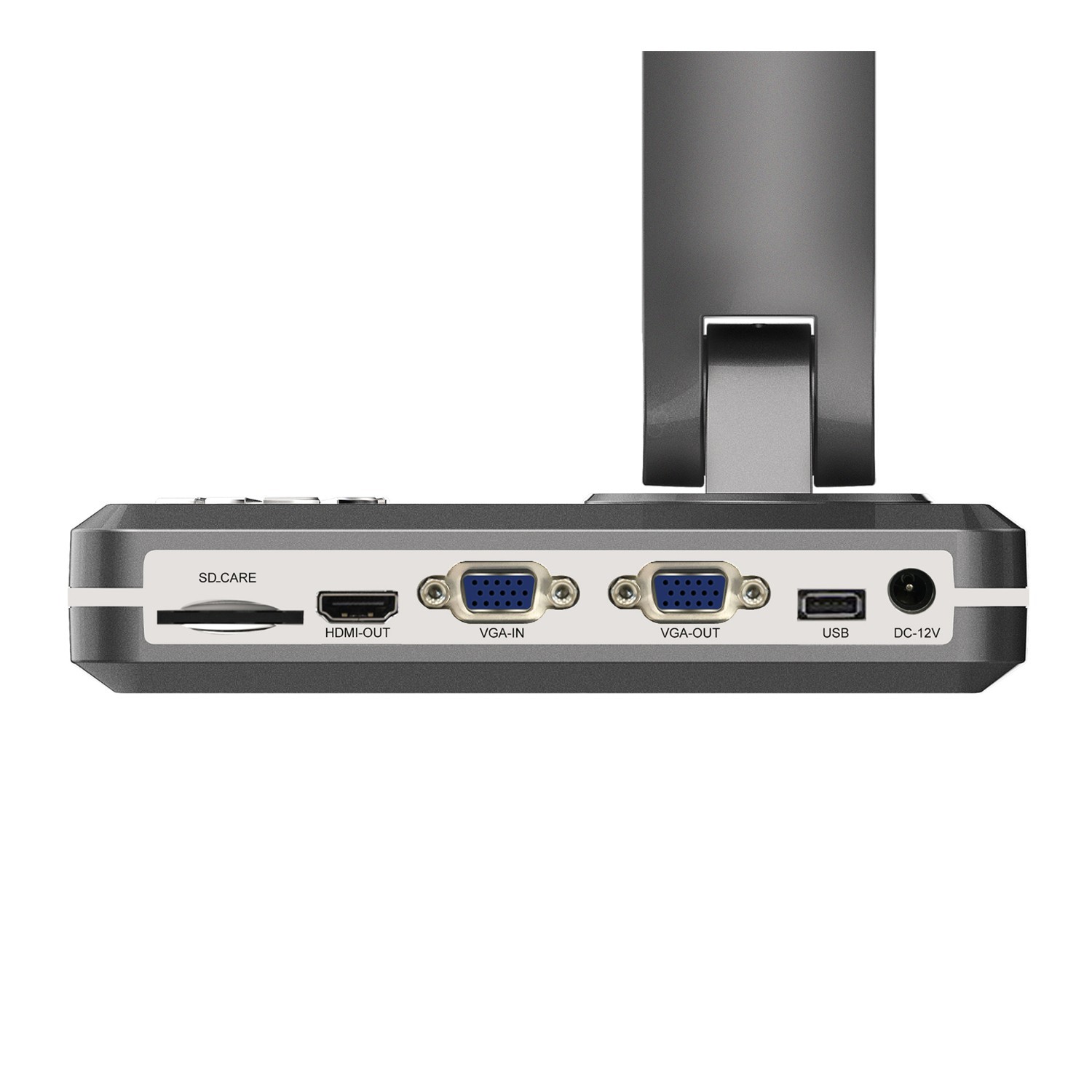

Controls and Connections

Buttons on the base provide quick access to camera functions. The rear panel offers video and data connections for various applications. The manufacturer lists HDMI, VGA, and USB interfaces; accessories may also include an SD card and a remote control.

VGA input; VGA output; HDMI output; USB connection; SD slot; control buttons; output to a monitor or projector.

PACKAGE CONTENT

  • Joyusing V500-4K camera ×1
  • Power adapter ×1
  • HDMI cable ×1
  • USB cable ×1
  • Remote control ×1
  • Soft pad ×1
  • User manual ×1
  • Quick Start Guide ×1
  • VGA cable – optional accessory

SPECIFICATIONS

  • Sensor: 1/3″ CMOS, 13 Mpx
  • Maximum photo resolution: 4160 × 3120
  • Video: 4K at up to 30 fps; 1080p at up to 60 fps
  • Focus: automatic and manual
  • Scanning area: up to A3
  • Light and sound: natural light and LED; built-in microphone
  • Interfaces: HDMI, VGA, USB
  • Modes: PC-free and PC connection
  • Software: zoom, rotate, exposure, brightness, freeze frame, picture-in-picture, recording, notes, and OCR
  • Power supply: 12 V / 1 A
  • Dimensions: 320 × 280 × 185 mm (according to the manufacturer)
  • Weight: 1.10 kg (manufacturer’s specification)
  • Lock: Kensington slot
Parameters

Parameters

Manufacturer: Joyusing
Category: Scanners, Duplicators

Main parameters

Sensor resolution13Mpx
Maximum image resolution4K UHD (3840 × 2160)
Capture areaA3 (420 × 297 mm)
ConnectivityHDMI · VGA · USB
