Joyusing V1XS Optical Zoom Document Camera
SKU: V1XS-4K
The Joyusing V1XS document camera uses an 8 MP Sony 1/3.2-inch CMOS sensor and captures images up to 3264 × 2448; live video and recording reach 1080p at 60 fps. Its lens combines 12× optical and 10× digital zoom with stepless rotary control. A built-in 5-inch LCD provides a preview and supports standalone use without a computer; the camera also connects to…
549 € with VAT
453.72 € without VAT
Personal pickup within 90 minutes
Shipment day: Today
Shipment day: Today
In stock > 5 pcs
Praha > 5 pcs
Praha > 5 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

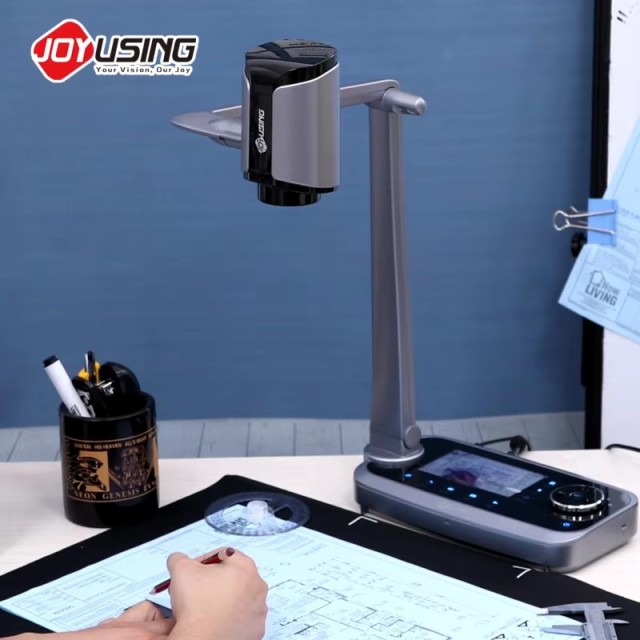

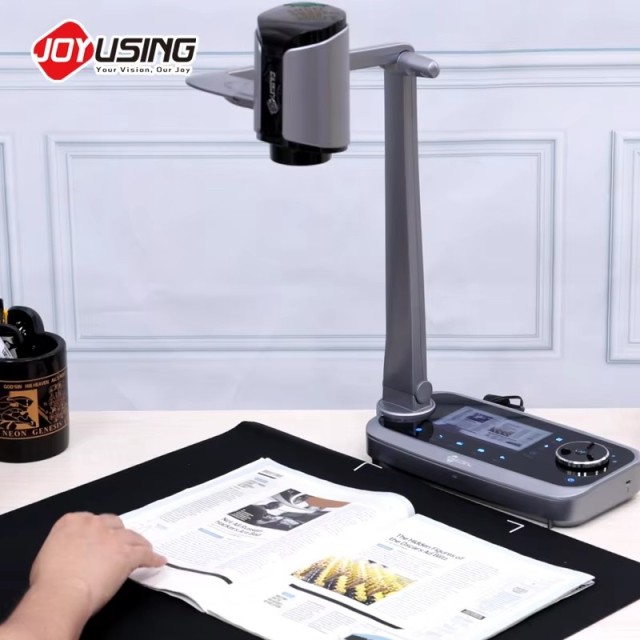

The Joyusing V1XS document camera uses an 8 MP Sony 1/3.2-inch CMOS sensor and captures images up to 3264 × 2448; live video and recording reach 1080p at 60 fps. Its lens combines 12× optical and 10× digital zoom with stepless rotary control. A built-in 5-inch LCD provides a preview and supports standalone use without a computer; the camera also connects to a computer, projector, or other display. The capture area covers A3. The manufacturer datasheet lists a built-in microphone, LED light, autofocus, HDMI, VGA, USB, and SD 3.0.
4-in-1 USB document camera
Preview on camera, with or without a PC
The Joyusing V1XS pairs an 8 MP sensor and 12× optical zoom with a built-in 5-inch LCD. Check the framing on the camera itself and use it standalone or connected to a computer. Full HD video runs at up to 60 fps.
8 MP CMOS1080p/605-inch LCD

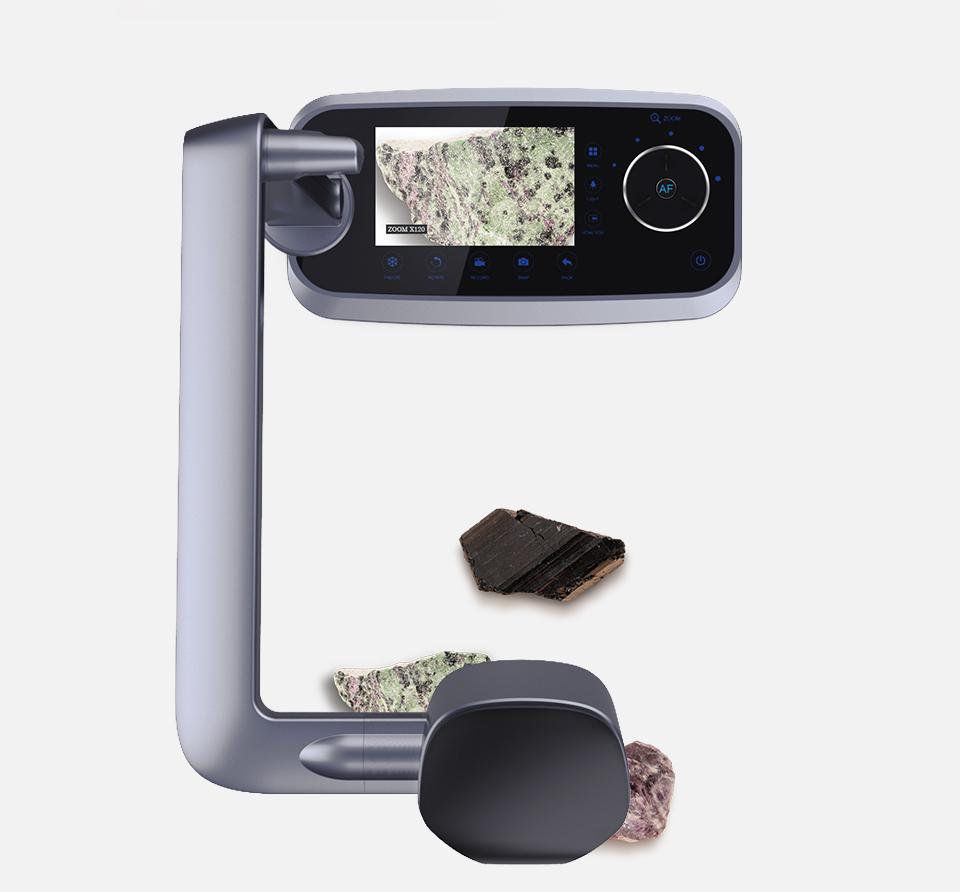

Zoom and controls at hand

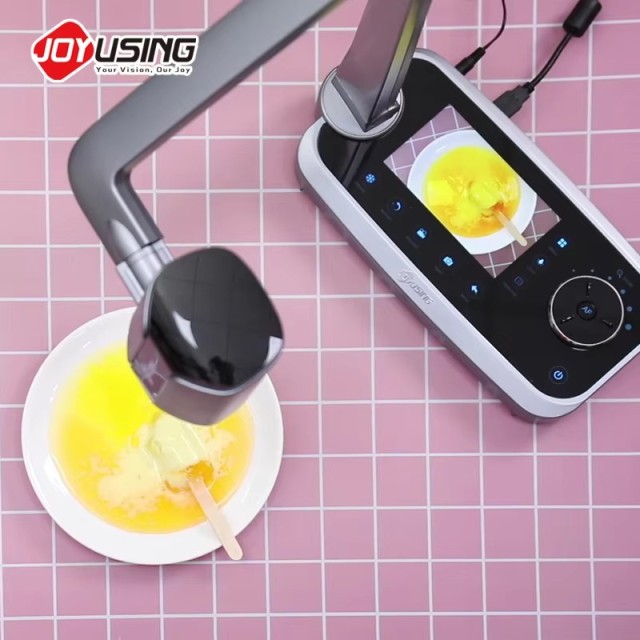

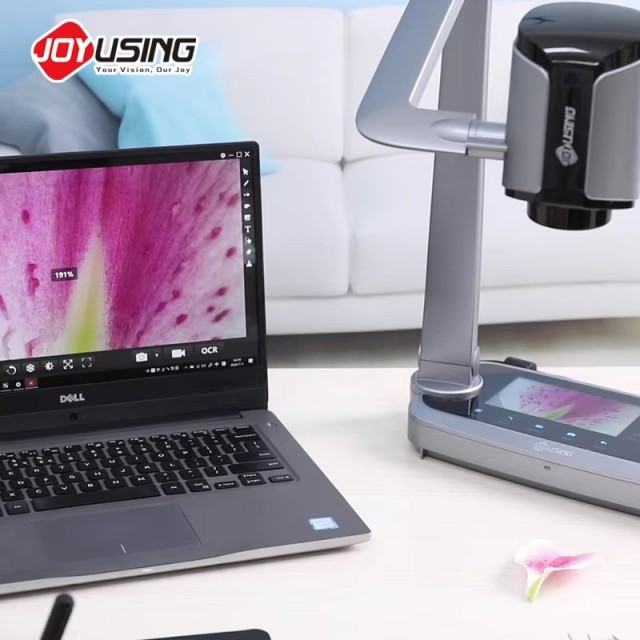

The 5-inch touch LCD displays the live preview and menu. Turn the rotary control for stepless 12× optical zoom, add 10× digital zoom, and use the touch keys to operate the camera. Connect over USB to send video to a computer.
Connect displays and peripherals
The manufacturer's diagram shows HDMI input and output, VGA input and output, audio line in and out, USB, SD 3.0, and 12 V power. The video inputs and outputs help integrate the camera with a projector or external display.

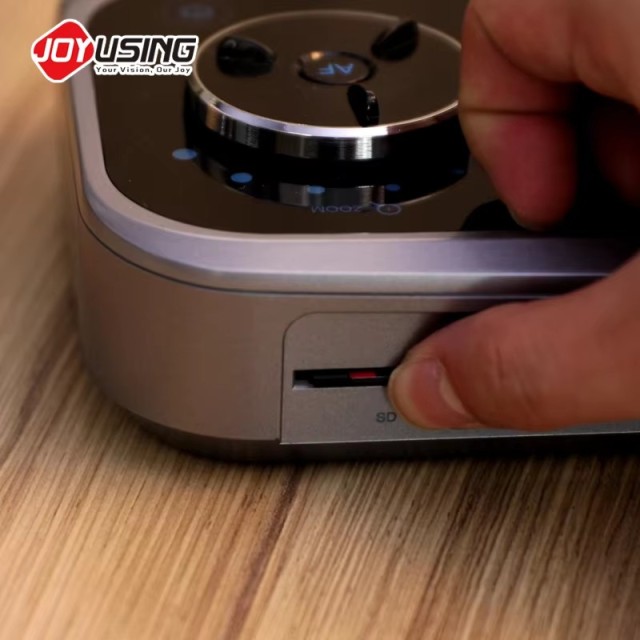

SD card; HDMI input; HDMI output; USB for a computer and peripherals; audio input; audio output; 12 V power
PACKAGE CONTENT
- Joyusing V1XS document camera ×1
- 12 V AC power adapter with power cord ×1
- USB cable ×1
- VGA cable ×1
- HDMI cable ×1
- Warranty card ×1
- Quick Start Guide ×1
- Application software CD ×1
SPECIFICATIONS
- Sensor: 1/3.2-inch Sony CMOS, 8 MP
- Maximum still resolution: 3264 × 2448
- Video: Full HD 1080p up to 60 fps
- Zoom: 12× optical, 10× digital
- Display: 5-inch LCD, 1280 × 720
- Focus: autofocus

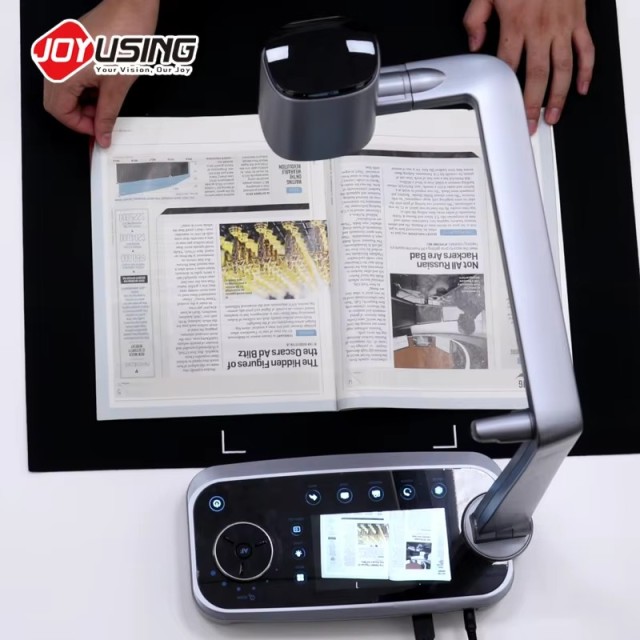

- Capture area: up to A3 (297 × 420 mm)

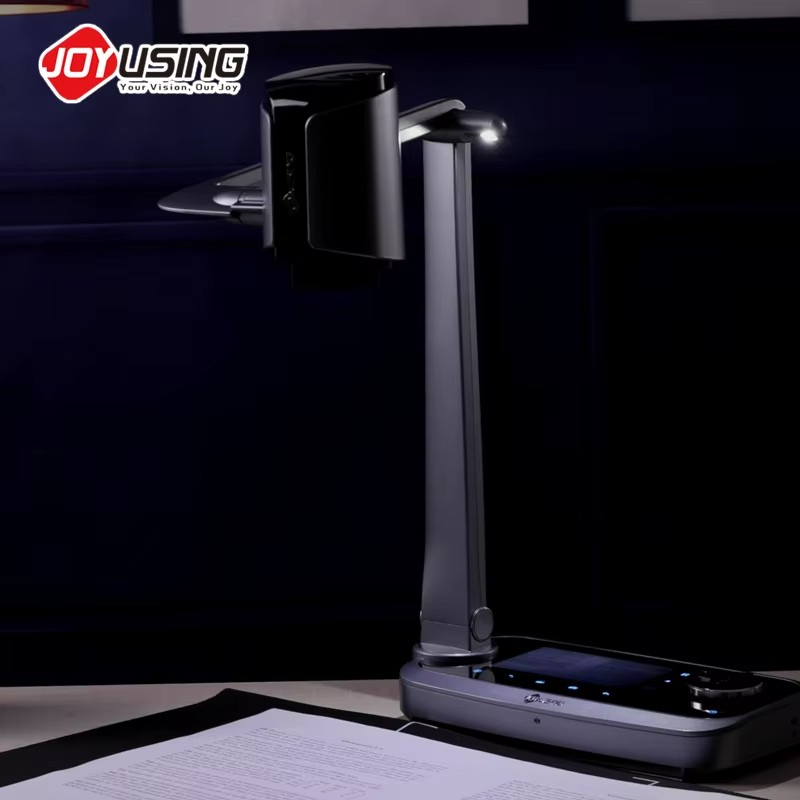

- Lighting and audio: white LED, built-in microphone
- Interfaces: HDMI IN/OUT, VGA IN/OUT, LINE IN/OUT, SD 3.0, USB
- Power: 12 V / 1 A
- Dimensions (H × W × D): 283 × 138 × 474 mm
- Weight: 2.93 kg net; 4.88 kg gross per datasheet
- Modes: connected to PC or standalone
Parameters
Parameters
| Manufacturer: | Joyusing |
| Category: | Scanners, Duplicators |
Main parameters
| Sensor resolution | 8Mpx |
| Maximum image resolution | 3264 × 2448 |
| Capture area | A3 (420 × 297 mm) |
| Optical zoom | 12× |
| Connectivity | HDMI · VGA · USB |
