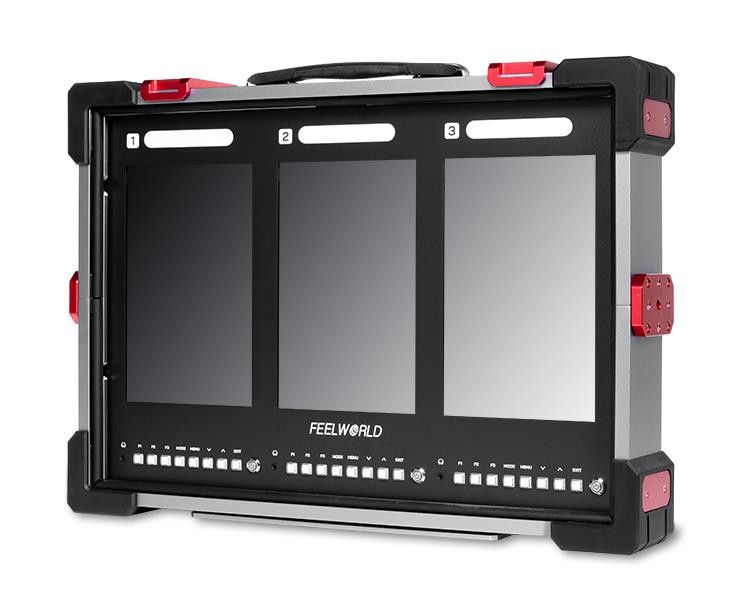

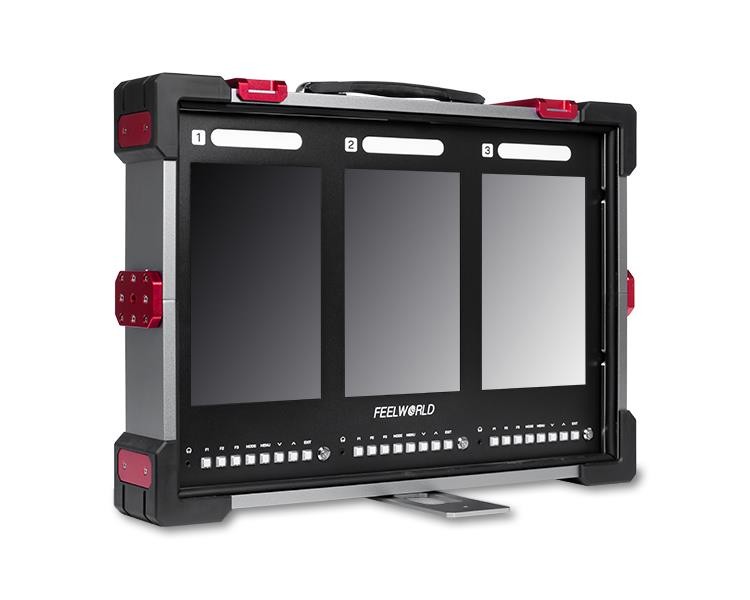

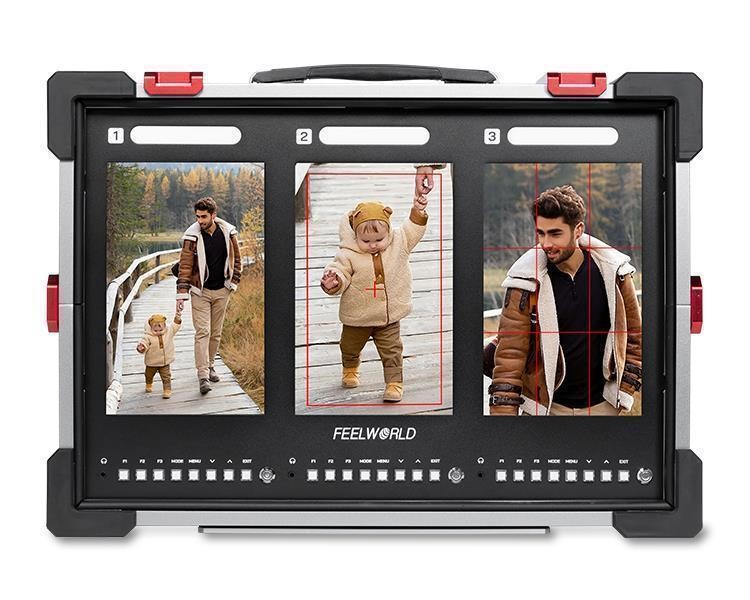

Feelworld PS101

The Feelworld PS101 is a 10.1" 16:10 Full HD IPS broadcast monitor with 3G-SDI/HDMI input & output, 3D-LUT support, waveform, vectorscope, histogram, focus assist, false color, and advanced video assist tools, designed for professional video production and monitoring.

The Feelworld PS101 features a 10.1" IPS display with 1200x1920 resolution, 1000 cd/m² brightness, and 1500:1 contrast, providing clear, accurate, and daylight-viewable visuals. It covers 90% DCI-P3 color gamut and offers 8-bit color depth for precise color monitoring.

Connectivity includes 3G-SDI input/output, HDMI 2.0 input/output, USB-A for LUT import and firmware updates, 3.5mm headphone audio, and a 9-pin tally port. The monitor is compatible with multiple video formats including 720p, 1080i, 1080p, and 4K UHD/DCI at 24–60fps.

The PS101 offers professional video assist functions, including waveform (RGB/YUV/Y), HDR, vectorscope, histogram (RGB/Y), embedded audio, focus assist (Red, Green, Blue), false colors, overexposure, check field, anamorphic mode, image flip, image freeze, center marker, safety frames, ratio markers, grids, zoom mode, pixel-to-pixel, SDI timecode, display range, EDID settings, and customizable color temperature (5600K, 6500K, 9300K, user adjustable RGB 0–255).

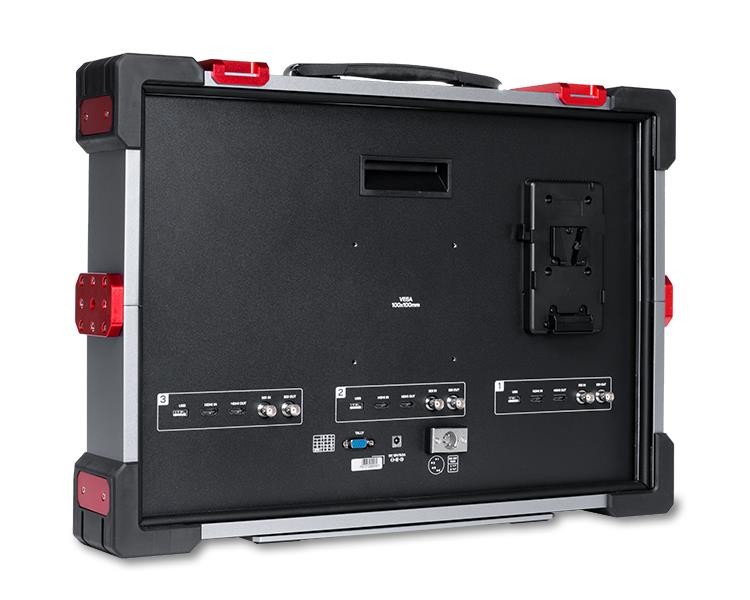

The monitor is powered via DC 12–24V, XLR, or V-mount battery plate, and includes a 100x100mm VESA mount for versatile installation. Rugged and professional, it is suitable for broadcast, film, and studio production.

Key Features:

• 10.1" IPS Monitor – 1200x1920 resolution, 16:10 aspect ratio

• High Brightness & Contrast – 1000 cd/m², 1500:1

• Wide Color Gamut – 90% DCI-P3, 8-bit color depth

• Video Inputs/Outputs – 3G-SDI, HDMI 2.0, USB-A, 9-pin tally

• Audio Monitoring – 3.5mm headphone jack

• Professional Video Assist Tools – Waveform, vectorscope, histogram, focus assist, false color, overexposure, check field, anamorphic, image flip, freeze, grids, safety frames, zoom mode, pixel-to-pixel

• 3D-LUT Support – Log to Rec.709, up to 32 custom LUT uploads

• Power & Mounting Options – DC 12–24V, XLR, V-mount battery plate, 100x100mm VESA mount

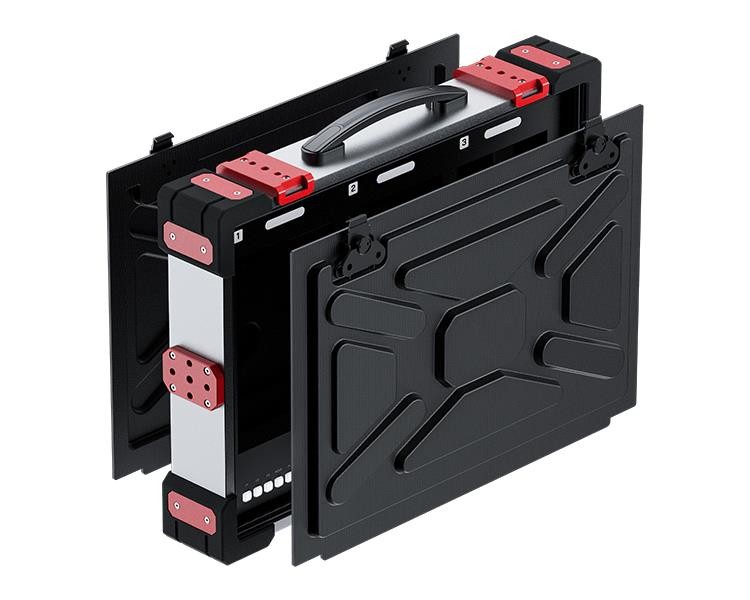

• Rugged Design – 8.43 kg with case, professional studio and field use
