DJI Transmission (Standard Combo)

DJI Transmission (Standard Combo) evolves from DJI’s established aerial video transmission technology and is designed for native integration with Ronin series products and DJI Master Wheels. It includes the DJI Video Transmitter and the DJI Video Receiver for production monitors: 1080p/60fps over 6 km (FCC) / 4 km (CE), SDI metadata and fractional frame r…

More information

Promotion: -5% ends in: 16d: 17h: 24m
2 396.61 € 2 270.88 € with VAT 1 876.76 € without VAT
-+
Personal pickup within 90 minutes
Shipment day: Today
In stock 1 pcs
Praha 1 pcs
SKU:
CP.RN.00000318.03
Add to Compare Price history

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

DJI Transmission (Standard Combo) evolves from DJI’s established aerial video transmission technology and is designed for native integration with Ronin series products and DJI Master Wheels. It includes the DJI Video Transmitter and the DJI Video Receiver for production monitors: 1080p/60fps over 6 km (FCC) / 4 km (CE), SDI metadata and fractional frame rates.

Long range for large crews

The video transmitter and receiver use the same chip solution as Ronin 4D, with every link optimised for ultra-low end-to-end latency even with cinema cameras like ALEXA Mini LF.

DJI Transmission (Standard Combo)
O3 Pro1080p/60 fpsUp to 40 Mbps6 km (FCC) / 4 km (CE)AES-256 encryption70 ms latency

Seamless auto frequency hopping

O3 Pro adds DFS bands to the traditional 2.4 GHz and 5.8 GHz bands, offering up to 23 channels. Triple-band automatic frequency hopping scans the electromagnetic environment for the best channel, and the built-in frequency sweeper lets you pick a channel manually to avoid interference between devices.

Metadata and fractional frame rates

With ARRI, RED and other mainstream cinema cameras, the DJI Video Receiver supports metadata transmission via SDI and video output at fractional frame rates.

Encrypted transmission

Secure pairing and AES-256 encryption, together with DJI’s own chip and transmission protocol, protect your footage against unauthorised access.

Powered by the gimbal

The transmitter mounts on the cold shoe at the bottom of Ronin 2 or RS 3 Pro and is powered directly by the gimbal without additional batteries.

WB37, NP-F, V-mount and DC

The system can be powered by WB37 and NP-F batteries (adapters included), V-mount batteries or a 6–18 V DC input.

DJI Transmission (Standard Combo) – Transmitter on a cinema camera

Transmitter on a cinema camera

The DJI Video Transmitter has a 3G-SDI input, a 3G-SDI loop-out and an HDMI 1.4 Type-A input, all for 1080p/60fps.

DJI Transmission (Standard Combo) – SDI loop-out

SDI loop-out

Via the transmitter’s 3G-SDI loop-out, the camera feed can continue to an on-camera monitor at the same time.

DJI Transmission (Standard Combo) – A link on the move

A link on the move

A range of up to 6 km (FCC) / 4 km (CE) in open, unobstructed, interference-free conditions leaves headroom for dynamic vehicle shots.

DJI Transmission (Standard Combo) – Transmitter operating time

Transmitter operating time

The transmitter weighs approx. 350 g without antennas and runs for about 3 h 40 min on a fully charged WB37 battery (at 25 °C).

More information

Long-distance HD live feed: DJI Transmission evolves from DJI’s established aerial video transmission technology. O3 Pro offers an on-ground range of up to 6 km (FCC) / 4 km (CE), 1080p/60fps transmission at a max bitrate of 40 Mbps and live audio monitoring at 16-bit, 48 kHz.

Multiple receivers and transmitters: The system supports one transmitter with multiple receivers in two modes. Control mode delivers optimal transmission performance with monitoring from two receivers at once; Broadcast mode allows an unlimited number of receivers with different transmission performance. Thanks to DFS bands and seamless auto frequency hopping, 20 or more transmitters can send feeds to 20 or more monitors in the same area.

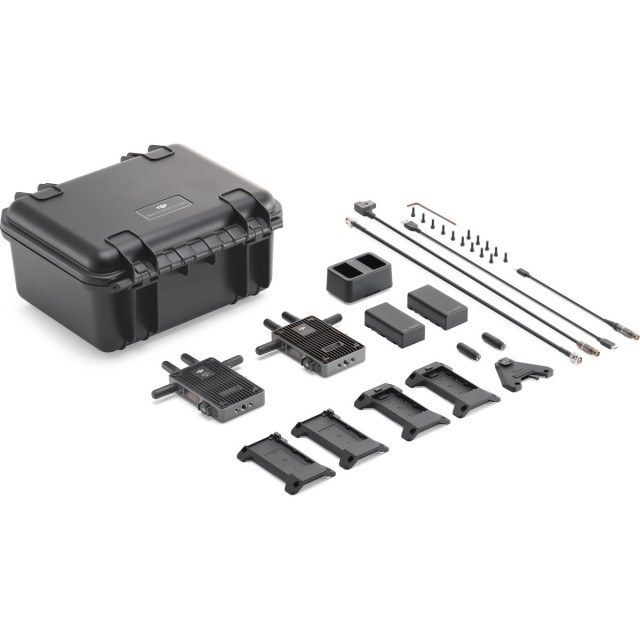

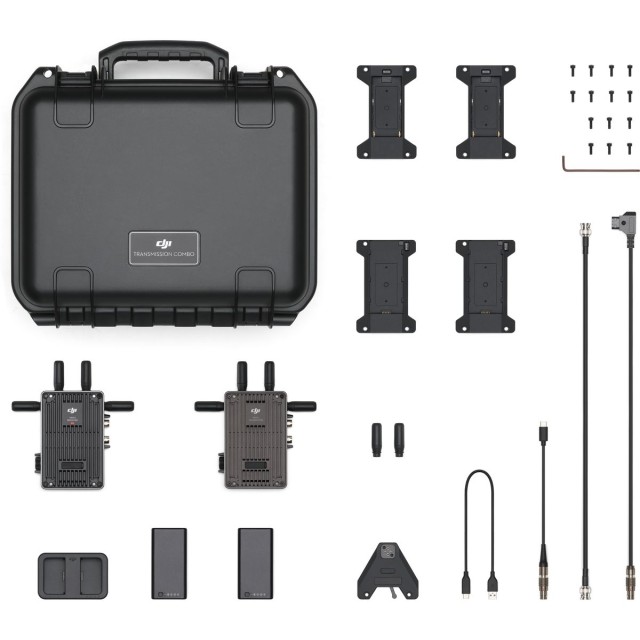

PACKAGE CONTENT

  • 1× DJI Video Transmitter
  • 1× DJI Video Receiver
  • 2× WB37 Intelligent Battery
  • 1× WB37 Charging Hub (USB-C)
  • 1× RS Gimbal Mounting Plate
  • 2× WB37 Battery Adapter
  • 2× NP-F Battery Adapter
  • 1× DJI Transmission USB-C Power Cable
  • 1× DC to P-TAP Power Cable
  • 1× SDI Cable
  • 1× USB-C Cable
  • 1× Protector Case
  • 2× Ronin Video Transmission Antenna
  • 1× Installation Toolkit

SPECIFICATIONS

  • Brand: DJI
  • Model: DJI Transmission (Standard Combo)
  • Manufacturer code: CP.RN.00000318.03
  • Type: transmitter + receiver set
  • Video transmission system: O3 Pro
  • Coding and bitrate: H.264, max. 40 Mbps
  • Max. transmission distance: 6 km (FCC) / 4 km (CE), in open environments without obstructions or interference
  • Latency: 70 ms (1080p/60fps)
  • Operating frequency: 2.4000–2.4835 GHz; 5.150–5.250 GHz; 5.725–5.850 GHz; DFS 5.250–5.350 GHz and 5.470–5.725 GHz (some bands are not permitted in all countries)
  • Max. bandwidth: 40 MHz
  • Audio: input embedded in SDI and HDMI; output PCM
  • Video formats: input and output 1080p: 23.98/24/25/29.97/30/50/59.94/60fps; 720p: 50/59.94/60fps

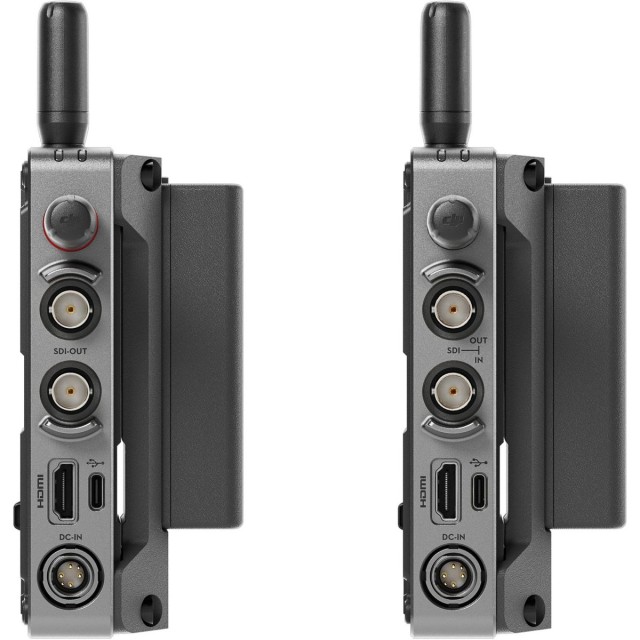

  • Transmitter ports: 3G-SDI input, 3G-SDI loop-out, HDMI 1.4 Type-A input, USB-C, power input
  • Receiver ports: 3G-SDI output, HDMI 1.4 Type-A output, USB-C (voice calls and firmware updates), power input (including CAN and connection with DJI Master Wheels)
  • Power supply: 6 to 18 V; power output port 6 to 18 V
  • Power consumption: transmitter 11 W, receiver 9 W
  • Operating time with WB37 battery: transmitter 3 h 40 min, receiver 3 h 50 min (25 °C)
  • Weight: transmitter and receiver approx. 350 g each (excluding antennas)
  • Dimensions: 127 × 87 × 26 mm (excluding antennas)
  • Operating temperature: −10 to 45 °C (14 to 113 °F); above 0 °C recommended with WB37 battery
  • Compatibility: DJI RS 4 Pro, DJI RS 3 Pro, DJI Ronin 2, DJI Master Wheels, DJI Inspire 3

WE RECOMMEND

For DJI Transmission (Standard Combo) we recommend accessories that belong to this transmission system.

Original DJI accessories – cables, expansions, holders and antennas designed for this transmission system.

Power – NP-F batteries and power modules for longer cable-free operation.

Parameters

Parameters

Manufacturer: DJI
Category: Wireless video transmission

Main parameters

Line-of-sight range4000m
Transmitters in package1
Receivers in package1
Maximum transmission resolution1920px
Maximum frame rate60fps
Typical transmitter power consumption11W
Typical receiver power consumption9W
Frequency band2.4 GHz · 5 GHz
Power supplyDC · NP-F550 · NP-F750 · NP-F970
FunctionsAutomatic channel selection
Video codecH.264
Transmitter weight without antennas350g
Receiver weight without antennas350g
Latency0.07 s
InputHDMI · SDI
Output3G-SDI · HDMI
