Desview R5II 5.5" On-Camera Touch Monitor
SKU: des-R5II
This product is no longer offered. Please select from the alternatives below.
Top accessories for Desview R5II 5.5" On-Camera Touch Monitor
Viltrox Battery NP-F750
The Viltrox NP-F750 is a high-capacity, rechargeable NP-F-type Li-ion battery for
32 €
To be sent > 5 pcs
K&F NP-F550 3500mAh Capacity and Type-C Fast Charging for Sony *1pc
A Sony NP-F550 3500 mAh replacement battery. Fully decoded chip — the camera reads
31 €
In stock > 5 pcs
SmallRig NP-F970 Battery and Charger Kit 3823
Two NP-F970 batteries (7800 mAh) with a dual charger. A full decoding chip keeps
82 €
In stock > 5 pcs
Viltrox Battery NP-F970 - USB-C
The Viltrox NP-F970 is a high-capacity NP-F-type Li-ion battery for compatible camera
39 €
14-30 days
SmallRig NP-F550 USB-C Rechargeable Camera Battery 4331
An NP-F550 replacement battery that charges straight over USB-C — from a power bank
53 €
In stock 2 pcs
Product description
Product description

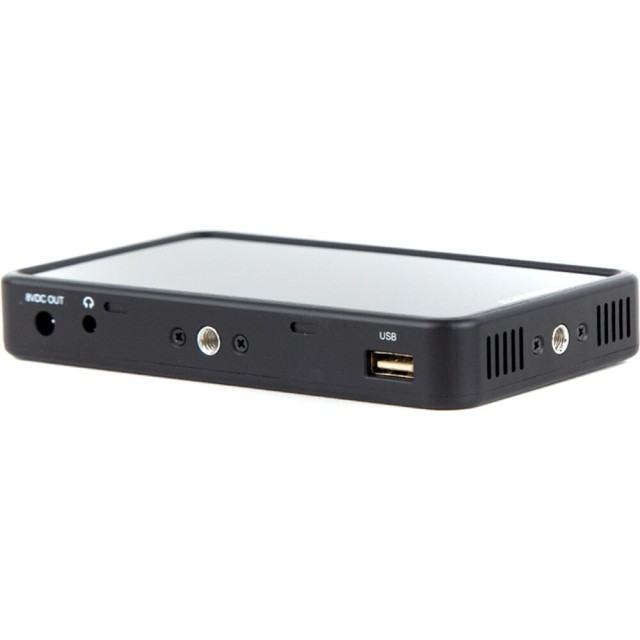

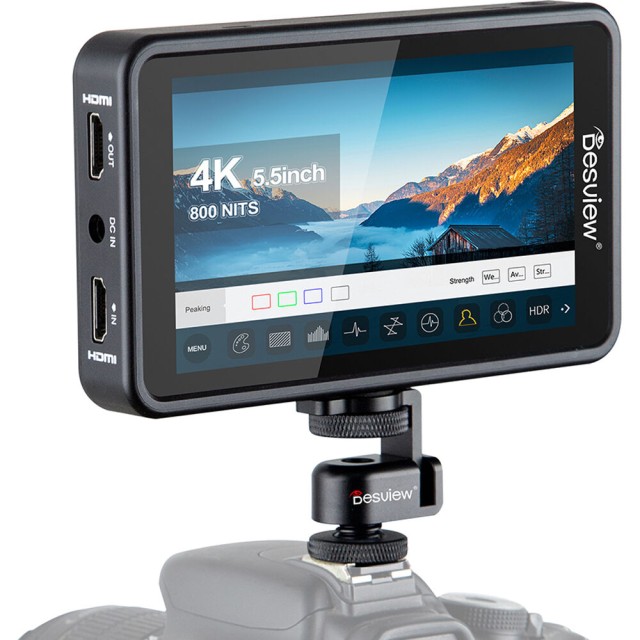

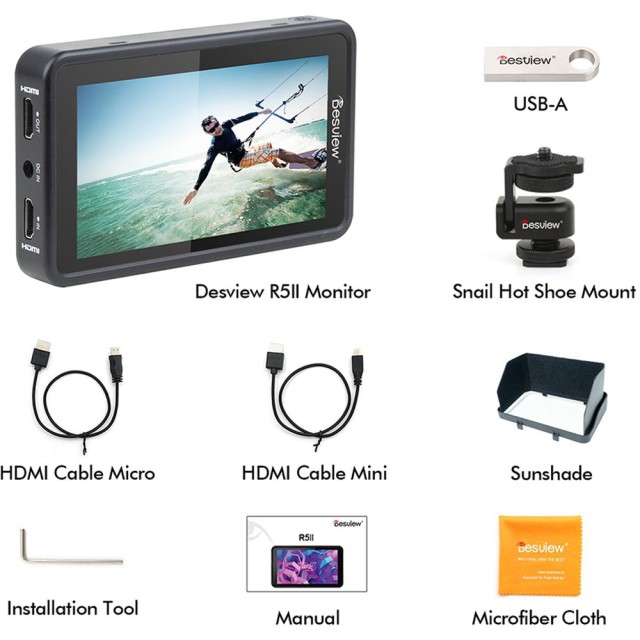

The R5II 5.5" On-Camera Touch Monitor from Desview is a lightweight and portable on-camera monitor boasting a bright 800 cd/m² display with a 178° viewing angle and a screen resolution of 1920 x 1080. Packed with useful tools and features, including touchscreen and pinch-to-zoom, the R5II has an HDMI input that handles up to DCI 4K24 and an HDMI loop out. It also offers a 3.5mm headphone jack and a USB input for loading custom 3D LUTs using the supplied USB thumb drive.

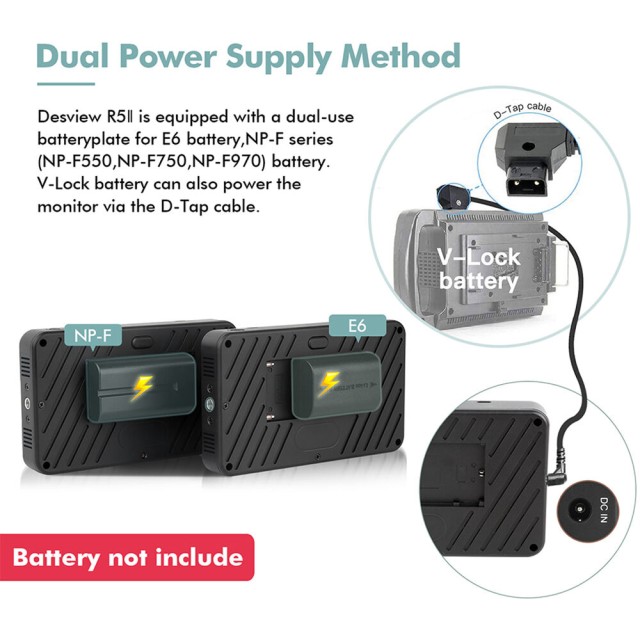

HDR support includes HGL and PQ modes, and multiple ratio anamorphic options include 1.33x, 1.5x, 1.66x, 1.79x, and 2.0x de-squeeze functions. A dual-purpose battery slot on the rear of the panel allows you to choose between using Sony NP-F style or Canon LP-E6 batteries.
Features
- Daylight-viewable, 5.5" touchscreen on-camera monitor with 800 cd/m² brightness.
- Slim, lightweight design with touchscreen IPS LCD panel.
- HDMI supports video input up to DCI/UHD 4K30.

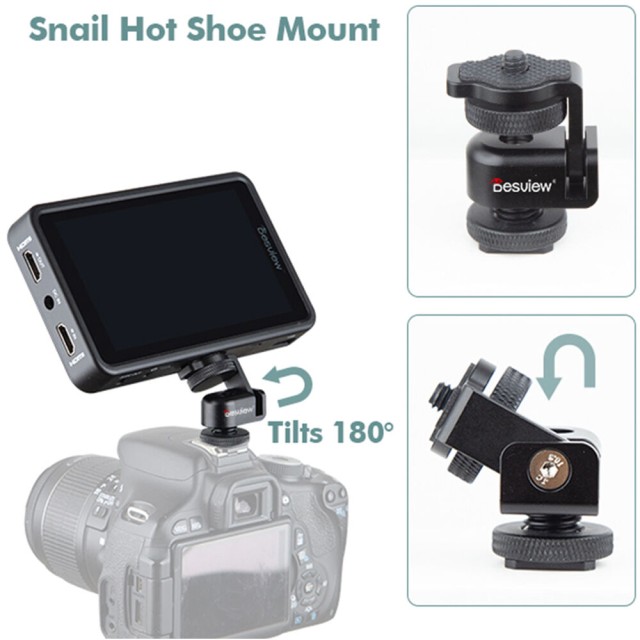

- Two 1/4"-20 mounting threads on the side and bottom of the monitor.
Touchscreen
- The 5.5" touchscreen panel features 1920 x 1080 resolution and a 16:9 aspect ratio. Tapping the screen with one finger can control the whole monitor, and it supports gestures such as pinch-to-zoom, which helps check every corner and detail of the image.
- The 800 cd/m² high brightness provides a clear display, even when filming in bright exteriors.
Display Tools
- Pixel pinch-zoom
- Aspect ratios: Preset and customizable
- Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 1.79x, 2.0x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Color focus assist, with adjustable style and intensity
- Peaking, with adjustable intensity
- False color
- Zebra, customizable
- Waveform: Luma and RGB, customizable with region-of-interest highlighting
- Vectorscope
- RGB parade, customizable
- Histogram: Luma and RGB
- LUT import via USB storage device
- Audio meter display
- Aspect ratios: Preset and customizable
- Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 1.79x, 2.0x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Color focus assist, with adjustable style and intensity
- Peaking, with adjustable intensity
- False color
- Zebra, customizable
- Waveform: Luma and RGB, customizable with region-of-interest highlighting
- Vectorscope
- RGB parade, customizable
- Histogram: Luma and RGB
- LUT import via USB storage device
- Audio meter display
WE RECOMMEND
The Desview R5II is a compact 5.5" touchscreen monitor with high brightness and 3D LUT support, making it ideal for precise focusing and composition on DSLR and mirrorless cameras. To maximize its potential in a production environment, we recommend pairing it with Desview’s wireless video transmission and professional readout devices.
Wireless Video Transmission - Systems for wireless transmission of HDMI signals from the monitor to other devices.
Teleprompters - Professional teleprompters compatible with camera setups using external view monitors.
Parameters
| Manufacturer: | Desview |
| Category: | Camera monitors |
Main parameters
| Size | 5.5" |
| Monitor inputs | HDMI |
| Luminosity | 800cd/m2 |
| Panel resolution | 1920x1080 |
| Monitor power supply | Sony NP-F · LP-E6 |
Other parameters
| Other features | Touchscreen · 3D LUT correction |
