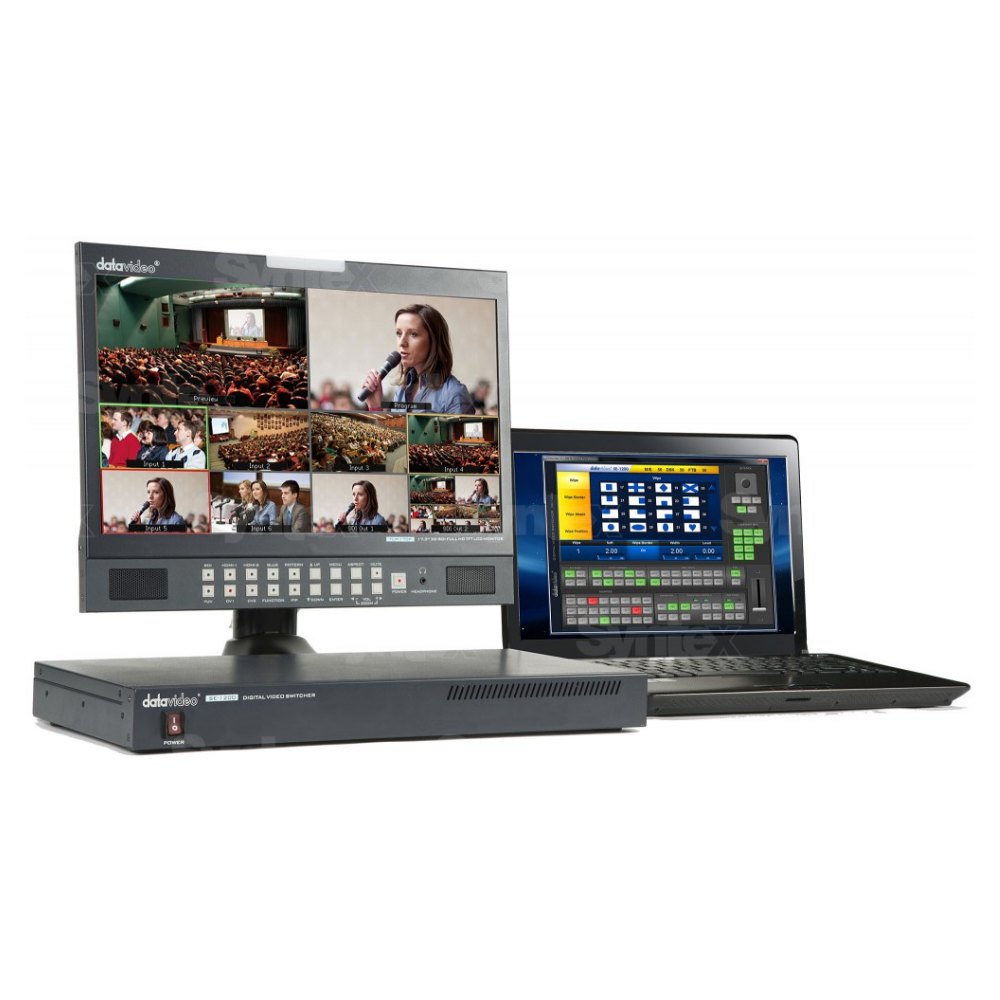

Datavideo SE-1200MU

This 6 input 1U rackmount HD mixer from Datavideo is small and portable, and features full computer remote control. Optionally, the RMC-260 remote control panel can be used for full tactile control of the unit.

Whether you are filming a seminar or conference, conducting a live outside broadcast or shooting inside a production studio, the Datavideo SE-1200MU HD video switcher enables you to switch seamlessly between video sources and blend high-quality digital content on the fly.

SE-1200MU a small, portable computer controlled 1RU rack mountable switcher. It features a 6-Channel HD video input that is incredibly reliable, unlike PC-based systems that are prone to crashing mid production.



SE-1200MU streams out multi-view screen video in real-time to a control PC for monitoring and control remotely. It is designed to be fully controlled from any Windows Laptop / PC and Android tablet / iPad / Mac with the included SE-1200 software control panel.

SE-1200MU includes four SDI and two HDMI inputs and an internal frame synchronizer so you can use sources without gen-lock such as consumer HDMI cameras or even computers for live PowerPoint presentations.

Two assignable SDI and two HDMI outputs for connecting an HD recorder, monitor and a streaming encoder, plus two Balanced XLR audio inputs for connecting an external audio mixers. Other features include chromakey, lumakey, DSK, PIP, still stores, audio delay, tally and RJ-45/RS-232 remote control interface.



Features

• 6 video inputs ( SDI x 4 + HDMI x 2)
• Frame Sync on each input
• Flexible Mix/Effects Processor with:

1. – 2 Upstream Keyers, supporting Chroma Key & Linear/Luma Key
2. – 2 DSK, supporting Linear & Luma Key Modes
3. – 1 PIP (assignable to any of the 4 keyers
4. – Wipe Generator: 32 Wipe Patterns, including Circle & Heart | Borders & Softness Control
5. – Wipe, Mix & Cut Transitions
6. – Full M/E Preview function

• Any Input (1-6) can be used as a Frame store (Stills Store): Upto 24 images stored on SD Card
• Assignable Outputs
• Each SDI output can be switched in the Menu as:

1. – PROGRAM (w/ DSK)
2. – Clean PROGRAM (w/o DSK)
3. – Clean PREVIEW (w/o DSK)
4. – MULTISCREEN
5. – Input 1-6

• XPT (Cross Point Assignment)
• PC & Tablet control
• Remote streaming of Multi view out using built-in Motion JPEG Streaming processor
• Tally output
• GPI output
• 1U rack mount
