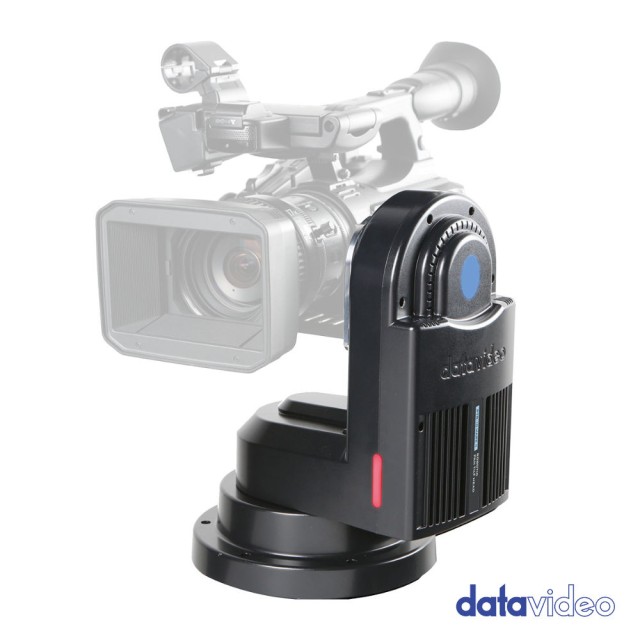

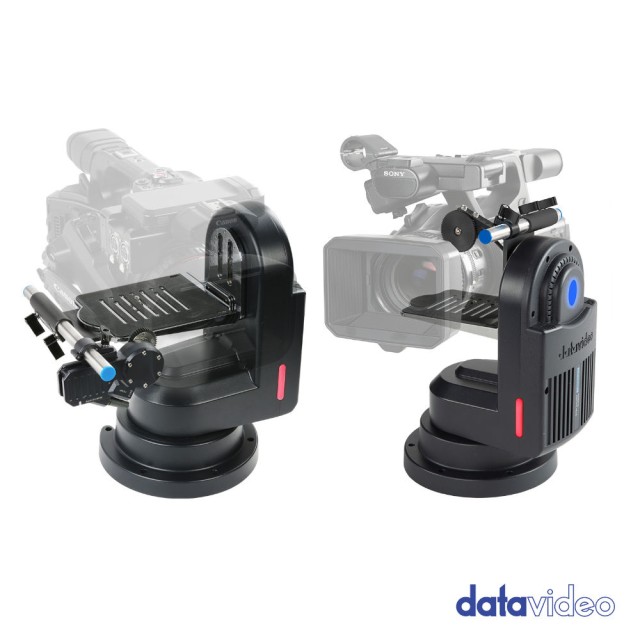

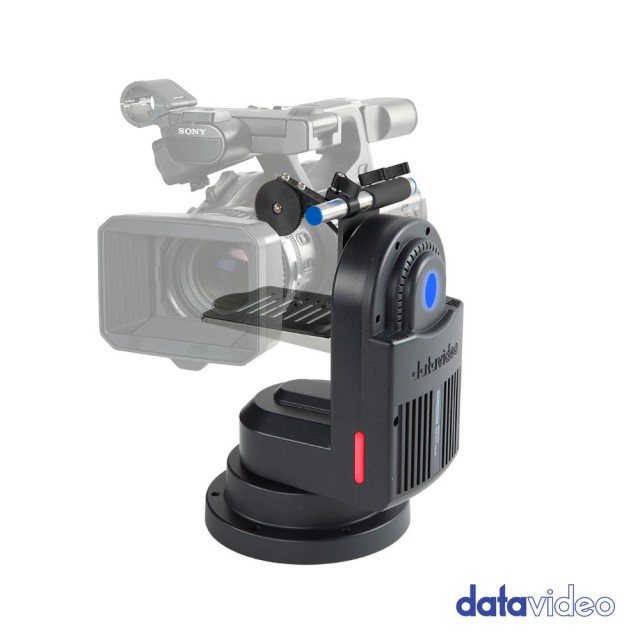

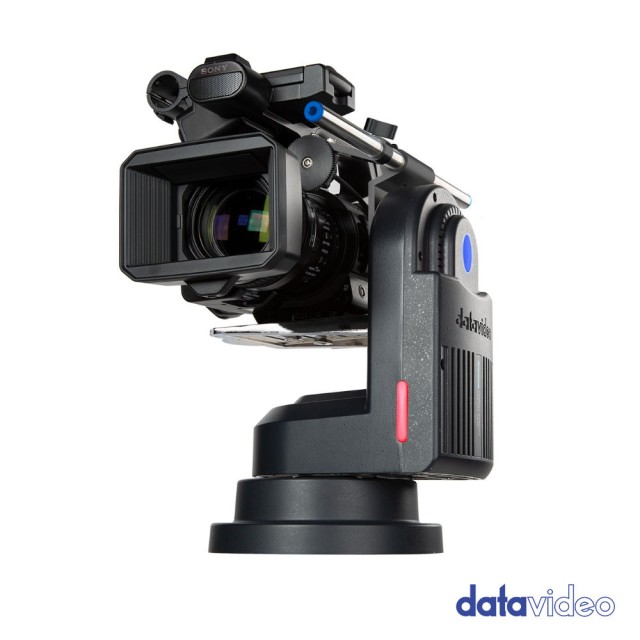

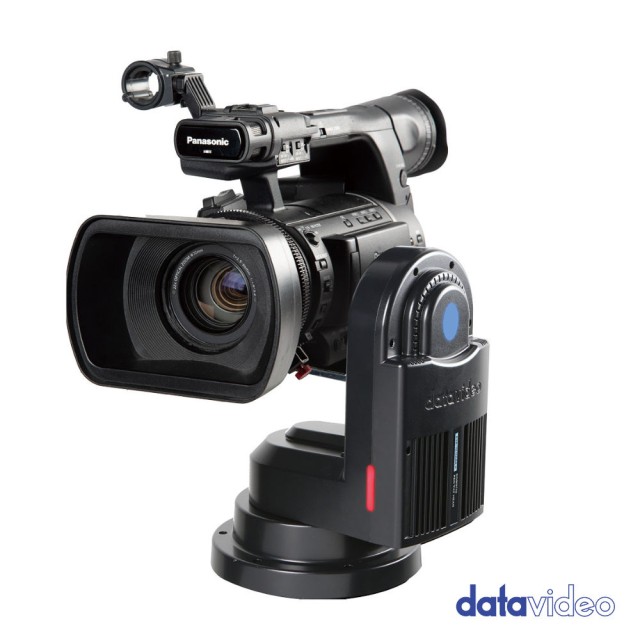

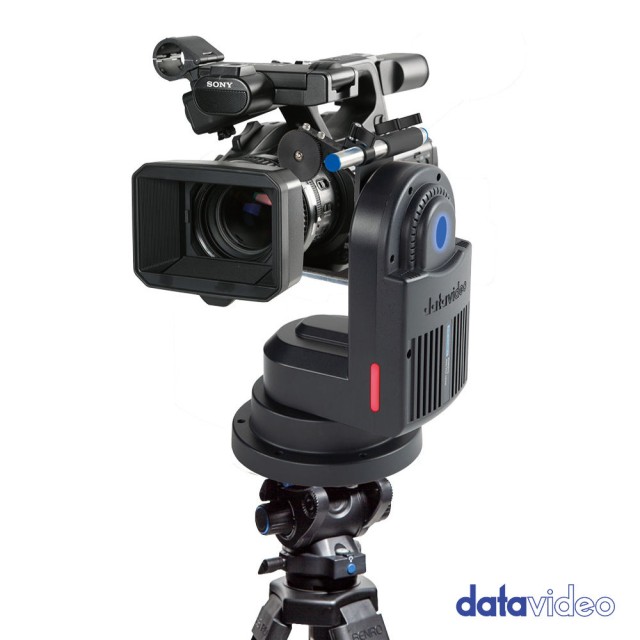

The Datavideo PTR-10 is a robotic pan/tilt head for compact camcorders and block cameras weighing up to 4 kg. It passes video over HDMI and SDI, supports control by IR remote, Sony VISCA, RS-422 or DVIP, and stores up to 50 positions for repeatable shots.
The Datavideo PTR-10 is a robotic pan/tilt head for compact camcorders and block cameras weighing up to 4 kg. It passes video over HDMI and SDI, supports control by IR remote, Sony VISCA, RS-422 or DVIP, and stores up to 50 positions for repeatable shots.
REMOTE CAMERA MOVEMENT
The PTR-10 turns a compact camcorder or block camera into a remotely controlled setup. It passes video over HDMI and SDI, supports cameras up to 4 kg, and stores up to 50 positions for repeatable shots.
SMOOTH MOVEMENT, UP TO 50 POSITIONS
The head pans through 340° and tilts ±45°. Pan speed is adjustable from 0.12 to 15° per second, and tilt speed from 0.06 to 10° per second. Stored positions make repeatable camera moves easier.
CONTROL AND SIGNAL INTERFACES

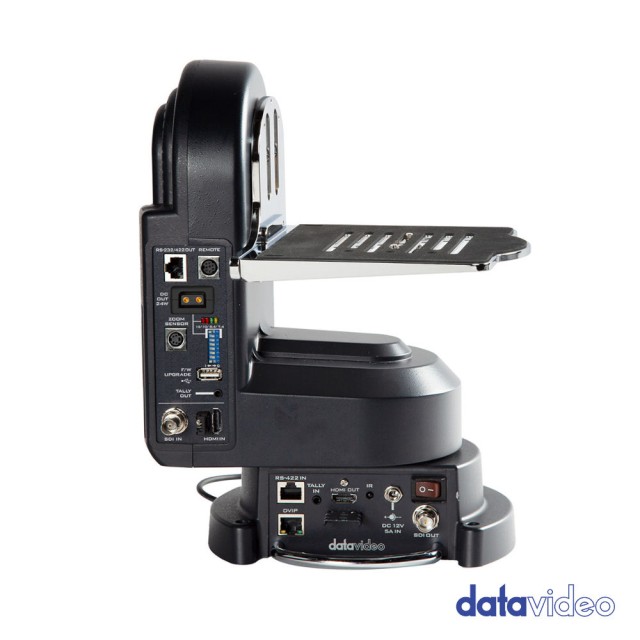

The PTR-10 accepts control over RS-422 or DVIP and supports Sony VISCA and DVIP protocols. Control distance is up to 1,200 m over RS-422 and 100 m over DVIP. Accessory outputs include RS-232, RS-422, BX-Lens and LANC.
POWER AND MOUNTING

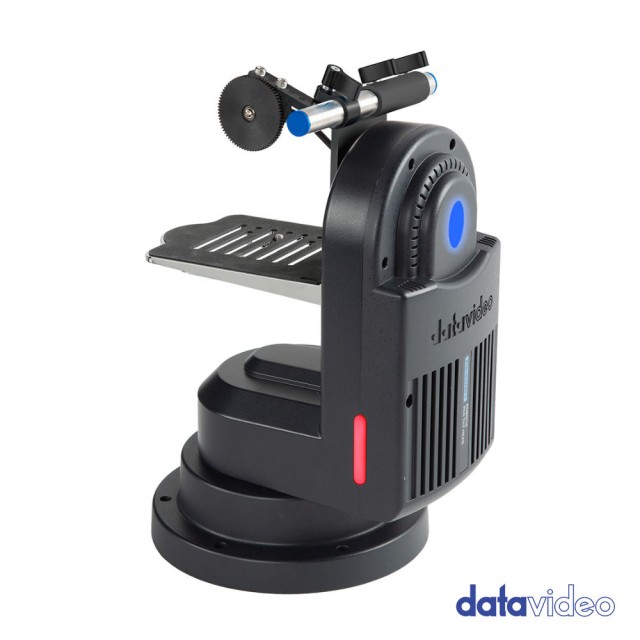

Its sturdy aluminum construction supports a camera setup of up to 4 kg. The head requires 12–18 V DC; the supplied adapter and cables are listed in the package contents. Optional accessories: WM-10, WM-11 and CM-10.
PACKAGE CONTENT
Datavideo PTR-10 main unit ×1
12 V DC power adaptor ×1
AC power cord ×1
IR remote control ×1
Locking DC cable, 40 cm ×1
HDMI cable ×1
SDI cable ×1
Remote cable (2.5 mm phone jack to 8-pin mini-DIN) ×1
1/4 in screw, 14 mm long ×2
1/4 in screw, 10 mm long ×1
1/4 in to 3/8 in screw adaptor ×1
SPECIFICATIONS
Type: robotic pan/tilt head
Video interfaces: HDMI ×1; SDI ×1
Video output: 2160p 29.97/25; 1080p 59.94/50; 1080i 59.94/50; 720p 59.94/50
Control units: RMC-180; RMC-300A; RMC-300C; VISCA protocol controller; IP control; IR remote
Pan range: 340°
Tilt range: ±45°
Pan speed: 0.12–15°/s
Tilt speed: 0.06–10°/s
Position presets: 50
Control distance: up to 1,200 m over RS-422; up to 100 m over DVIP
Control protocols: Sony VISCA; DVIP
Control inputs: RS-422; DVIP
Control outputs: RS-232; RS-422; BX-Lens; LANC
Maximum load: 4 kg
Power requirement: 12–18 V DC, 3 A without camera; 5 A with camera
