Blackmagic Design Streaming Decoder 4K

SKU: BDLKWEB/J/DES4K

Blackmagic Streaming Decoder 4K receives an H.264 or H.265 signal from an encoder, a compatible camera or an ATEM switcher and converts it to 12G-SDI and HDMI at up to 2160p60. It is designed for reliable remote studio links and camera signal workflows; its 12G-SDI reference input sends tally, talkback and camera control back to the source.

More information

729 € with VAT 602.48 € without VAT
Add to Compare Price history
Availability
on request
SKU:
BDLKWEB/J/DES4K
Add to Compare Price history

Top accessories for Blackmagic Design Streaming Decoder 4K

PremiumCord ULTRA HDMI 2.1 High Speed + Ethernet cable 8K@60Hz 2m gold

PremiumCord is a unique brand of cables, adapters, and accessories for computers,
9.6 €
In stock 4 pcs

PremiumCord ULTRA HDMI 2.1 High Speed + Ethernet cable 8K@60Hz 1m gold

This HDMI cable supports data transmission in Ultra HD resolutions, including 8K
7.4 €
In stock > 5 pcs

Blackmagic Design Streaming Encoder 4K

Blackmagic Streaming Encoder 4K is a self-contained hardware encoder for live streaming
729 €
To be sent 2 pcs

Infinitek L-3.3CUHWS 2m FLEX 12G-SDI cable BNC-BNC

Professional 2 m 12G-SDI interconnect cable for mobile production. The flexible Canare
23 €
on request

Infinitek L-3.3CUHWS 1m FLEX 12G-SDI cable BNC-BNC

Coaxial cable specially designed for mobile 12G-SDI applications with excellent resistance
20 €
on request

Show all accessories

Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

Blackmagic Streaming Decoder 4K receives an H.264 or H.265 signal from an encoder, a compatible camera or an ATEM switcher and converts it to 12G-SDI and HDMI at up to 2160p60. It is designed for reliable remote studio links and camera signal workflows; its 12G-SDI reference input sends tally, talkback and camera control back to the source.

From the stream back to SDI and HDMI

Blackmagic Streaming Decoder 4K receives an H.264 or H.265 stream and converts it to 12G-SDI and HDMI video. Together with the encoder it builds a broadcast link between two locations over the internet.

H.264 · H.265SRT · RTMP12G-SDI + HDMI 2.02160p60Tally · talkback1/3 rack

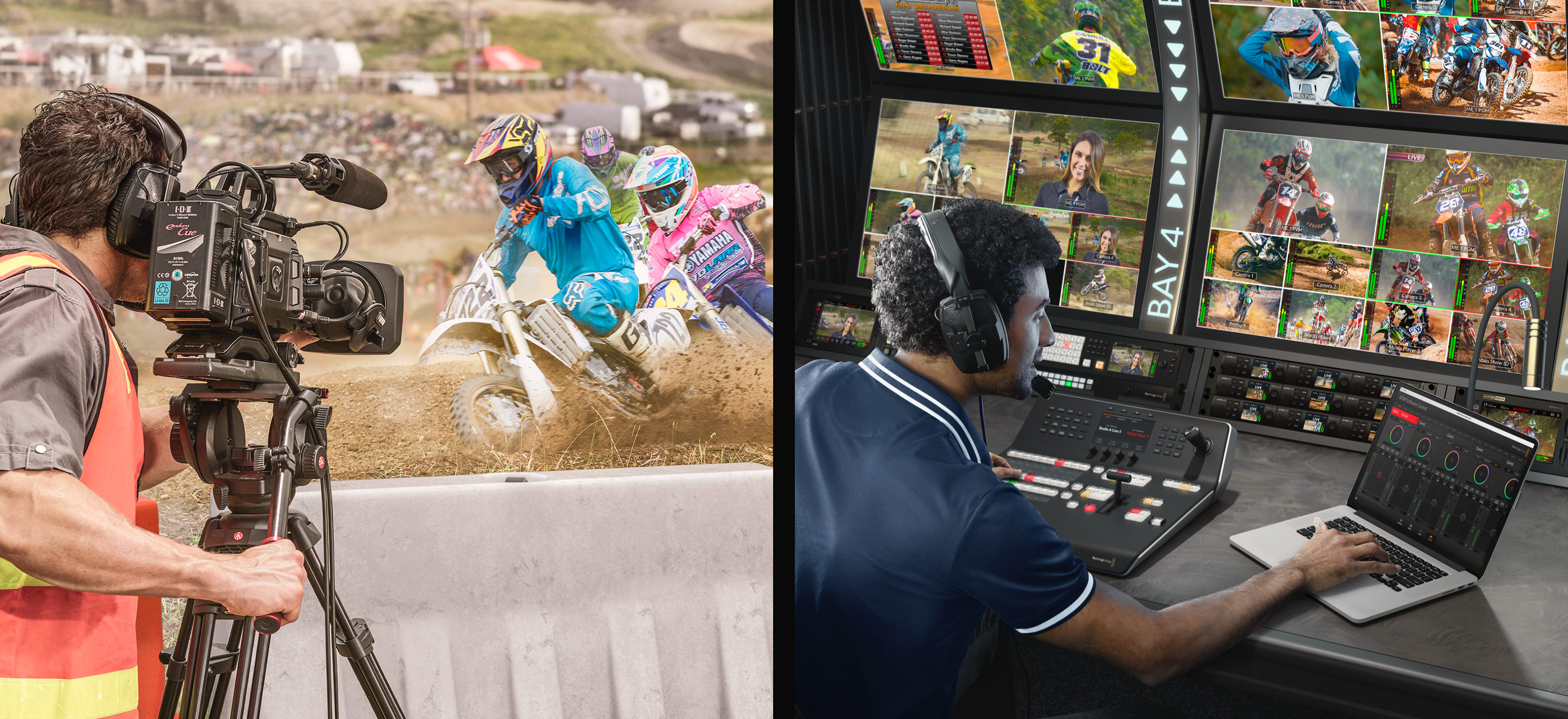

Broadcast links over the internet

An encoder at the remote location and a decoder in the control room connect cameras to a central control room – including tally, talkback and camera control back to the shoot.

H.264 and H.265 reception

RTMP streams in H.264 or SRT streams in H.265 from an encoder, an ATEM switcher or a Blackmagic camera.

Tally, talkback and camera control

The 12G-SDI reference input sends tally, talkback and camera control back to the encoder.

Output format conversion

The 12G-SDI and HDMI outputs follow the stream standard or convert it to a chosen format.

Blackmagic Cloud

Besides direct links it also receives streams via the Blackmagic Cloud streaming features.

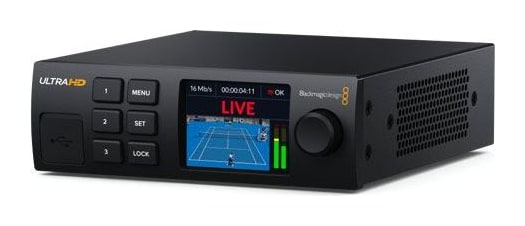

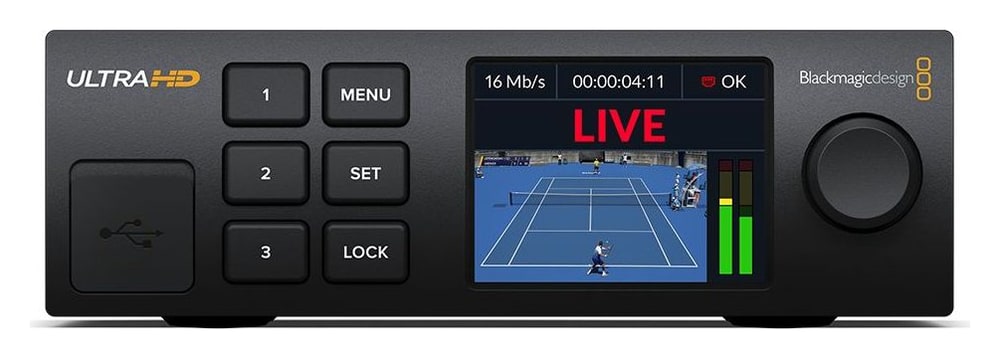

Professional stream decoder

Blackmagic Streaming Decoder 4K receives an H.264 or H.265 stream from Blackmagic Streaming Encoder, an ATEM switcher or a Blackmagic camera and converts it back to 12G-SDI and HDMI 2.0 video. It works with HD and Ultra HD standards up to 2160p60, and on the HDMI output also with 4K DCI formats up to 60p.

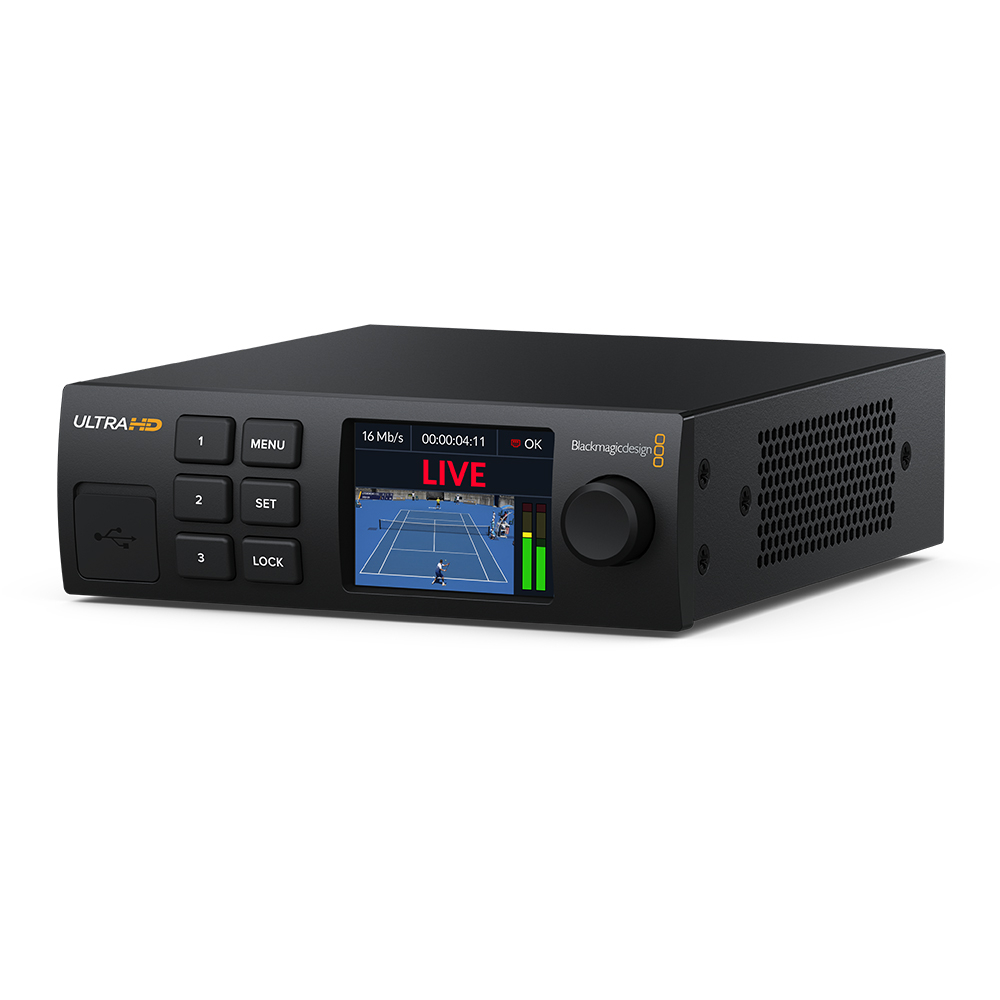

Blackmagic Streaming Decoder 4K – Professional stream decoder

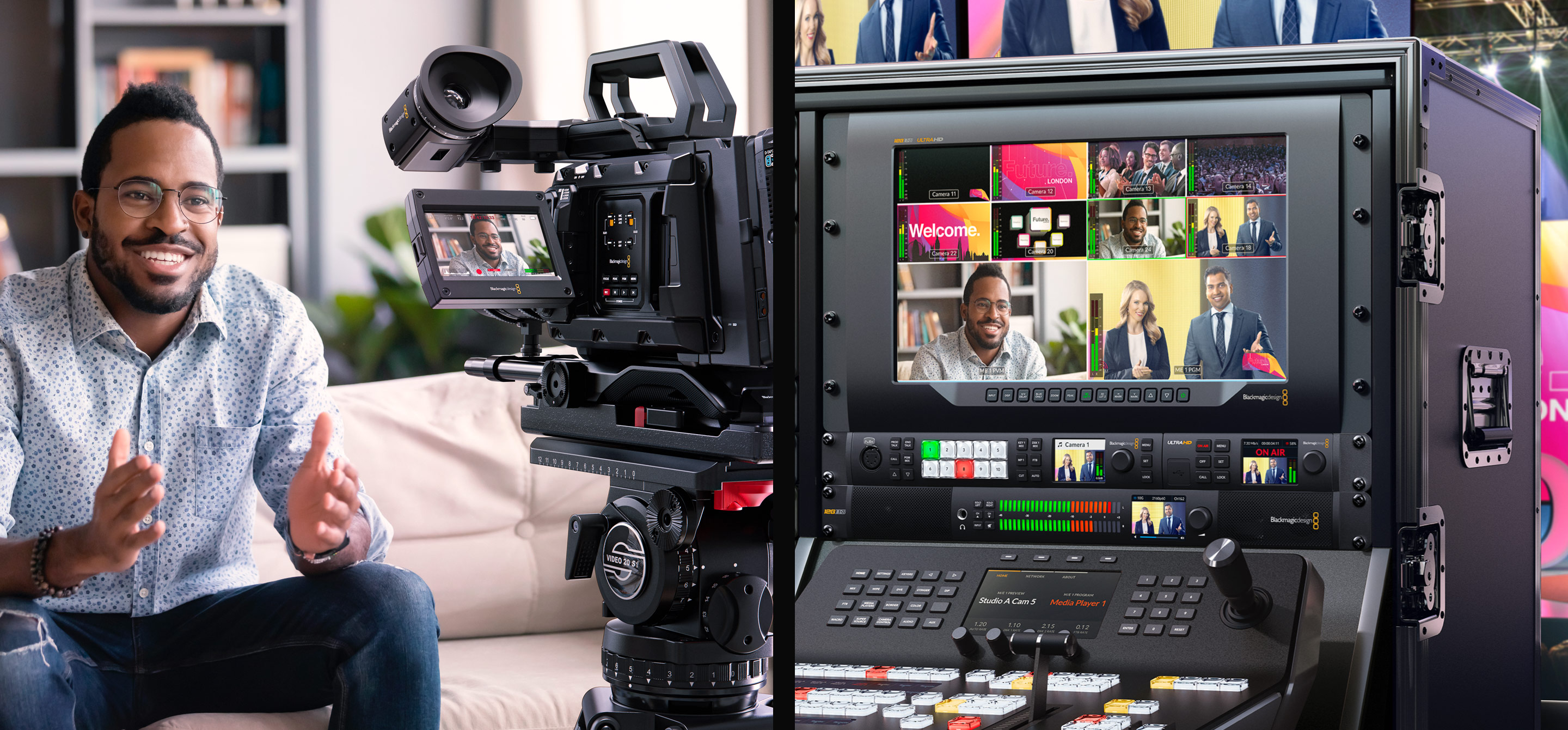

Broadcast links with the decoder

Blackmagic Streaming Decoder 4K receives the H.264 or H.265 stream from the encoder and converts it to SDI and HDMI video, so video can be sent point-to-point between remote locations. The decoder's 12G-SDI reference input carries tally, camera control and talkback back to the encoder – everyone is remote, but still working together.

Blackmagic Streaming Decoder 4K – Broadcast links with the decoder

Tally, talkback and camera control back to the shoot

The 12G-SDI reference input takes tally, camera control and talkback from the SDI output of an ATEM switcher and sends them back to the encoder at the location. You can change ISO, tint, iris, focus and zoom of Blackmagic cameras remotely. It also works with cameras with built-in streaming.

Blackmagic Streaming Decoder 4K – Tally, talkback and camera control back to the shoot

Output format conversion

The 12G-SDI output and the 4K HDMI output can follow the standard of the received stream or convert it to a chosen format from 720p25 to 2160p60. Source timecode from the stream is available on the 12G-SDI output.

Direct links and Blackmagic Cloud

The decoder receives RTMP streams in H.264 or SRT streams in H.265 directly from the encoder or a compatible Blackmagic camera, on your own network or over the internet, and it also receives streams via the Blackmagic Cloud streaming features.

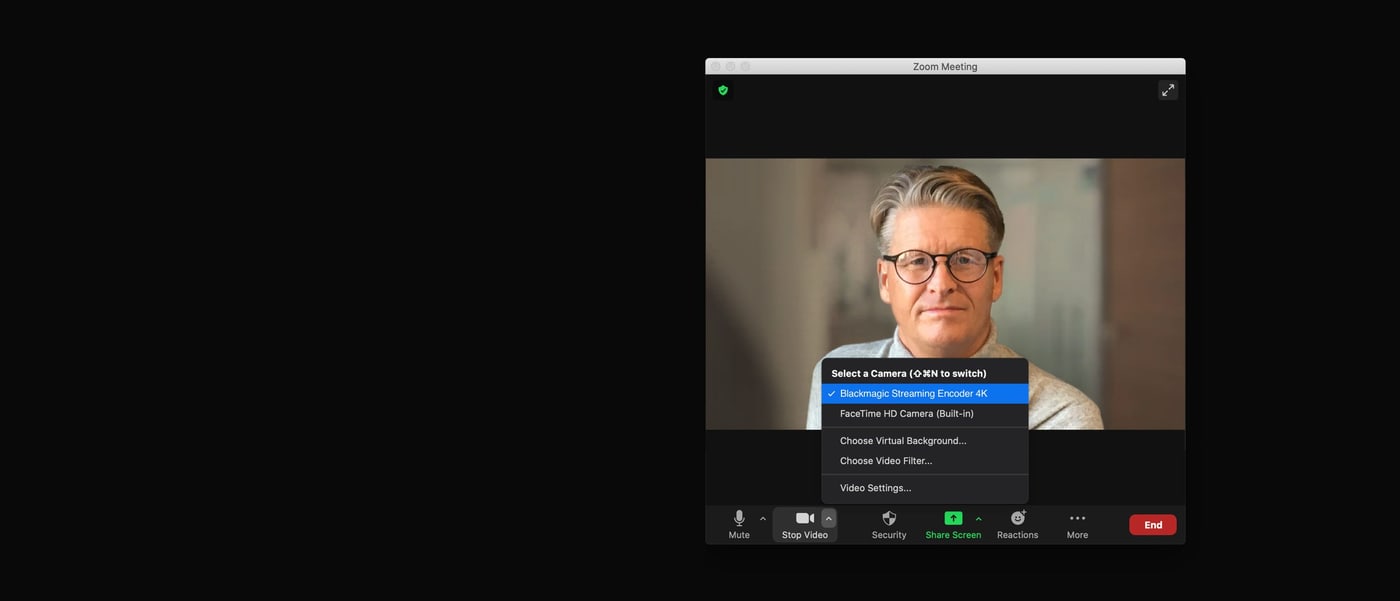

USB-C as a webcam

The USB-C connection can be used as a webcam output at up to 2160p60, so any video call or streaming software on a computer can take the received stream.

Blackmagic Streaming Decoder 4K – USB-C as a webcam

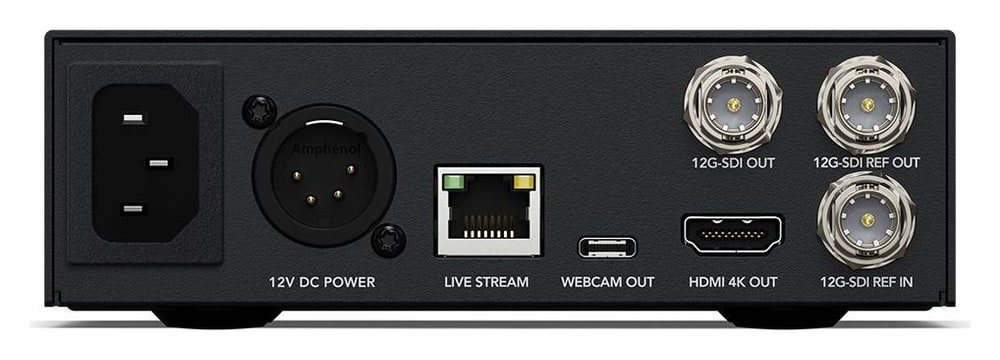

Power and control

The decoder has a built-in 100–240 V AC power supply and a 4-pin 12 V DC input for backup or battery power and, like the encoder, takes up one third of a rack width. It is set up with the front panel buttons and 2.2″ display, via USB-C, Ethernet or Blackmagic Streaming Utility.

Blackmagic Streaming Decoder 4K – Power and control

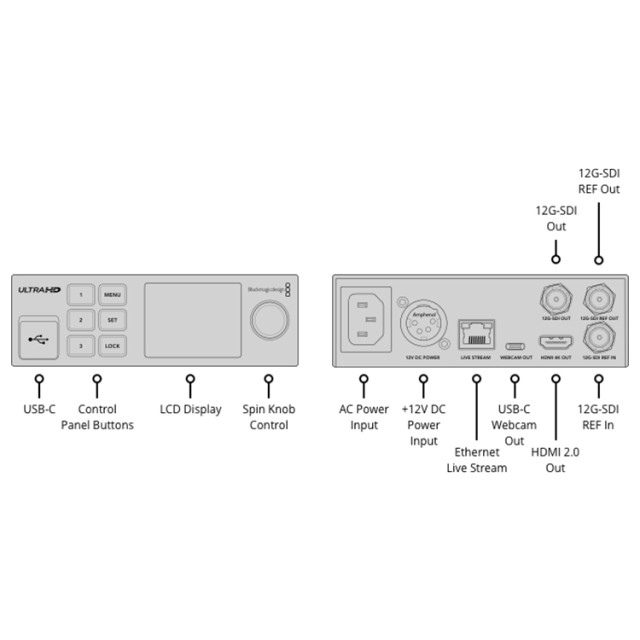

Connections and controls

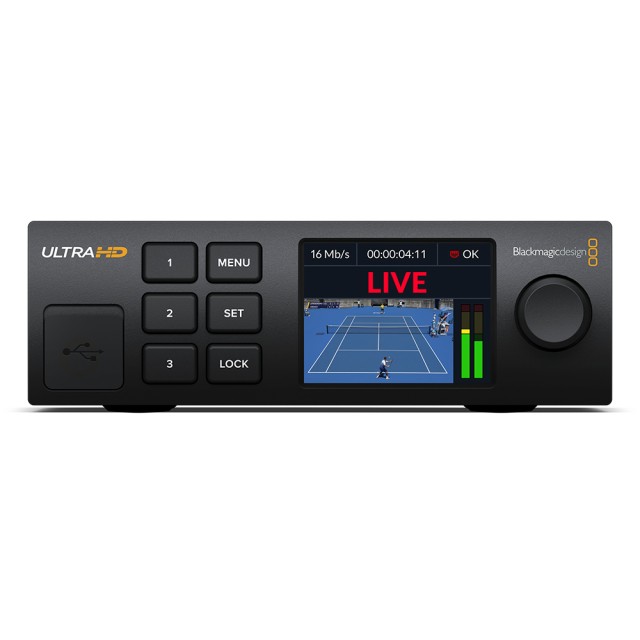

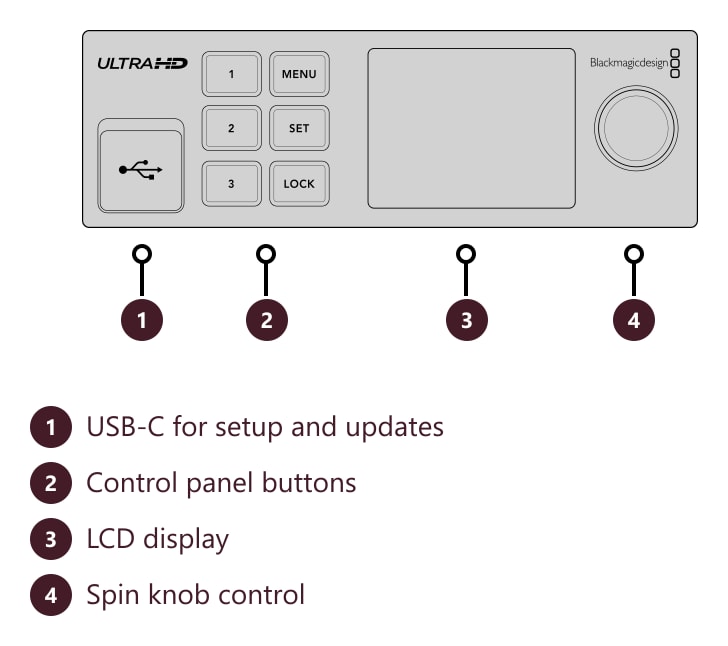

The front panel has USB-C, control panel buttons, the LCD display and a spin knob.

Blackmagic Streaming Decoder 4K – Connections and controls

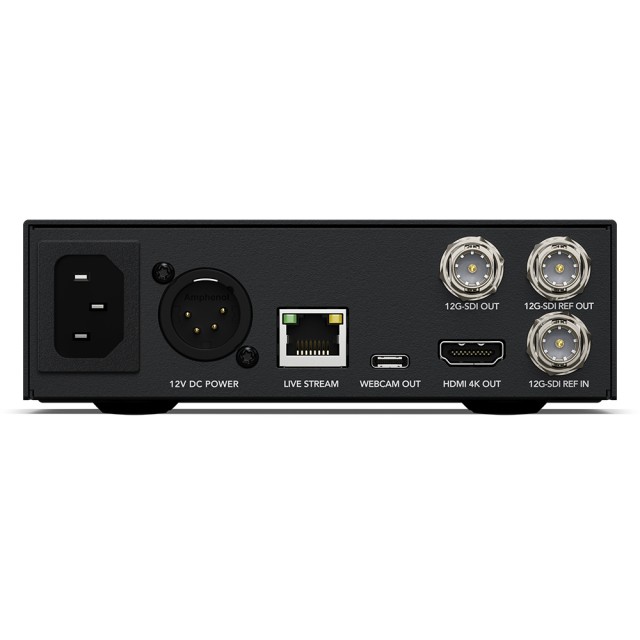

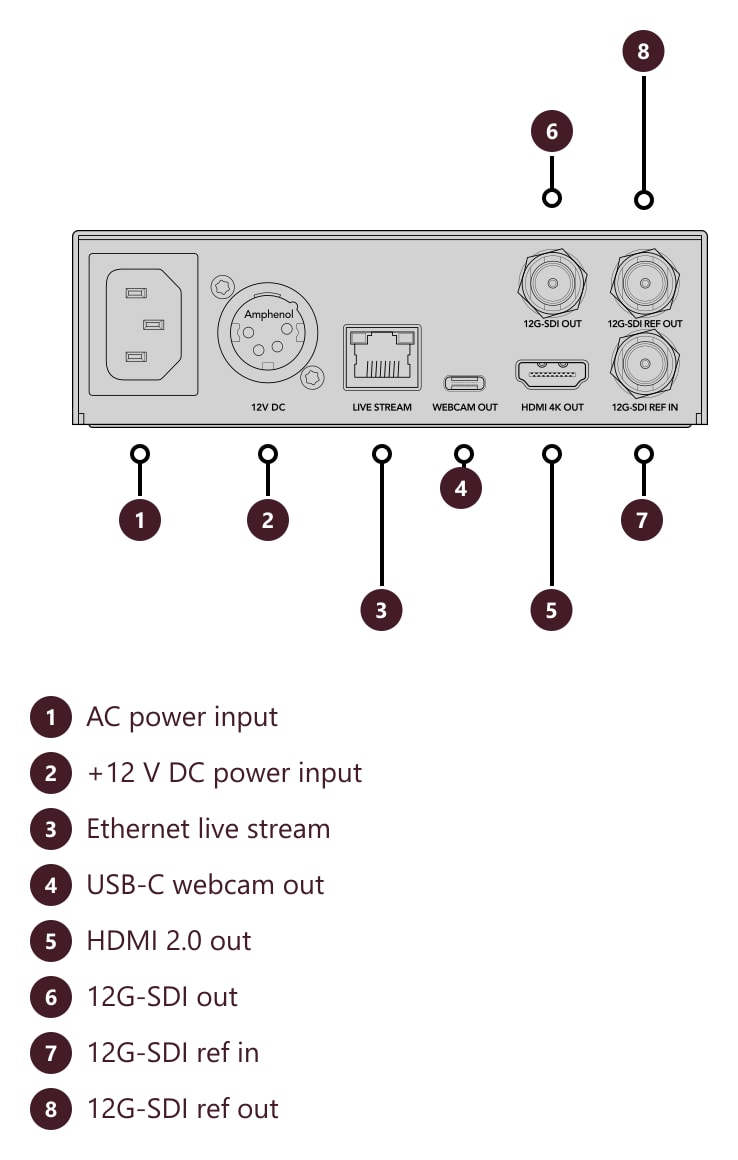

The rear panel has an AC power input, a 12 V DC power input, Ethernet for the live stream, a USB-C webcam output, an HDMI 2.0 output, a 12G-SDI output and 12G-SDI reference in and out.

Blackmagic Streaming Decoder 4K – Connections and controls

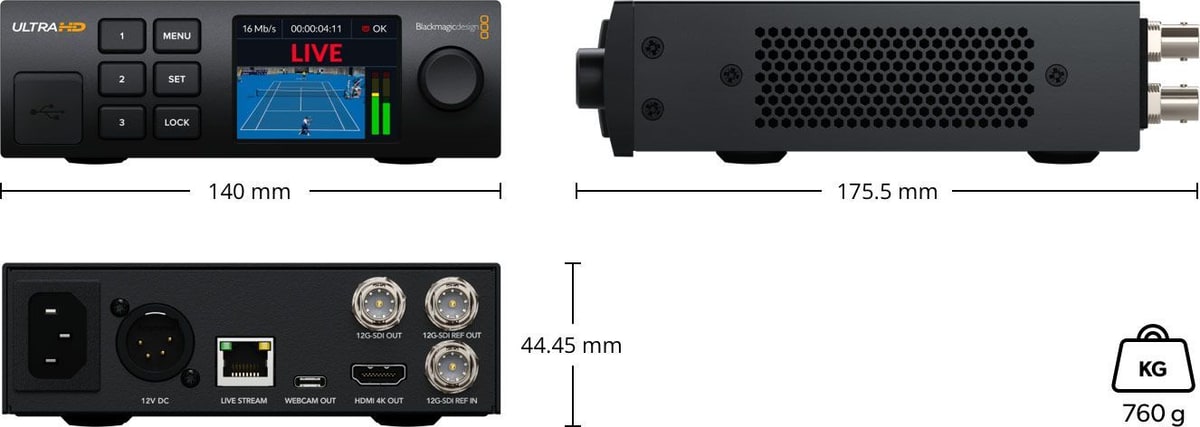

Dimensions and weight

140 × 44.45 × 175.5 mm (W × H × D), weight 760 g. One third rack width, 1 rack unit high.

Blackmagic Streaming Decoder 4K – Dimensions and weight

More information

Receiving signals as SDI or HDMI

Professional 4K decoder for remote studio links and camera signal workflows. It receives the data stream from Blackmagic Streaming Encoder, a compatible camera or an ATEM switcher and converts it to professional SDI and HDMI video.

You can create a direct link between locations or connect via Blackmagic Cloud. The return data path carries tally, talkback and camera control. Built-in conversion adapts the resolution and frame rate to the connected output device.

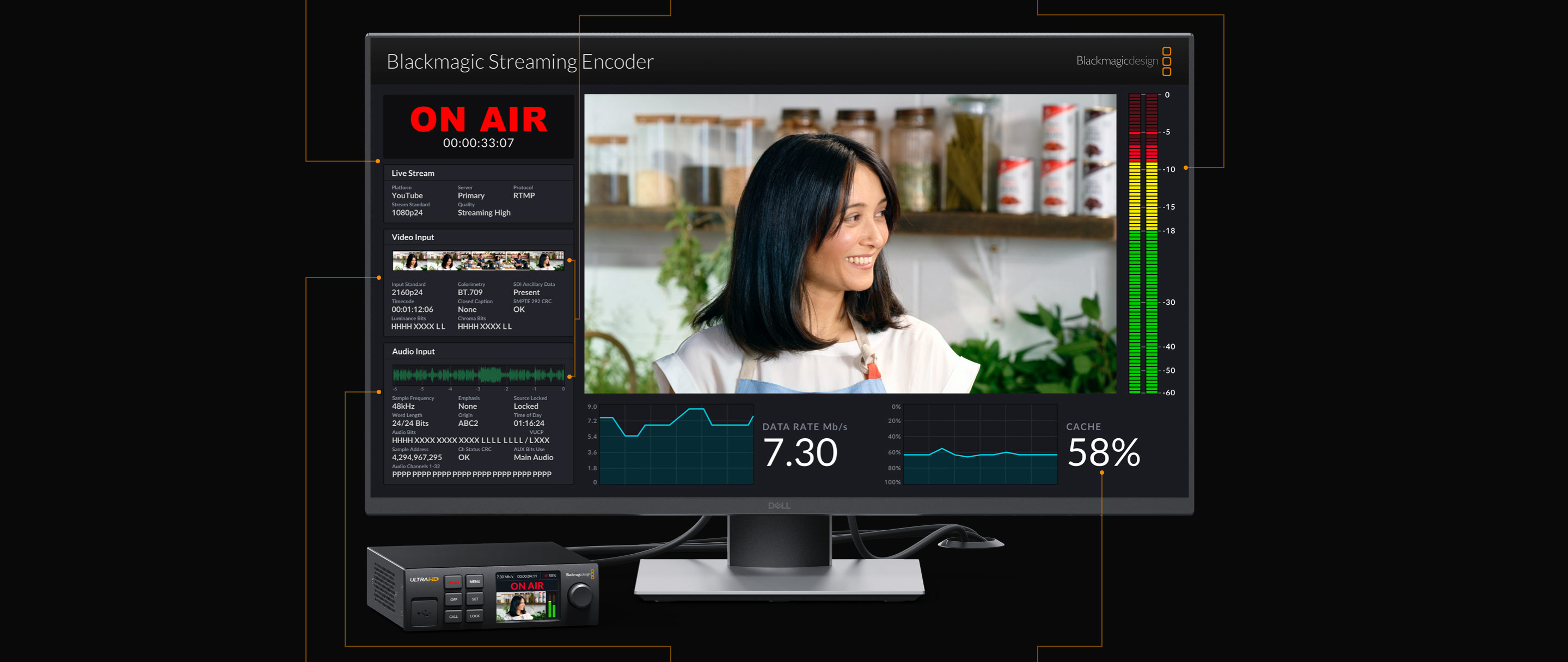

The monitor output shows video, audio meters, network data and the status of the incoming stream. The 12G-SDI reference input is used for the return signal, and the decoder also has 12G-SDI, HDMI 2.0 and USB-C outputs.

PACKAGE CONTENT

  • Blackmagic Streaming Decoder 4K
  • Welcome wallet with QR code for software download

SPECIFICATIONS

  • SDI: 1× 12G-SDI output, 1× 12G-SDI reference input, 1× 12G-SDI reference output; rates 1.5G, 3G, 6G, 12G
  • HDMI: 1× HDMI 2.0 output (4:2:2 YUV)
  • Audio: live stream 2 channels on output; program 2 channels and talkback 2 channels on input; SDI 16 channels on ref in, ref out and 12G-SDI out; HDMI 8 channels
  • Webcam: 1× USB-C up to 2160p60
  • Ethernet: 10/100/1000 BASE-T for live streaming, configuration and software updates
  • Video input standards: 720p50–60, 1080i50–60, 1080p23.98–60, 2160p23.98–60
  • HDMI formats: 720p50–60, 1080i50–60, 1080p23.98–60, 2160p23.98–60, 4K DCI 23.98–60p
  • Streaming standards: 720p25, 720p30, 720p50, 720p60, 1080i50–60, 1080p23.98–60, 2160p23.98–60
  • Output conversion: 12G-SDI and 4K HDMI outputs follow the stream standard or convert to 720p25 up to 2160p60
  • SMPTE compliance: SMPTE 292M, 296M, 424M, 425M (A, B), 2081-1, 2081-10, 2082-1, 2082-10, 2084, 2108-1
  • Color space: Rec. 709, Rec. 2020
  • 3G-SDI: auto detects level A or B
  • HDR metadata: Hybrid Log-Gamma, ST2084 (300, 500, 800, 1000, 2000, 4000)
  • Streaming: receives RTMP in H.264 or SRT in H.265 from the encoder or compatible Blackmagic cameras; Blackmagic Cloud
  • Timecode: source timecode from RTMP and SRT streams on 12G-SDI out
  • Return data: tally, talkback and camera control via the 12G-SDI reference input back to the encoder
  • Control panel: 6 buttons, spin knob and 2.2″ color display
  • Control: front panel, USB-C or Ethernet; camera control, color corrector, tally and talkback; REST API over Ethernet
  • Compatible services and software: Facebook, Twitch, YouTube, Twitter, Restream.io, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine
  • Operating systems: Mac 13.0 Ventura, Mac 14.0 Sonoma or later, Windows 10 (64-bit), Windows 11, Linux, Chrome OS
  • Power: 1× internal 100–240 V AC; 1× 4-pin XLR +12 V DC for external power or battery
  • Installation: one third rack width, 1 rack unit high
  • Dimensions (W × H × D): 140 × 44.45 × 175.5 mm
  • Weight: 760 g
  • Operating temperature: 0 to 40 °C
  • Storage temperature: −20 to 45 °C
  • Relative humidity: 0 to 90% non-condensing
  • Warranty: 3 year limited manufacturer warranty

ARTICLES

WE RECOMMEND

Blackmagic Streaming Decoder 4K converts an H.264 or H.265 stream back to 12G-SDI and HDMI video up to 2160p60. These products complete it into a full broadcast link.

The other end of the link – The encoder and decoder together build a broadcast link over the internet, including tally, talkback and camera control.

Cables – 12G-SDI cables for the SDI inputs and outputs and HDMI cables for the monitor output.

Parameters

Parameters

Manufacturer: Blackmagic Design
Category: Decoders

Main parameters

Maximum resolution4K60
Supported protocolsSRT · RTMP
Conversion directionpouze dekodér
Power12 V DC · 100–240 V AC
