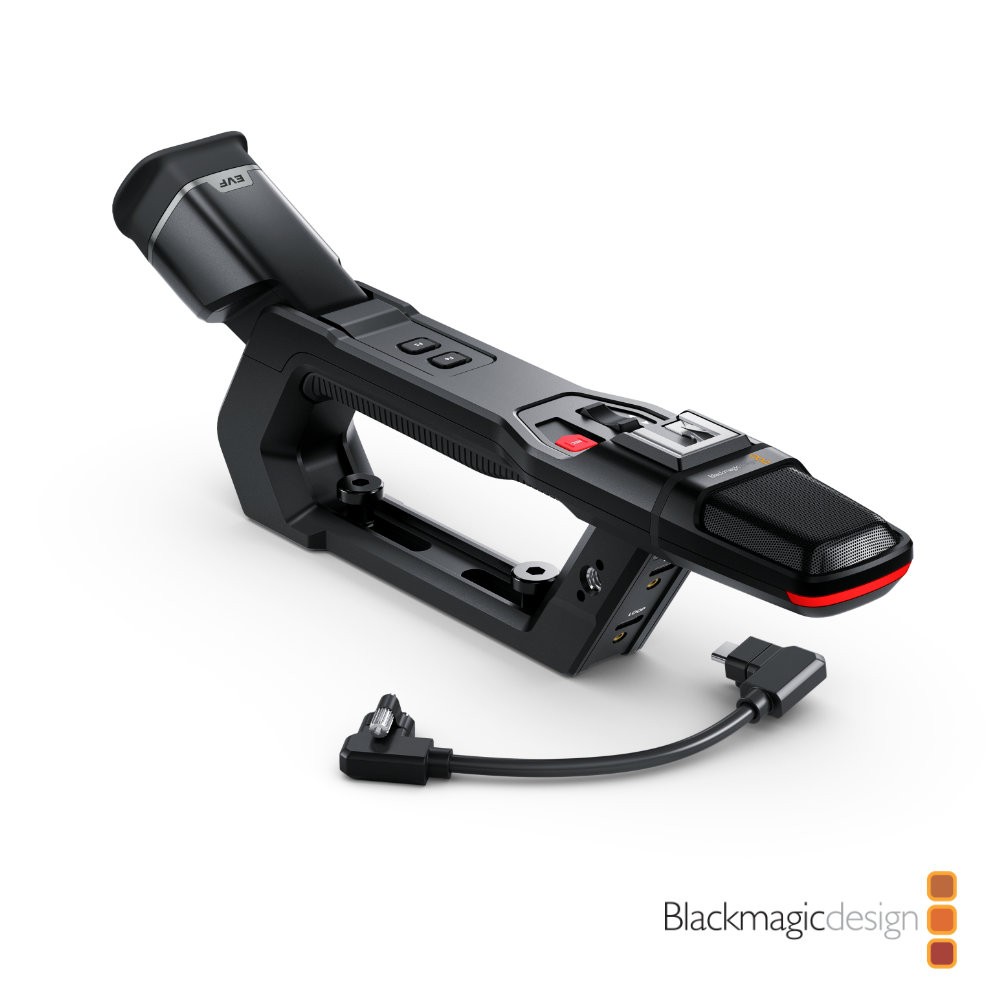

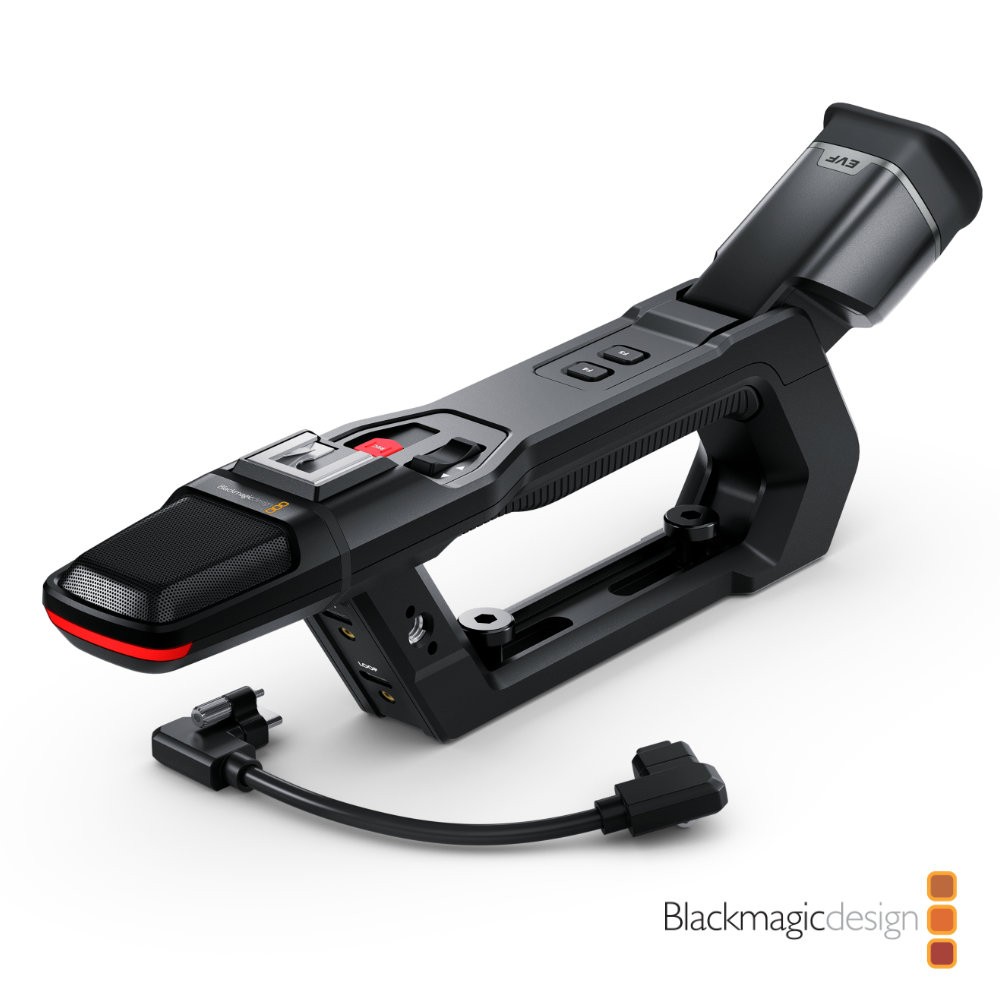

Blackmagic Design PYXIS Pro Handle

Blackmagic PYXIS Pro Handle is a top handle for Blackmagic PYXIS cameras with a built in HD OLED viewfinder, stereo microphone, record start/stop button, custom function buttons and a zoom rocker. Together with the Pro Grip side grip it turns PYXIS into a fast run and gun camera for news, documentary and broadcast work.

More information

959 € with VAT 792.56 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Blackmagic PYXIS Pro Handle is a top handle for Blackmagic PYXIS cameras with a built in HD OLED viewfinder, stereo microphone, record start/stop button, custom function buttons and a zoom rocker. Together with the Pro Grip side grip it turns PYXIS into a fast run and gun camera for news, documentary and broadcast work.

Viewfinder, sound and recording in one top handle

Pro Handle turns PYXIS into a camera for news and documentary: the viewfinder at your eye, the microphone above the lens and the controls under your thumb.

HD OLED viewfinderDiopter −4 to +4Stereo microphoneZoom rockerTally2× 1/4″ thread

Digital film images for broadcast

Pro Handle and Pro Grip bring the controls of a classic ENG camera to PYXIS – with a large sensor and Blackmagic RAW recording.

One USB-C cable

The handle connects to the camera with a single USB-C cable with locking screws that carries power, video and control.

USB-C loop port for Pro Grip

The Pro Grip side grip plugs into the USB-C loop port on the Pro Handle.

A handle for handheld work

Pro Handle mounts to the top of the Blackmagic PYXIS camera. Together with the Pro Grip side grip it makes PYXIS a fast handheld camera for news and documentary, where there is no time to build a rig.

Blackmagic Design PYXIS Pro Handle – A handle for handheld work

Accurate viewing without an extra rig

The HD OLED viewfinder with 4 element glass optics and a wide −4 to +4 diopter adjustment makes shooting outdoors and in direct light easy. It has a proximity sensor, a built in digital focus chart for setting viewfinder focus and shows frame guides; the viewfinder pivots up and down for high and low angles.

Blackmagic Design PYXIS Pro Handle – Accurate viewing without an extra rig

Stereo microphone and controls

The high quality stereo microphone with an ultra low noise floor records separate audio tracks alongside the professional audio inputs of the camera, without an external mixer. On top there is a tally light, a record start/stop button, custom function buttons and an assignable zoom rocker for compatible zoom lenses; two 1/4″ thread mounts carry a light or a wireless receiver.

Blackmagic Design PYXIS Pro Handle – Stereo microphone and controls

PACKAGE CONTENT

  • Blackmagic PYXIS Pro Handle
  • USB-C cable with locking screws

SPECIFICATIONS

  • Compatibility: Blackmagic PYXIS cameras
  • Viewfinder: HD OLED, 4 element glass optics, proximity sensor, digital focus chart
  • Diopter adjustment: −4 to +4
  • Viewfinder tilt: up and down
  • Audio: built in stereo microphone with ultra low noise floor
  • Control: record button, custom function buttons, assignable zoom rocker, tally
  • Accessory mounting: 2× 1/4″ thread
  • Connection: USB-C cable with locking screws – power, video and control
  • Loop port: USB-C for Blackmagic PYXIS Pro Grip
  • Warranty: 1 year limited manufacturer’s warranty
Parameters

Parameters

Manufacturer: Blackmagic Design
Category: Accessories

Main parameters

For cameraBlackmagic PYXIS
ColourBlack
