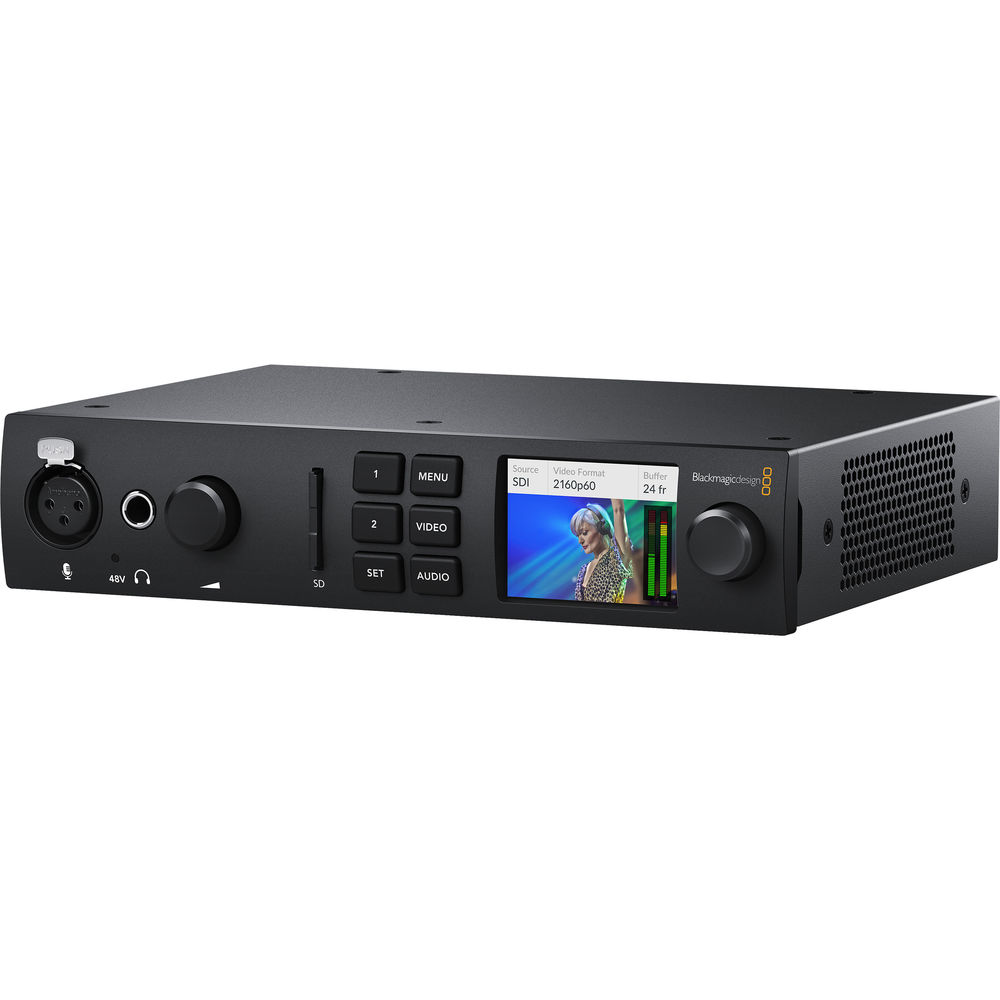

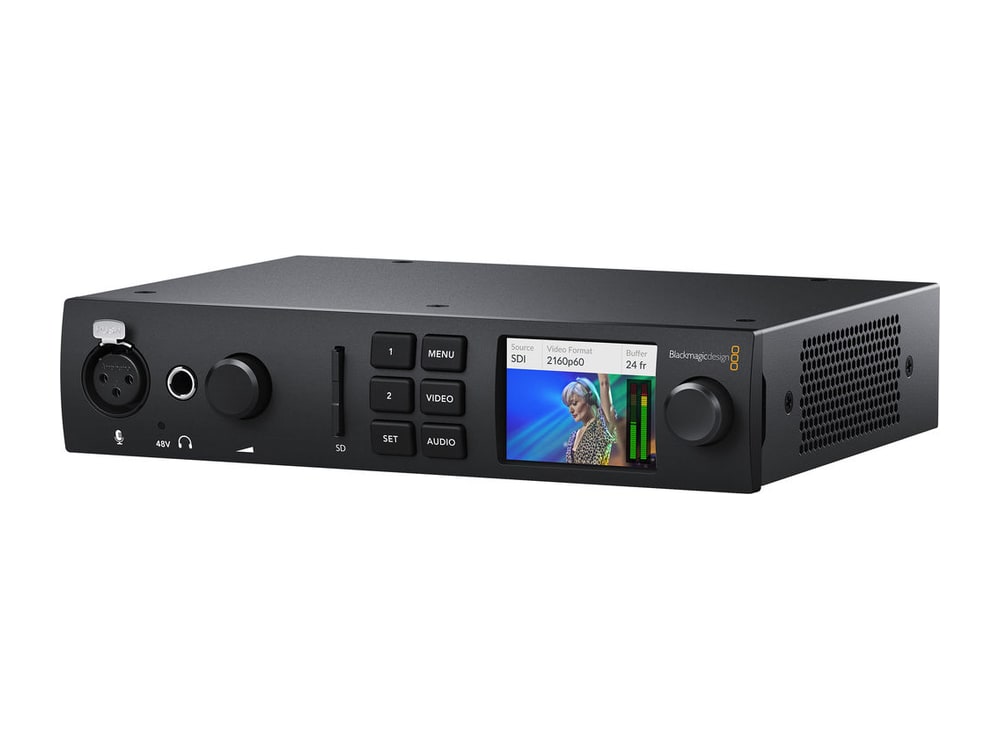

Blackmagic Design UltraStudio 4K Mini

Blackmagic Design UltraStudio 4K Mini is a portable Thunderbolt 3 solution that captures, plays back and monitors broadcast-quality video. It offers a 12G-SDI input and outputs, HDMI 2.0b input and output, analog component and composite video, an XLR microphone input with phantom power, a headphone output, an SD card reader, an LCD and control buttons. It handles 8-bit and 10-bit capture up to DCI 4Kp60 and 12-bit up to DCI 4Kp30, and charges a connected laptop with up to 45 W.

Professional 4K ingest and playback

The Thunderbolt device connects 12G-SDI, HDMI 2.0b and analog AV interfaces to your computer. It handles capture and playback up to DCI 4Kp60 and powers your laptop with up to 45 W at the same time.

12G-SDIHDMI 2.0bDCI 4Kp60Thunderbolt 3 / 45 WLCD and SD reader

One box for ingest, monitoring and archiving

UltraStudio 4K Mini is a portable professional solution for video capture and playback over Thunderbolt 3, 12G-SDI and HDMI 2.0. It supports common SD, HD, Ultra HD and DCI 4K workflows in a single compact device.

Connections for modern and archive sources

12G-SDI and HDMI are complemented by component and composite analog video, two analog audio inputs and two outputs, a reference input and RS-422. The front SD slot, microphone input and LCD speed up everyday work.

High image quality

The device works with 8-bit and 10-bit formats up to DCI 4Kp60 and with 12-bit video up to DCI 4Kp30. It supports HDR: static metadata and HLG and PQ transfer characteristics.

Microphone and headphones

The XLR input with 48 V phantom power, switched on in software, and the headphone output allow a quick audio check right at your workstation.

Thunderbolt 3 and charging

Thunderbolt 3 provides high bandwidth and can at the same time supply up to 45 W to the connected laptop.

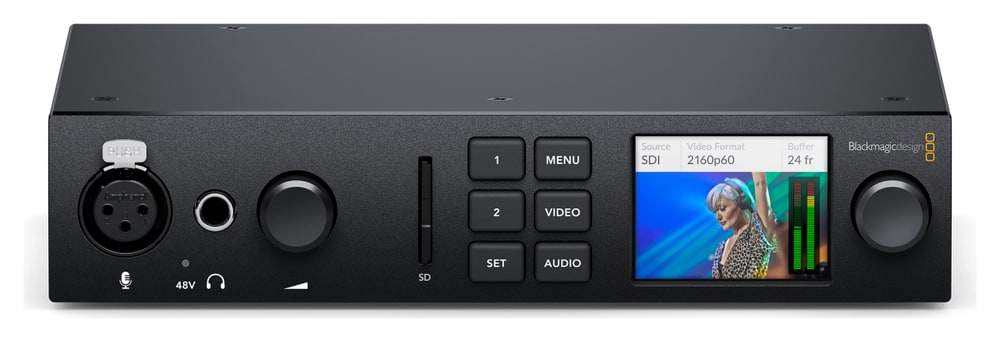

Front panel with LCD and control buttons

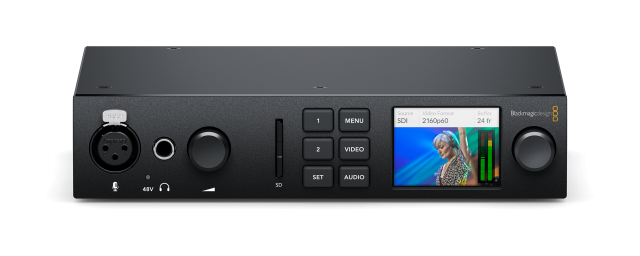

The front panel with a color LCD preview, menu buttons and a spin knob keeps operation clear without opening software. It also carries the XLR microphone input, headphone output, volume control and SD card slot.

12G-SDI for Ultra HD and 4K

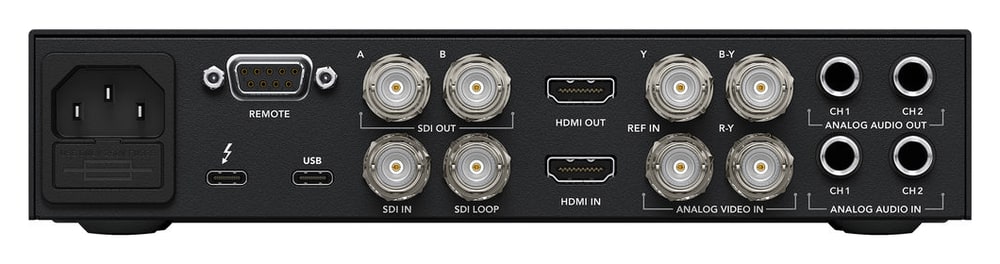

12G-SDI carries Ultra HD and 4K up to 60p over a single BNC cable. The connection is multi-rate, so it also works with older SD and HD equipment. The device has one SDI input, two program outputs and one loop output.

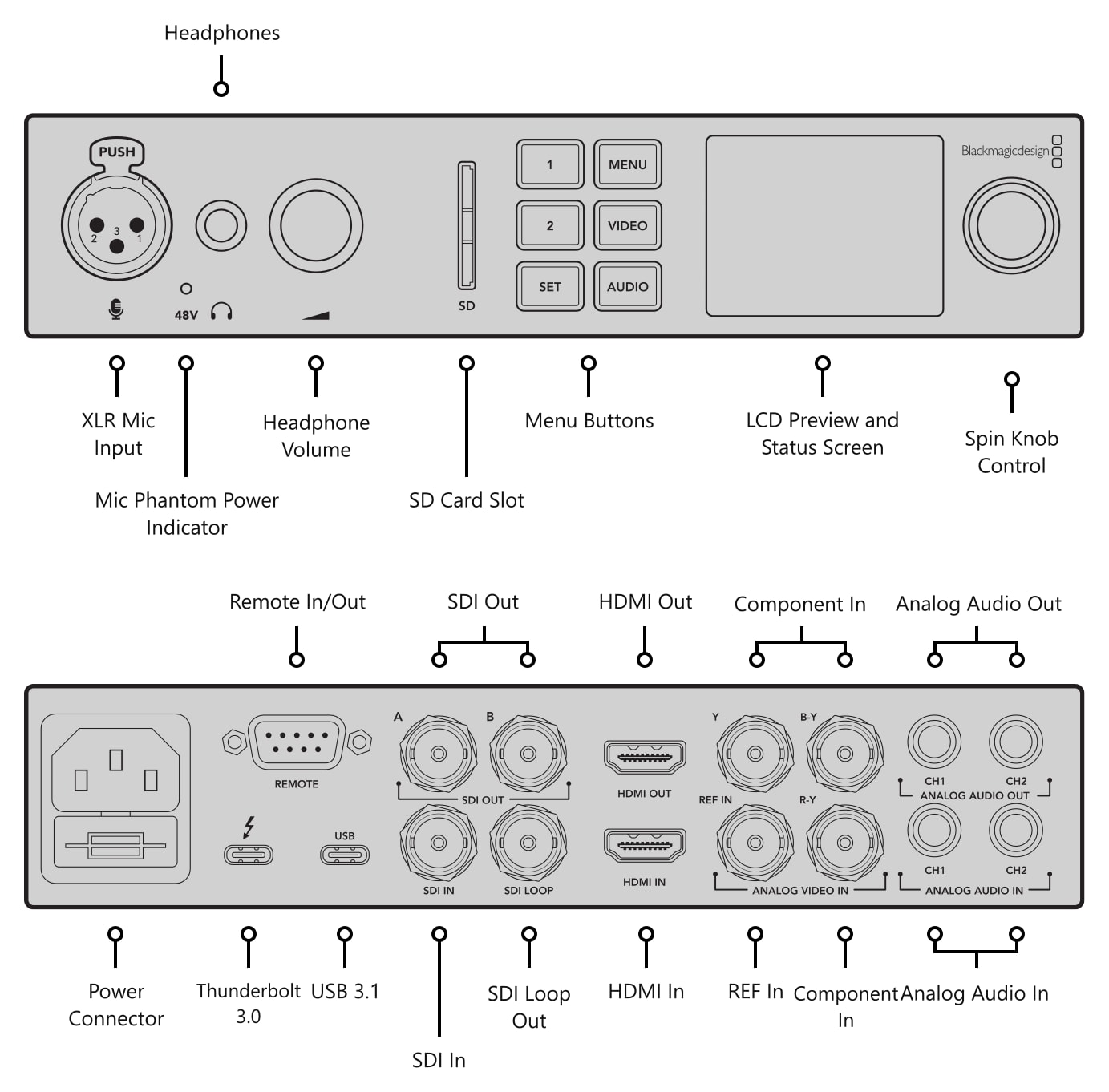

Connections

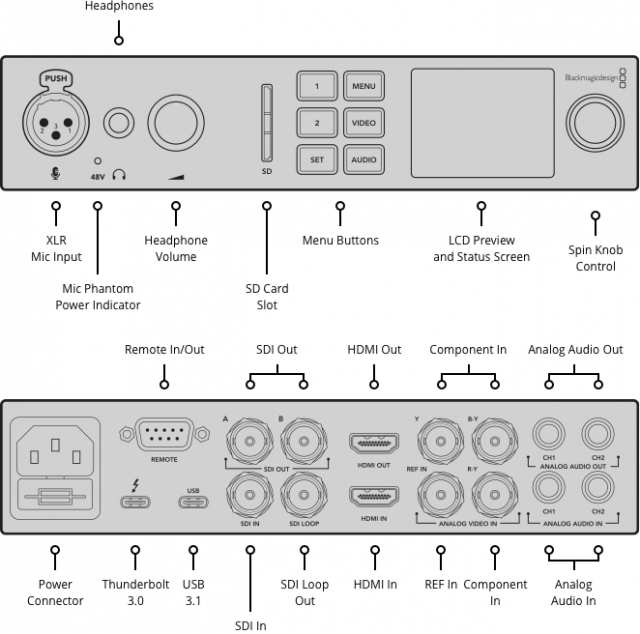

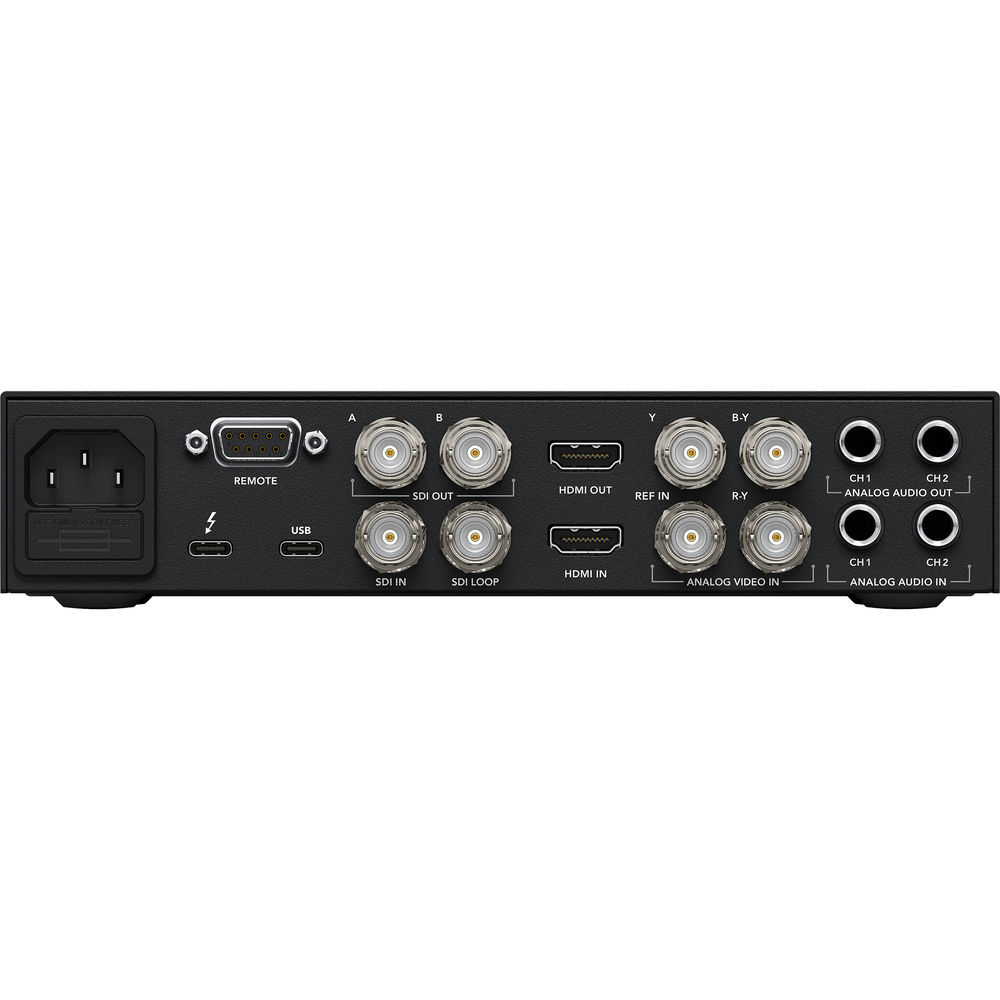

The front has the XLR microphone input, headphone output, volume control, SD slot, menu buttons, LCD and spin knob. The rear has the power connector, Thunderbolt 3 port, USB-C, SDI input, two SDI outputs, an SDI loop output, HDMI input and output, a reference input, an analog component input, analog audio (two inputs and two outputs) and the Remote connector for RS-422.

Dimensions and weight

The device measures 210 × 178 × 46 mm (w × d × h) and weighs 1.20 kg.
