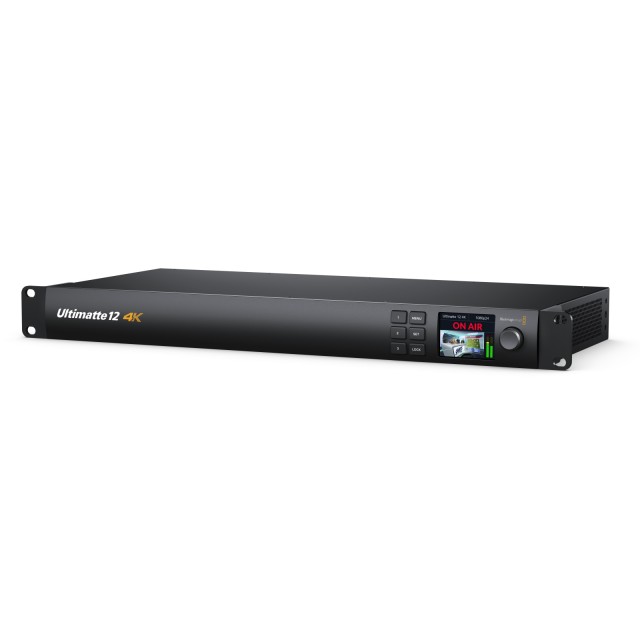

Blackmagic Design Ultimatte 12 4K
SKU: ULTMKEY12/C/4K
Blackmagic Ultimatte 12 4K is an advanced real time keyer and compositing processor for live broadcast, virtual sets and broadcast graphics with 12G-SDI connections for HD and Ultra HD up to 2160p60. It offers a 2.2″ LCD with preset buttons, a 6 GB Media Pool frame store, SMPTE 2110 input and output over 10G Ethernet, dual built-in power supplies and control…
2 899 € with VAT
2 395.87 € without VAT
Availability
on request
Top accessories for Blackmagic Design Ultimatte 12 4K
Infinitek L-4.5CHWS 2m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
19 €
To be sent > 5 pcs
PremiumCord power cord 230 V, CEE 7/7 straight plug / IEC C13, 2 m, black
A 230 V power cord for a computer, monitor or any other device with an IEC C13 connector.
4.1 €
In stock > 5 pcs
Colorama Paper Background 2.72 x 11m Chromagreen
Colorama Paper Background Chromagreen is a studio paper backdrop that is 2.72 m wide
93 €
In stock 3 pcs
PremiumCord CAT6 UTP patch cable RJ45-RJ45, 5 m, blue
A category 6 UTP network patch cable with RJ45 connectors at both ends and straight-through
3 €
In stock 1 pcs
Datavideo TA-1 Green Chroma Key Tape, 48 mm × 25 m
Datavideo TA-1 is green chroma key tape, supplied in a 48 mm × 25 m roll. Its green
34 €
14-30 days
Blackmagic Design Ultimatte Smart Remote 4 G2
Blackmagic Ultimatte Smart Remote 4 G2 is a hardware control panel that controls
2 549 €
on request
Product description
ARTICLES
SPECIFICATIONS
PACKAGE CONTENT
Product description
Blackmagic Ultimatte 12 4K is an advanced real time keyer and compositing processor for live broadcast, virtual sets and broadcast graphics with 12G-SDI connections for HD and Ultra HD up to 2160p60. It offers a 2.2″ LCD with preset buttons, a 6 GB Media Pool frame store, SMPTE 2110 input and output over 10G Ethernet, dual built-in power supplies and control via free software or the Smart Remote 4 panel.
12G-SDI for HD and Ultra HD
Ultimatte 12 4K composites live video with graphics, virtual sets and additional layers in real time – in HD today and in Ultra HD whenever you are ready.
12G-SDI2160p60SMPTE 21106 GB Media PoolDual power supplies
A compositing processor for broadcast
Ultimatte 12 is not just a keyer but a powerful real time processor for compositing broadcast graphics – with seven compositing inputs and dual outputs.
12G-SDI
SD, HD, 3G, 6G and 12G-SDI.
SMPTE 2110
Foreground and program over IP.
10G Ethernet
Fast still upload.
Redundancy
Dual power supplies.
12G-SDI for HD today and Ultra HD
Ultimatte 12 4K has 12G-SDI connections for HD and Ultra HD up to 2160p60 and works with virtually all SD, HD, 3G, 6G and 12G-SDI equipment. The seven compositing inputs have loop outputs, and the program, fill, matte and talent outputs are doubled.
SMPTE 2110 and 10G Ethernet
The Ethernet port up to 10 Gb/s handles SMPTE 2110 IP video (foreground input and program output), device control and fast loading of stills into the frame store. Reference can come from Tri-Sync, Black Burst or PTP. Dual built-in power supplies provide redundancy for on air use.
Advanced algorithms and a huge color space
All Ultimatte 12 models, even Ultimatte 12 HD Mini, have the same advanced algorithms and a huge internal color space, so they all produce identical quality compositions. The processing automatically generates internal mattes and processes different parts of the image separately based on the colors in each area: fine edge detail where it is needed most, like on hair, and smoother transitions between colors.
One touch automatic keying
Ultimatte 12 analyzes the scene and automatically sets over 100 parameters. Just make sure the scene is well lit and the cameras are white balanced, then activate the auto key. Screen Correction also compensates for unevenly lit green or blue screens.

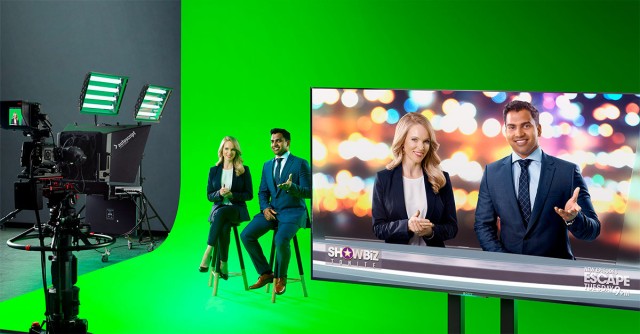

Fixed camera virtual sets
All models have a 6 GB Media Pool frame store for pre rendered still frames of a 3D modeled set. That means a virtual set even in a small room and without external equipment – each camera gets its own Ultimatte 12 with a background loaded. If the cameras don't move, the backgrounds look perfect.
Translucent layers, shadows and reflections
The layer compositing mode adds tinted objects such as colored glass or graphics on top of the foreground and preserves their colors even when the talent walks behind them. Improved algorithms remove green tinting and spill, map shadows correctly onto the new background and handle transparent objects with reflections.
Faithful colors even with difficult shades
New flare, edge and transition processing removes the background without affecting the colors you want to keep – such as a bright yellow dress in front of a green screen. Ultimatte 12 treats different parts of the image separately while keeping color transitions smooth.
Control via software or the Smart Remote 4 panel
All models include the free Ultimatte Software Control for Mac and Windows, which also uploads still frames to the frame store; settings are kept in flash memory when the power is off. The optional Ultimatte Smart Remote 4 controls up to eight Ultimatte 12 units over Ethernet, and thanks to the monitor cascade you can view them all on a single SDI monitor without a video router.
Connections

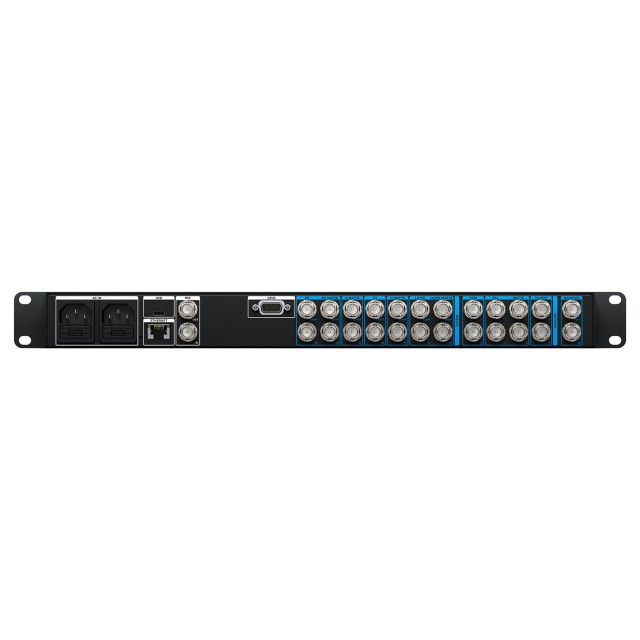

The rear has dual AC power inputs, USB, Ethernet, reference in and out, GPIO, SDI inputs for background, background matte, garbage matte, foreground, holdout matte, layer and layer matte with loop outputs, program, fill, matte and talent outputs and monitor in and out; the front has preset and menu buttons, a 2.2″ LCD and a spin knob.
More information
About the Ultimatte 12 range
Ultimatte has led green and blue screen keying in television news for over 40 years; since its founding in 1976 the company has won numerous awards, including Emmy and Oscar awards. Its technology ensures seamless real time integration of presenters, guests and commentators into virtual sets.
Ultimatte 12 is affordable, so every camera position can be fitted with a top quality keyer. In multi camera productions each camera sees the screen slightly differently; a keyer built into a switcher uses the same settings for all cameras, whereas a separate Ultimatte 12 on each camera is adjusted individually. It is also ideal for previsualization in film and television, letting actors and filmmakers see the virtual scene while shooting.
British broadcaster Sky News uses Ultimatte 12 for the virtual set of its Sunrise morning news program – sports, weather and other segments rely on edge detection in difficult areas such as hair and on color correction for natural skin tones.
The Ultimatte 12 range keeps the high image processing quality while improving affordability: perfect matte edge handling, better color separation, excellent color fidelity and improved suppression of screen color spill onto the foreground. The HD Mini, HD, 4K and 8K models let you choose the tool for your broadcast standard; the most affordable Ultimatte 12 HD Mini is designed for ATEM Mini control rooms and opens the way to virtual sets with fixed cameras.
PACKAGE CONTENT
- 1× Blackmagic Design Ultimatte 12 4K
- 1× welcome wallet with QR code for software download
SPECIFICATIONS
- SDI video inputs: 8
- SDI video outputs: 9
- SDI video loop outputs: 7
- SMPTE 2110 IP video: 1 input (foreground), 1 output (program)
- SDI rates: 270 Mb/s, 1.5G, 3G, 6G, 12G
- Video input re-sync: on all inputs
- Reference connections: 1× BNC in, 1× BNC out, 1× RJ45 Ethernet; Tri-Sync, Black Burst and PTP
- GPIO: DE15
- Ethernet: up to 10 Gb/s for SMPTE 2110 IP video in and out, device control and loading stills into Media Pool
- Computer interface: 1× USB-C 3.0 for device configuration and software updates
- SD video standards: 525i59.94 NTSC, 625i50 PAL
- HD video standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
- Ultra HD video standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- SDI compliance: SMPTE 259M, 292M, 296M, 424M, 425M level A and B, 2081-1, 2081-10, 2082-1, 2110-20, 2110-21, 2110-30 and 2110-40
- Video sampling and color precision: 4:2:2, 10-bit
- Color space: REC 601, REC 709, REC 2020
- Multiple rate support: SD, HD, 6G-SDI and 12G-SDI
- Foreground source: 1× 12G-SDI in with loop out, 1× RJ45 Ethernet for SMPTE 2110 IP video
- Background source: 1× 12G-SDI in with loop out, still from Media Pool
- Background matte source: 1× 12G-SDI in with loop out, internal window, still from Media Pool
- Garbage matte source: 1× 12G-SDI in with loop out, internal window, still from Media Pool
- Holdout matte source: 1× 12G-SDI in with loop out, internal window, still from Media Pool
- Layer source: 1× 12G-SDI in with loop out, still from Media Pool
- Layer matte source: 1× 12G-SDI in with loop out, internal window, still from Media Pool
- Fill output: 2× 12G-SDI
- Matte output: 2× 12G-SDI
- Program output: 2× 12G-SDI, 1× RJ45 Ethernet for SMPTE 2110 IP video
- Talent output: 2× 12G-SDI
- Monitor in: 1× 12G-SDI, for monitor cascade
- Monitor out: 1× 12G-SDI, for monitoring program, inputs, mattes, fill out and Screen Correction
- Media Pool memory: 6 GB non-volatile internal storage
- Still image formats: background and layer TGA, TIFF, BMP, PNG, JPG (with alpha TGA, TIFF, BMP); garbage and holdout matte TIFF, BMP, PNG, JPG

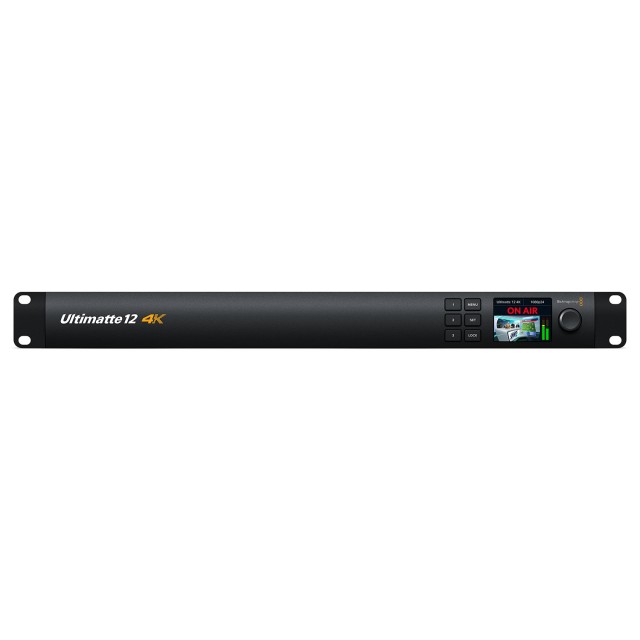

- Display: built in 2.2″ color display for device name, video preview, audio meters, status and menus
- Front panel: 2.2″ color display, 3 preset buttons, 3 menu buttons and spin knob
- Control: Ultimatte Software Control (Mac, Windows) via network or direct Ethernet connection; optional Ultimatte Smart Remote 4; Ethernet protocol and GPIO pin out in the manual
- IP compliance: SMPTE 2110-20, 2110-21, 2110-30, 2110-40; PTP IEEE 1588-2008, ST 2059-1, ST 2059-2; NMOS IS-04 v1.3.2, IS-05 v1.1.2, BCP-002-01, BCP-004-01
- Software updates: using USB-C or Ethernet connection to Mac or Windows computers
- Operating systems: macOS 13 Ventura, macOS 14 Sonoma or later; Windows 10 (64-bit), Windows 11
- Power: 2× internal 100–240 V AC, 50/60 Hz
- Power usage: 54 W
- Physical installation: 19″ rack, 1 rack unit height
- Operating temperature: 0 to 40 °C (32 to 104 °F)
- Storage temperature: −20 to 60 °C (−4 to 140 °F)
- Relative humidity: 0–90% non-condensing
- Dimensions (D × W × H): 9.2 × 19 × 1.74 in (234 × 483 × 44 mm)
- Weight: 7.28 lb (3302 g)
- Warranty: 1-year limited manufacturer warranty
ARTICLES
Parameters
![]()
![]()
Parameters
| Manufacturer: | Blackmagic Design |
| Category: | Keying |
Main parameters
| Keyer outputs | SDI |
| Maximum resolution | 4K |
| Control | Front panel · PC software |
| Keyer inputs | SDI |
Blog and news
Date: 29. 01. 2025, Category: Blackmagic Design
Blackmagic Design updates 01/2025
In late January 2025, Blackmagic Design came out with an update to several of its products. Blackmagic Camera 9.2.1 update This software update…
Date: 28. 01. 2025, Category: Blackmagic Design

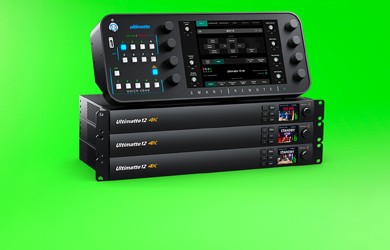

Blackmagic Ultimatte 2.2 update
