Blackmagic Design ATEM Streaming Bridge

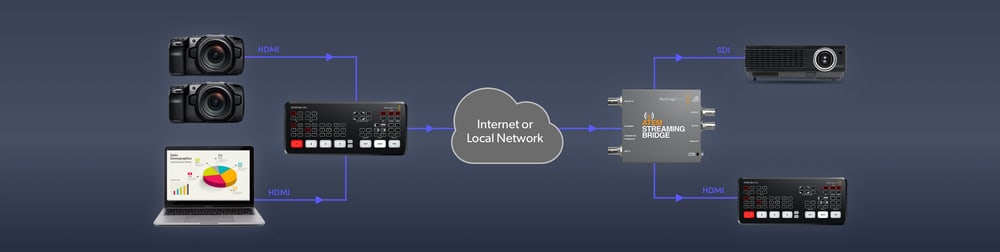

ATEM Streaming Bridge decodes an H.264 stream from compatible ATEM Mini and ATEM SDI switchers or a Blackmagic Web Presenter to two 3G-SDI outputs and HDMI. It creates a high-quality IP video link between remote studios over a local network or the internet, delivering video without videoconferencing app watermarks to monitors, recorders, projectors or another switcher.

Turn an ATEM stream back into video

A compact H.264 decoder with professional SDI and HDMI outputs for a remote studio.

H.2642× 3G-SDIHDMI1080p60RTMP / SRTReference input

Locked to the studio

The SDI reference input and the black burst or tri-sync reference input let the outputs lock to the local studio reference.

RTMP and SRT protocols

It receives RTMP from ATEM Mini and ATEM SDI switchers and Web Presenter, and SRT from a compatible Web Presenter.

6–30V power

A universal 12V power supply is included; the input accepts 6 to 30V DC and power consumption is 6 W max.

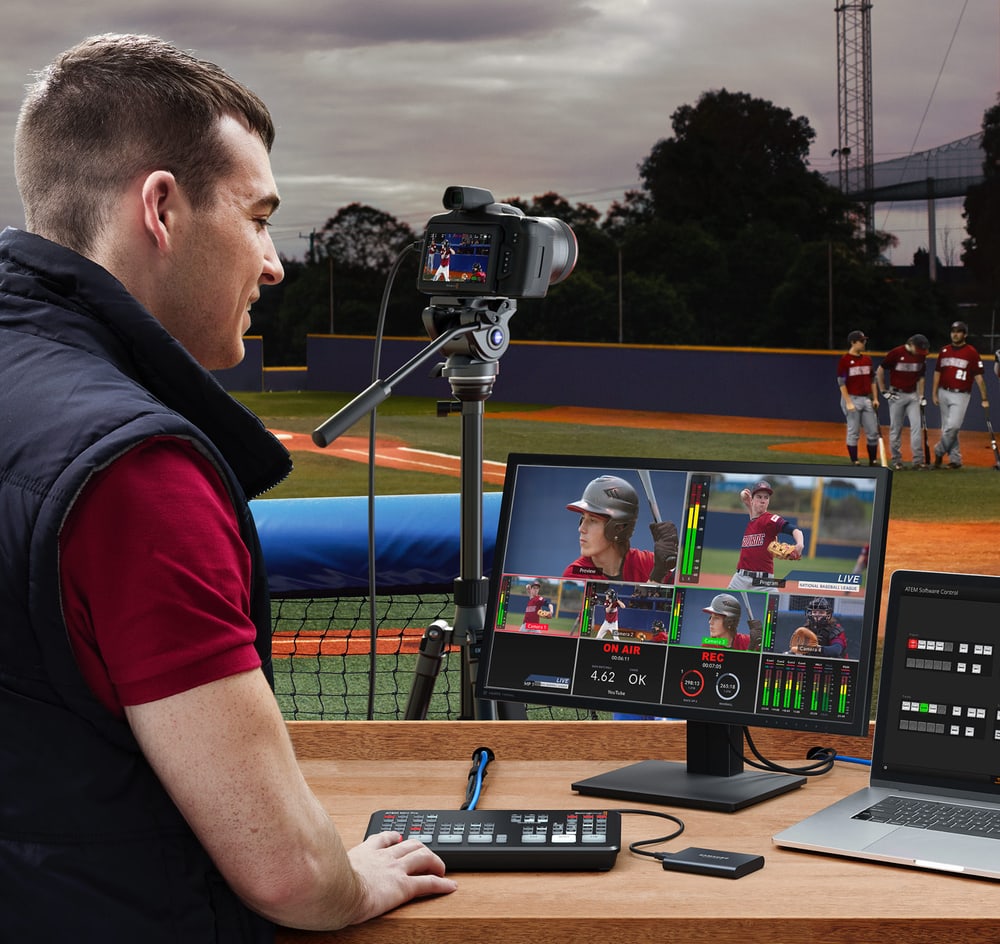

Local network or internet

On a LAN, connect via Ethernet. For a remote site, ATEM Software Control creates a configuration file containing the required network settings that can be sent by email. That builds a network of remote studios – for example for collaborating with bloggers or local news organizations.

Clean output without app graphics

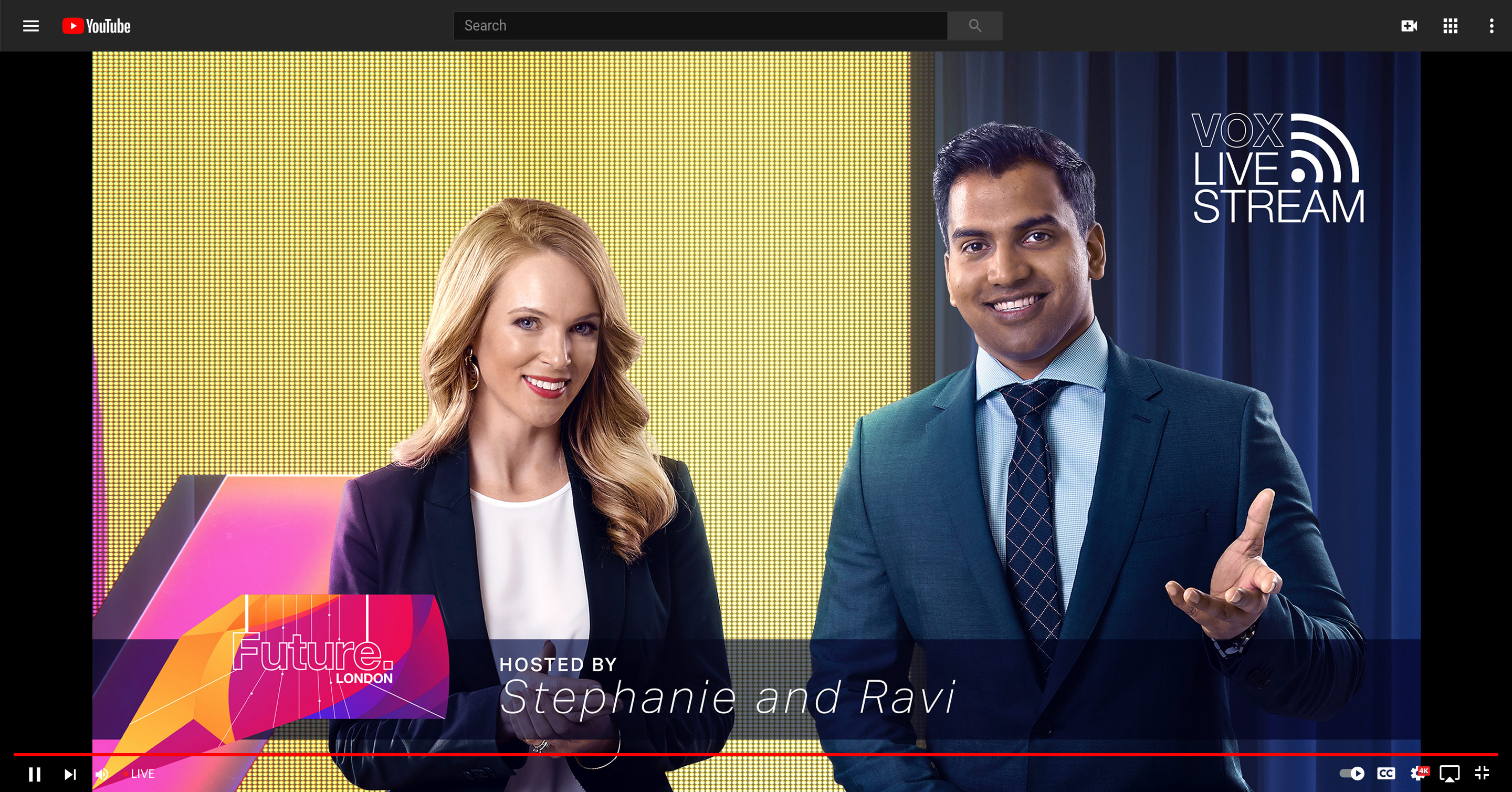

The receiving location gets standard video for monitors, recorders, projectors or another switcher. An ATEM stream offers far higher quality than typical videoconferencing software and carries no watermarks or streaming app logos.

Setup via mini switches or USB-C

Basic settings are selected with mini switches on the converter, detailed ones over USB-C in the setup utility; software updates are also installed over USB-C. Status LEDs show the internet connection and stream reception.

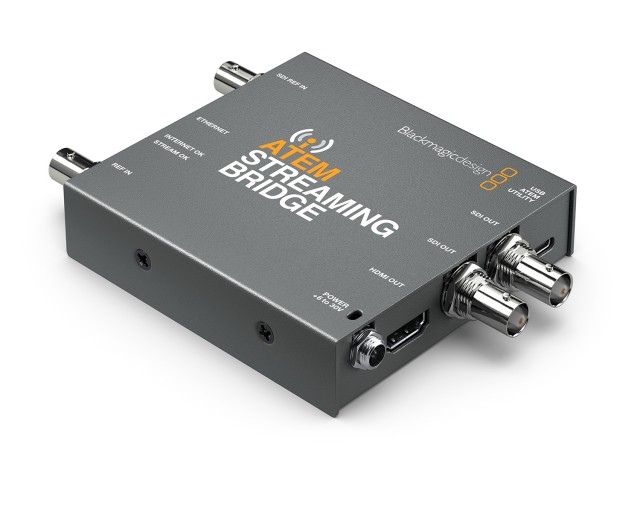

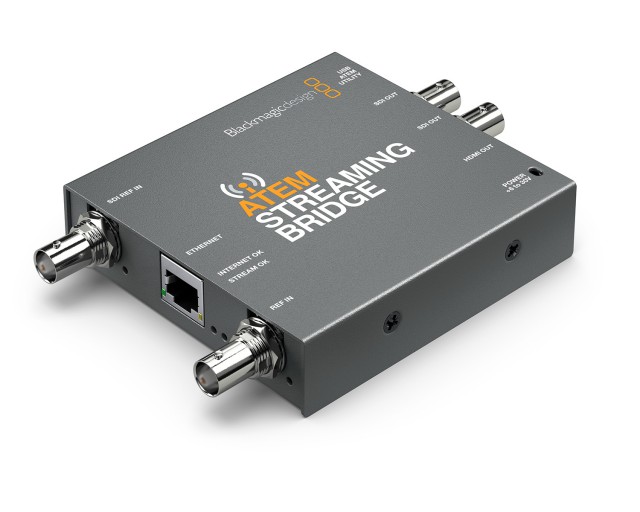

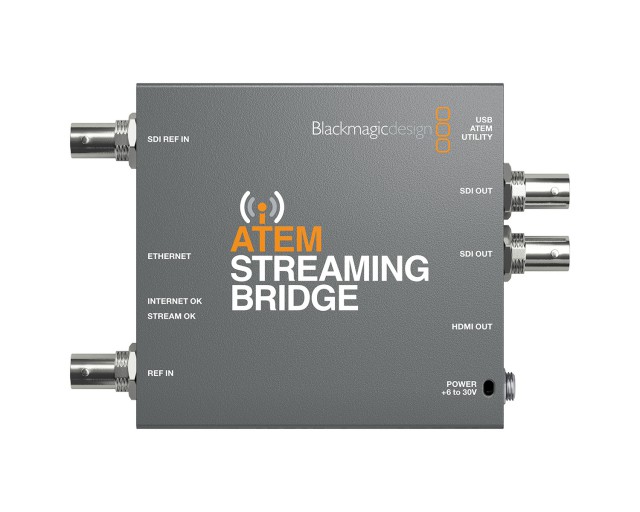

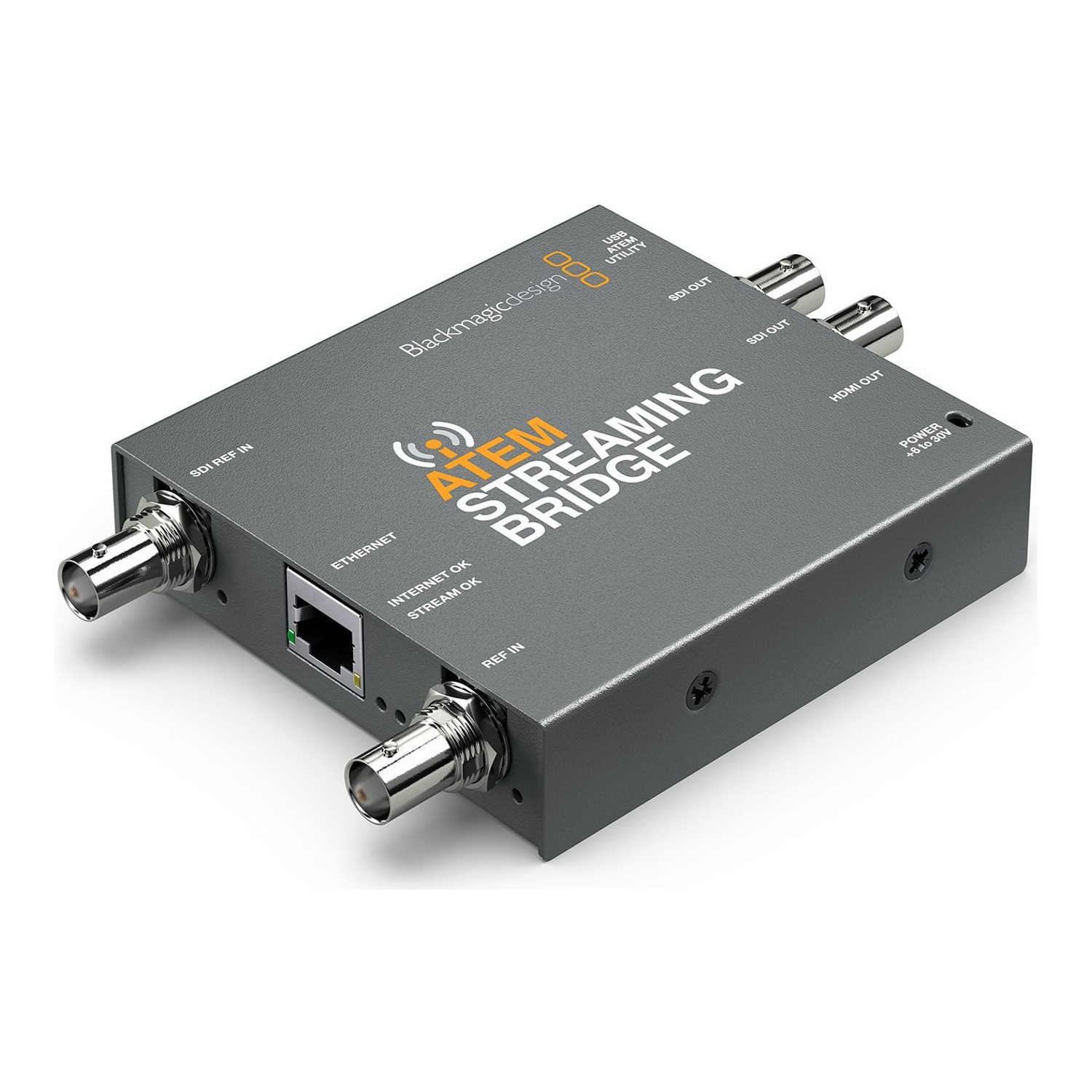

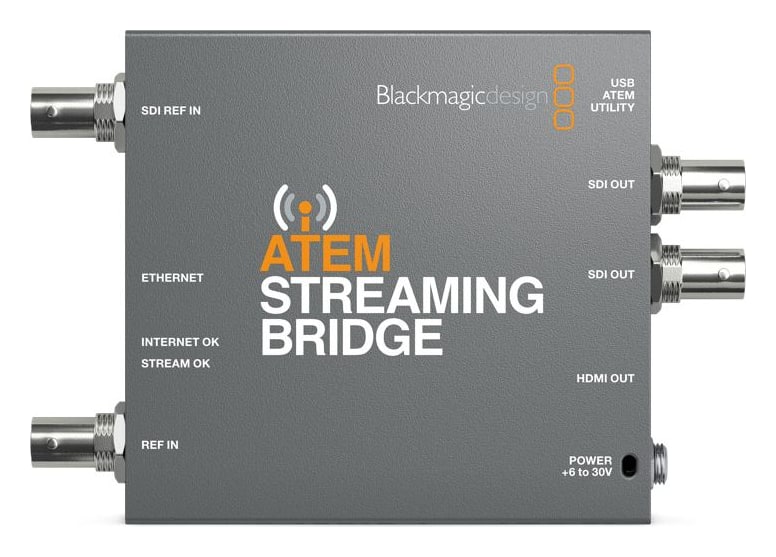

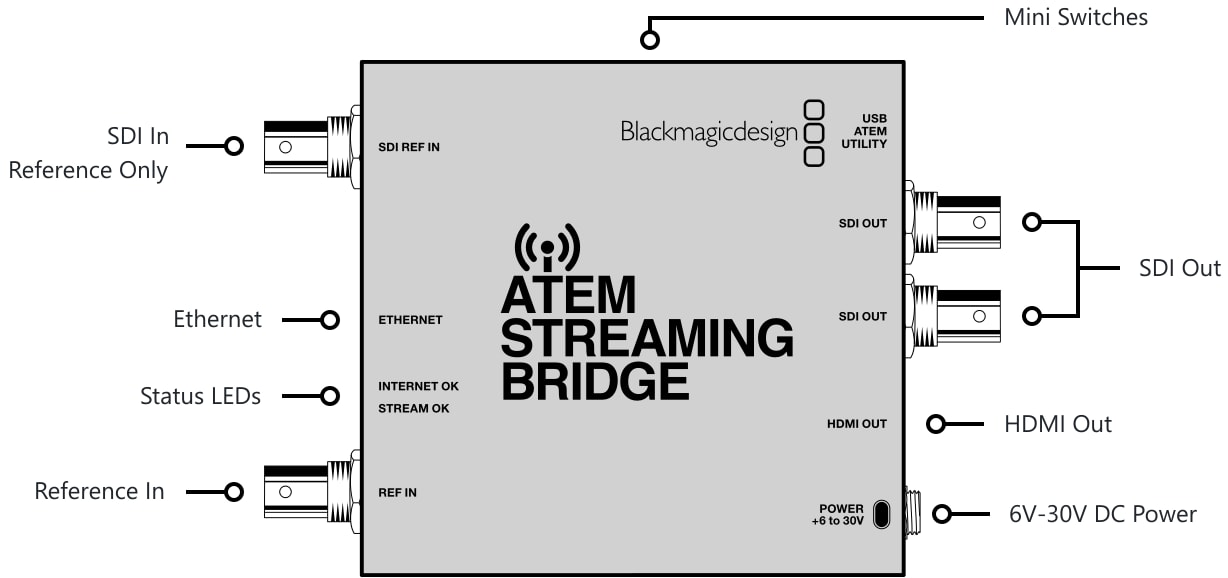

Connections

Two 3G-SDI outputs, HDMI output, SDI reference input, reference input, Ethernet, USB-C and 6–30V DC power.
