Blackmagic Design Cloud Store Ultra 48TB

Blackmagic Cloud Store Ultra 48TB is an extremely high-performance network storage unit in a compact 1RU design with server-style front-to-rear cooling. Twelve M.2 NVMe cards, two separate 100G Ethernet QSFP28 ports, RAID 5 support, two redundant power supplies and synchronization with Blackmagic Cloud give dozens of users simultaneous access to large files.

Two 100G networks in one 1RU chassis

Twelve M.2 NVMe cards, two separate 100G QSFP28 ports and two redundant power supplies, suited to recording from the HyperDeck ISO Recorder 100G.

48 TB flash2× 100G EthernetRAID 0 / RAID 52 power supplies

Camera recording and editing on the same network

One 100G port can receive recordings from the HyperDeck ISO Recorder 100G while the other serves the editing workstations. With a Blackmagic Ethernet Switch 360P added, each 100G port can be split into 16 separate 10G Ethernet connections.

Front-to-rear cooling

Server-style cooling with six redundant fans spreads the heat evenly across the M.2 cards and prevents hot spots and performance throttling. Operation stays quiet.

RAID 0 or RAID 5

By default RAID 0 is used for maximum capacity. After reformatting to RAID 5, every sixth M.2 card is used for parity and files are rebuilt after a card is replaced.

LCD and storage status on the spot

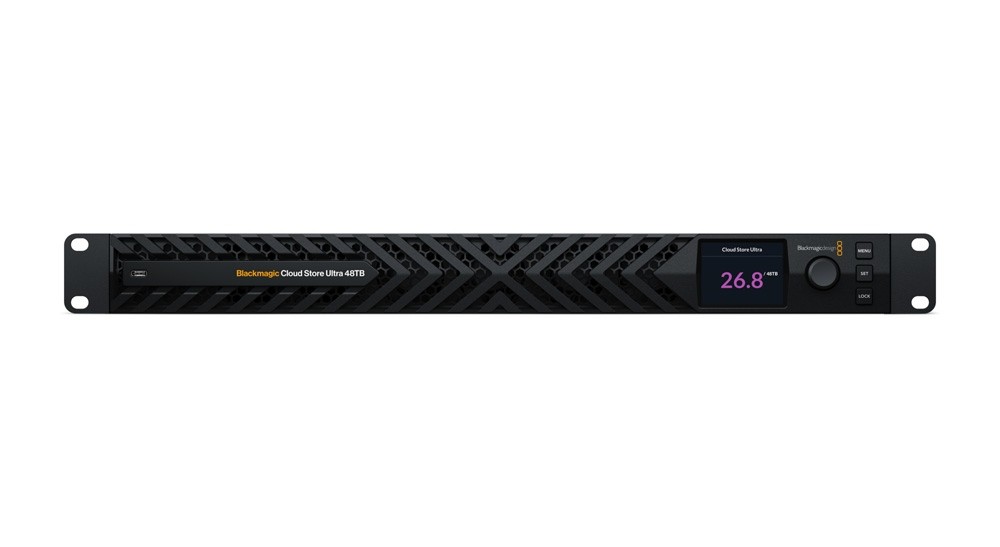

The built-in 2.2 inch LCD, spin knob and three buttons show the storage name, capacity and use, Blackmagic Cloud sync status, user activity, hardware status and network graphs. The two SDI outputs and the HDMI output show the same overview on a monitor.

Connector overview

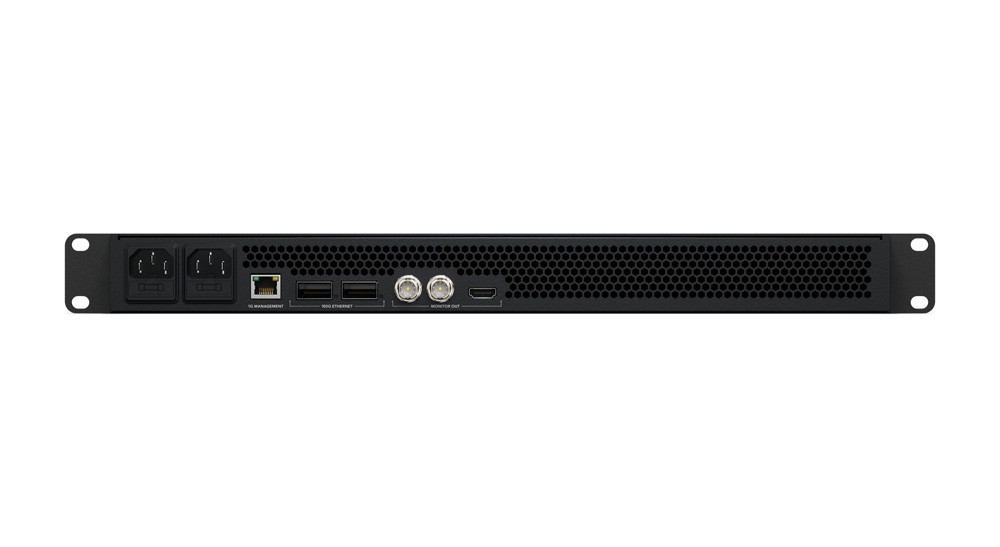

The diagram shows the USB-C port and the controls on the front panel and, on the rear panel, the two AC power inputs, the 1G management port, the two 100G Ethernet ports, the two SDI outputs and the HDMI output.
