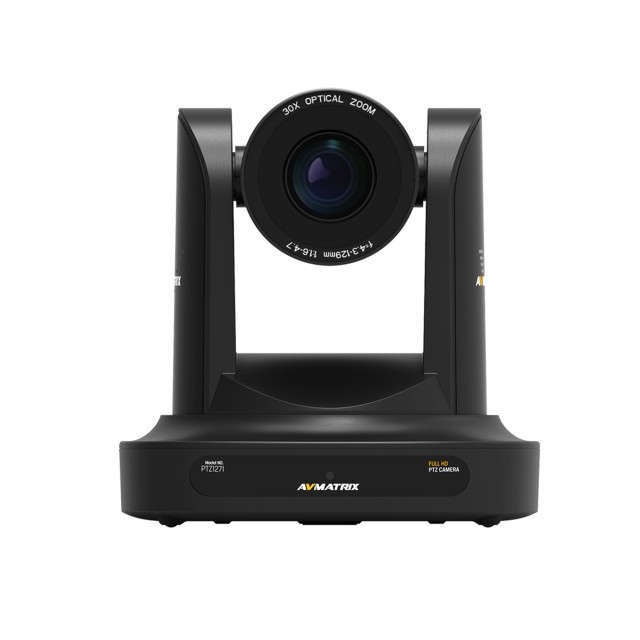

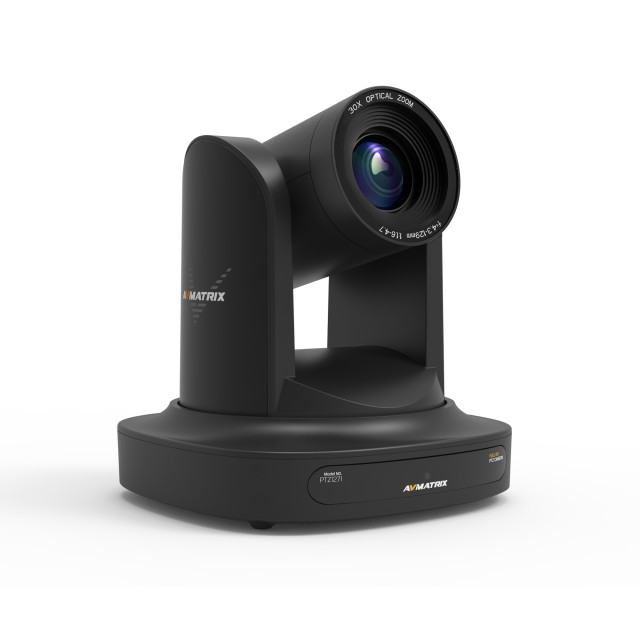

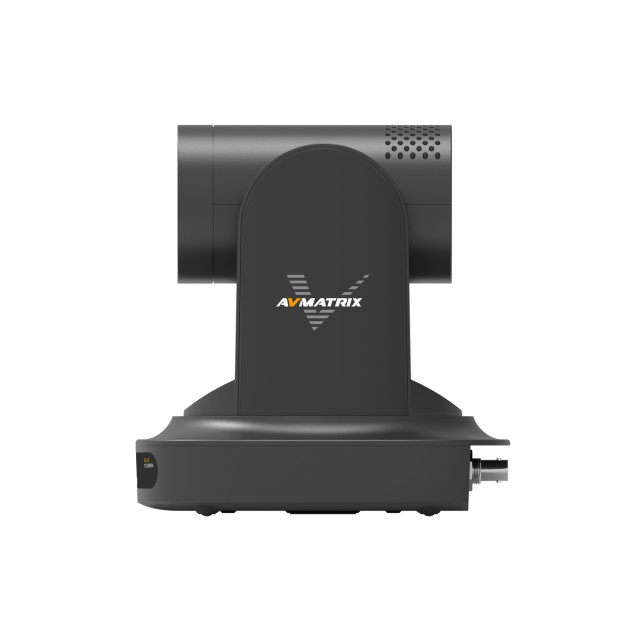

AVMATRIX PTZ1271-20X-NDI Full HD PTZ Camera with NDI HX

Add a powerful PTZ camera setup with HD video capture to your production with this PTZ1271-20X-NDI Full HD PTZ Camera from AVMatrix. The camera offers precision control and multiple output ports offering up to 1080p video, and it also supports control and streaming over LAN. Designed for broadcast, security, and teleconferencing needs, the PTZ1271-20X-NDI…

More information

1 450.79 € with VAT 1 199 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 2 pcs
Praha 2 pcs

Show all accessories

Product description

Product description

Add a powerful PTZ camera setup with HD video capture to your production with this PTZ1271-20X-NDI Full HD PTZ Camera from AVMatrix. The camera offers precision control and multiple output ports offering up to 1080p video, and it also supports control and streaming over LAN. Designed for broadcast, security, and teleconferencing needs, the PTZ1271-20X-NDI also supports VISCA, PELCO-D, and PELCO-P control protocols, in addition, this version of the PTZ1271 supports NDI|HX 5.0 as well as an audio line-in for NDI|HX streams.

Key Features

  •     1/2.8" HD CMOS Sensor
  •     20x Optical Zoom, 10x Digital Zoom
  •     HDMI & 3G-SDI Video Output, PoE Power
  •     Supports NDI|HX via LAN Connector
  •     Streaming Protocols: RTSP, RTMP, SRT
  •     RS-232/RS-485 Serial Control
  •     Onvif, VISCA over IP, VISCA, PELCO-D/P
  •     Tripod & Optional Wall/Ceiling Mounting

The integrated f/1.6 to 3.5 lens offers 20x optical and 10x digital zoom functions. This camera supports video output via HDMI and 3G-SDI and has a LAN port for streaming via RTMP, RTSP, or ONVIF. Power this PTZ camera using the included 12 VDC adapter or via PoE. Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness, and 2D/3D Noise Reduction provide precision control of your images.

Features

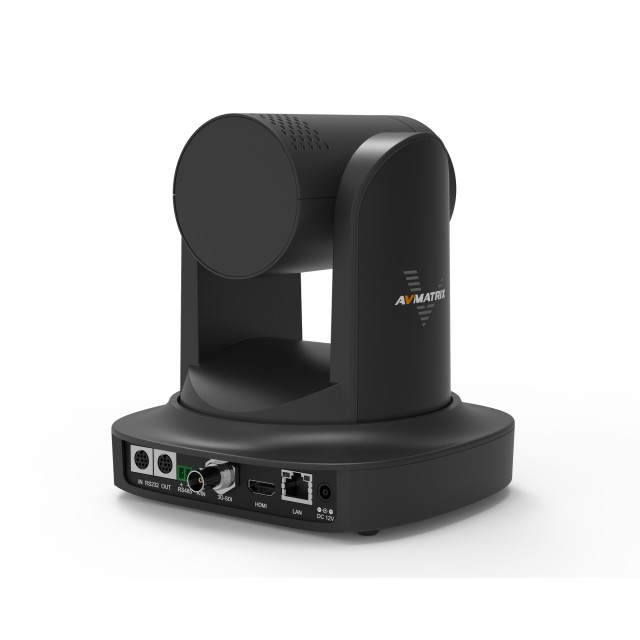

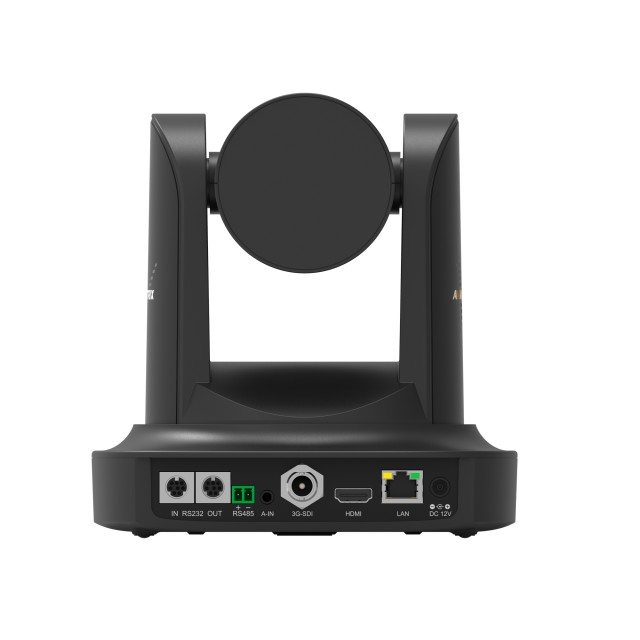

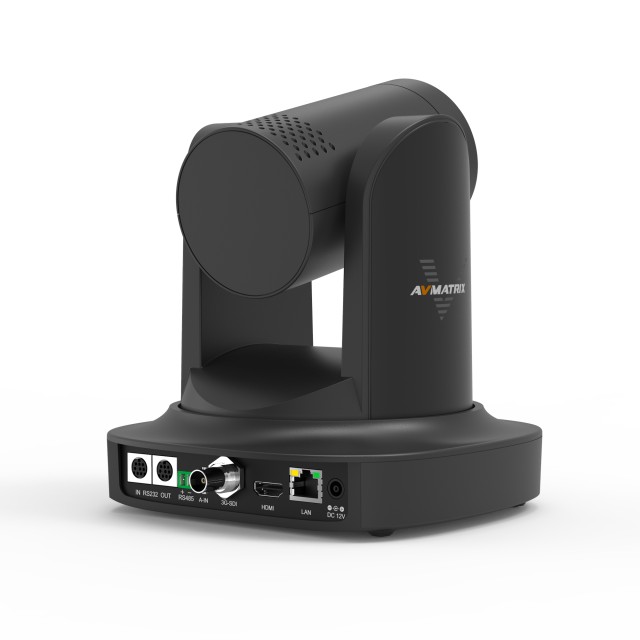

  • HDMI, 3G-SDI, and LAN video outputs
  • Supports up to 1080p video via HDMI and 3G-SDI
  • Built-in f/1.6 to 3.5 aperture lens with 20x optical and 10x digital zoom
  • Select up to 255 presets; up to 10 via included remote controller
  • A 1/4"-20 thread on the camera bottom can be used for mounting on a tripod, and an optional wall/ceiling mounting bracket is available
Parameters

Parameters

Manufacturer: AVMATRIX
Category: PTZ

Main parameters

Camera Sensor size1/2,8"
ResolutionFull HD
Streaming service typesYouTube Live
Streaming service typesFacebook Live
Streaming service typesUSTREAM
Streaming service typesWOWZA
Streaming service typesRTMP
Zoom20x
Internal RecordingNo
Type of bayonetintegrated lens
OutputHDMI
OutputSDI
OutputNDI
OutputRTMP
Output3G SDI
OutputHD-SDI

Other parameters

VersionPTZ
FPSHD 60fps
FPSHD 50fps
Lens lens aperture1.6f
Min. focal length5.5mm
Max. focal length110mm
Colour depth8 bit
Colour depth10 bit
Other featuresPTZ
Other featuresStreaming
Other featuresPoE
Other featuresNDI / NDI HX
Control protocolNDI
Control protocolPelco-P
Control protocolPelco-D
Control protocolVISCA
Control protocolONVIF
