Viltrox DC-X3 with SDI
SKU: DC-X3
The Viltrox DC-X3 is a high-brightness 6-inch touchscreen on-camera monitor designed for professional video production. With a full HD 1920x1080 resolution, 2000-nit brightness for daylight visibility, and support for HDMI and 3G-SDI input/output, it ensures precise monitoring. Features like 3D LUT import, L-series battery compatibility, and audio monitoring…
295 € with VAT
243.8 € without VAT
Availability
on request
Top accessories for Viltrox DC-X3 with SDI
K&F CONCEPT NP-F970 touch screen display direct charging battery, 10500mAh large capacity
A power block on a Sony NP-F mount with 10.500 mAh and an OLED touch screen that
73 €
In stock > 5 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
8.1 €
In stock 3 pcs
Tilta Battery Charger for L-Series/NP-F (2 Channel) - Green
A flat two-channel Tilta charger for Sony L-Series / NP-F batteries and compatible
18 €
In stock 5 pcs
Infinitek L-3C2VS Flexible SDI BNC Cable (Yellow) 1m
Canare L-3C2VS YEL BNC (M-male) / BNC (M-male) 1m
12 €
In stock 3 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
To be sent 2 pcs
Infinitek L-3C2VS Flexible SDI BNC Cable (Yellow) 2m
Canare L-3C2VS YEL BNC (M-male) / BNC (M-male) 2m
14 €
To be sent 2 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

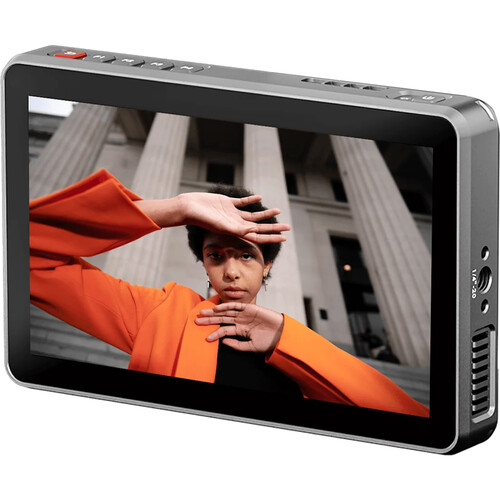

The Viltrox DC-X3 is a high-brightness 6-inch touchscreen on-camera monitor designed for professional video production. With a full HD 1920x1080 resolution, 2000-nit brightness for daylight visibility, and support for HDMI and 3G-SDI input/output, it ensures precise monitoring. Features like 3D LUT import, L-series battery compatibility, and audio monitoring enhance its versatility for filmmakers.
RELIABLE VIEWING EVEN OUTDOORS
VILTROX DC-X3
A 6-inch Full HD touchscreen monitor with 2,000 nits of brightness for working in direct sunlight and in demanding production environments. The DC‑X3 combines HDMI and 3G‑SDI inputs and a pass-through output in a compact aluminum body.
Features such as waveform, histogram, zebra, peaking, and the ability to import custom 3D LUTs bring precise image control directly to the camera position.
6″ FullHD 2,000nits HDMI + 3G-SDI

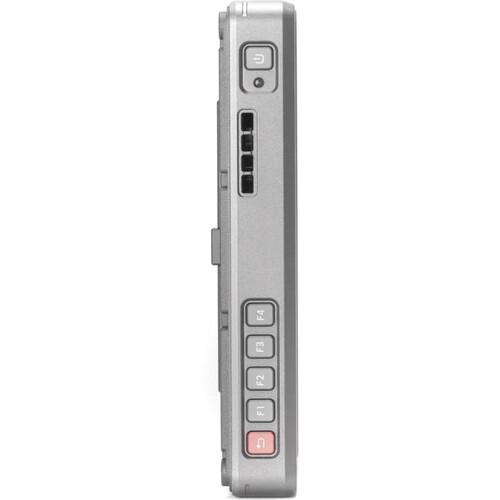

TOUCH CONTROL AND QUICK KEYS
The full-screen touchscreen and programmable shortcuts allow you to quickly access the tools that are essential during a shoot. A resolution of 1920 × 1080, a 60 Hz refresh rate, and a wide 160° viewing angle make it easy to accurately assess focus and composition.
2,000 NITS FOR DAYLIGHT
High brightness of 2000 nits helps maintain a readable preview even outdoors. The IPS panel covers 100% ±3% sRGB/Rec.709, so the monitor can be used for continuous color and exposure checks right on set.
HDMI AND 3G-SDI IN ONE MONITOR

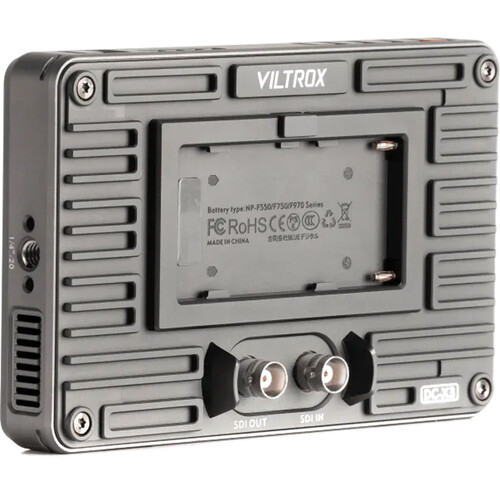

The DC‑X3 offers both HDMI and 3G‑SDI inputs and outputs and supports signals up to 4K at 30 Hz. This makes it easy to integrate into a camera chain with both HDMI and SDI devices; a 3.5mm headphone output enables audio monitoring.
PACKAGE CONTENT
- 1× Viltrox DC-X3 monitor
- 1× hard carrying case
- 1× ball head for mounting
- 1× NP-F550 battery
- 1× quick-release lens hood
- 1× screen protector
- 1× HDMI cable
- 1× Mini HDMI cable
- 1× USB-C cable
- 1× user manual and warranty card
SPECIFICATIONS
- Display size: 6″ IPS, touchscreen
- Resolution: 1920 × 1080 (Full HD)
- Aspect ratio: 16:9
- Brightness: 2000 nits
- Contrast ratio: 1000:1
- Refresh rate: 60 Hz
- Viewing angle: 160°
- Color gamut: 100% ±3% sRGB/Rec.709
- Input: HDMI, 3G-SDI
- Output: HDMI, 3G-SDI
- Supported signal: up to 4K at 30 Hz
- LUT import and updates: USB
- Audio output: 3.5mm headphone jack
- Power: DC 12–18 V / 2 A, USB-C ≥9 V / 3 A, NP-F battery

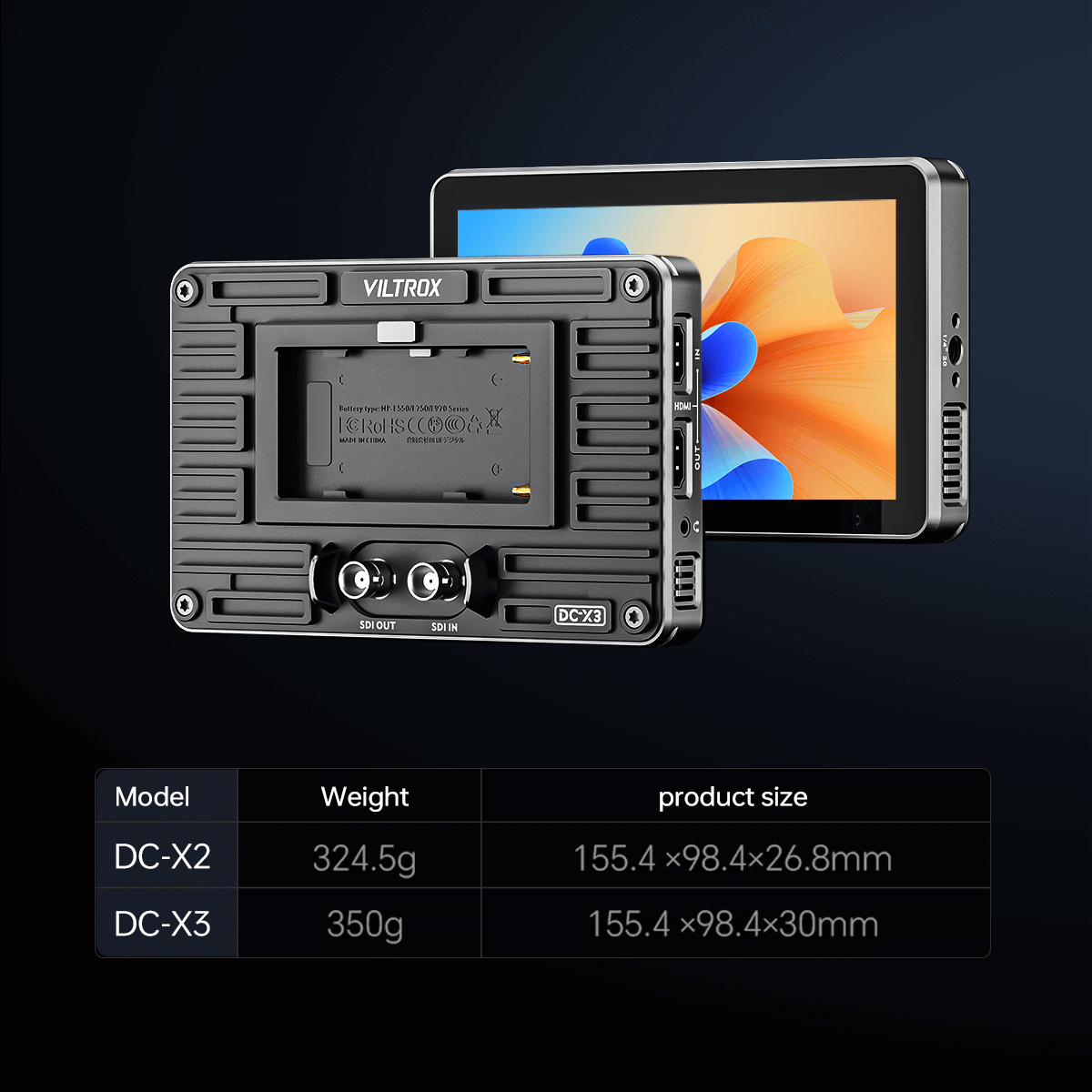

- Dimensions: 155.4 × 98.4 × 30 mm
- Weight: approximately 350 g
- Manufacturer model: DC-X3
WE RECOMMEND
The Viltrox DC-X3 is a professional 6-inch monitor with a high brightness of 2000 nits and SDI/HDMI support, making it ideal for demanding outdoor shoots. Reliable power from NP-F series batteries and a stable mount within the camera rig are essential for its operation.
Power and Batteries - The monitor is fully compatible with NP-F (L-series) batteries, which ensure long battery life during field work.
Tripods and Stabilization - High-quality tripods allow for stable placement of the monitor or the entire camera setup for precise image monitoring.
Lighting and Accessories - Additional LED lights and accessories help achieve ideal lighting conditions for monitoring on the screen.
- Viltrox Weeylite RB08 Mini Bi-Color Portable Light
- Viltrox Weeylite RB10 RGB Light
- Viltrox Weeylite RB9 (RGBW portable full-color dimmable LED light with built-in battery)
- VILTROX L116T RA CRI 95+ Super Slim LED Light Panel, 50W Bi-Color 3300K-5600K
- Viltrox VP-45 Softbox
- Viltrox Weeylite S03-B 4W Mini LED Light 2800-6800K (Blue)
- Viltrox Weeylite Full-Color RGB LED Panel WP35
- Viltrox S05 Blue
- Viltrox K60 2-Piece Kit
- Viltrox K60
Parameters
| Manufacturer: | Viltrox |
| Category: | Camera monitors |
Main parameters
| Size | 6" |
| Monitor inputs | HDMI · 3G-SDI |
| Luminosity | 2000cd/m2 |
| Panel resolution | 1920 × 1080 (Full HD) |
| For monitor | On-camera monitoring for filmmaking |
| Monitor power supply | Sony NP-F · USB-C · DC 12-18 V |
Other parameters
| Other features | Lightweight · Touchscreen · 3D LUT correction |
| High Brightness (NITS) | Yes |
