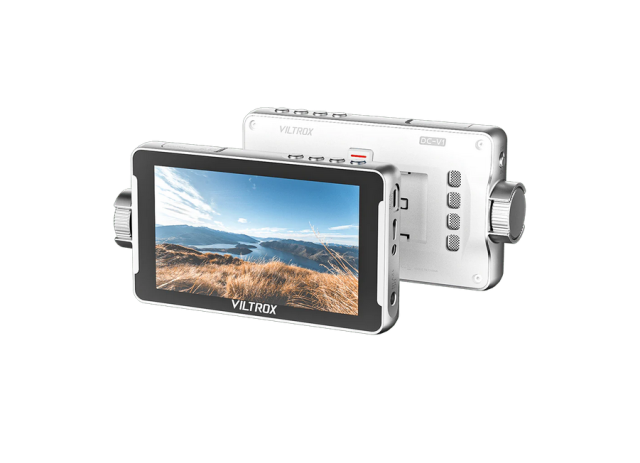

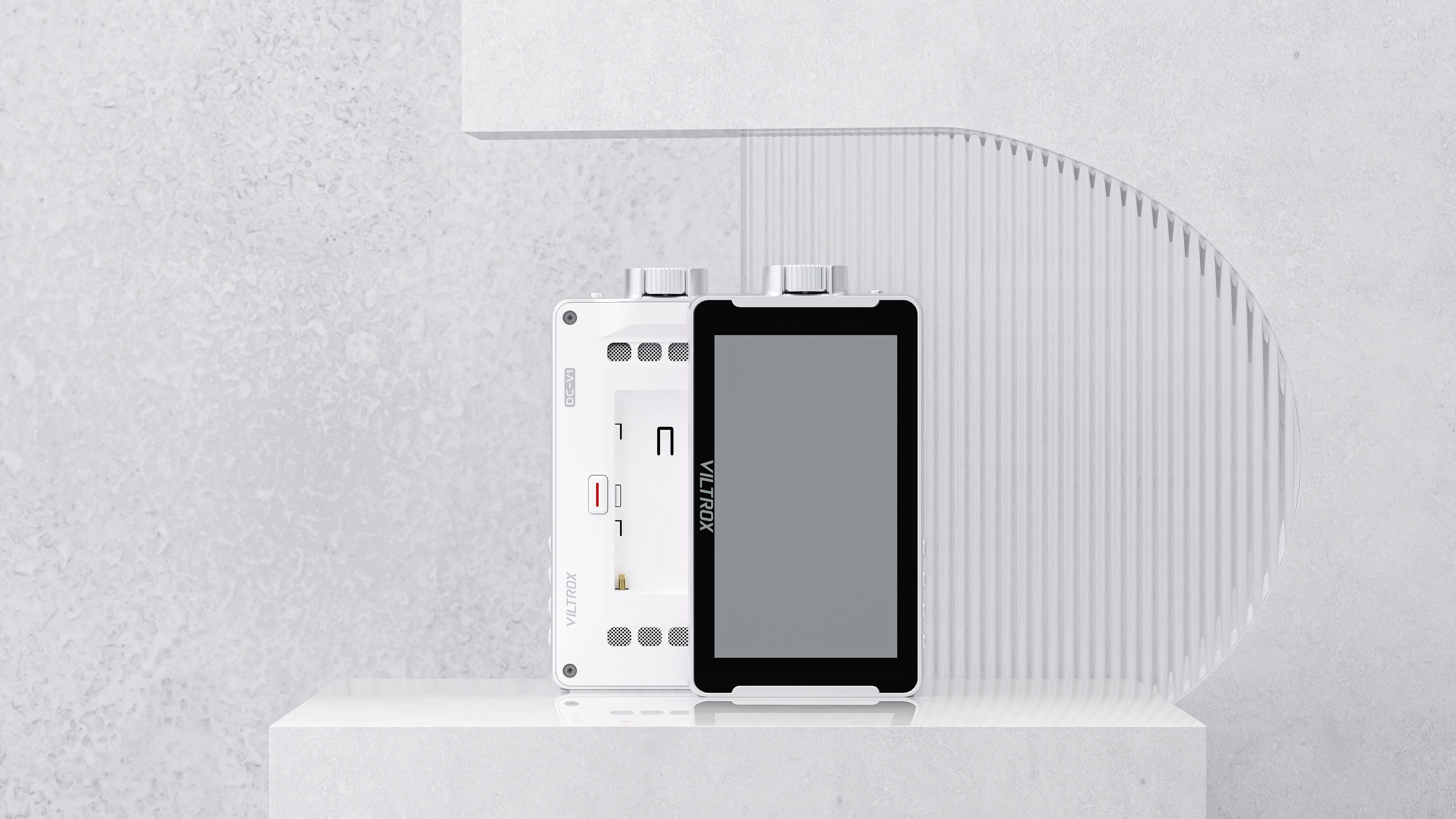

Viltrox DC-V1

PROFESSIONAL IMAGE MONITORING

The Viltrox DC-V1 is a lightweight, high-performance 5.5-inch Full HD IPS monitor designed for professional video monitoring. With a resolution of 1920 × 1080 pixels, a contrast ratio of 1000:1, and a wide viewing angle of 160°, it delivers accurate colors with 100% sRGB/Rec.709 color accuracy. A pixel density of 400 PPI ensures a sharp and detailed image, while 8-bit color depth provides smooth transitions.

This monitor is equipped with advanced monitoring tools, such as waveforms, peak focus accuracy, and 3D LUT support, giving filmmakers full control over image quality. The intuitive touchscreen interface and programmable hotkeys enable an efficient workflow. The monitor supports HDMI input and output, 12–18 V DC or Type-C 5 V/3 A power, and NP-F series batteries, making it highly versatile for on-the-go shooting.

Key Features:

• 5.5-inch IPS display with Full HD resolution: 1920x1080 resolution with 100% sRGB/Rec.709 for accurate color reproduction.
• Very lightweight and portable: Weighing just 292.8 g, it’s ideal for handheld shooting.
• Support for waveforms and 3D LUTs: Essential tools for precise image control and color grading.

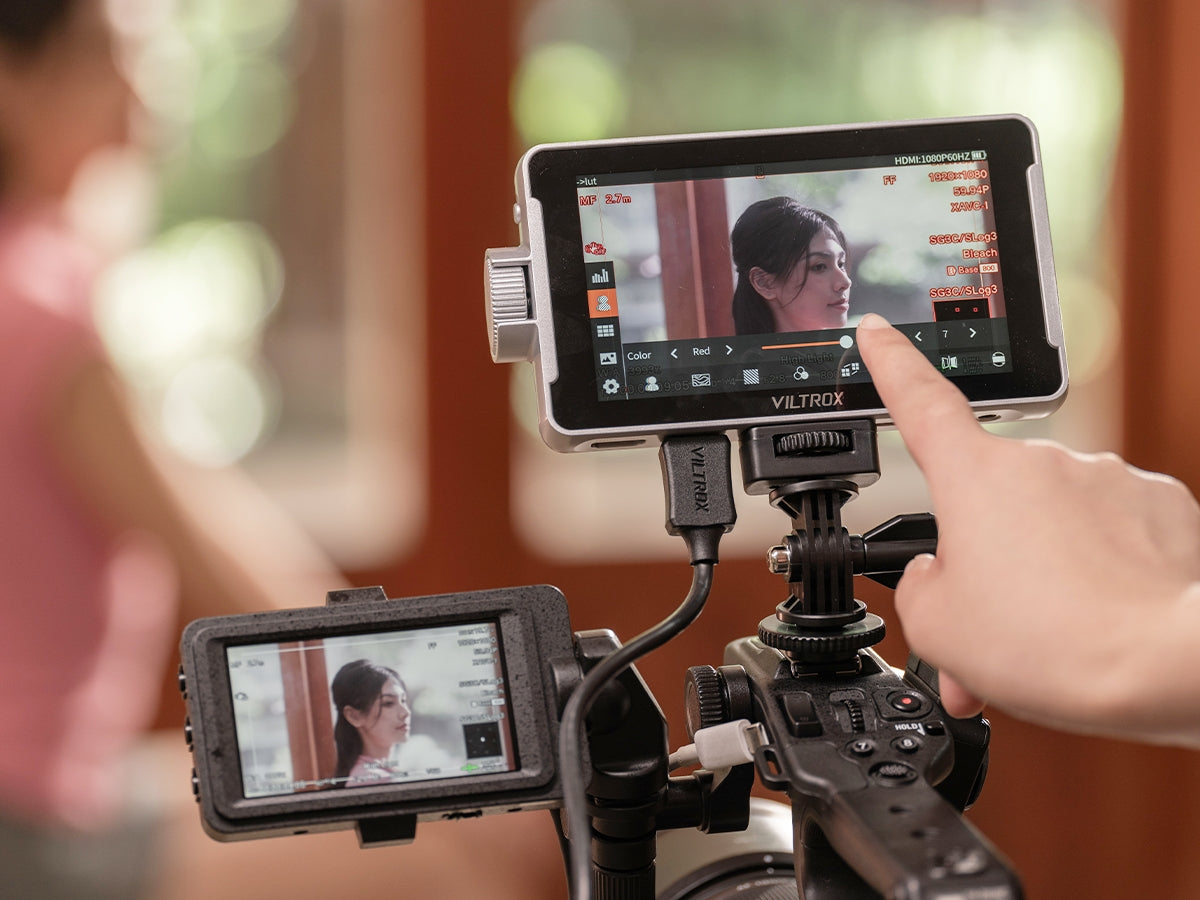

• Intuitive touchscreen: An easy-to-use interface with programmable shortcut buttons for efficiency.
• Versatile connectivity and power options: HDMI input/output, 12–18V DC, Type-C 5V/3A, and NP-F battery compatibility.

Specifications: Suitable for use in households with multiple devices:

• Screen size: 5.5-inch IPS touchscreen
• Resolution: 1920x1080 pixels
• Contrast ratio: 1000:1
• Refresh rate: 1.5 frames: 60 Hz
• Viewing angle: 160°
• Pixel density: 400 PPI
• Color depth: 8 bits
• Input/Output Interface: HDMI
• Audio output: HDMI; 3.5mm headphone jack
• Power supply: DC 12–18 V / Type-C 5 V–3 A / NP-F series battery
• Dimensions: 165 × 91 × 28.5 mm
• Weight: 292.8 g
• Storage temperature: 0°C–75°C
