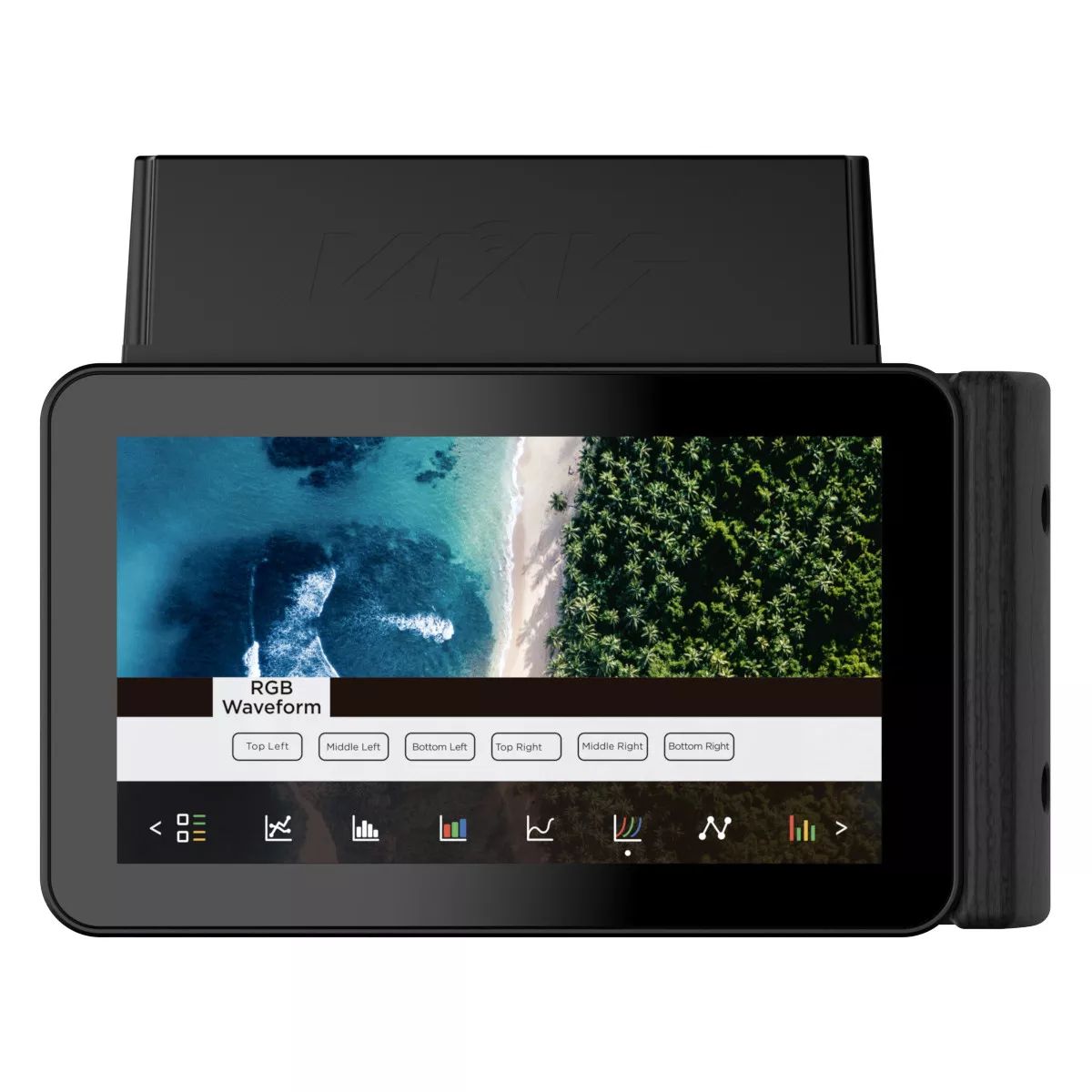

Vaxis Storm 058 Pro Wireless 5.5” HD Monitor (V-Mount)

Storm 058 is a wireless monitor compatible with all Storm transmitters, and featuring a daylight-viewable 5.5” touch screen with 1500 cd/m2 brightness, 178° viewing angle and 1080 resolution. The monitor can be powered bu V-Mount batteries, and can work with all Storm transmitters with up to 200m transmission range and near-0 latency (less than 1 ms); one TX can simultaneously communicate with 20 monitors (20 channels). It is compatible with up to 1080p60 signal (no compression), and is equipped with a wide range of monitoring featues incl. 3D LUT, RGB Histogram, Waveform Display, Vectorscope, Display Flip, Peaking, Zebra, False Color, Safe Area, Anamorphic Display, Grid, Audio Meters etc.

More information

Call us for pricing information
Availability
new product, yet unavailable
Manufacturer
SKU:
VS22-058-PRO-R01
Add to Compare
Product description

Product description

Storm 058 is a wireless monitor compatible with all Storm transmitters, and featuring a daylight-viewable 5.5” touch screen with 1500 cd/m2 brightness, 178° viewing angle and 1080 resolution. The monitor can be powered bu V-Mount batteries, and can work with all Storm transmitters with up to 200m transmission range and near-0 latency (less than 1 ms); one TX can simultaneously communicate with 20 monitors (20 channels). It is compatible with up to 1080p60 signal (no compression), and is equipped with a wide range of monitoring featues incl. 3D LUT, RGB Histogram, Waveform Display, Vectorscope, Display Flip, Peaking, Zebra, False Color, Safe Area, Anamorphic Display, Grid, Audio Meters etc.

PACKAGE CONTENT


1x Storm 058 Monitor
1x Power Cable (D-Tap to 2-pin LEMO)
1x Lanyard
1x Flight Case

SPECIFICATIONS


Receiver Transmission Range: 200m (LoS)
Receiver Bandwidth: 40 MHz
Receiver Antenna: Built-in
Receiver Sensitivity: -70 dBm
Video Formats: 1080p(23,98, 24, 25, 30, 50, 60), 1080PsF(23,98, 25, 25), 1080i(50, 59,94, 60), 720p(50, 59,94, 60), 579p, 576i, 480p, 480i
Audio Formats: PCM
Monitor Resolution: 1920x1080
Monitor Brightness: 1500 cd/m2
Monitor Contrast: 1000:1
Monitor Viewing Angle: 178° H/V
Power Requirements: 7-36 V=, 15W
Temperature Range: -10 – 50C (Operating), -40 – 80C (Storage)

Parameters

Parameters

Manufacturer: Vaxis
Category: Wireless video transmission

Main parameters

LatencyZero delays
