Vaxis Storm 1000 RX

The Vaxis Storm 1000 RX receiver adds another monitoring position to a Storm system. It receives up to 1080p60 with under 1 ms latency from up to 350 m, outputs it on two SDI and runs on a V-Lock battery or 7–36 V.

Storm 1000 RX is a stand-alone receiver for the Vaxis Storm 1000 wireless system. Use it as an extra receiver for the director or client, or as a replacement in a kit. It receives the image with practically no delay over up to 350 m and outputs it on two SDI BNC connectors.

One more receiver for Storm 1000

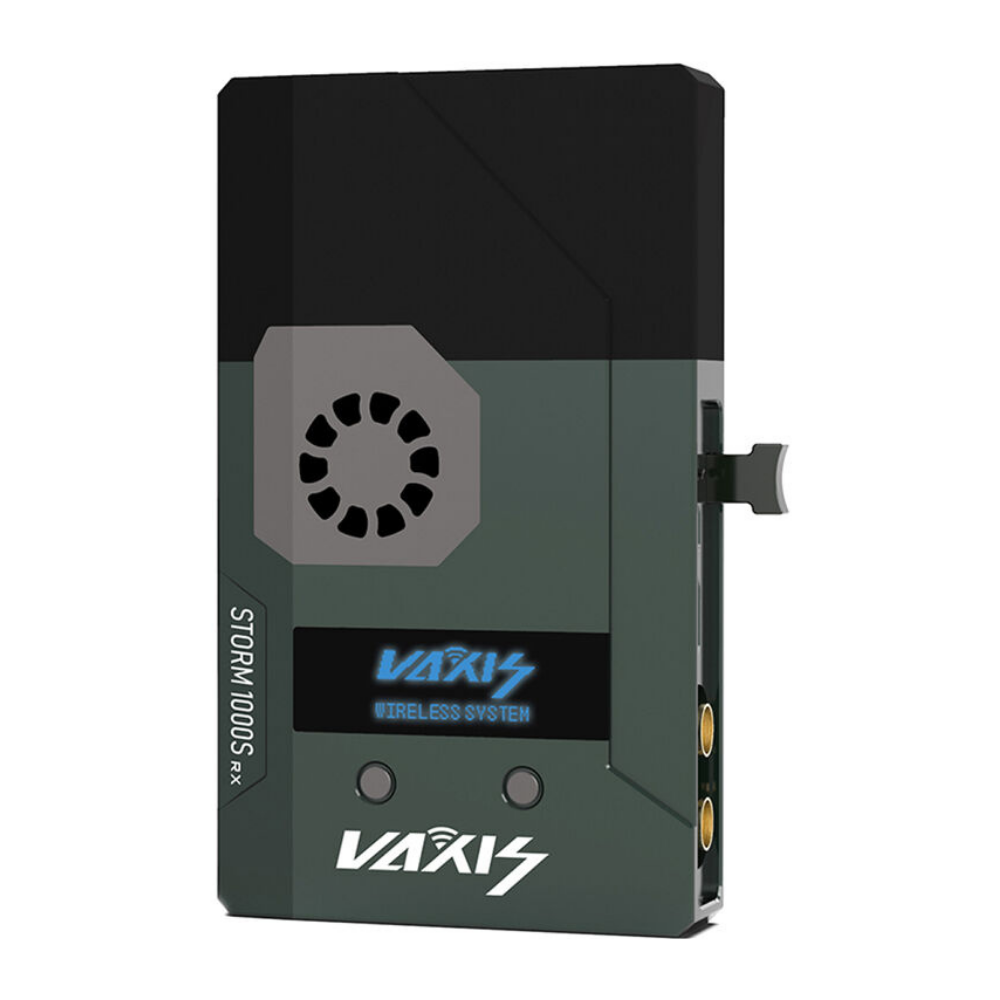

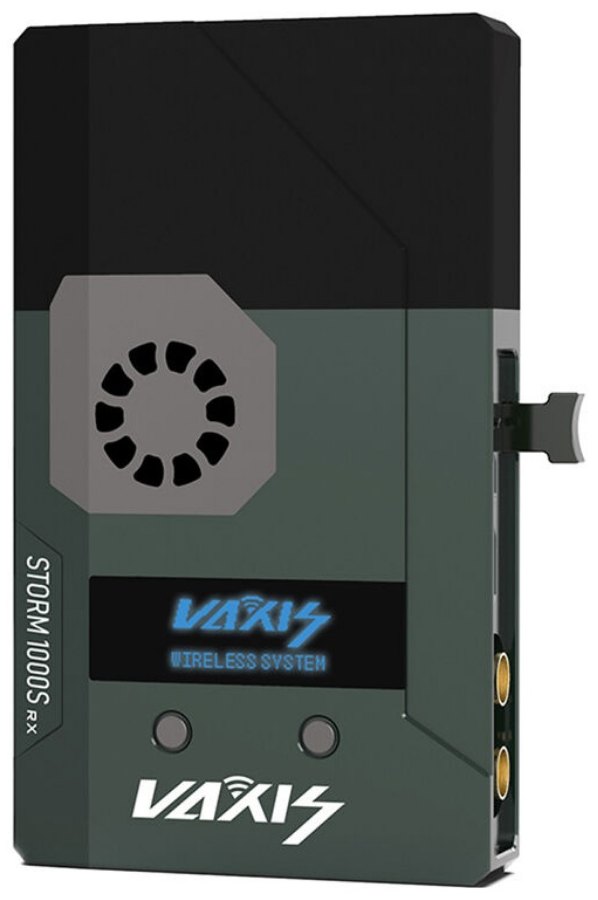

Compact receiver with integrated V-Lock battery plate, built-in antenna and two SDI outputs.

Up to 350 m rangeUnder 1 ms latency2× SDI outputV-Lock plate7–36 V

Power as needed

The receiver runs on a V-Lock battery in the integrated plate, via 2-pin LEMO (7–36 V) or micro-USB.

No extra antennas

The antenna is built into the receiver body, so nothing sticks out or snaps off.

The picture where it is needed

Every extra receiver means one more person who sees the camera image in real time – focus puller, director, gaffer or client. Storm 1000 RX does it without cables.

Formats

1080p23.98–60, 1080i50/60, 1080PsF, 720p50/60, 576p60.

Channel width

20 or 40 MHz.

Operating temperature

0–40 °C.

Dimensions

133.5 × 91.5 × 24 mm.
