Vaxis ATOM A5 SDI MONITOR PROFESSIONAL PACKAGE

Professional package with two Vaxis Atom A5 SDI wireless monitors: a 5.5″ Full HD touchscreen at 2000 nits that both receives and transmits up to 1000 ft. SDI and HDMI inputs, microSD recording and 3D LUTs. Tripod and case included.

More information

1 209 € with VAT 999.17 € without VAT
-+
Availability
on request
SKU:
VA23-A5-SDI-TR03
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Professional package with two Vaxis Atom A5 SDI wireless monitors: a 5.5″ Full HD touchscreen at 2000 nits that both receives and transmits up to 1000 ft. SDI and HDMI inputs, microSD recording and 3D LUTs. Tripod and case included.

Atom A5 SDI combines a bright on-camera monitor with a wireless transmitter and receiver in one body. By switching between TX and RX modes one monitor sends the camera image and the other receives it within the ATOM ecosystem up to 1000 ft (300 m). The 2000-nit display is readable in daylight, and CINE OS offers 3D LUTs and scopes.

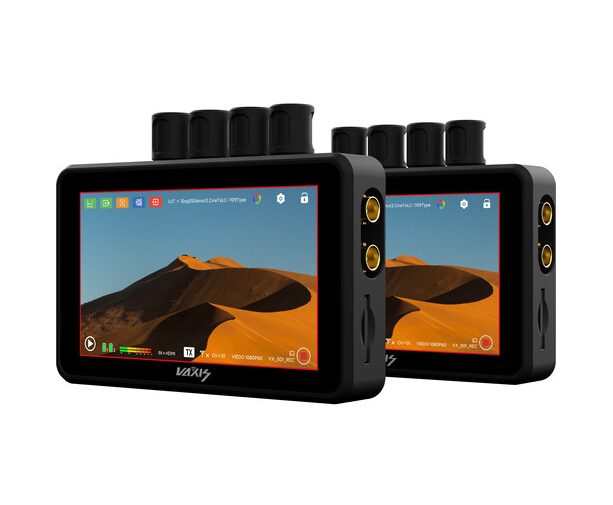

Two monitors, one system

Two Atom A5 SDI monitors with tripod, strap and carrying case.

2000-nit brightnessUp to 1000 ft rangeTX and RX modesmicroSD recordingSDI and HDMI

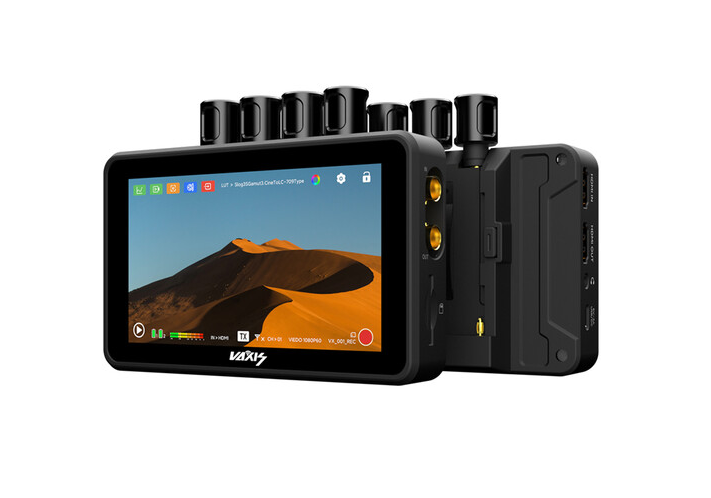

Transmitter, receiver and monitor

On camera the monitor displays the image and transmits it at the same time; at video village another A5 or an ATOM receiver picks it up. SDI and HDMI inputs have loop outputs.

Recording and trigger

The monitor records MP4 proxies to microSD, and timecode sync with camera record trigger keeps the clips aligned.

CINE OS for precise work

Up to 50 stored 3D LUTs, waveform, vectorscope, histogram and peaking help set exposure, colour and focus right on set.

Display

5.5″, 1920 × 1080, 1200:1 contrast, touch.

Power

Dual L-series (NP-F) battery plate.

Antennas

Swappable antennas for better range.

ATOM ecosystem

Works with ATOM 500 and 600 systems.

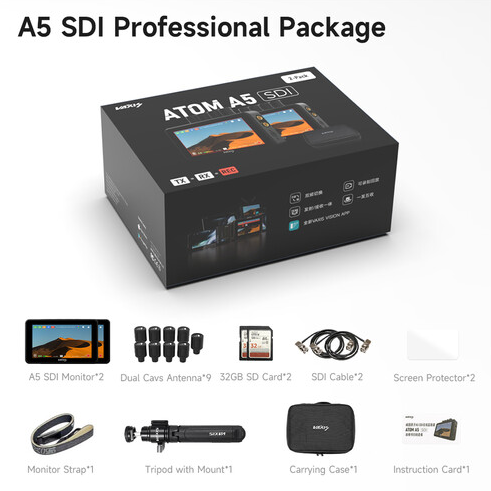

PACKAGE CONTENT

  • Atom A5 SDI monitor ×2
  • Antenna ×9 (4 per monitor + 1 spare)
  • 32 GB SD card ×2
  • SDI cable ×2
  • Screen protector ×2
  • Monitor strap ×1
  • Extendable tripod with monitor mount ×1
  • Carrying case ×1

SPECIFICATIONS

  • Brand: Vaxis
  • Model: Atom A5 SDI Professional Package, VA23-A5-SDI-TR03
  • Display: 5.5″ LCD, 1920 × 1080, touch, 2000 nits, 1200:1 contrast
  • Wireless range: 1000 ft / 300 m (line of sight)
  • Video I/O: 3G-SDI in, HDMI in, 3G-SDI and HDMI loop out
  • Formats: 1080p up to 60 fps, 1080i, 720p
  • Audio: 3.5 mm headphone out
  • Recording: MP4 proxy to microSD
  • LUTs and tools: up to 50 3D LUTs, waveform, vectorscope, histogram, peaking
  • RF power: 17 dBm
  • Power: dual L-series (NP-F) battery plate
  • Mounting: 1/4″-20 thread on the bottom
  • Dimensions: 151 × 92 × 30.5 mm
  • Weight: 360 g
  • Monitors: 2
