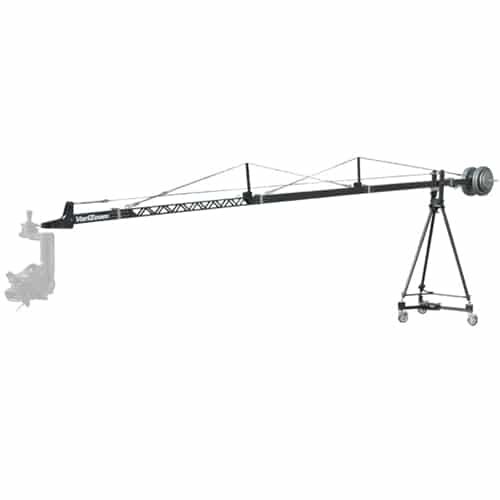

The VariZoom VZSNAPCRANE16 is a professional-grade, modular 16′ camera crane offering superior reach, stability, and precision. Featuring a fully machined TCR100 tripod, heavy-duty DCR200 dolly, and stainless steel quick-release pins with lanyards, the SnapCrane is designed for fast, tool-free setup, safe operation, and years of reliable use. Achieve smooth, cinematic camera movements with up to 18′ vertical height and a 30 lb camera capacity.
The VZSNAPCRANE16 represents the pinnacle of VariZoom’s professional camera crane line, designed for filmmakers who demand long reach, uncompromising stability, and modular flexibility. The SnapCrane’s lightweight, truss-reinforced jib arm, dovetail joints, and cable-tensioned design ensure smooth, secure operation while minimizing air resistance. Every crane is assembled, tested, and shipped with the tripod, dolly, and carrying case, providing a turnkey solution for both studio and location shoots.

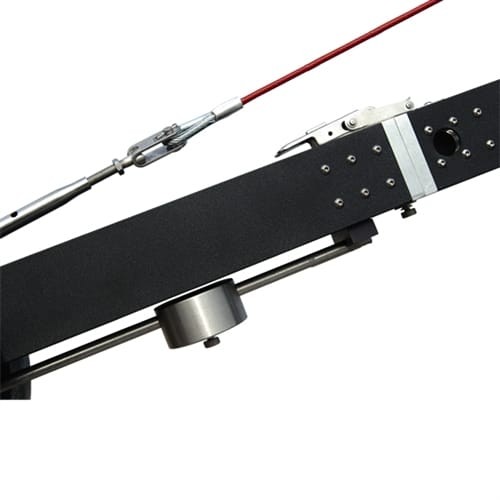

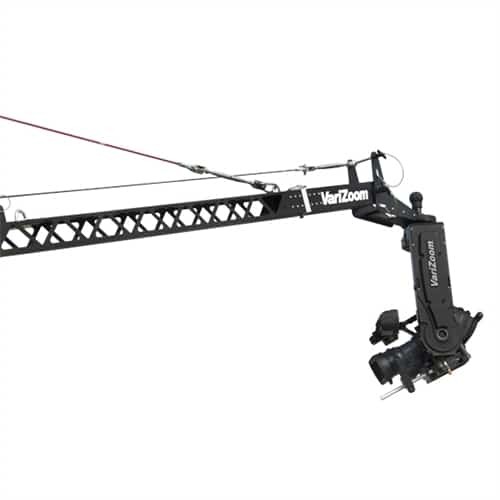

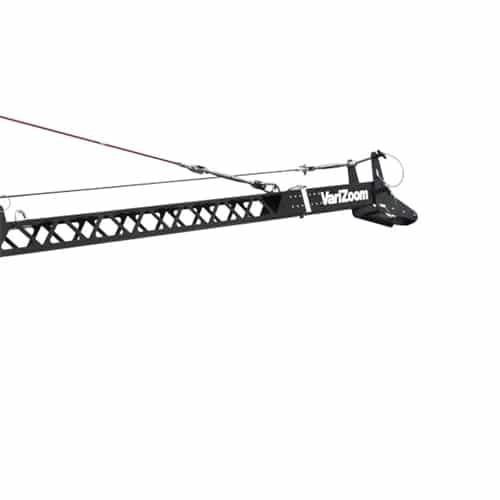

The crane arm features precision-machined sections with a truss pattern for weight reduction without sacrificing strength. The ultra-smooth, high-capacity pan/tilt base incorporates sealed bearings and oversize fasteners for a stable fulcrum, while the variable drag brake system allows fine control over camera motion. Stainless quick-release pins with lanyards and locking dovetail joints enable fast, secure, tool-free assembly. Marine-grade hardware and corrosion-resistant cables ensure long-term durability.

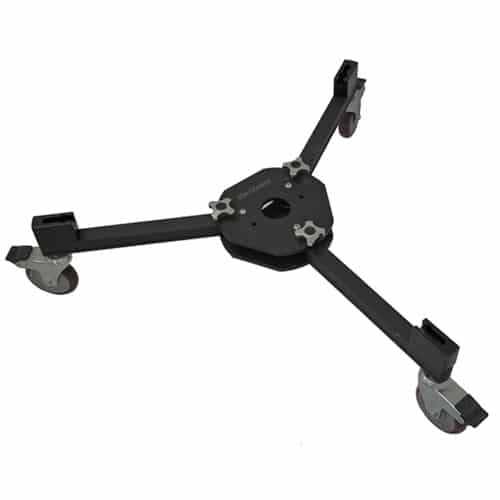

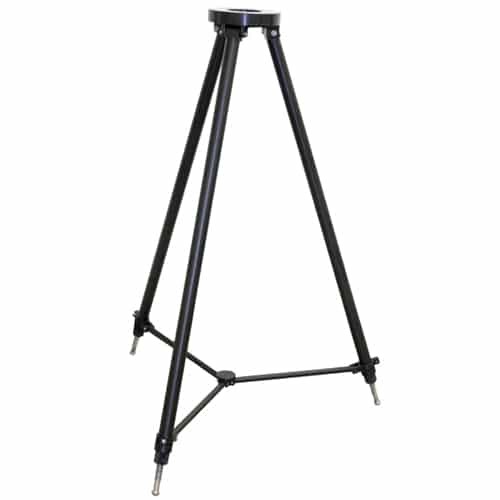

The included DCR200 dolly features solid-rubber wheels, foot brakes, and leg-locking for secure tripod capture. The TCR100 crane tripod is custom-built for maximum stability, featuring a machined baseplate, heavy-gauge tubing, and oversized leveling feet. The crane system is compatible with cameras up to 30 lbs and supports vertical movement up to 16’6″, with a maximum camera height of 18′3″.

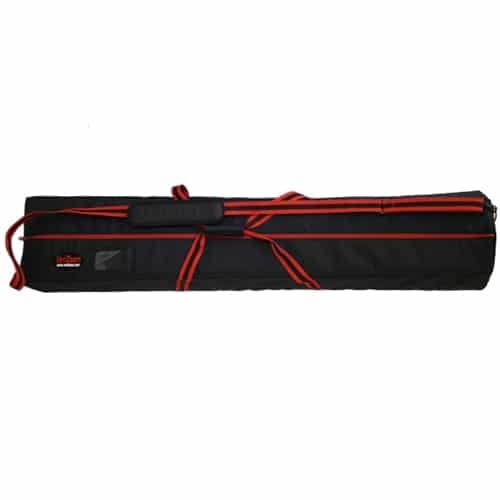

The SnapCrane16 is shipped in a padded soft case (optional hard case available) for safe, easy transport. Modular construction allows adjustment to multiple lengths, making it highly versatile for varied shooting environments.
Key Features
Professional 16′ camera crane with modular construction
Maximum camera height: 18′3″; vertical movement: 16′6″
Maximum camera weight: 30 lbs
TCR100 tripod with machined baseplate and oversized leveling feet
DCR200 dolly with outriggers and positive leg-lock system
Modular crane arm with truss reinforcement for reduced weight

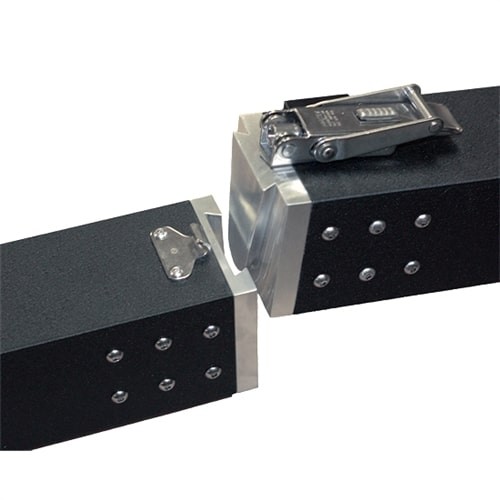

Stainless steel quick-release pins with lanyards and locking dovetail joints
Pan/tilt base with sealed bearings and variable drag brake system
Cable-tensioned design for stability and precision
Soft case included; optional rolling hard case available
Tool-free assembly and rapid setup
VZSNAPCRANE16 16′ Jib Arm
VZTCR100 Crane Tripod
VZDCR200 Dolly with outriggers
Soft Case for crane and components
Weight: 150 lbs (system) / 74.35 lbs (unit)
Dimensions: 60 × 26 × 26 in
Stored Length: 55″
Assembled Length: 18′4″
Tripod to Camera Max Reach: 15’6″
Max Camera Height: 18′3″
Vertical Movement: 16’6″
Camera Capacity: Up to 30 lbs
