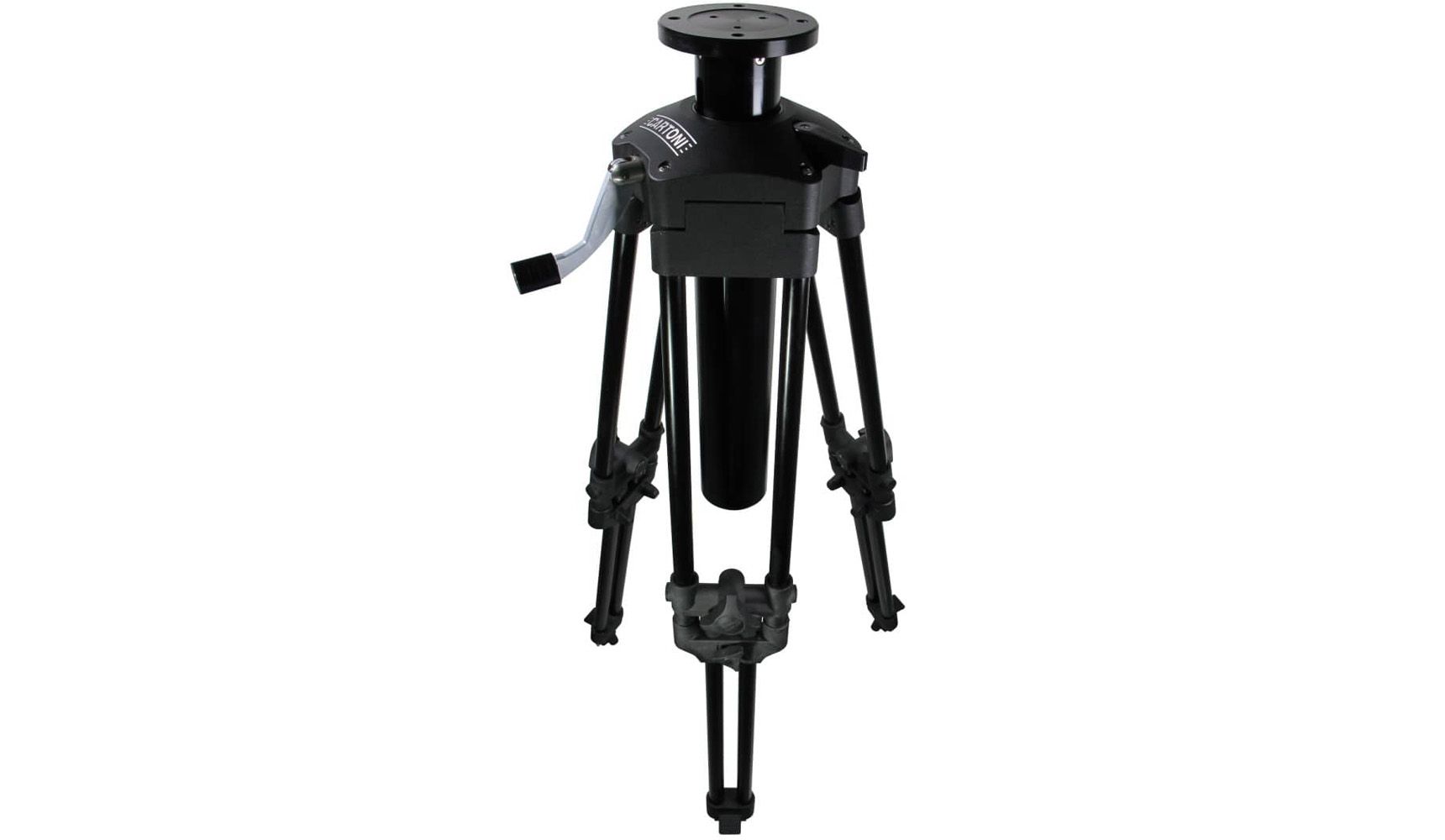

Cartoni Heavy Duty Elevation Unit Tripod

The Cartoni KT625/E Heavy Duty Elevation Unit is a 1-stage aluminum tripod with a flat platform for heads with a 4-bore-hole attachment and a load capacity of 200 kg. It works at 58–143 cm, folds to 64 cm and weighs 16.6 kg. A side crank raises the head and camera by up to 35 cm. The set also includes a Heavy Duty mid-level spreader and pivoting feet.

Pedestal height, tripod robustness

This sturdy support combines the height range of a pedestal with the robustness, fast operation and low cost of an elevation unit tripod.

200 kg load58–143 cm16.6 kgFlat platform with 4 bore holesAluminum1 stage

35 cm crank stroke

The elevation element is operated by a side crank and allows fine height adjustment with the head and camera on board. The total stroke of the elevating element is 35 cm (14″).

200 kg

Tripod load capacity – enough for heavy camera packages.

58–143 cm

Working height; 64 cm when folded.

16.6 kg

Tripod weight – aluminum 1-stage design.

4 bore holes

Flat heads mount via 4 bore holes.

Design and use

It interfaces with all flat-base heads through a 4-bore-hole attachment.

The Heavy Duty mid-level spreader and the pivoting feet make it the ideal mate for outdoor shooting with heavy cameras.
