Tilta Rotatable Mounting Bracket for DJI Focus Pro LiDAR

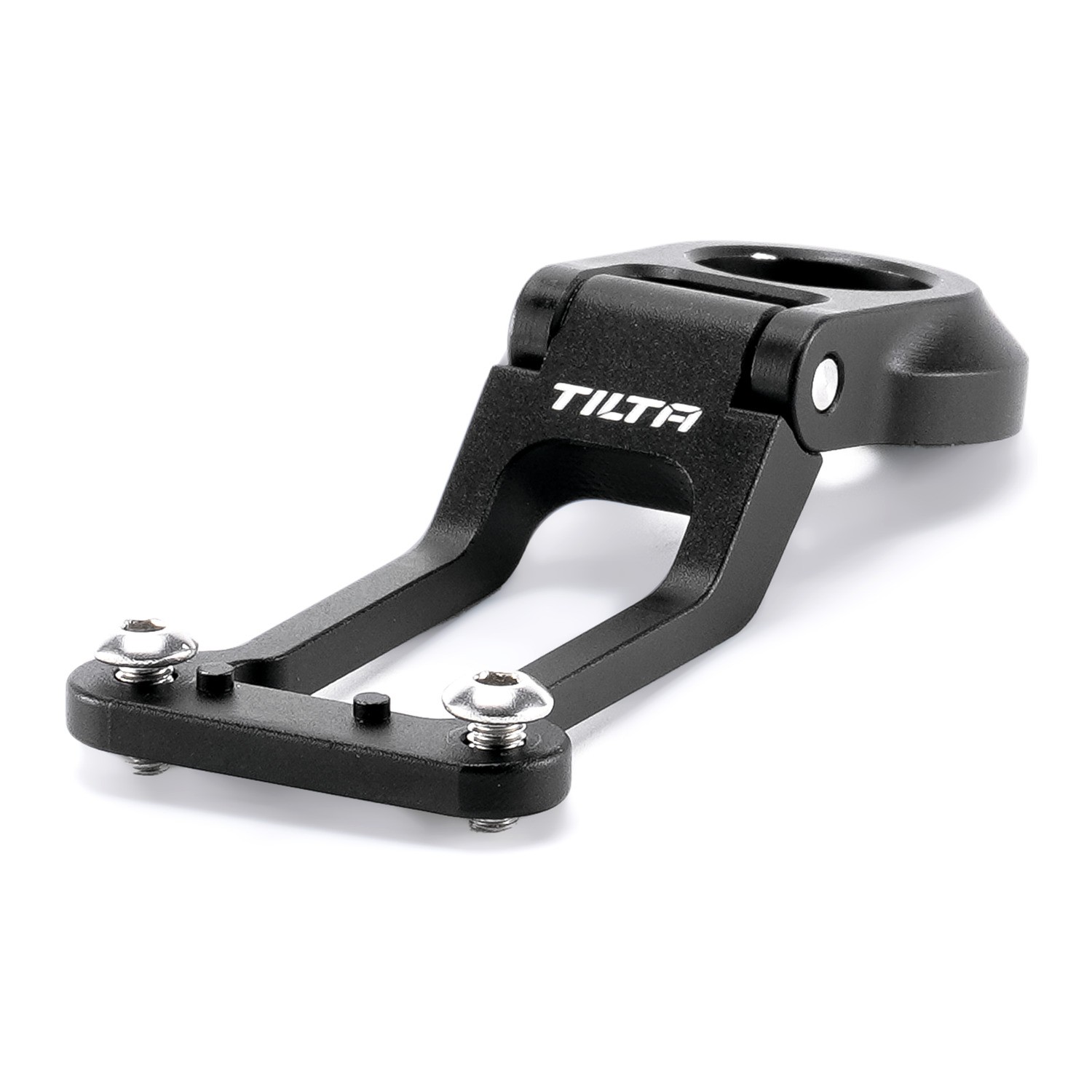

The Tilta Rotatable Mounting Bracket for DJI Focus Pro LiDAR is a twelve-gram bracket that puts the LiDAR rangefinder on a cold shoe and lets it tilt. The joint is damped and holds any position without retightening — which is the whole point: when the Focus Pro hand grip tilts, the LiDAR should stay pointing squarely at the scene. It measures 66 × 28 × 15 mm in aluminium alloy with SUS304 stainless steel.

The Tilta Rotatable Mounting Bracket for DJI Focus Pro LiDAR fixes the bottleneck of the Focus Pro system: a LiDAR aiming at nothing. The bracket sets it on a cold shoe and puts a damped joint between shoe and rangefinder, so it can be levelled regardless of how far the hand grip is tilted.

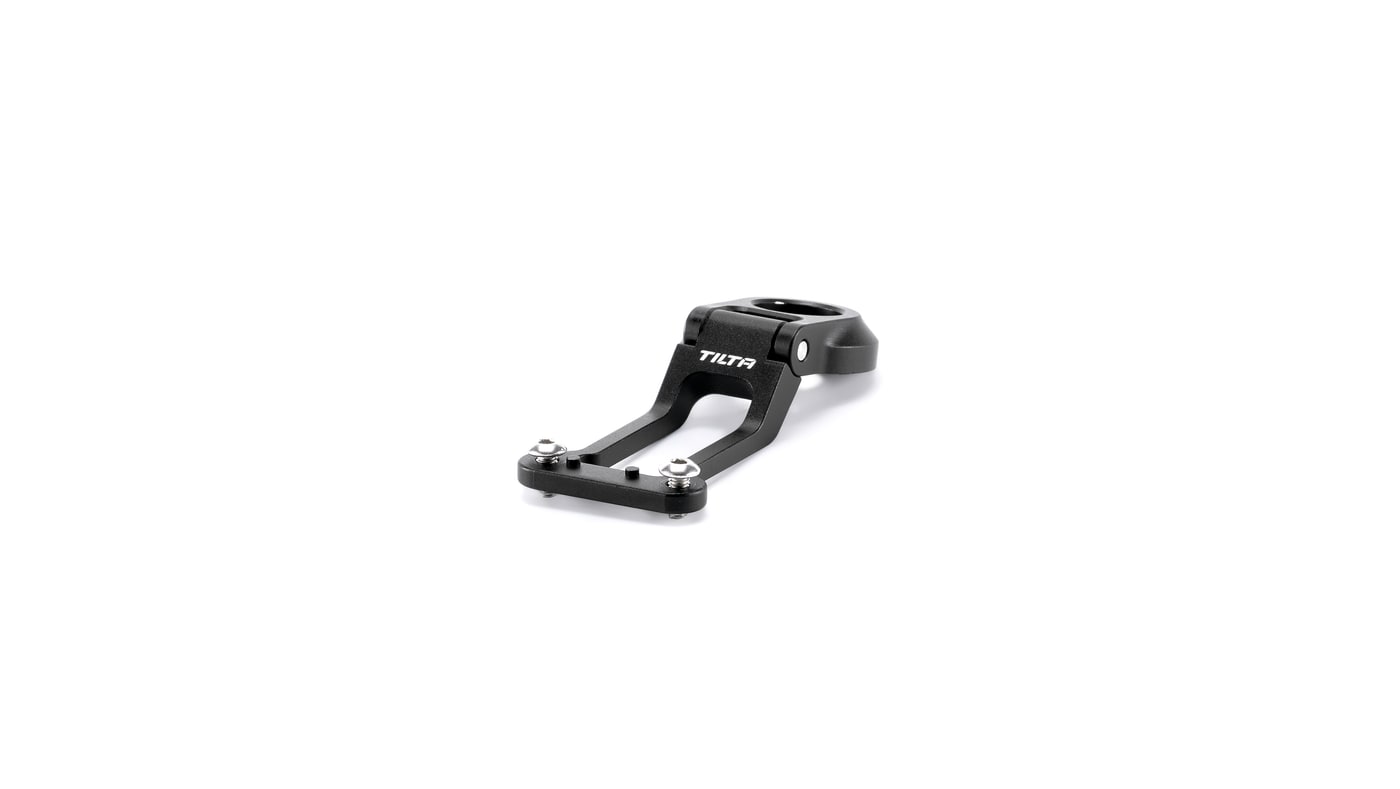

A cold shoe instead of improvising

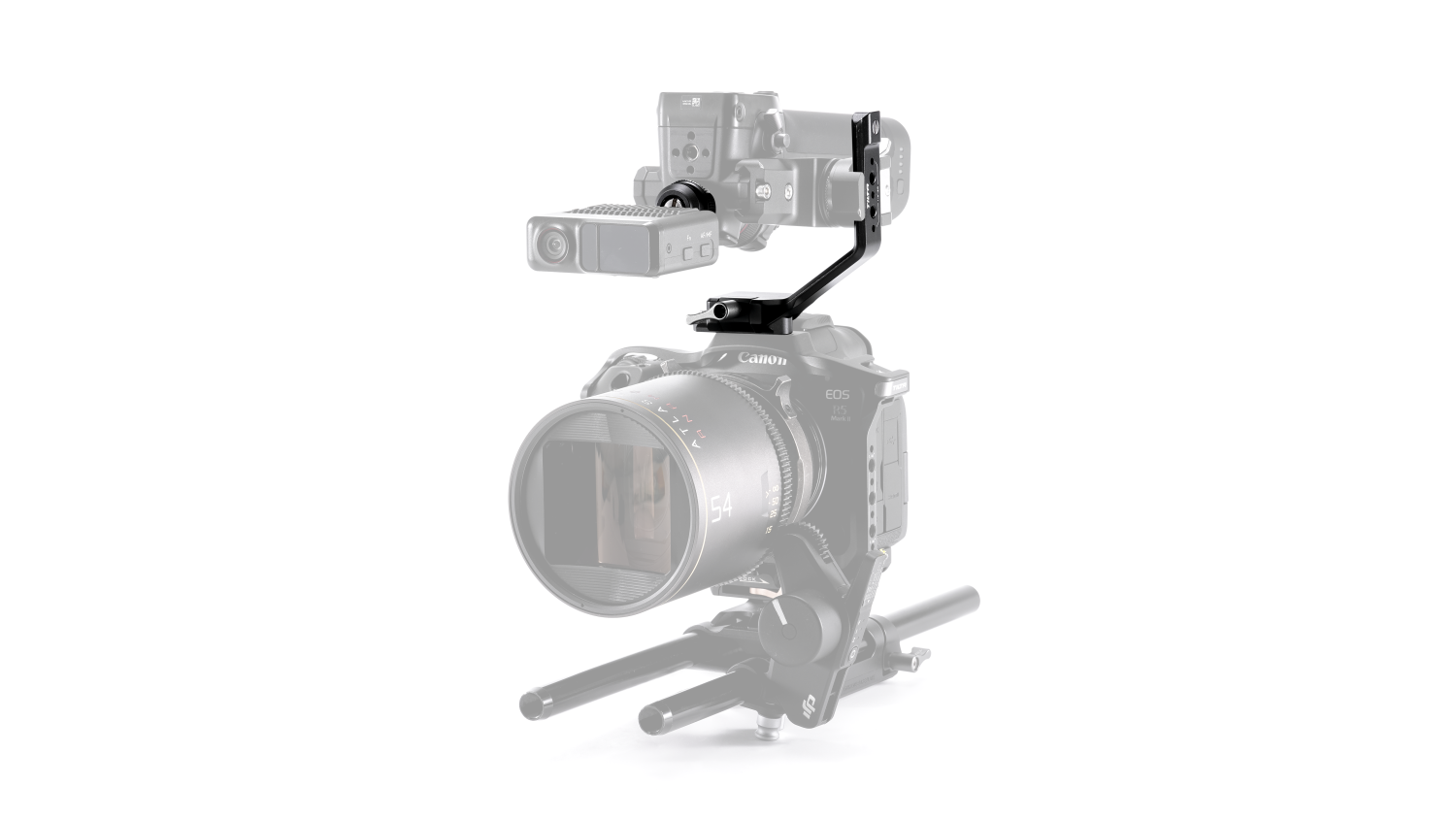

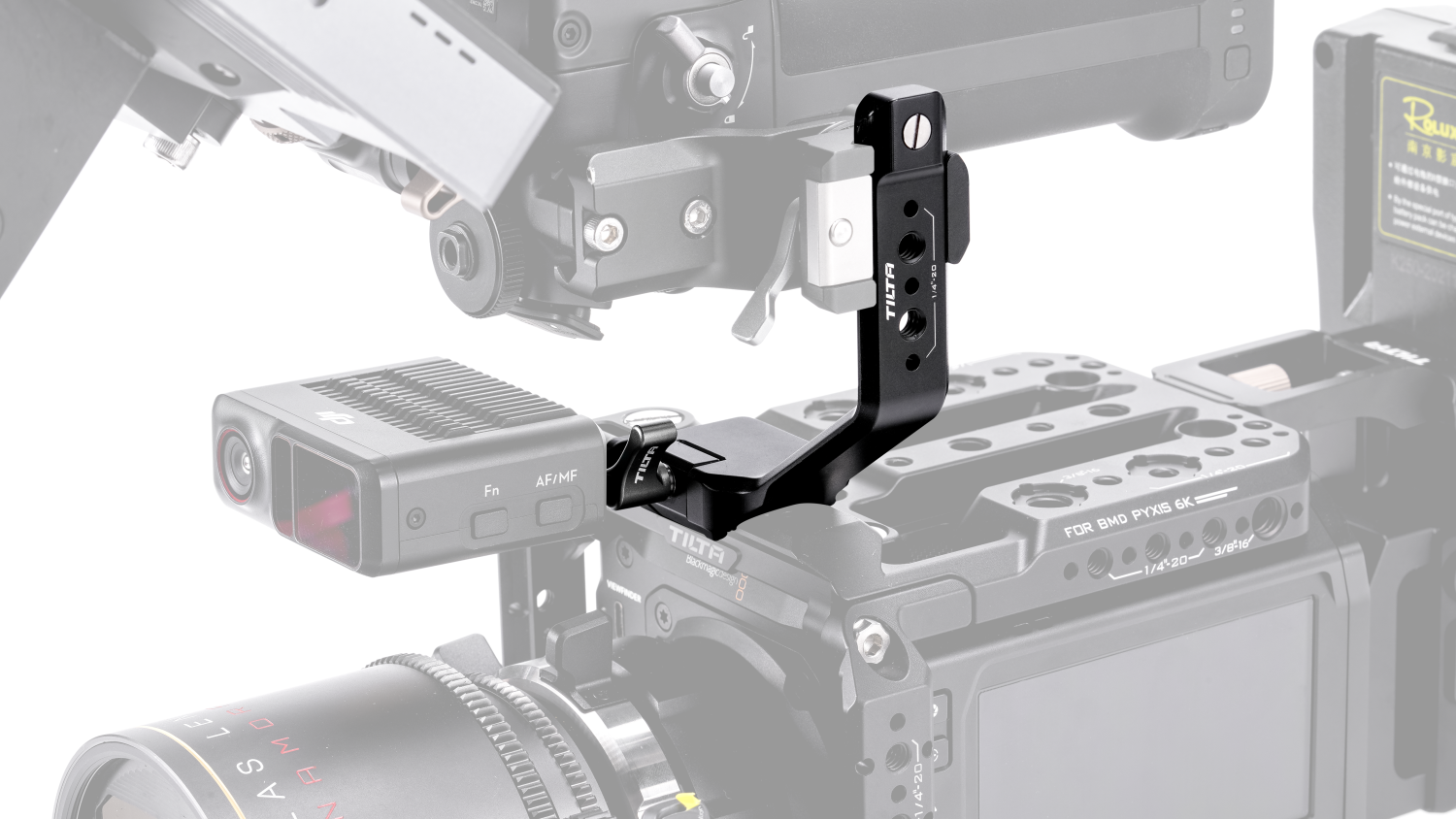

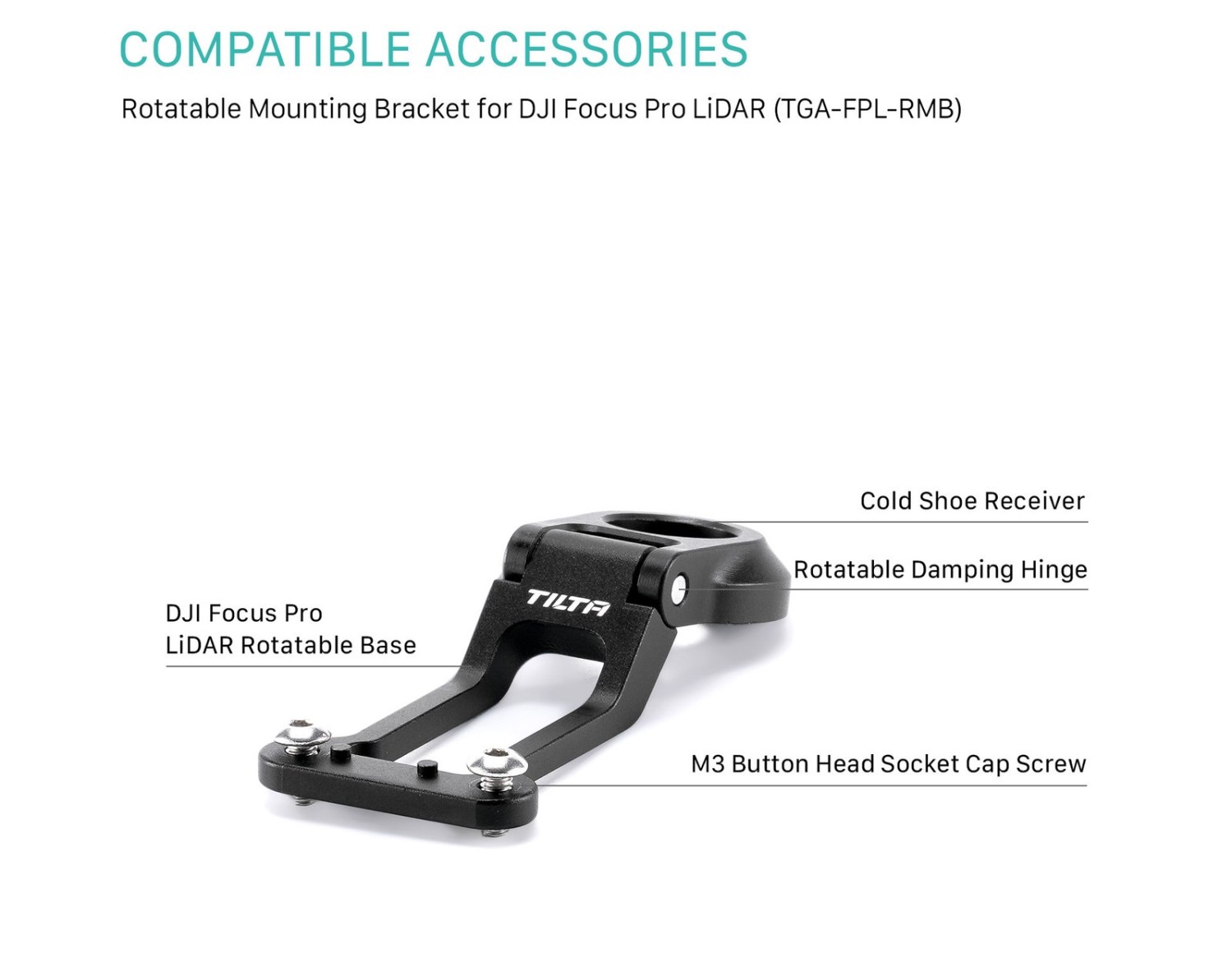

A cold shoe sits on top and the rotatable base for the Focus Pro LiDAR underneath, fastened with two M3 button head screws. The LiDAR therefore reaches a cage, a handle or a top handle without tape or cable ties.

A damped joint that holds itself

The joint is damped internally: the chosen angle stays put without tightening a screw, yet moves smoothly by hand. The tilt can be changed one-handed, even during a take.

The LiDAR stays level

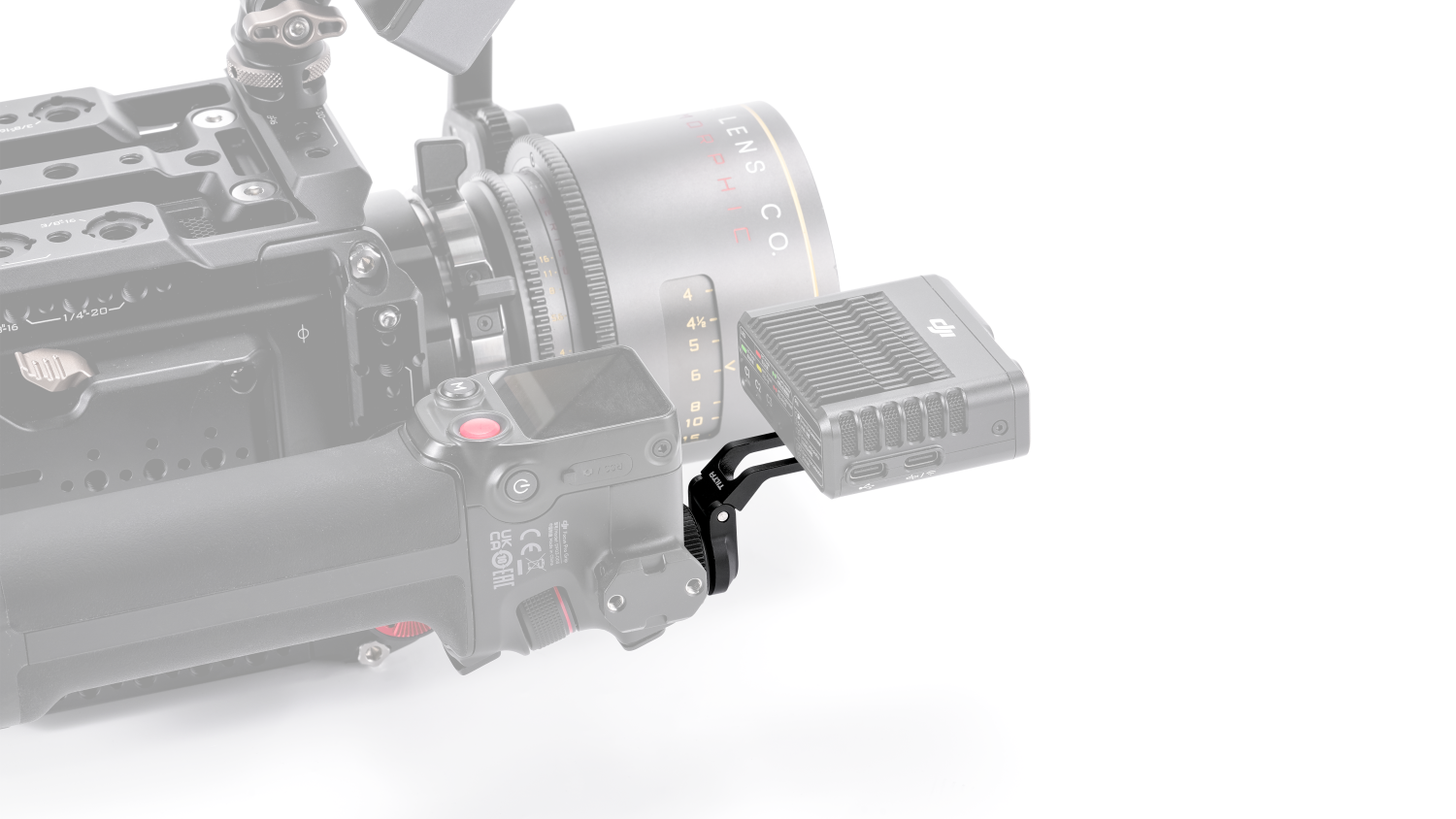

The bracket is laid out so the LiDAR aims square at the scene even when the Focus Pro grip is tilted. That matters — the rangefinder only measures across the field it looks at.
