Tilta Nucleus Nano Run/Stop Cable for LANC Port

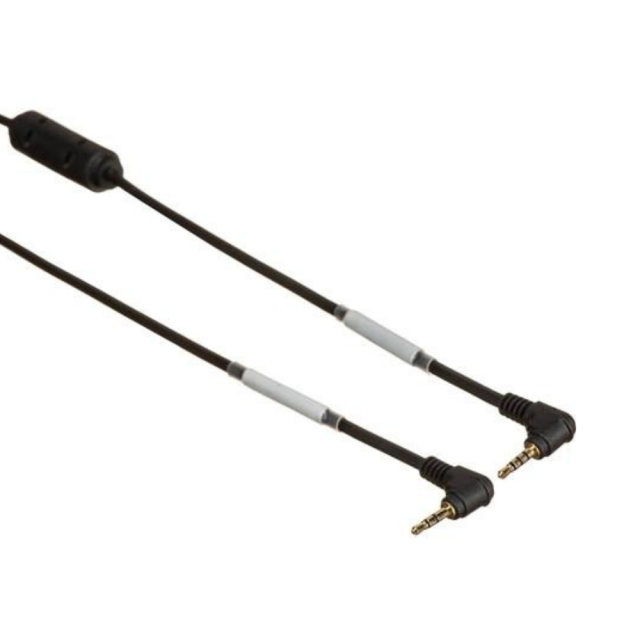

The Tilta RS-WLC-T04-LANC is a run/stop cable for the Nucleus Nano wireless lens control system: one end plugs into the R/S port of the Nucleus Nano motor (2.5 mm jack), the other into the camera's LANC port (2.5 mm jack). It carries a single signal — start and stop recording — so the REC button on the Nucleus Nano hand wheel controls recording without touching the camera body.

The Tilta RS-WLC-T04-LANC links the Nucleus Nano to the camera's LANC port (2.5 mm jack) and gives the REC button on the Nucleus Nano hand wheel direct access to recording. Focus stays wireless, run/stop goes over the cable.

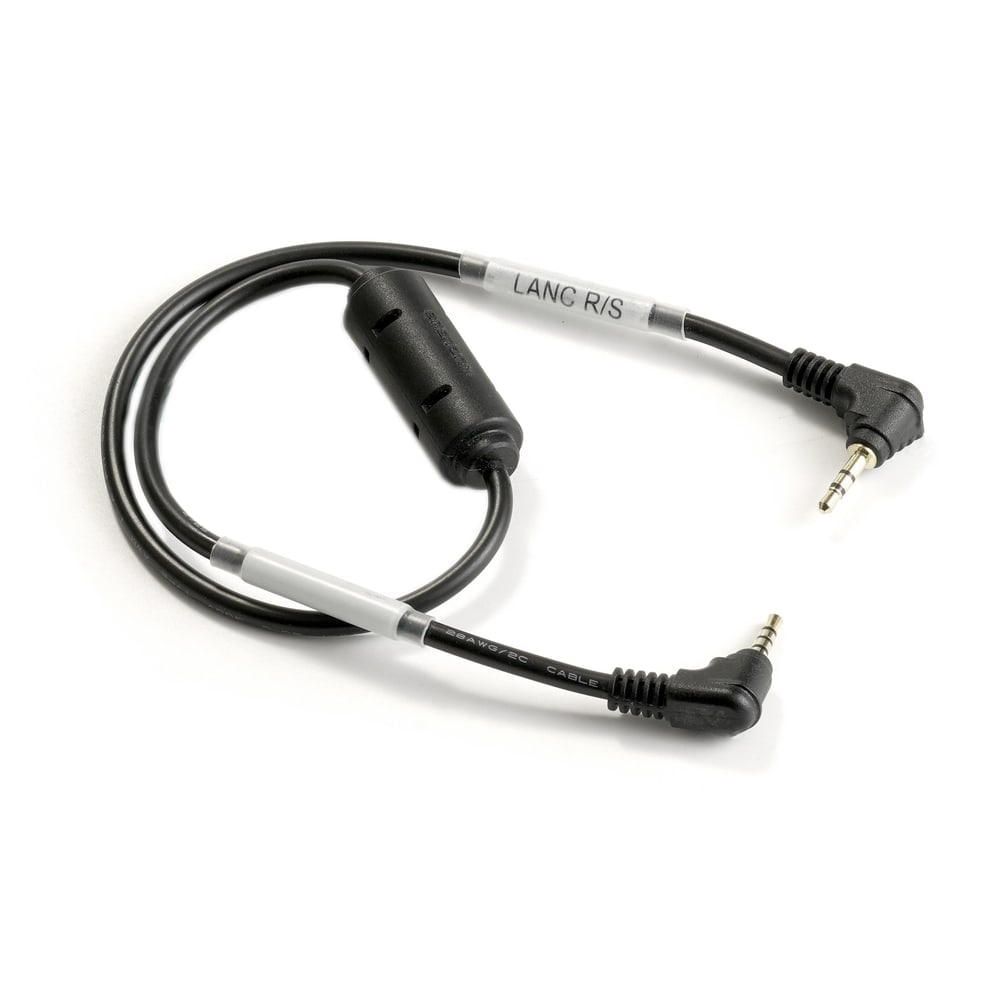

Run/stop between Nucleus Nano and LANC port

On the Nucleus Nano side sits a 2.5 mm jack for the motor's R/S port, on the camera side a 2.5 mm jack connector. The cable is made for the LANC port (2.5 mm jack): Blackmagic Cinema Camera, URSA, URSA Mini Pro G1/G2, Sony FS5/FS7, FX6/FX9, Panasonic EVA1, BGH1, Z CAM. Other camera ports are covered by siblings of the same range — pick them from the drop-down above the price.

Tilta run/stop cables

A run/stop cable carries a single signal: start and stop recording. One end sits in a Tilta handle with a REC button or in the Nucleus focus system, the other in the camera port that accepts remote triggering — LANC, RED SYNC or CTRL, mini-USB on Canon DSLRs, Sony Multi, Hirose, Fischer or ARRI EXT. The cable is chosen by the handle × camera pair; this is one of the range.
