Tilta Nucleus Nano Run/Stop Cable for RED CTRL Port

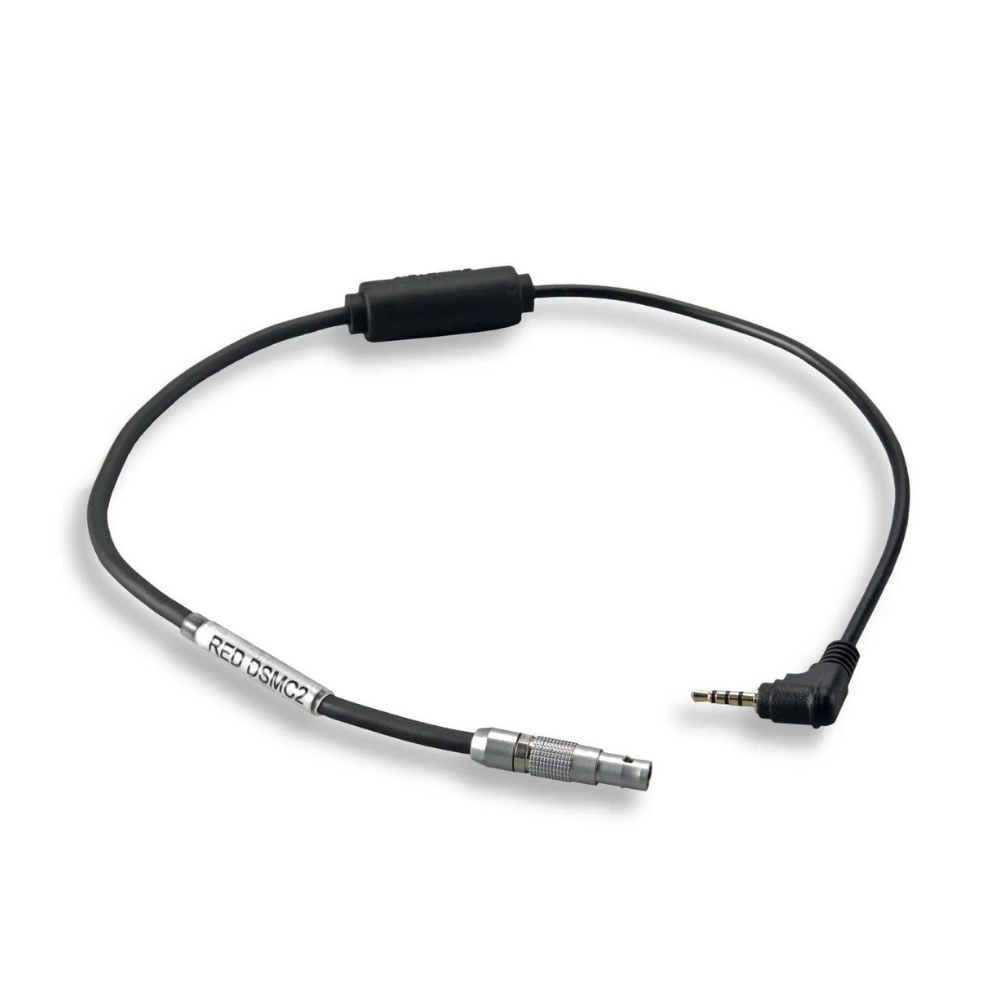

The Tilta RS-WLC-T04-RD2 is a run/stop cable for the Nucleus Nano wireless lens control system: one end plugs into the R/S port of the Nucleus Nano motor (2.5 mm jack), the other into the camera's RED CTRL port (4-pin LEMO). It carries a single signal — start and stop recording — so the REC button on the Nucleus Nano hand wheel controls recording without touching the camera body.

The Tilta RS-WLC-T04-RD2 links the Nucleus Nano to the camera's RED CTRL port (4-pin LEMO) and gives the REC button on the Nucleus Nano hand wheel direct access to recording. Focus stays wireless, run/stop goes over the cable.

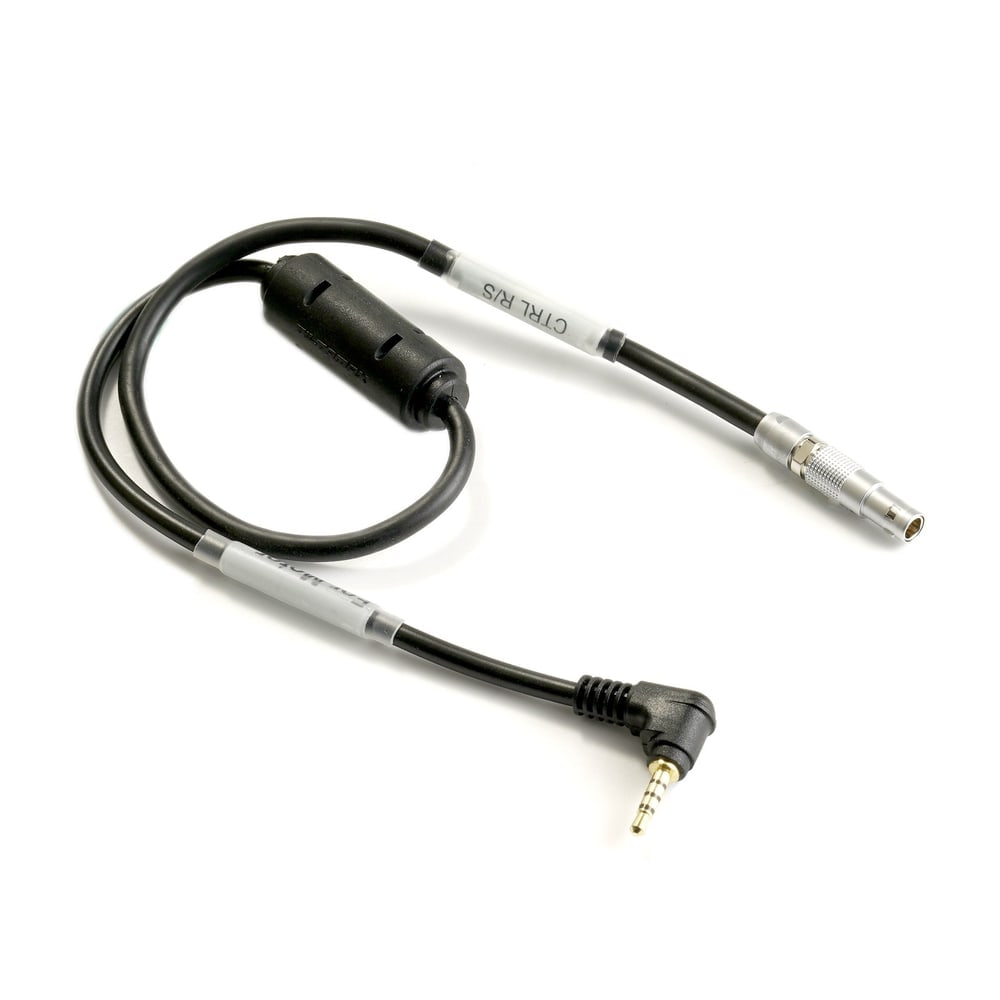

Run/stop between Nucleus Nano and RED CTRL port

On the Nucleus Nano side sits a 2.5 mm jack for the motor's R/S port, on the camera side a 4-pin LEMO connector. The cable is made for the RED CTRL port (4-pin LEMO): RED DSMC1, RED DSMC2 Base Expander, Tilta IO Module. Other camera ports are covered by siblings of the same range — pick them from the drop-down above the price.

Tilta run/stop cables

A run/stop cable carries a single signal: start and stop recording. One end sits in a Tilta handle with a REC button or in the Nucleus focus system, the other in the camera port that accepts remote triggering — LANC, RED SYNC or CTRL, mini-USB on Canon DSLRs, Sony Multi, Hirose, Fischer or ARRI EXT. The cable is chosen by the handle × camera pair; this is one of the range.
