Tilta Mini XLR to 3-Pin XLR Adapter for Canon C80

The Tilta ES-T25-XLRA is an 80 g coiled XLR adapter for Canon C80 cameras, converting the 3.5 mm Mini-XLR input to standard Neutrik XLR3 female with full 48 V phantom power passthrough, double-shielded OFC cable (18–35 cm extendable), gold-plated contacts, right-angle design, and low impedance (<30 Ω) for RF-free, professional audio integration.

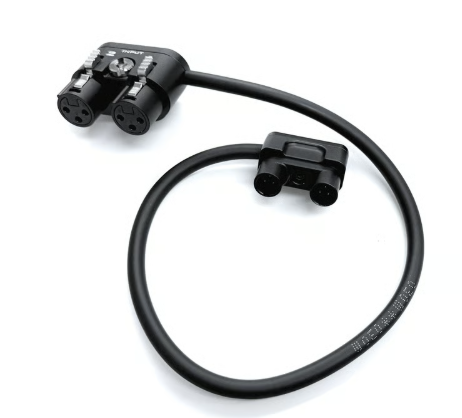

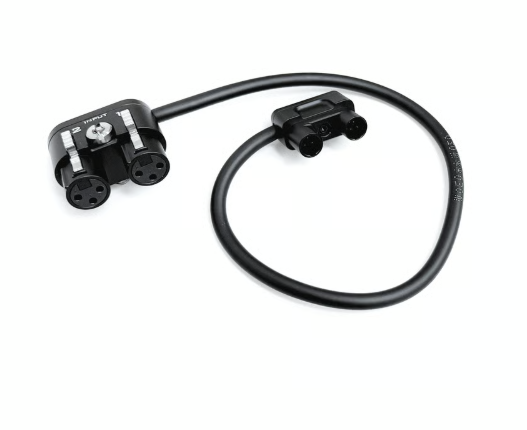

The Tilta ES-T25-XLRA is a precision-engineered audio adapter cable designed for Canon C80 cinema cameras, facilitating direct connection of balanced XLR microphones (e.g., Sennheiser MKH 416, Sanken CS-3e) via a right-angled 3-pin Mini-XLR male plug that mates securely to the camera's 3.5 mm input port, supporting dual-channel operation with color-coded rings (CH-1 red, CH-2 blue) for easy identification. The 2-conductor + shield oxygen-free copper (OFC) cable, 24 AWG gauge, features a double-spiral braid and foil shielding (95% coverage) to attenuate RFI/EMI interference from 5G sources or gimbals, maintaining frequency response of 20 Hz–20 kHz ±0.5 dB and end-to-end impedance <30 Ω. The TPE jacket (Ø 3.8 mm) encases a 2 mm coiled section that extends from 18 cm (compact for gimbal use) to 35 cm without memory retention after 5000 cycles, with strain-relief boots rated for 500 N pull force. Gold-plated Neutrik-compatible pins ensure >5000 mating cycles with minimal contact resistance (<5 mΩ), while CNC-machined aluminum shells (matte black anodized, IP54 dust/splash resistant) provide durability across –20 °C to +70 °C. Full 48 V phantom power passthrough (10 mA per channel, <0.5 V drop) enables operation of condenser mics without external supplies, preserving the C80's audio fidelity for location sound in film productions.

Key Features

• Full 48 V phantom power passthrough (10 mA/channel, <0.5 V drop)
• Coiled TPE cable extends 18–35 cm with zero memory after 5000 cycles

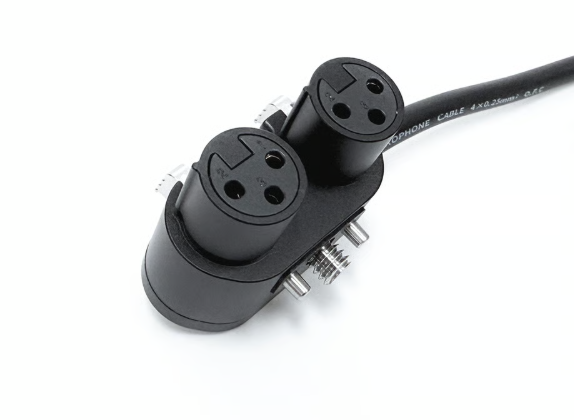

• Gold-plated 3-pin Mini-XLR male and XLR3 female pins (>5000 mates)
• Double-spiral braid + foil shielding (95% coverage, RFI/EMI rejection)

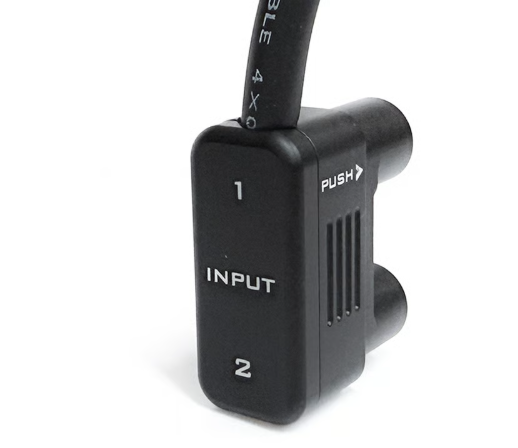

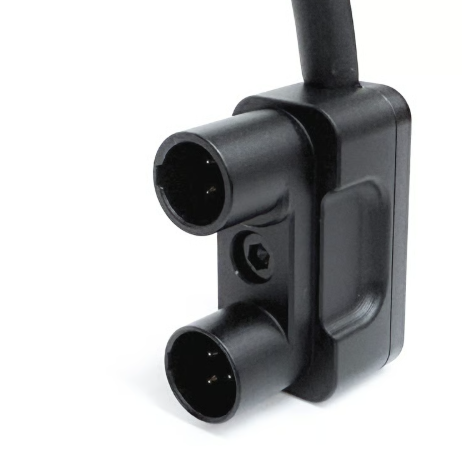

• Right-angle Mini-XLR design reduces port stress and cable clutter

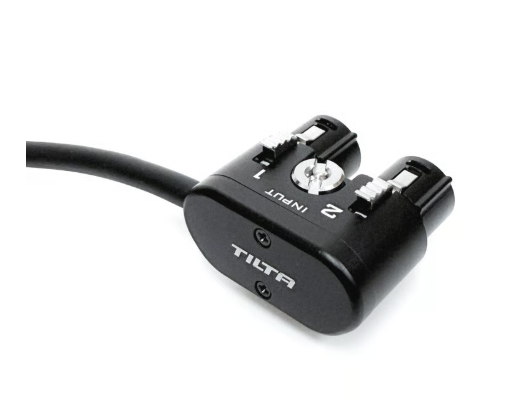

• Color-coded rings for CH-1 (red) / CH-2 (blue) channel identification
• 2 mm strain-relief boots (500 N pull resistance)
