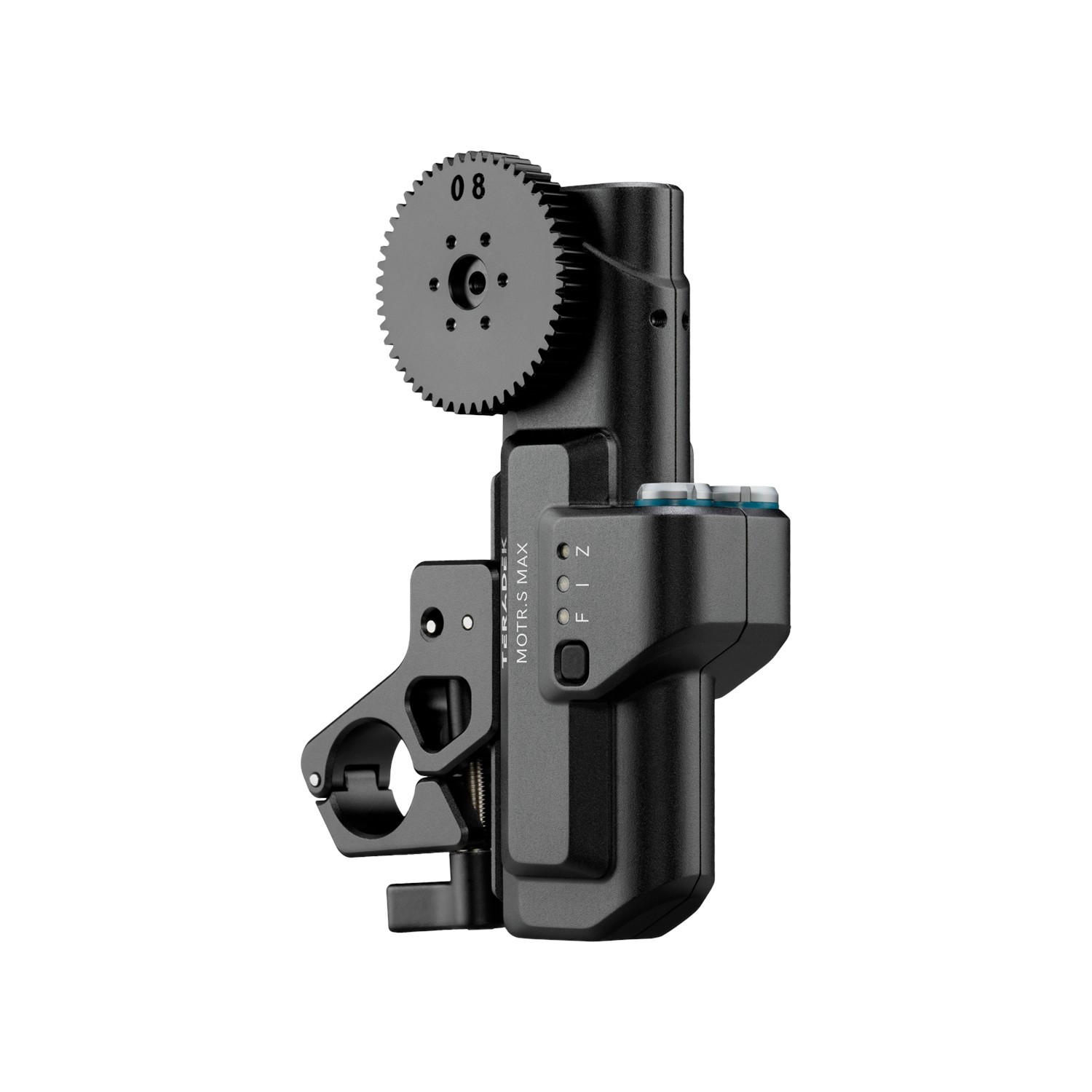

Teradek RT MOTR.S MAX

The Teradek RT MOTR.S MAX (TE-15-0053) is a high-torque motor for wireless control of focus, aperture, or zoom in the Teradek RT system. The MAX version is designed primarily for large cinema lenses and stiffer gear ratios where a standard motor is insufficient. It offers a peak torque of 1.2 Nm, a maximum speed of 275 teeth per second, and a standard 0.8 MOD quick-release gear.

The all-aluminum motor can be mounted on 15mm or 19mm rods and operated within a 7–32 V DC range. Two 0B 4-pin connectors allow for daisy-chaining compatible motors and neat cable management within a camera rig. This product is the standalone MOTR.S MAX motor; to create a functional FIZ system, pair it with a compatible receiver and a Teradek RT controller.
