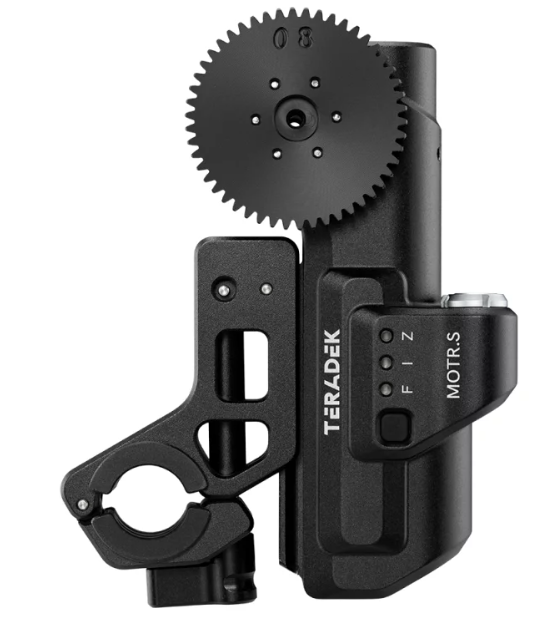

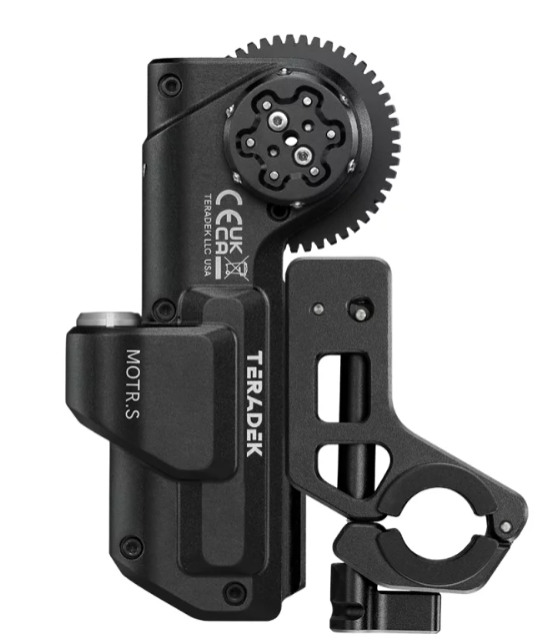

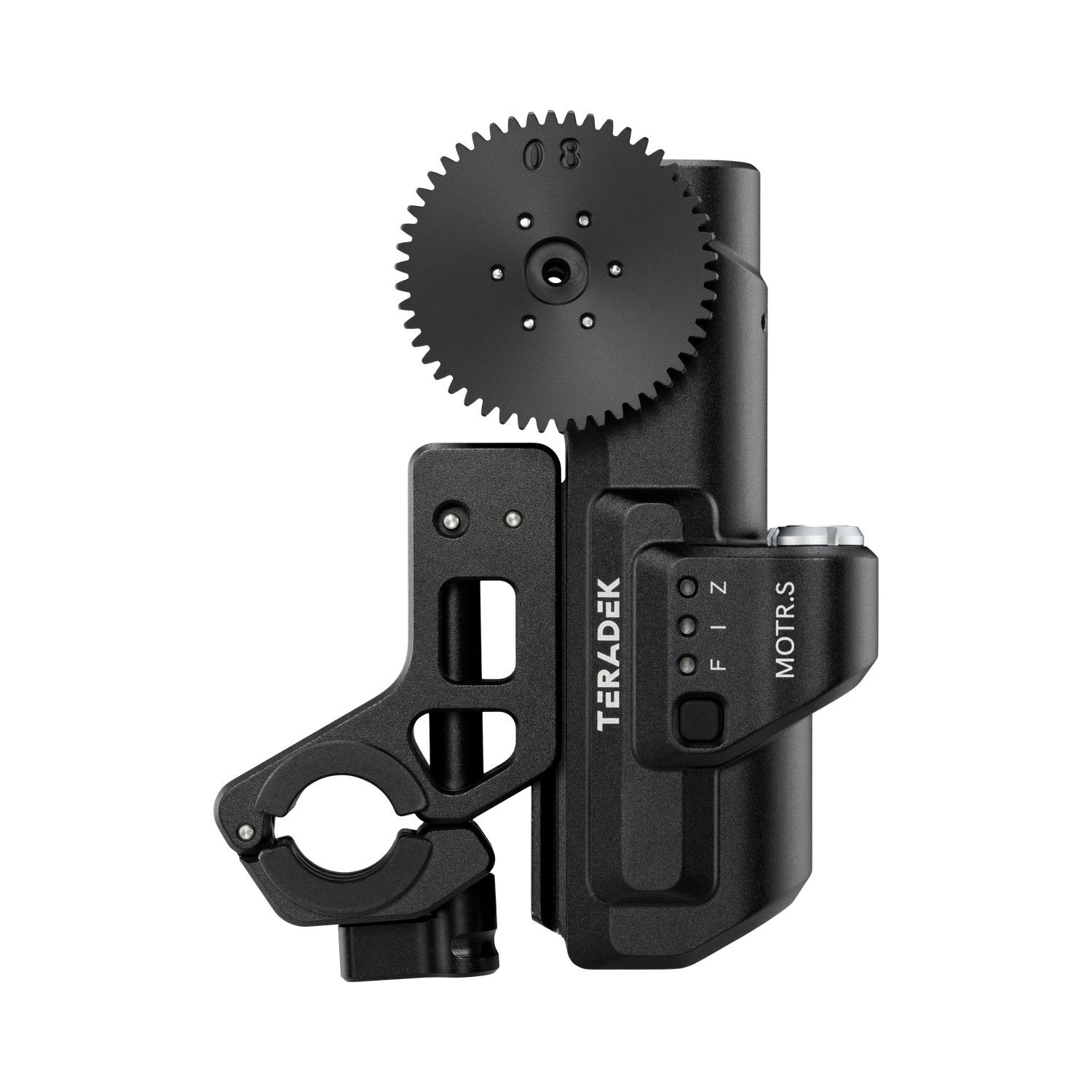

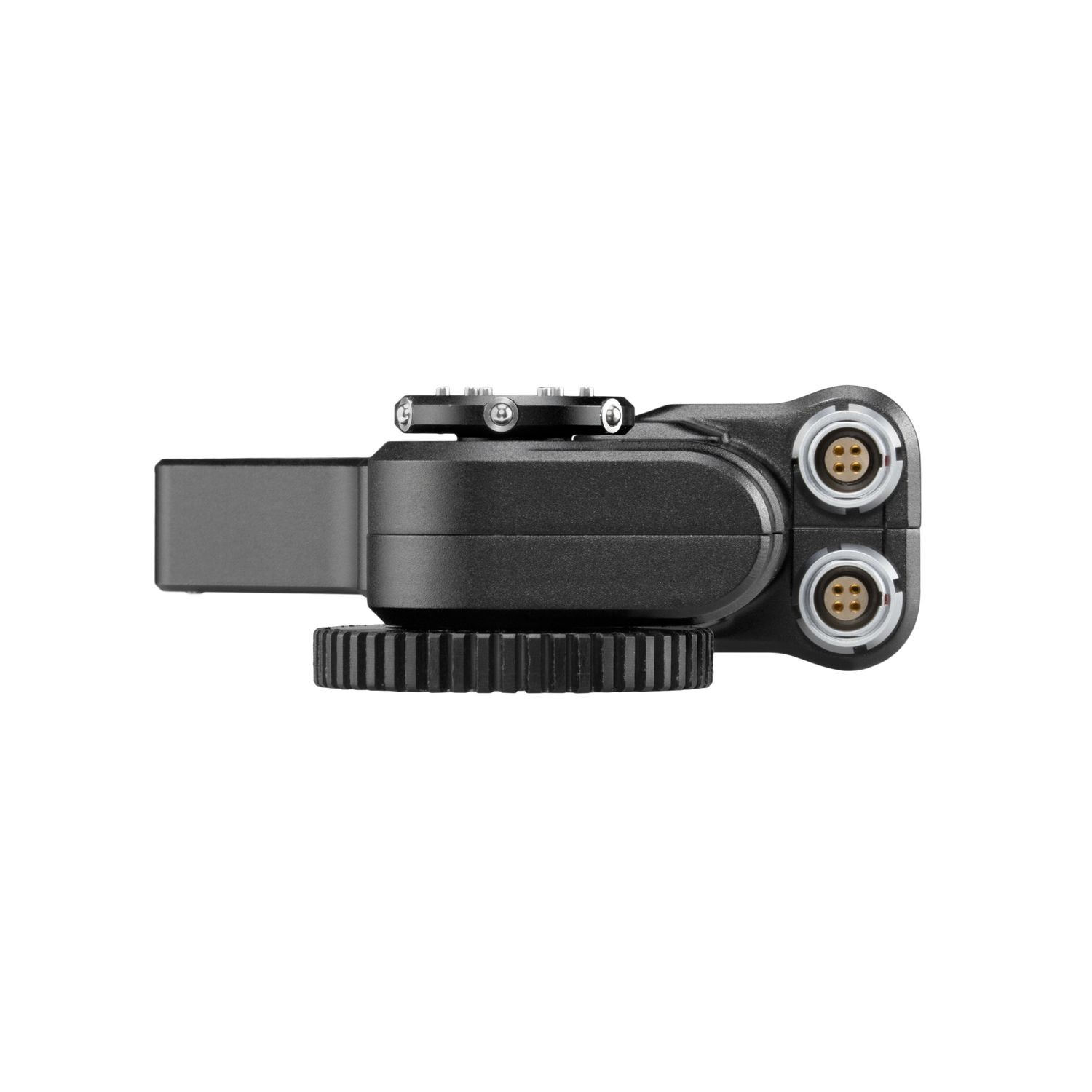

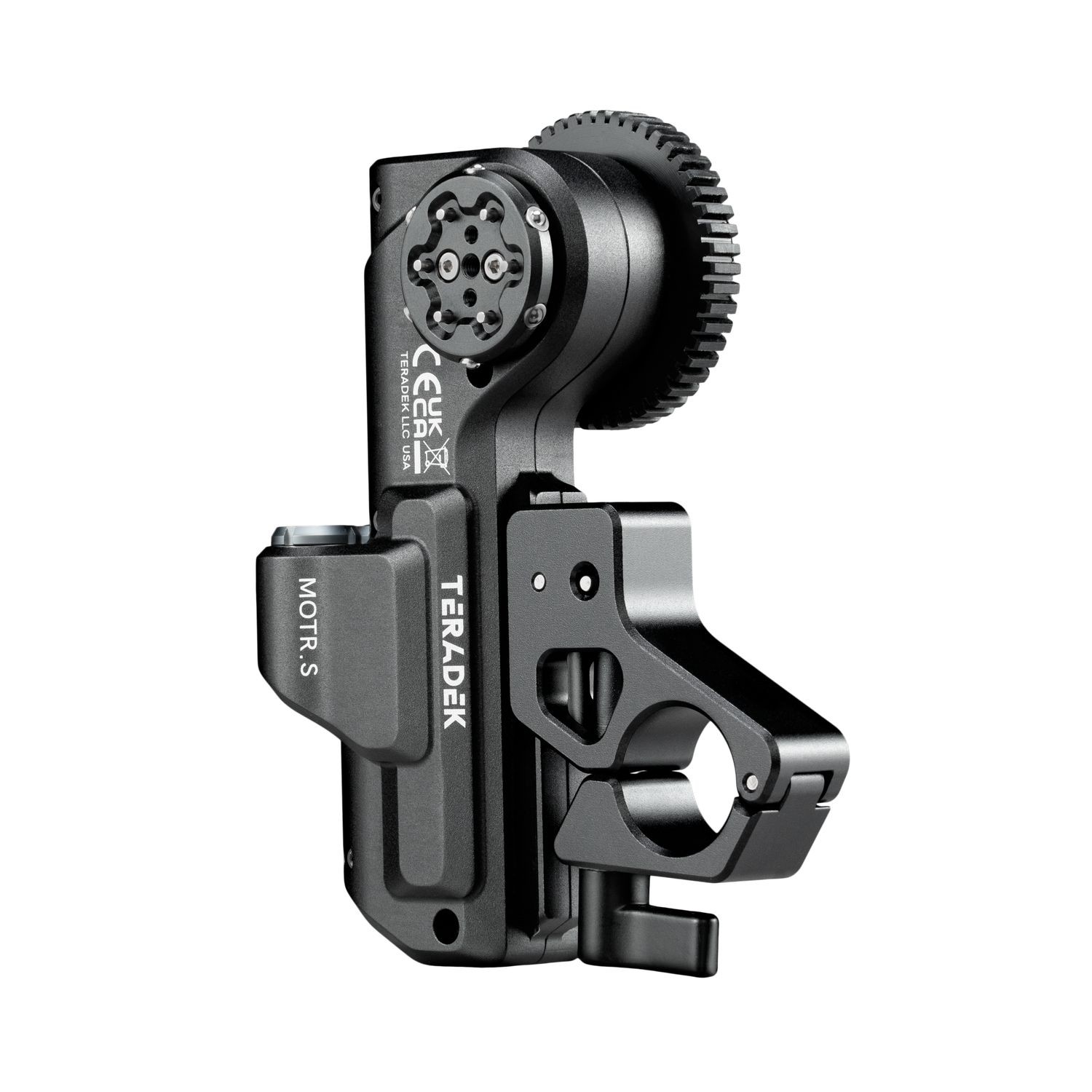

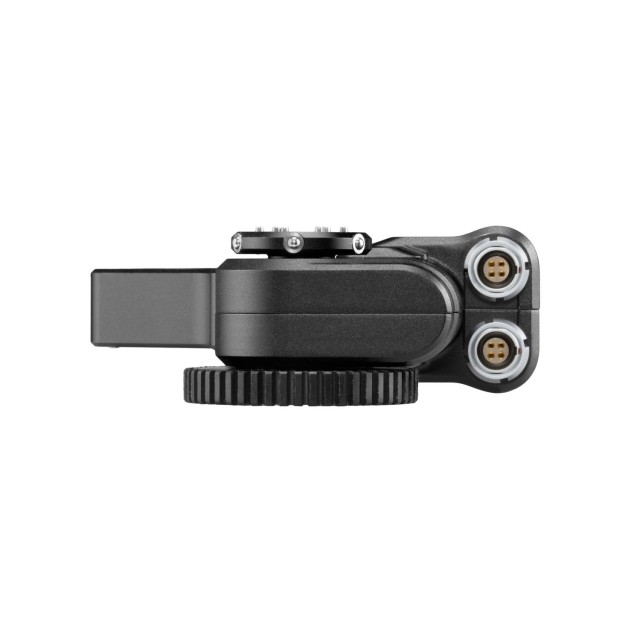

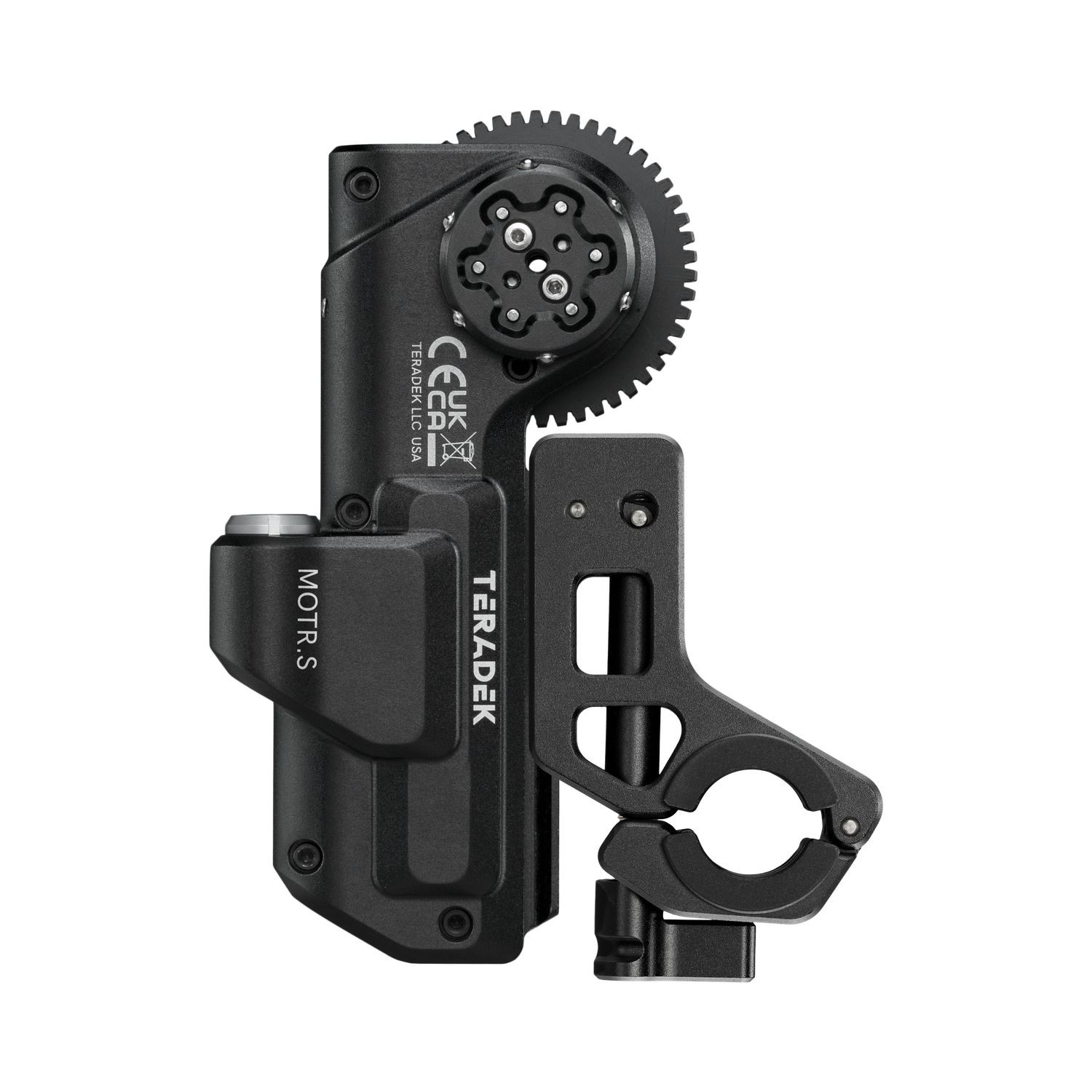

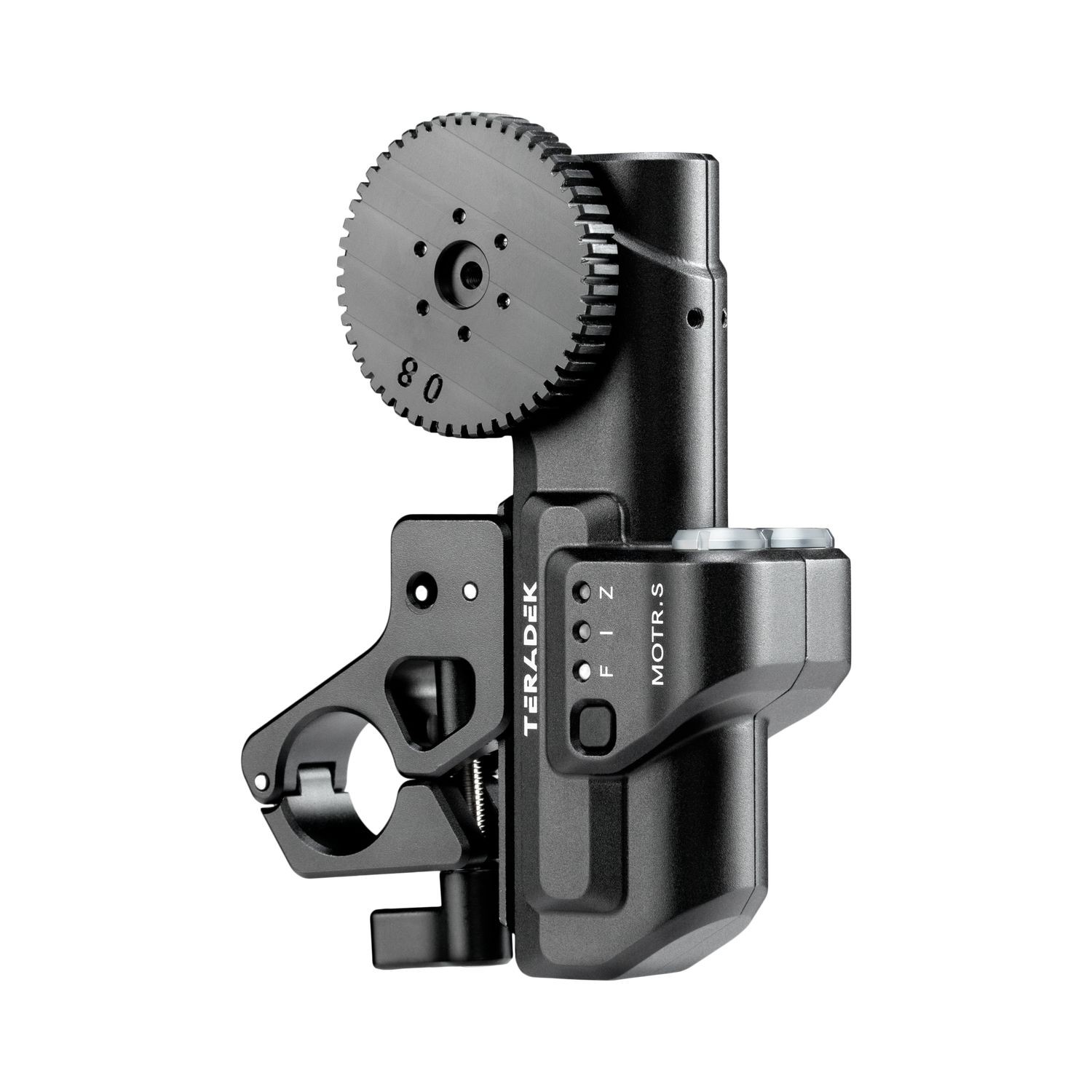

Teradek RT MOTR.S

The Teradek RT MOTR.S is a compact, ultra-lightweight lens motor engineered for fast and precise wireless lens control. Delivering speeds of up to 297 teeth per second, MOTR.S features a quick-release gear system, ergonomic rod clamps, daisy-chain support, and power input up to 32V. It is compatible with previous Teradek RT handsets, receivers, and daisy-chainable MOTR.X and MOTR.X MAX motors, making it an efficient upgrade for professional camera rigs.

The Teradek RT MOTR.S represents a new generation of high-performance lens motors that have been redesigned from the ground up to provide a lightweight, compact, and highly responsive solution for professional camera and film setups. With an operating speed of up to 297 teeth per second, the MOTR.S enables rapid lens adjustments for focus, aperture, and zoom within Teradek RT wireless lens control systems.

Designed to simplify camera mounting, the MOTR.S features a revolutionary quick-release gear system and redesigned ergonomic rod clamps, enabling efficient installation, adjustment, and removal of the motor. The motor also supports daisy-chaining, allowing multiple motors to be connected in an efficient configuration. Its power input supports voltages up to 32 V, providing flexibility for a wide range of professional camera power configurations.

The MOTR.S is compatible with previous Teradek RT controllers and receivers, as well as with the MOTR.X and MOTR.X MAX motors, which can be daisy-chained. This add-on motor includes a 0.8 MOD gear and a MOTR.S/MAX mount; however, motor cables are not included.

Key Features

• Ultra-lightweight and compact lens motor
• Completely redesigned for Teradek RT systems
• Speed up to 297 teeth per second
• Quick-release gear system for efficient mounting
• Ergonomic design of the rod clamp
• Supports daisy-chaining of multiple motors
• Power inputs up to 32 V
• Compatible with previous Teradek RT controllers and receivers
• Compatible with MOTR.X and MOTR.X MAX motors, which can be daisy-chained
• Includes a 0.8 MOD gear
• Includes a MOTR.S/MAX mount
• Motor cables are sold separately and are not included
