Teradek Live Ranger Mk II 2500 12G-SDI/HDMI - Wireless TX/RX Set V-Mount

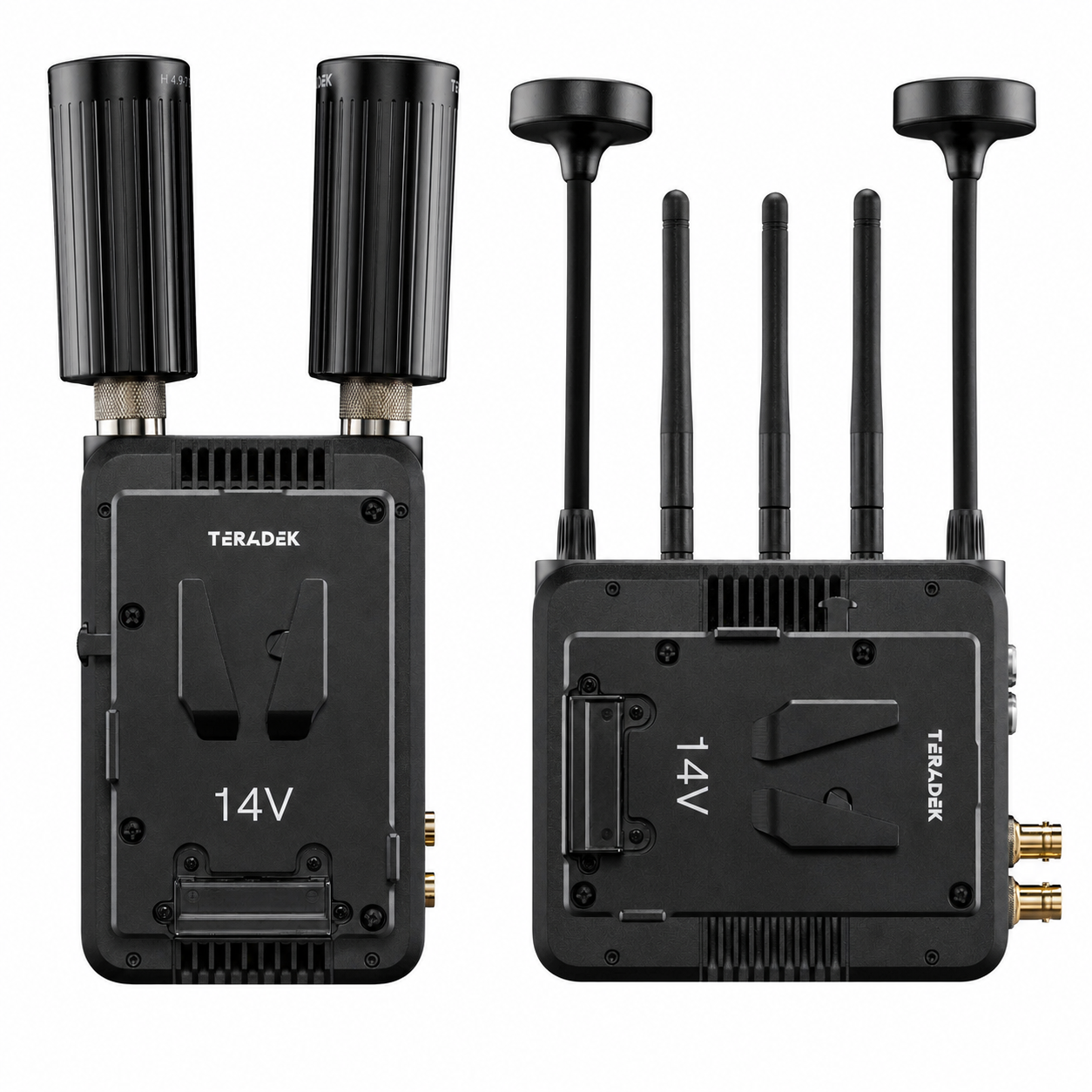

The Teradek Ranger Mk II 2500 12G-SDI/HDMI Wireless TX/RX Set V‑Mount (10-2590‑V) is a professional transmitter/receiver system for wireless video up to 4K60. The transmitter accepts HDMI 2.0 or 12G‑SDI, while the receiver outputs HDMI or 12G‑SDI; the system is specified for line-of-sight operation up to 762 m / 2500 ft. Both units have V‑Mount battery plates and can also be powered through a 2-pin DC input.

The set operates across 4.9–6.4 GHz bands subject to local permissions and configuration, delivers sub-1 ms latency, and uses AES‑256 encryption. The transmitter uses two N-Type antennas and the receiver five external antennas; one transmitter can serve up to six Ranger receivers. Bluetooth 5 LE connectivity enables channel selection, spectrum analysis, and configuration in the Launchpad desktop or mobile app. The kit includes TX, RX, their V‑Mount plates, antennas, and a carry case.
