Teradek Live Ranger Micro 2500 3G-SDI/HDMI - Wireless TX/RX Deluxe Kit V-Mount

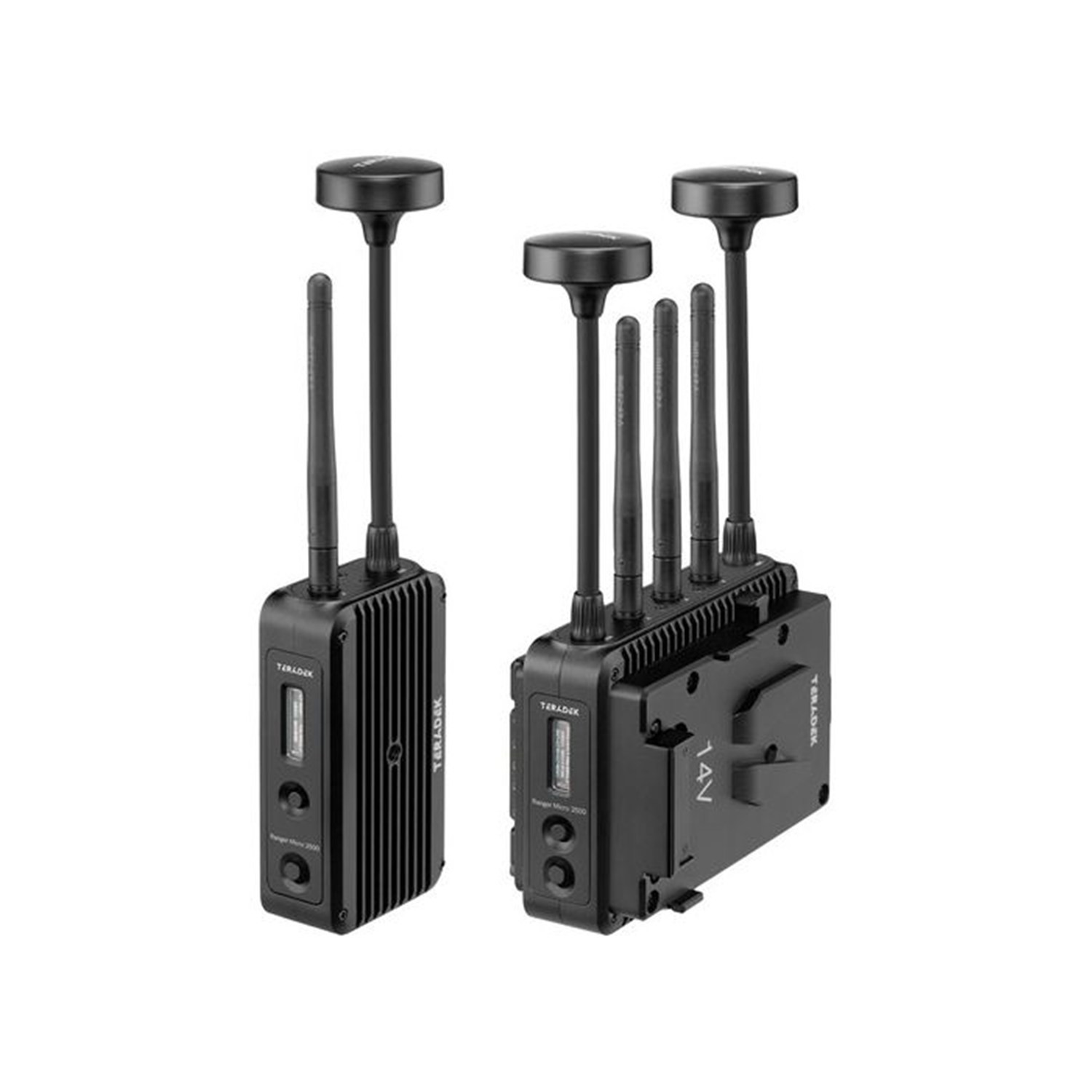

The Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless TX/RX Deluxe Kit V-Mount (10-2540-V) is a professional wireless kit for transmitting video signals up to 1080p60. It combines the Ranger Micro 2500 transmitter and a receiver with a V-Mount power plate; it transmits visually lossless HD video up to 762 m in line-of-sight with latency under 1 ms.

The TX accepts HDMI and 3G-SDI inputs and features an SDI loop-through output for local monitoring; the RX outputs HDMI or 3G-SDI. The system operates in the 4.9–6.4 GHz bands, uses AES-256 encryption, and is configured via Bluetooth 5 LE in the Teradek Launchpad app.

Wireless HD up to 762 m

The Ranger Micro 2500 transmits 1080p60 via 3G-SDI or HDMI up to 2,500 feet / 762 m with line-of-sight. The visually lossless transmission has a latency of less than 1 ms and is designed for broadcast, live events, drones, and handheld camera rigs.

AES-256 encryption protects the video signal. Both the transmitter and receiver can be paired and configured via Bluetooth 5 LE using the Launchpad desktop or mobile app.

V-Mount RX and Professional Interfaces

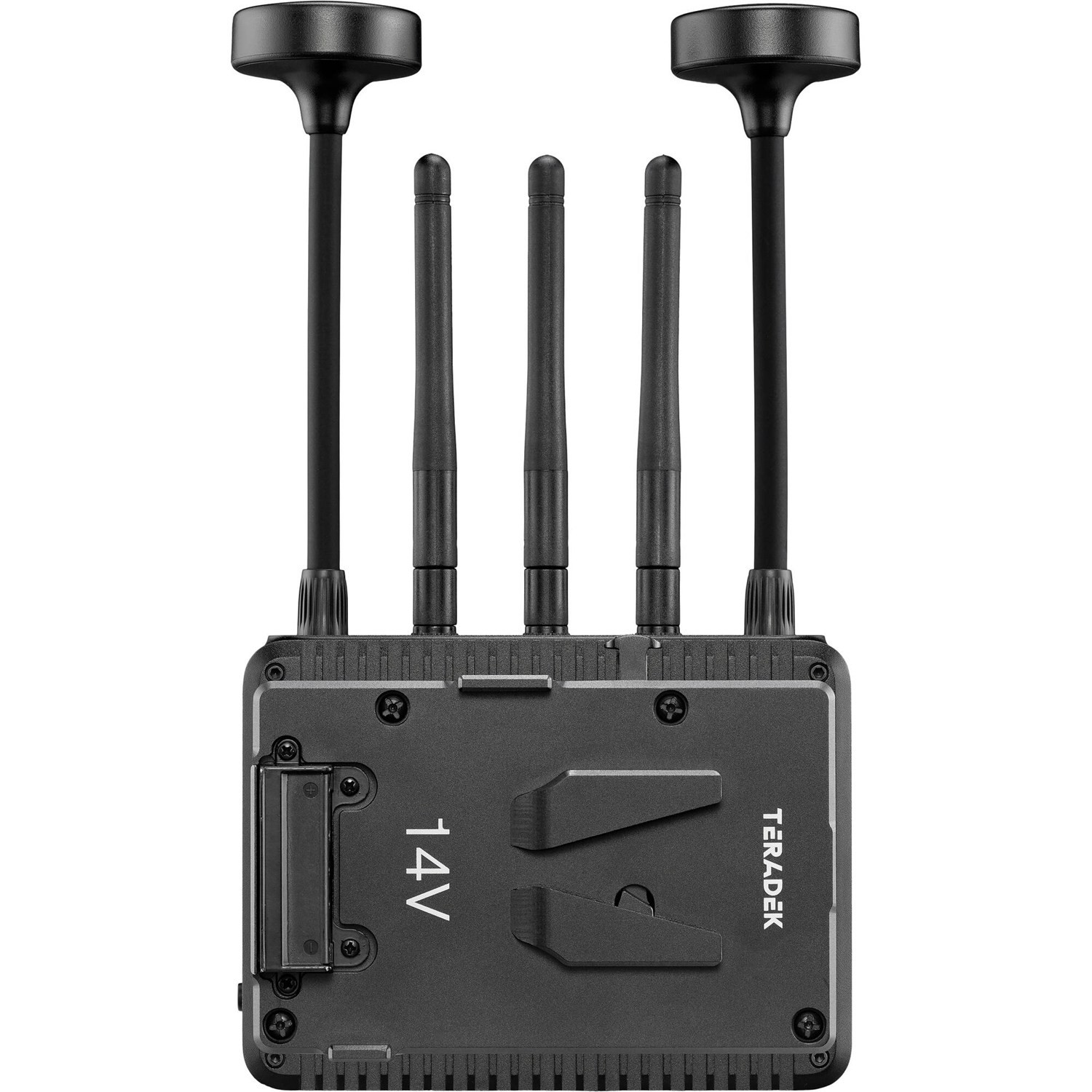

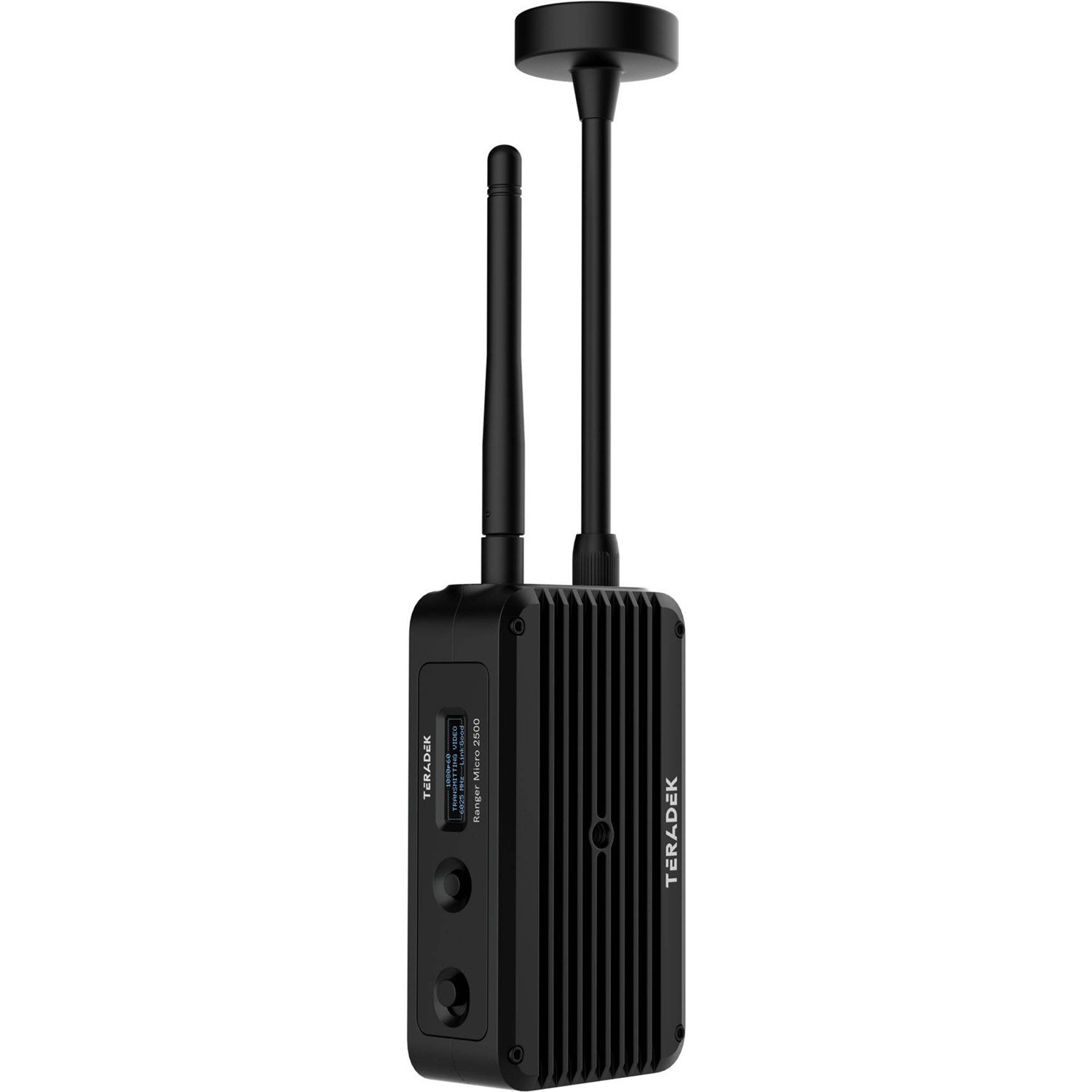

The transmitter features HDMI and 3G-SDI inputs, as well as a 3G-SDI loop output for local monitoring. The receiver outputs HDMI or 3G-SDI, and its V-Mount plate provides power for mobile production use.

The set operates in the 4.9–6.4 GHz bands. Support for 6 GHz operation requires both a compatible TX and RX.

Model: 10‑2540‑V

Range: up to 762 m / 2,500 ft, line of sight

Video: HDMI and 3G-SDI, up to 1080p60

Latency: less than 1 ms

Security: AES-256

RX Power: V-Mount plate or 2-pin DC

Included: TX, V-Mount RX, antennas, mounts, cables, carrying case, and power supply
