Teradek Bolt 6 XT 10K RX Gold Mount (14/26V)

The Teradek Bolt 6 XT 10K RX Gold Mount is a professional zero-delay wireless video receiver for live monitoring, video village, and film and television production. SKU TE-10-2324-G uses a Gold Mount plate compatible with 14V and 26V batteries and delivers reliable reception over distances up to 10,000 ft (3 km) line of sight.

It supports visually lossless 4Kp60 10-bit 4:2:2 HDR video with two 12G-SDI outputs and one HDMI 2.0 output, plus timecode and camera metadata support. The integrated directional panel antenna avoids external RF cables, while the Bolt App provides pairing, frequency control, and spectrum-analysis tools.

Professional monitoring range

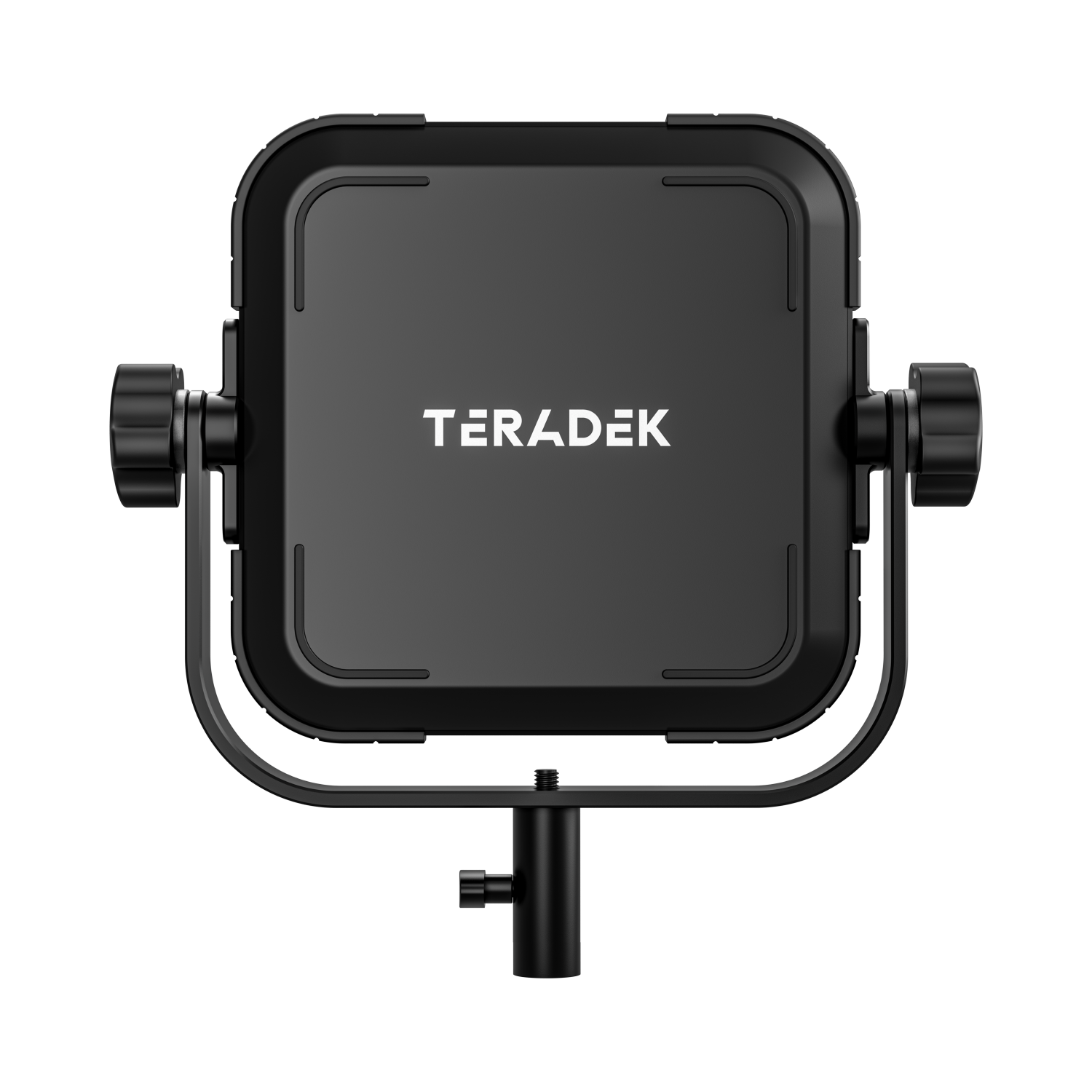

The integrated directional panel antenna focuses reception and avoids external RF antenna cables. Broadcast Mode with a compatible Bolt 6 MAX TX enables up to 10,000 ft line-of-sight range.

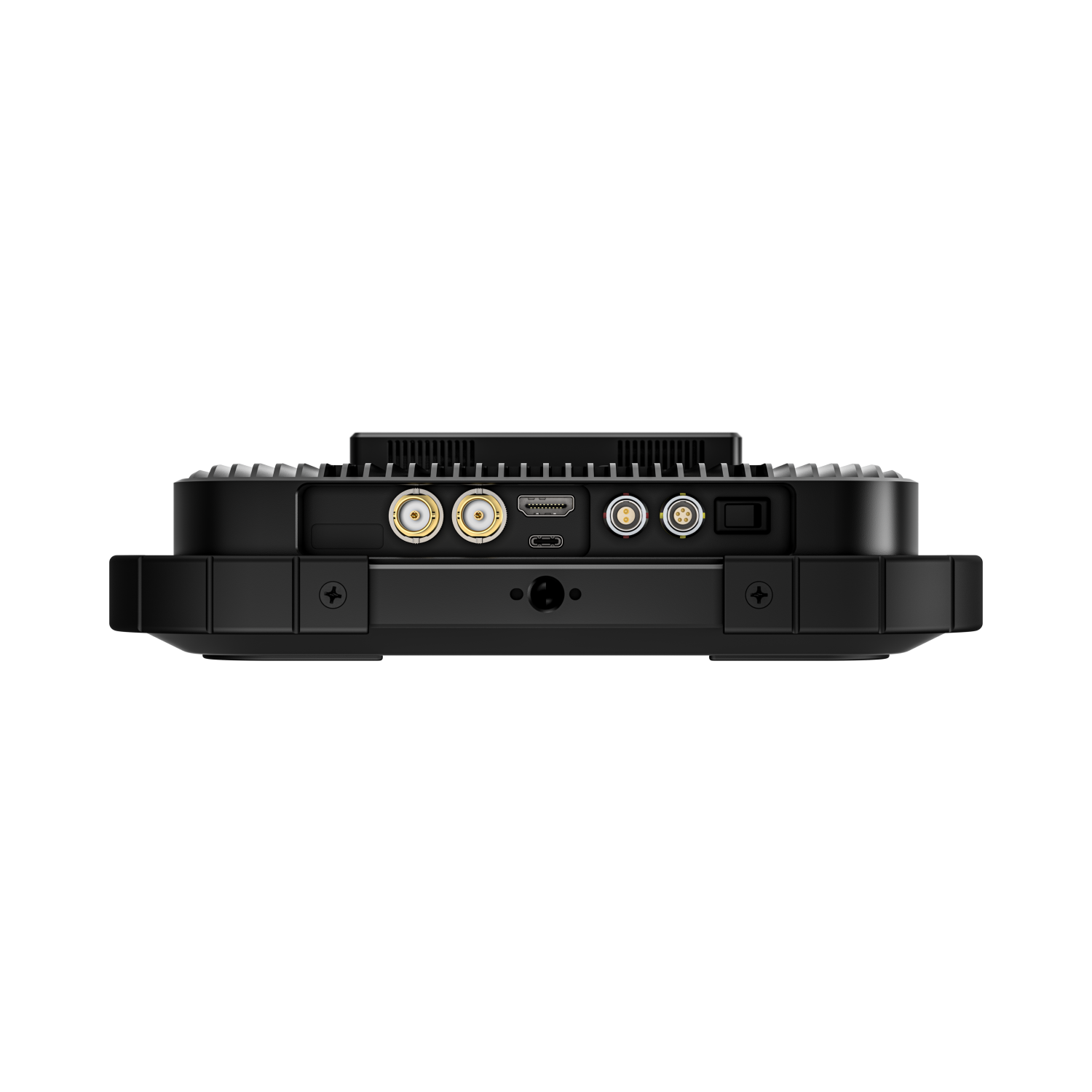

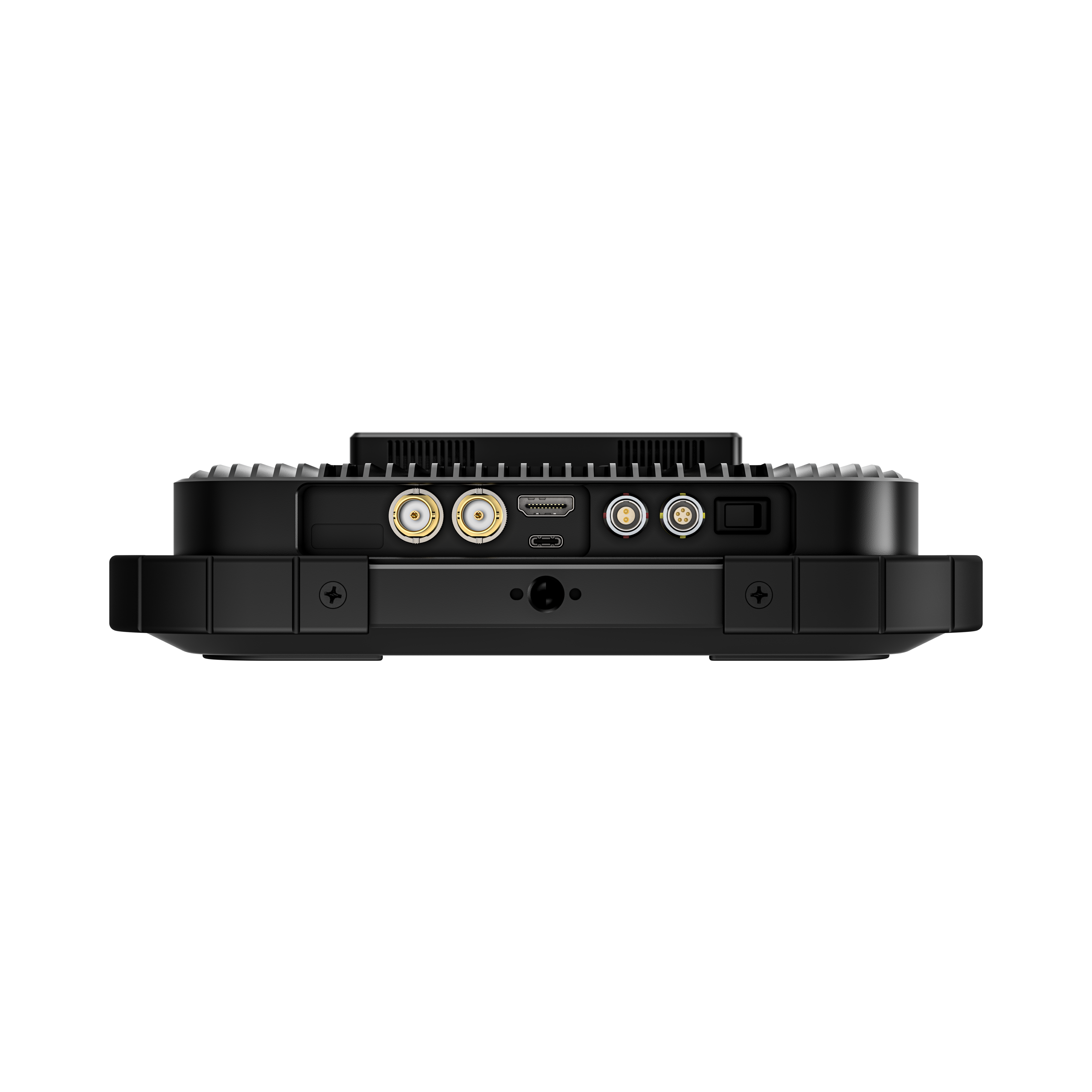

Outputs for a 4K workflow

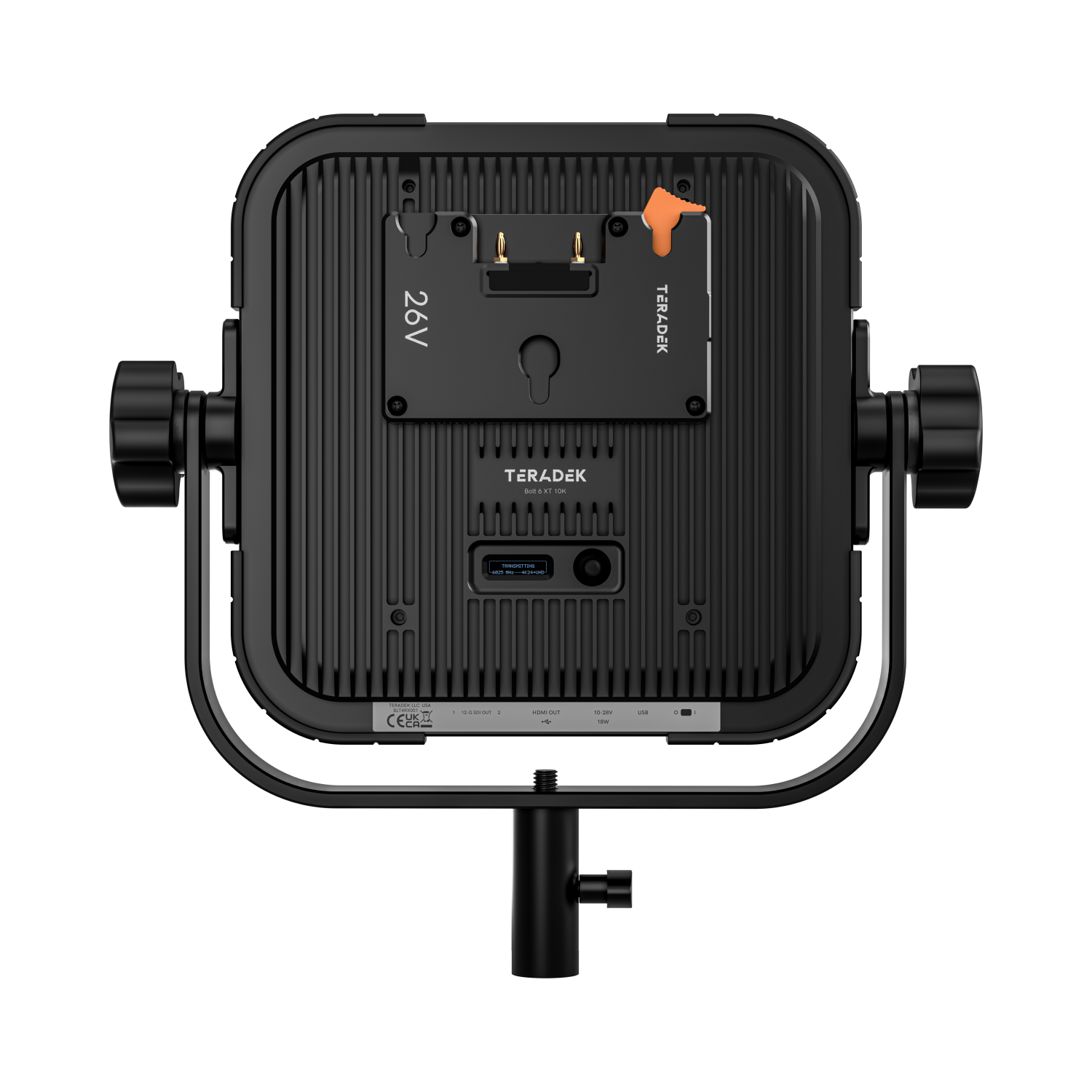

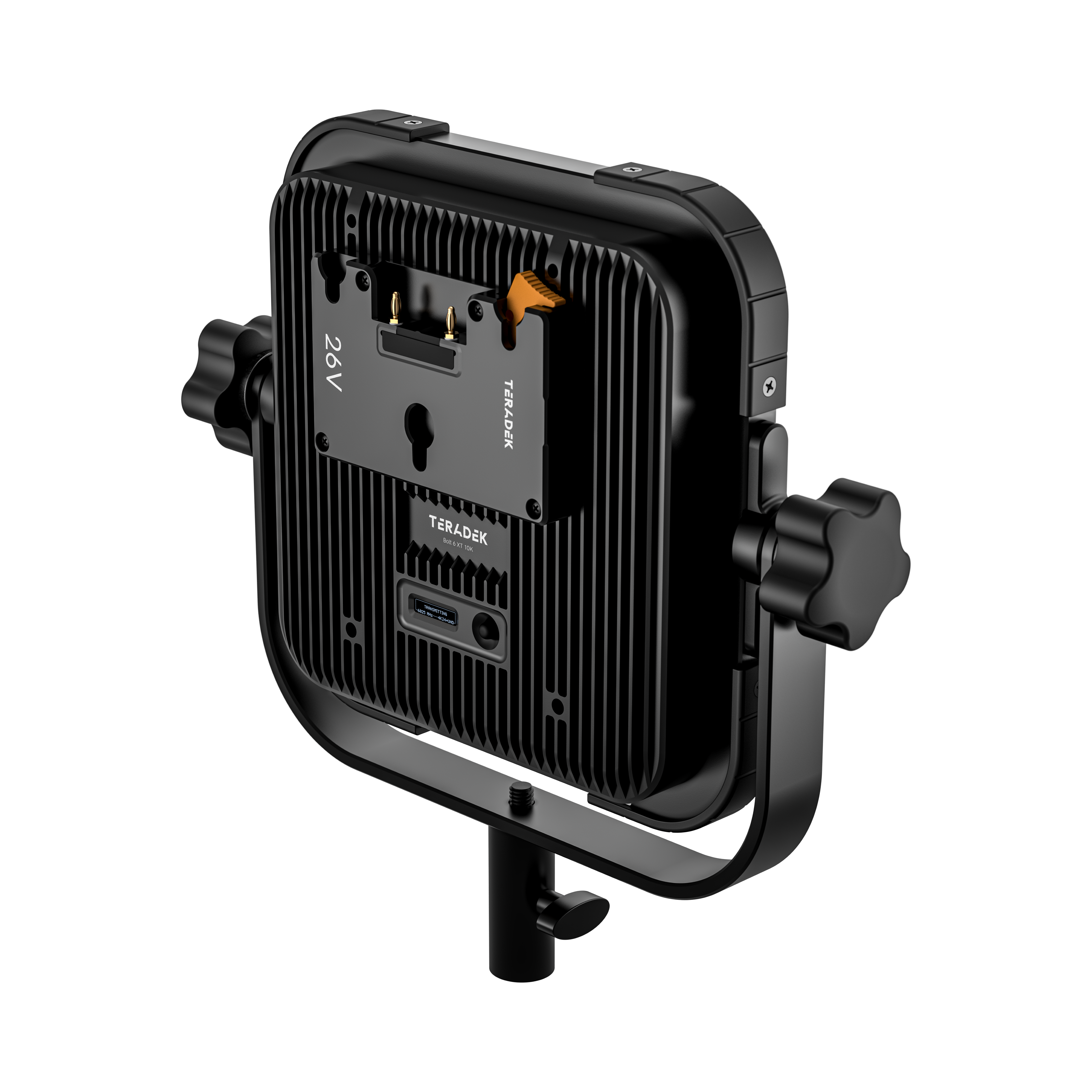

Two 12G-SDI outputs and HDMI 2.0 make it easy to connect a monitor, video village, or control-room setup. The Gold Mount plate supports 14V and 26V batteries.
