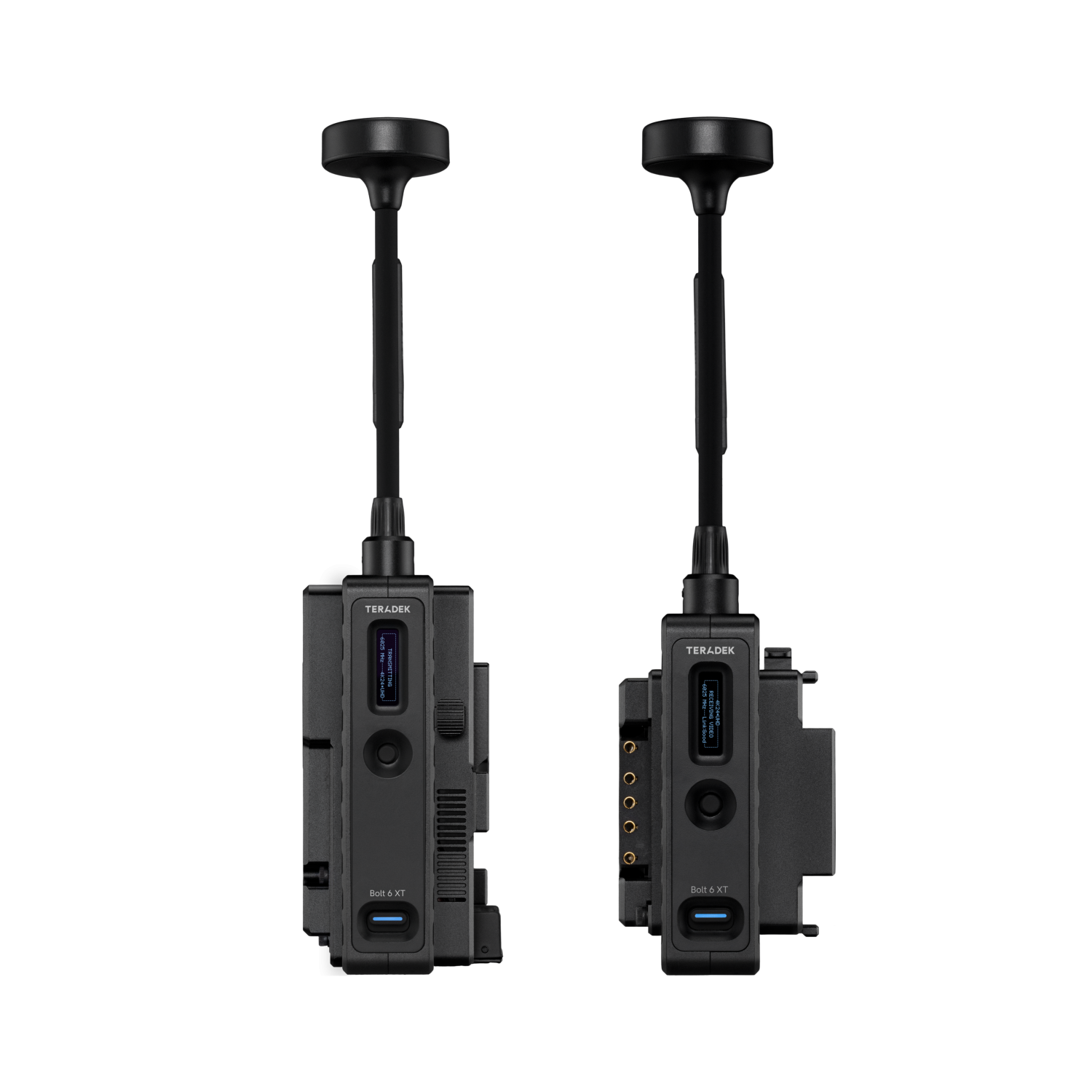

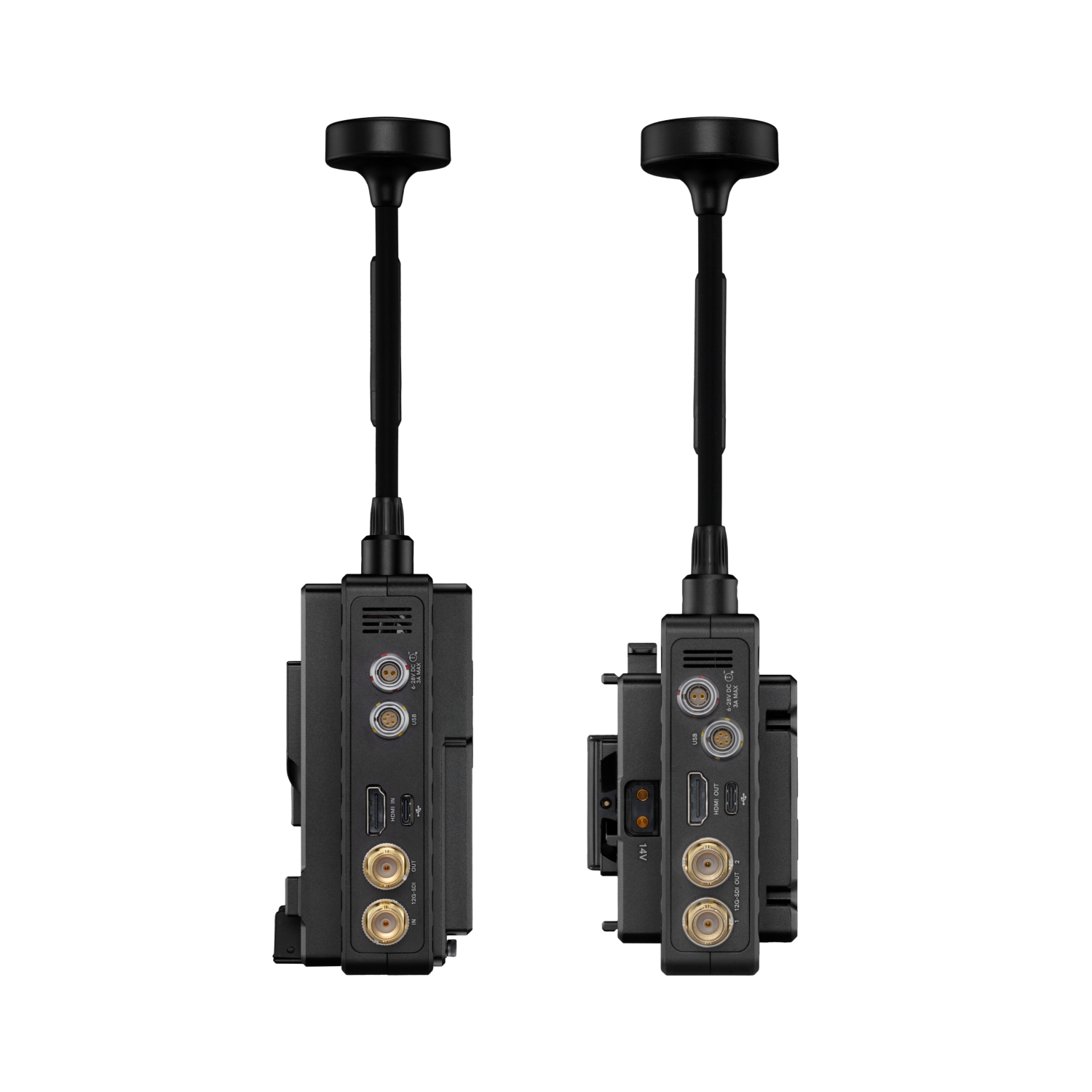

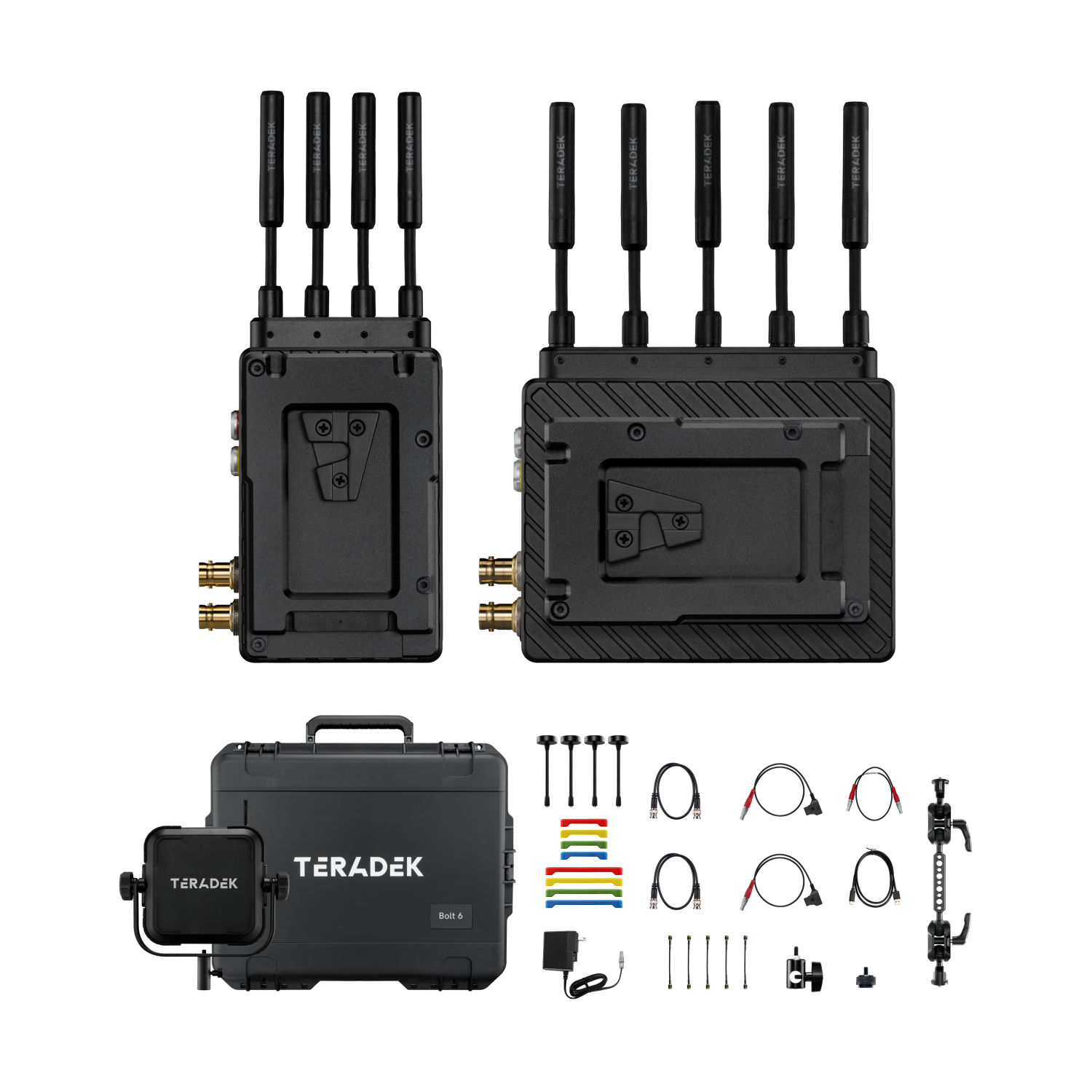

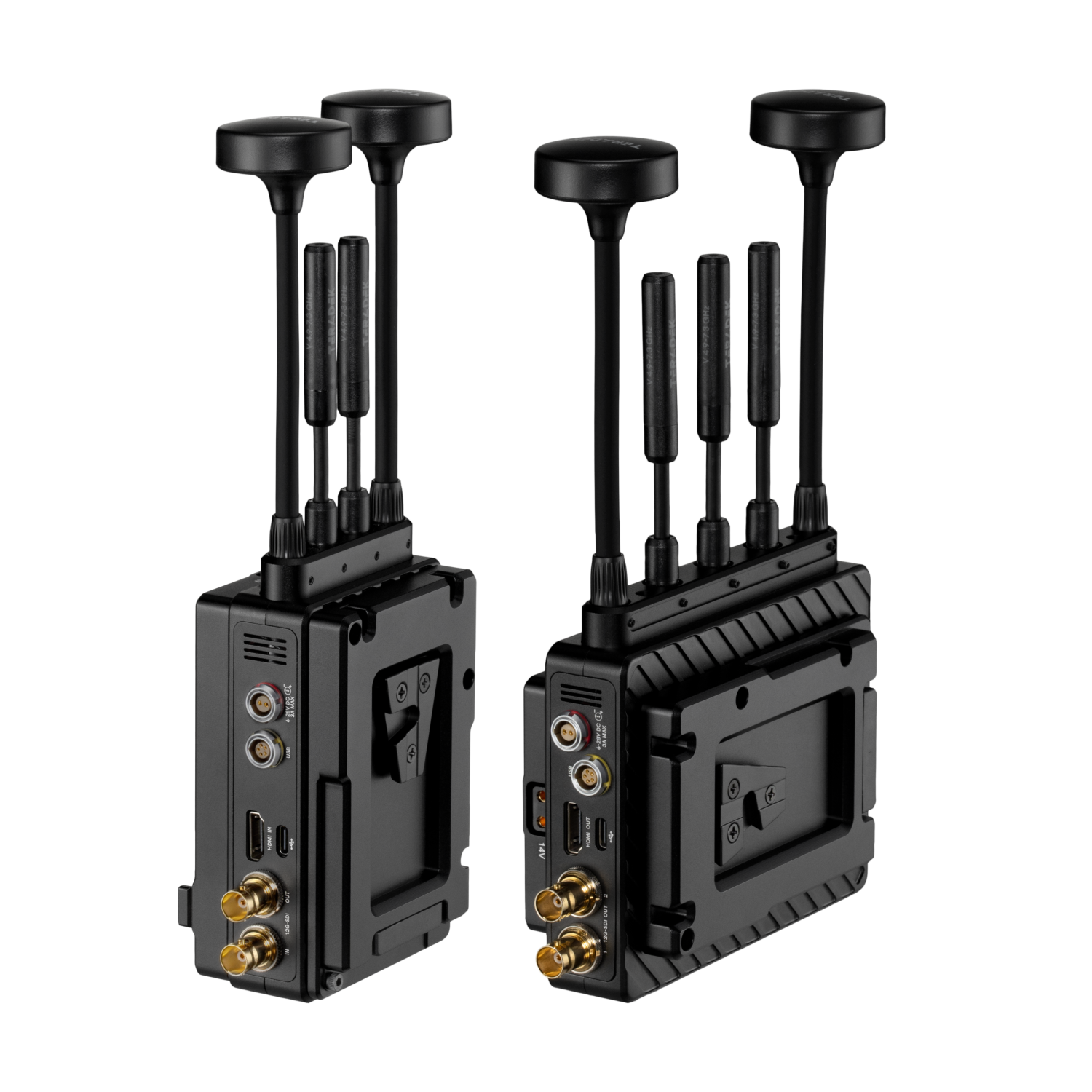

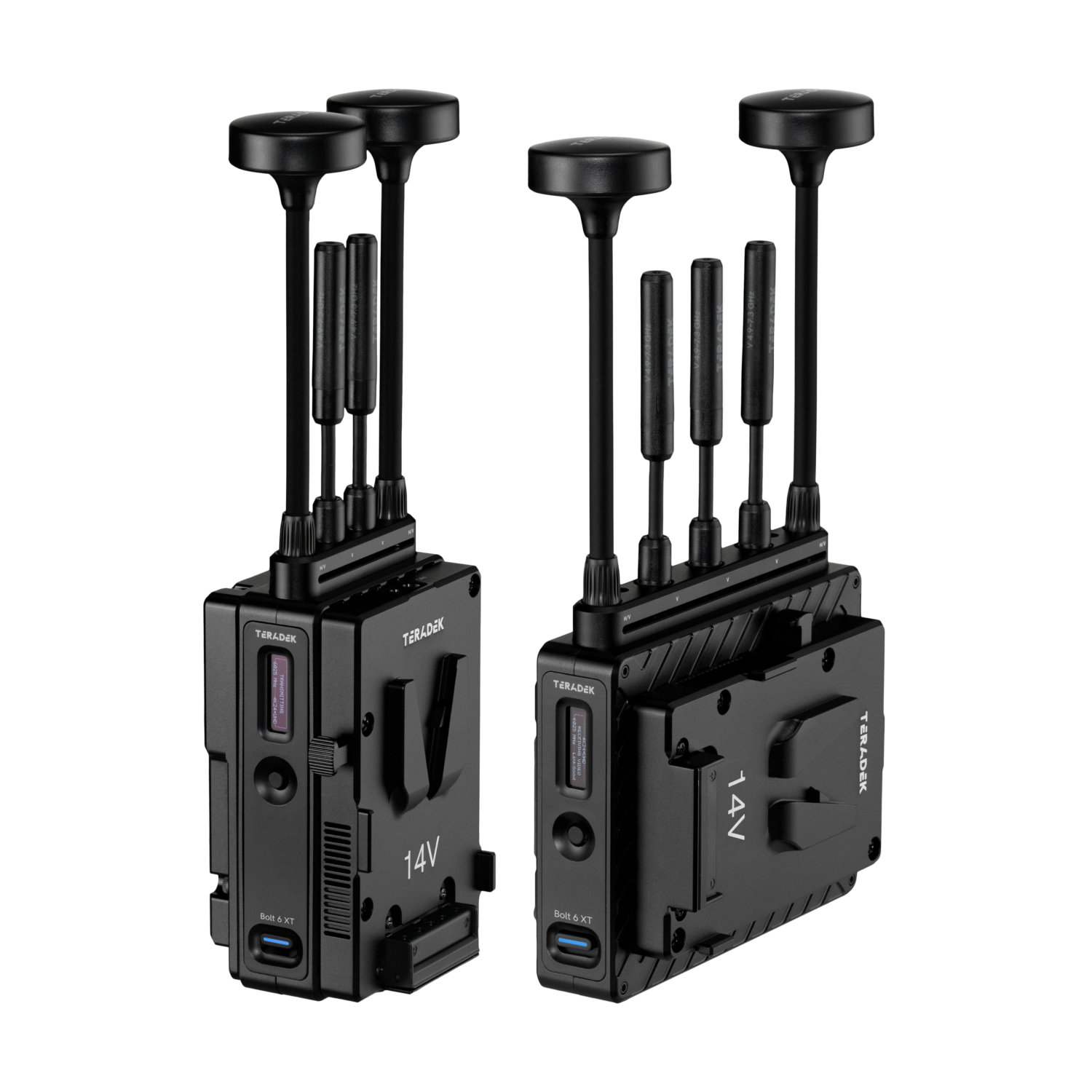

Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless TX/RX Deluxe Set V-Mount

The Teradek Bolt 6 XT MAX TX/RX Deluxe Set V-Mount (10-2320-V) is a professional wireless transmitter and receiver set for camera and monitoring setups. It transmits video up to 4K60 in 10-bit 4:2:2 HDR via 12G-SDI or HDMI with virtually zero latency.

Both the transmitter and receiver use V-Mount power and operate in the 5 GHz and 6 GHz bands. The MAX version supports Broadcast Mode; with the optional array antenna, a range of up to 5,000 ft (approx. 1.5 km) can be achieved in line-of-sight conditions.

Wireless 4K60 Transmission with Zero Latency

The kit connects the camera and monitor via 12G-SDI or HDMI. The Bolt 6 XT transmits up to 4K60 in 10-bit 4:2:2 HDR and operates on the 5 GHz and 6 GHz bands.

MAX Mode for Challenging RF Environments

Broadcast Mode expands the transmission capabilities of a single transmitter to multiple receivers. With the optional Array antenna, the MAX configuration can operate at distances of up to 5,000 ft (approx. 1.5 km) with line-of-sight.
