Teradek Live Prism Mobile 5G Single 5G-Q HEVC/AVC Encoder No Mount

  • New
  • Free transport
SKU: TELI-10-2857-5Q

Teradek Prism Mobile 5G Single 5G-Q (SKU TELI-10-2857-5Q) is a compact camera-back encoder for live contribution from the field. It combines HEVC/AVC, HDMI/SDI input, 4K60 HDR and cellular connectivity in the no-mount configuration.

More information

6 339 € with VAT 5 238.84 € without VAT
Add to Compare Price history
Availability
on request
SKU:
TELI-10-2857-5Q
Add to Compare Price history

Teradek Live Prism Mobile 5G Dual 5G-Q HEVC/AVC Encoder V-Mount

7 949 €without VAT 6 569.42 €

Teradek Live Prism Mobile 5G Dual 5G-Q HEVC/AVC Encoder No Mount

7 379 €without VAT 6 098.35 €

Teradek Live Prism Mobile 5G Single 5G-Q HEVC/AVC Encoder V-Mount

6 909 €without VAT 5 709.92 €

Top accessories for Teradek Live Prism Mobile 5G Single 5G-Q HEVC/AVC Encoder No Mount

Canare HDMI Cable 5 m

  • New
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs

Canare HDMI Cable 2 m

  • New
Canare HDMI cable, 2 m long, with gold-plated HDMI Type A connectors on both ends.
12 €
In stock 4 pcs

Infinitek L-3.3CUHWS 2m FLEX 12G-SDI cable BNC-BNC

Professional 2 m 12G-SDI interconnect cable for mobile production. The flexible Canare
23 €
on request

Infinitek L-3.3CUHWS 1m FLEX 12G-SDI cable BNC-BNC

Coaxial cable specially designed for mobile 12G-SDI applications with excellent resistance
20 €
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Teradek Prism Mobile 5G Single 5G-Q (SKU TELI-10-2857-5Q) is a compact camera-back encoder for live contribution from the field. It combines HEVC/AVC, HDMI/SDI input, 4K60 HDR and cellular connectivity in the no-mount configuration.

Teradek Prism Mobile 5G Single 5G-Q

Teradek Prism Mobile 5G Single

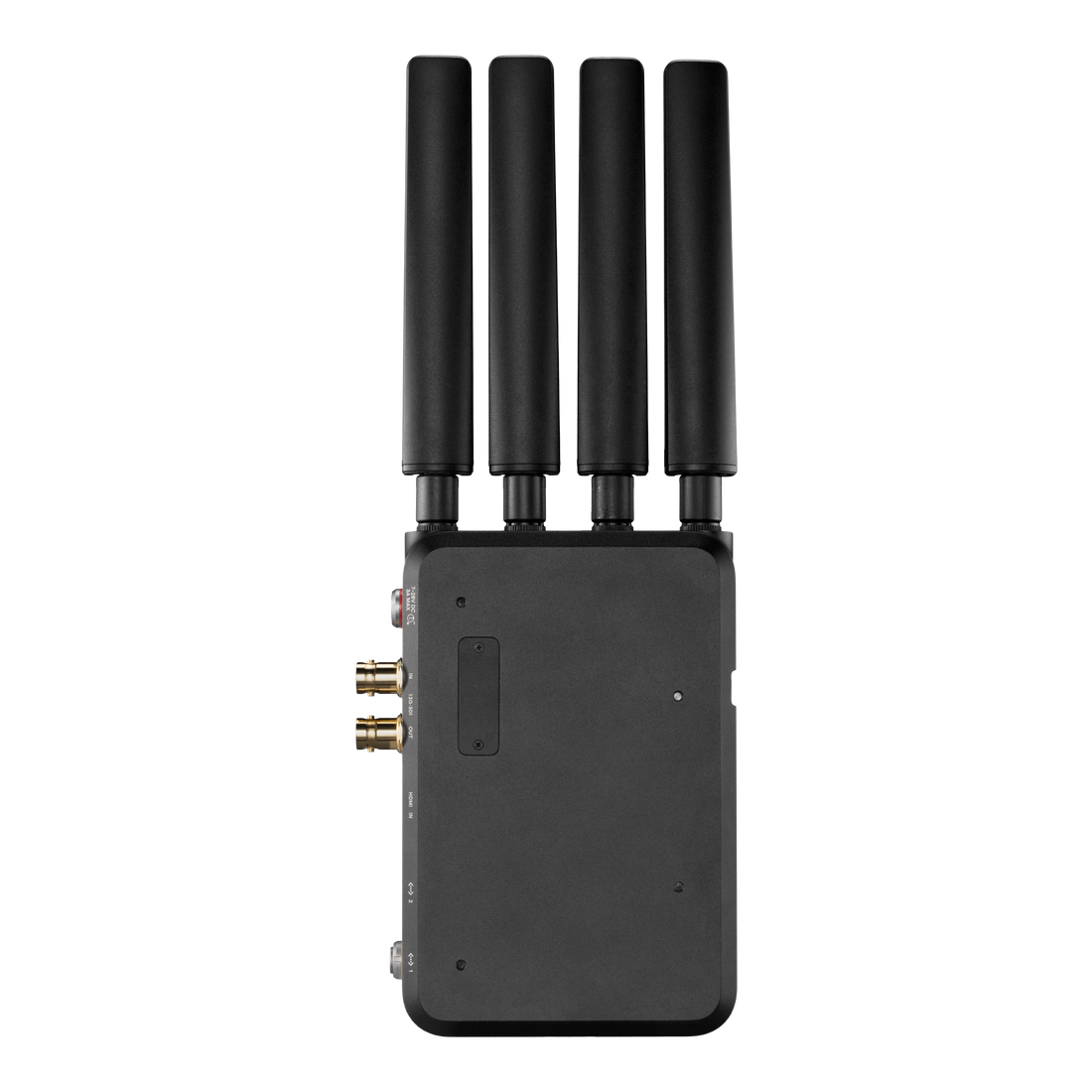

Camera-back encoder without a mounting plate, with one internal Node 5G‑Q modem. It accepts 12G/6G/3G/HD/SD‑SDI or HDMI 2.0 Type‑A and supports up to one 4K DCI p60 stream at 10-bit 4:2:2. The packshot shows the exact Single configuration; a mounting plate is not included.

One modem, professional I/O

The integrated Node 5G‑Q modem uses a 4×4 MIMO configuration. Connectivity includes two Gigabit Ethernet ports, 2.4/5 GHz Wi‑Fi, and support for an external modem through a powered LEMO connector. Record to an SD card, USB drive, or NFS, and encode in H.264/AVC or H.265/HEVC. The SDI input also provides a loop output; HDMI uses a Type‑A connector.

PACKAGE CONTENT

  • Prism Mobile 5G Single 5G‑Q encoder ×1
  • Mounting plate not included.

SPECIFICATIONS

  • Modem: 1× internal Node 5G‑Q, 4×4 MIMO
  • Inputs: 1× 12G/6G/3G/HD/SD‑SDI (75 Ω BNC), 1× HDMI 2.0 Type‑A
  • Output: SDI loop output
  • Maximum stream: 1× 4K DCI p60, 10-bit, 4:2:2
  • Codecs: H.264/AVC, H.265/HEVC
  • Recording: SD card, USB drive, NFS
  • Transport: HLS, MPEG‑TS, RIST, RTP, RTMP/RTMPS, RTSP, SRT, TRT, WHEP, WHIP
  • Network: 2× Gigabit Ethernet, 2.4/5 GHz Wi‑Fi, cellular bonding
  • Dimensions: 162 × 92 × 35 mm
  • Weight: 664 g without plate
  • Power: 6–28 V DC; 20 W nominal, 36 W maximum
  • Construction: Milled aluminum
Parameters

Parameters

Manufacturer: Teradek
Category: Encoders

Main parameters

Formát/KodekH.264 / AVC · H.265 / HEVC
Interní záznamYes
Konektivita / SíťEthernet (RJ-45) · Wi-Fi · 4G / 5G Cellular Bonding · USB modem
Maximální rozlišení videa4K60 (2160p60)
ProvedeníKamerový (na rig)
Síťové protokolyRTMP / RTMPS · SRT · RTSP / RTP · Apple HLS · MPEG-TS
Video vstup enkodéruHDMI · 12G-SDI
Záznamová médiaSD karta · USB disk

Other parameters

Compact and portableYes
