Teradek Live Node 5G Q Series Global Modem - 5 Pin to 5 Pin

Teradek Node 5G Q Series 10-0033-L is a compact cellular data modem for supported production devices with a matching locking 5-pin connection. Its sub-6 GHz 5G SA/NSA and LTE connectivity gives remote video teams another network path for live contribution where fixed internet is unavailable. The 5-pin-to-5-pin configuration is distinct from the USB-A and USB-C cable variants, so check the host connector before ordering. A physical nano-SIM and embedded Teradek Data eSIM provide carrier options; service and activation are arranged separately.

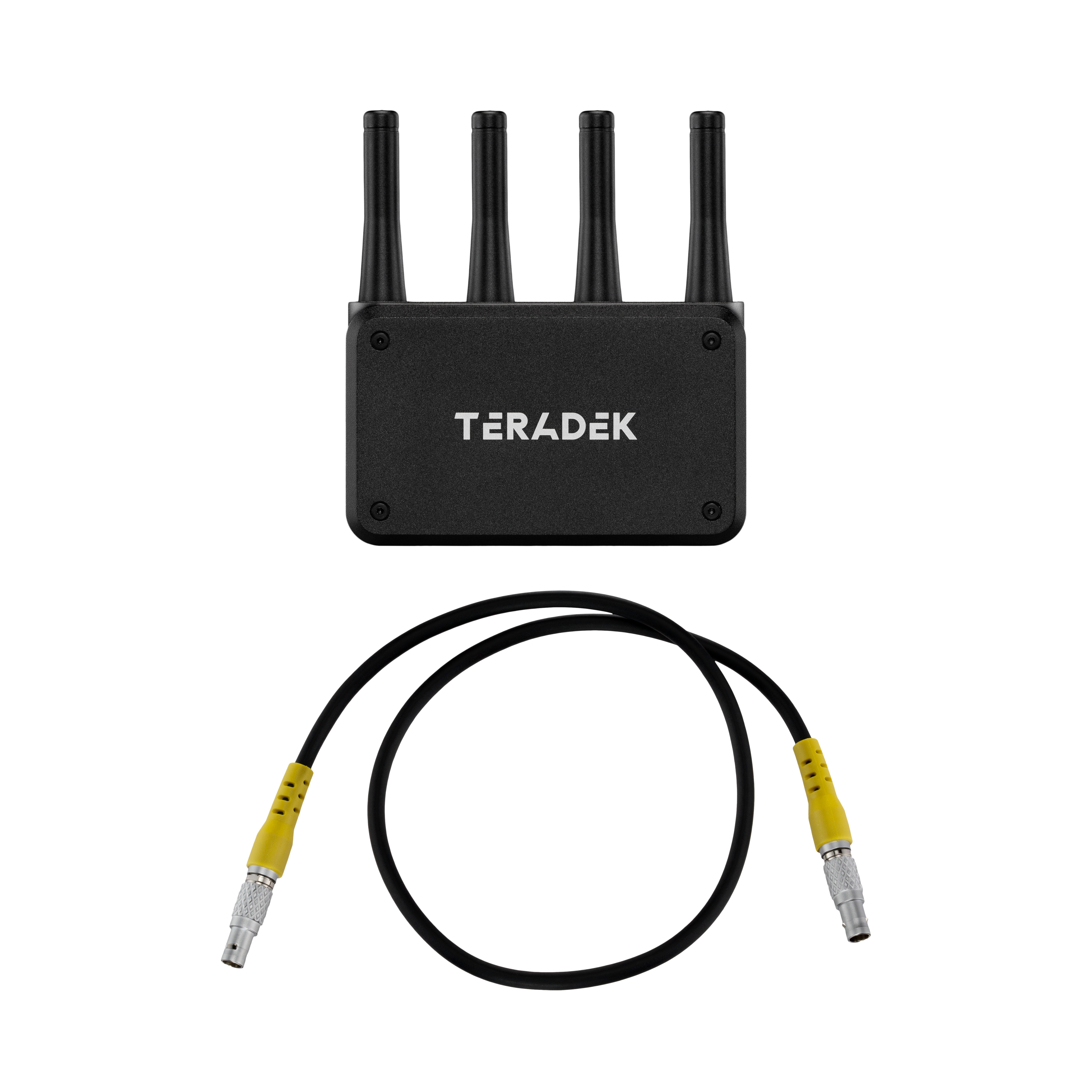

The milled-aluminum housing accepts external antennas and offers three 1/4-inch-20 mounting points. The manufacturer specifies up to 480 Mb/s uplink and downlink on supported 5G networks; actual throughput depends on the carrier, coverage and network conditions. The modem carries data rather than encoding video itself.

NODE 5G · 5-PIN CONFIGURATION

5G DATA LINK FOR FIELD VIDEO

Add a cellular network path to a compatible Teradek production device through the locking 5-pin connection. This 10-0033-L kit is the 5-pin-to-5-pin cable variant, not the USB-A or USB-C version.

THE 5-PIN CONNECTION

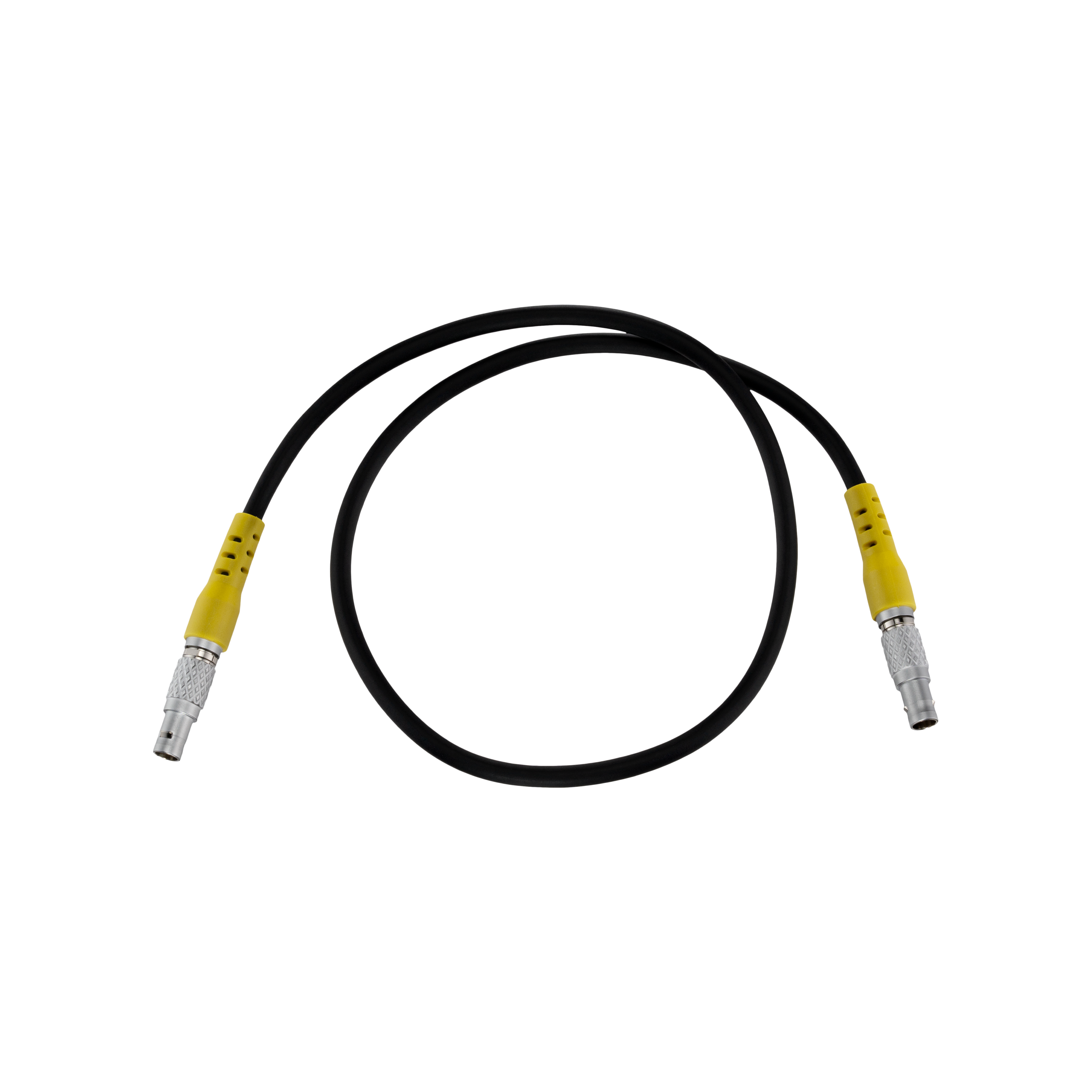

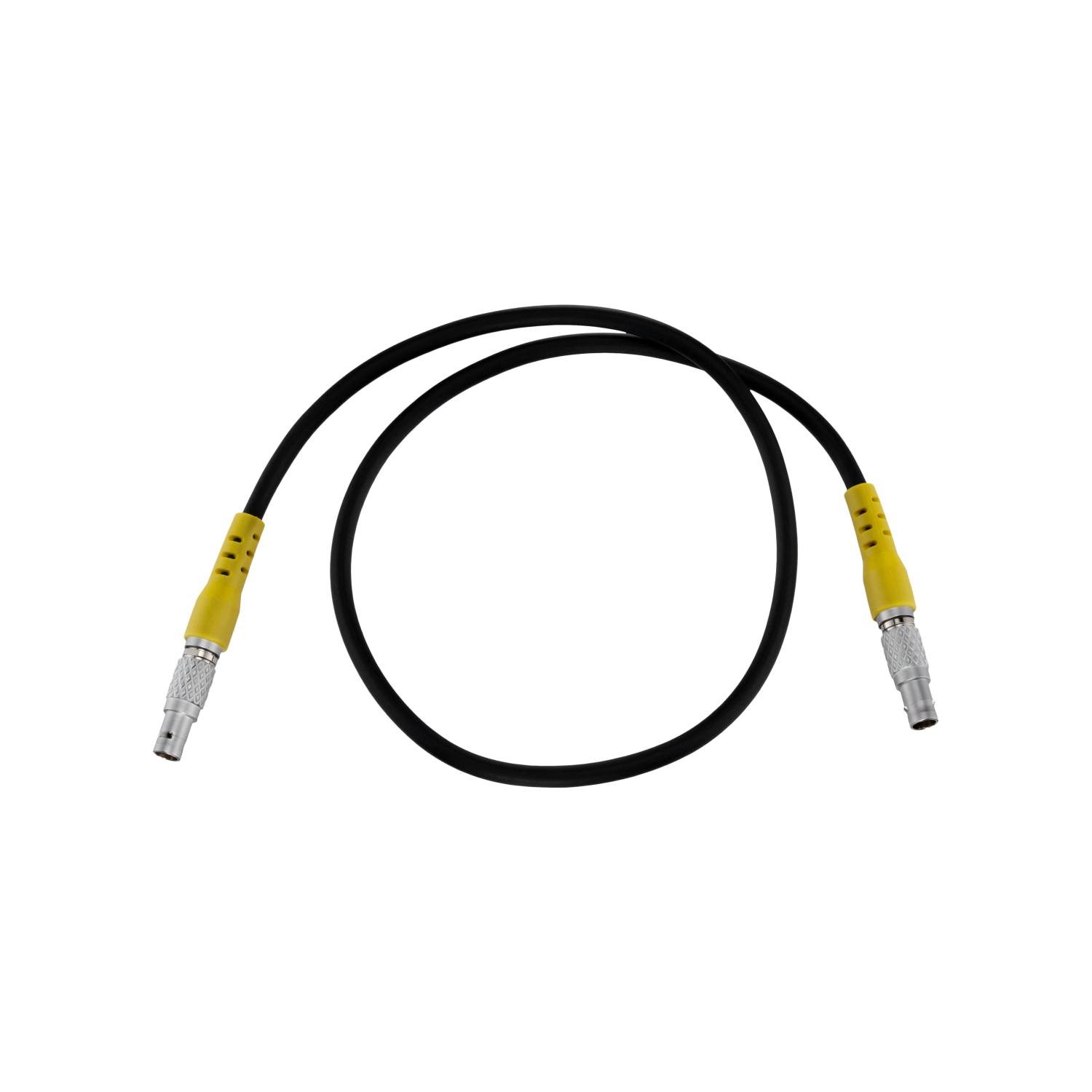

This detail shows the locking 5-pin-to-5-pin cable supplied with configuration 10-0033-L. Check the matching connector on the host device before ordering.

PUBLIC OR PRIVATE CELLULAR NETWORKS

Node 5G supports sub-6 GHz 5G SA/NSA, LTE and CBRS-capable private-network bands. A nano-SIM slot and embedded Teradek Data eSIM allow the network service to be chosen for the location; an active data plan is required.

BUILT FOR MOBILE PRODUCTION

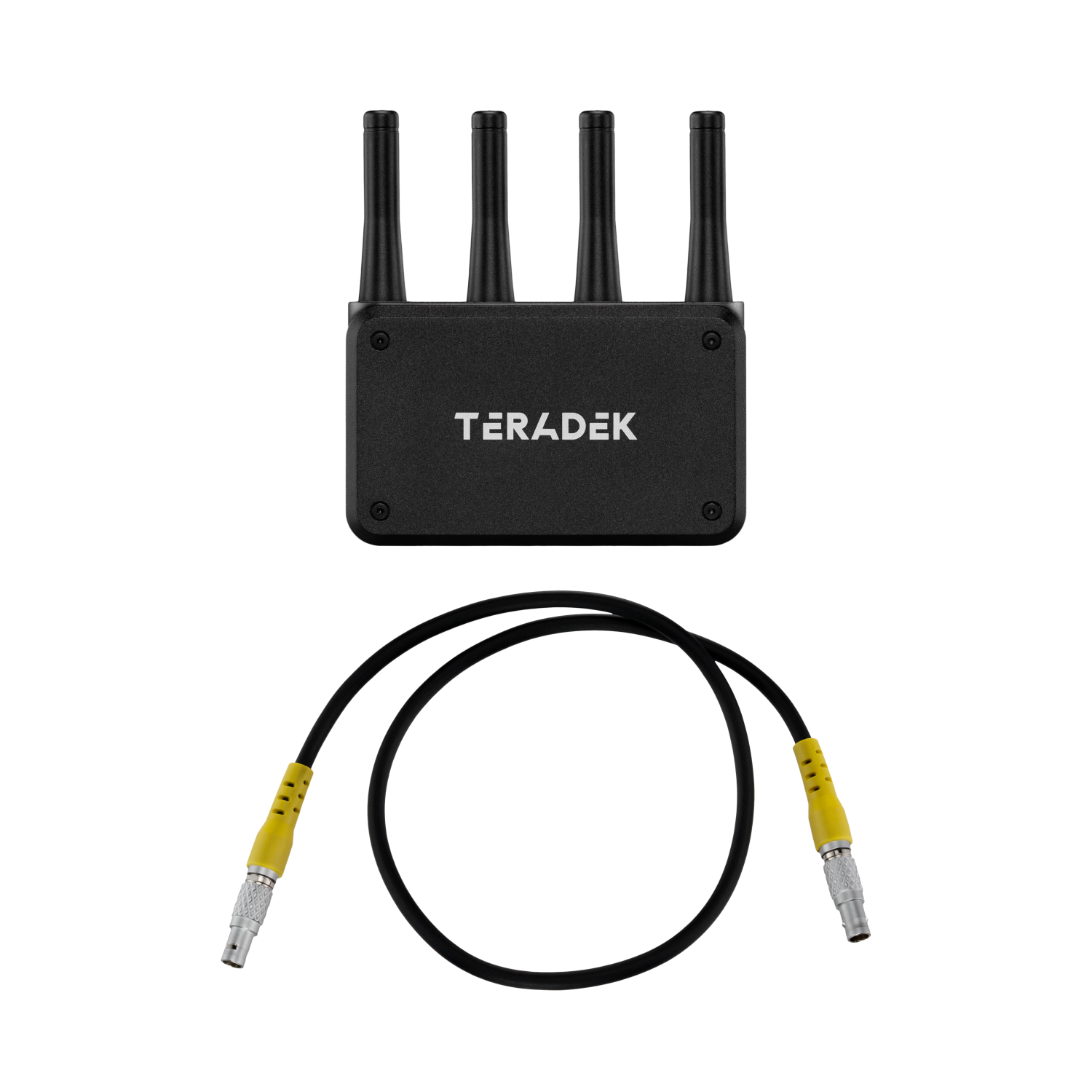

The aluminum chassis, four external antenna positions and three 1/4-inch-20 mounting points suit field rigs. Attach the matching locking 5-pin cable to a compatible host; the modem provides connectivity and does not encode the camera signal by itself.

WHY CHOOSE NODE 5G

Teradek’s Node comparison shows that Node 5G adds 5G NR, CBRS support and a built-in Teradek Data eSIM to the Node II capabilities.

	Node II	Node II CBRS	Node 5G
5G NR	—	—	✓
CBRS private network	—	✓	✓
Two SIM options	✓	✓	✓
Built-in Teradek Data eSIM	—	—	✓
Teradek Data certification	✓	✓	✓

Node 5G

5G NR✓

CBRS private network✓

Two SIM options✓

Built-in Teradek Data eSIM✓

Teradek Data certification✓

Node II CBRS

5G NR—

CBRS private network✓

Two SIM options✓

Built-in Teradek Data eSIM—

Teradek Data certification✓

Node II

5G NR—

CBRS private network—

Two SIM options✓

Built-in Teradek Data eSIM—

Teradek Data certification✓

✓ supported · — not supported

Node 5G NR bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n39, n40, n41, n46, n48, n66, n70, n71, n75, n76, n77, n78, n79

Based on Teradek’s manufacturer comparison.
