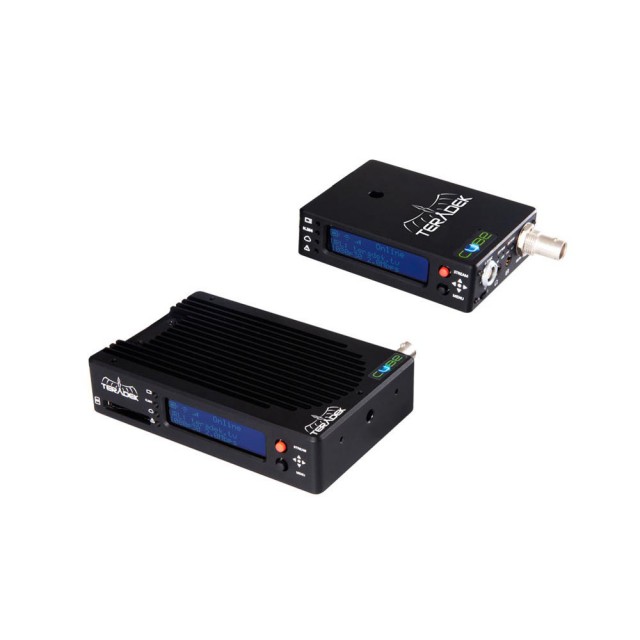

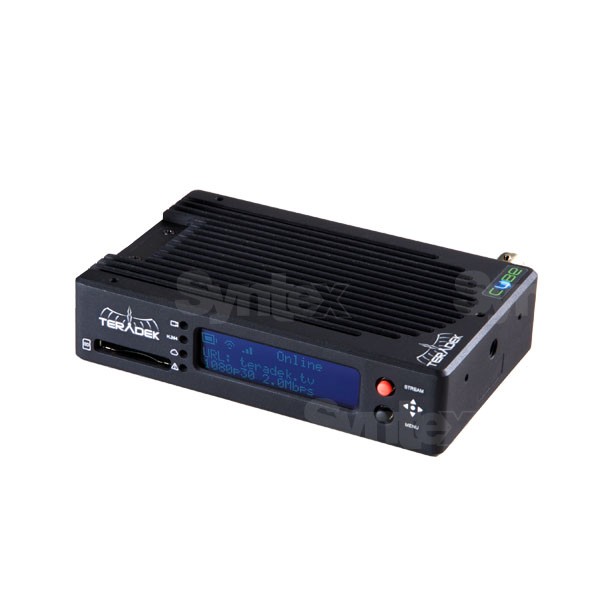

Teradek Cube 605 HD-SDI Encoder (10/100 USB)

The Teradek Cube 605 is a real-time H.264 encoder with 3G-SDI and HDMI inputs. It encodes up to 1080p video at bit rates up to 15 Mbps, allowing high-quality images to be streamed over Ethernet or USB

More information

2 335.75 € with VAT 1 930.37 € without VAT
-+
Personal pickup: 06. 02. from 09:00
Shipment day: 06. 02.
In stock 1 pcs
Praha 1 pcs
Product description

Product description

The Teradek Cube 605 is a real-time H.264 encoder with 3G-SDI and HDMI inputs. It encodes up to 1080p video at bit rates up to 15 Mbps, allowing high-quality images to be streamed over Ethernet or USB

Product Highlights

  • Real-Time H.264 (AVC) Encoder
  • Ethernet and USB, WiFi - no
  • HDMI and SDI video inputs
  • Built-in color correction
  • SD card slot
  • Power supply via 2-pin connector
  • Can connect with up to 6 iOS devices

PACKAGE CONTENT

1 x 2-pin Connector to 18W AC Power Adapter
1 x Ethernet Cable
1 x SDI Cable (BNC to BNC)
1 x HDMI Cable (Full Type A to Full Type A)
1 x 1-Year Warranty

SPECIFICATIONS

Video Inputs
1 x SD/HD-SDI (75 Ohm BNC)
1 x HDMI Type-A Receptacle

Video Compression : H.264, Baseline, Main and High Profile
Test Pattern Generator Support : Supports Custom Test Pattern

Color Correction :

CDL/1024 1D LUT (10-bit color)

Control via : Teradek Core
Streaming on platforms :

Ustream, YouTube Live, Facebook & new Livestream

Audio Compression :

AAC-LC, MPEG Layer 2

Audio Input : Embedded Audio Input

Wireless : No

Usb :

USB 3G/4G

Power : 2 Pin Connector
Battery : No
Power : 7W (no WiFi), 6-28V DC

Parameters

Parameters

Manufacturer: Teradek
Category: Wireless video transmission

Main parameters

Stream codec INAVC(H.264)
Video inputHDMI
Video input3G-SDI
Input wireless videoSDI
Input wireless videoHDMI
Stream codec OUTAVC(H.264)
