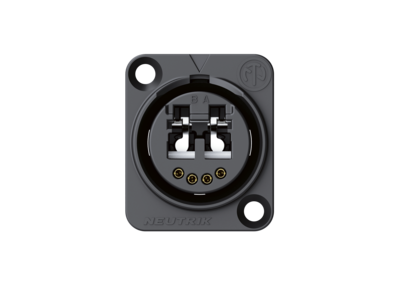

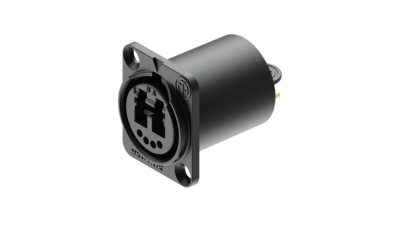

Neutrik NO2-4FDW-A opticalCON DUO ADVANCED Chassis Connector IP65

Neutrik opticalCON DUO ADVANCED panel-mount optical connector in a size D housing with a black chrome finish. A standard LC-Duplex connector plugs into the rear, while the front can accommodate either a rugged opticalCON connector or another LC connector. When connected and fitted with an SCDP cover, it achieves an IP65 rating.

The Neutrik NO2-4FDW-A is a panel connector from the opticalCON DUO ADVANCED series featuring four solder contacts and one LC-Duplex feed-through socket. It functions as a feed-through: a standard LC-Duplex connector is plugged into the back, eliminating the need to fuse fibers directly into the panel during installation.

The housing has a standard size D profile and a black chrome finish. It features a push-pull latch, and an automatic cover with a silicone seal protects the optical connection from dust and debris. When connected with an SCDP-* cover, the assembly has an IP65 rating. The color coding of the SCDP-* covers complies with the ANSI/TIA-568.3-D standard: black for multimode, blue for single-mode PC, and green for single-mode APC.
